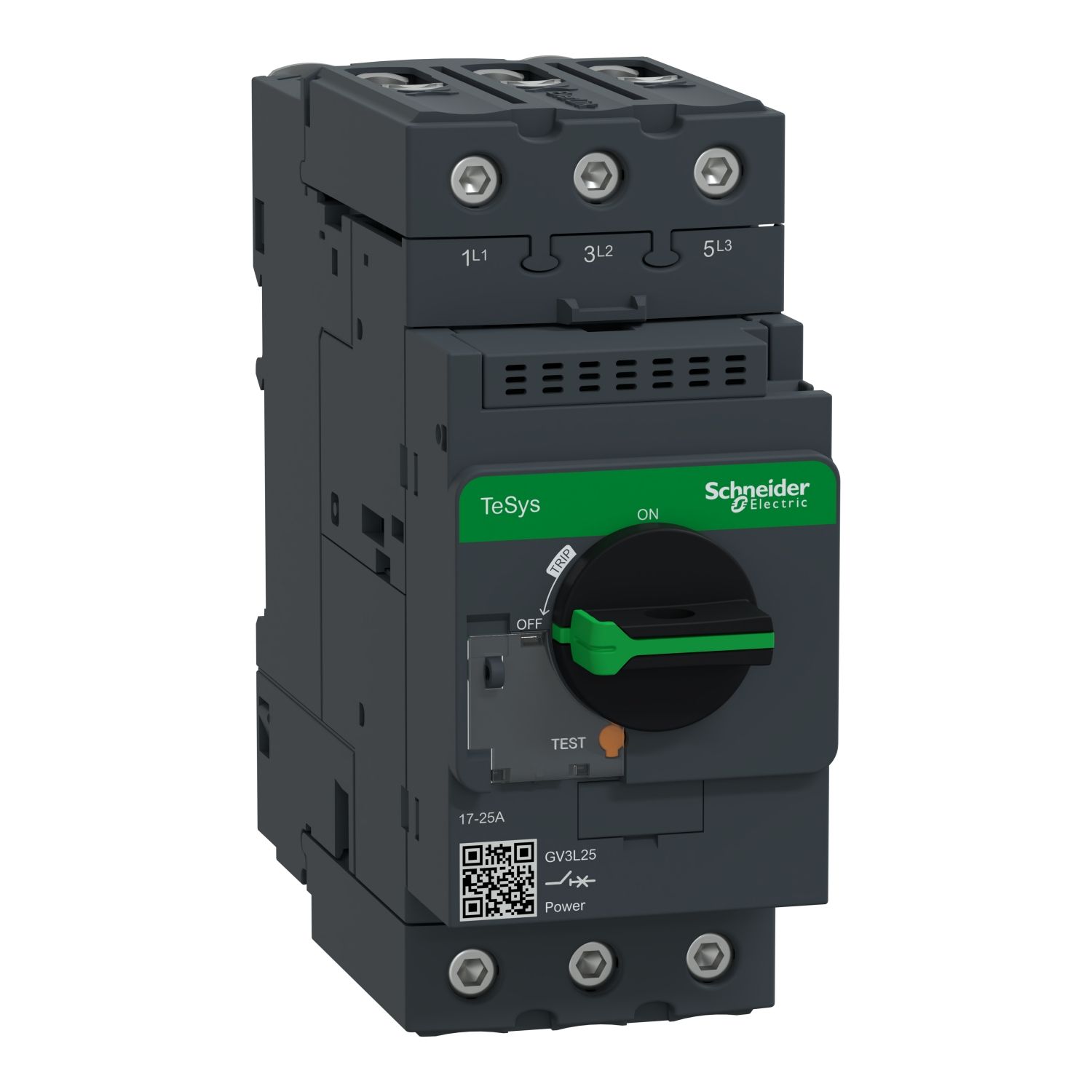

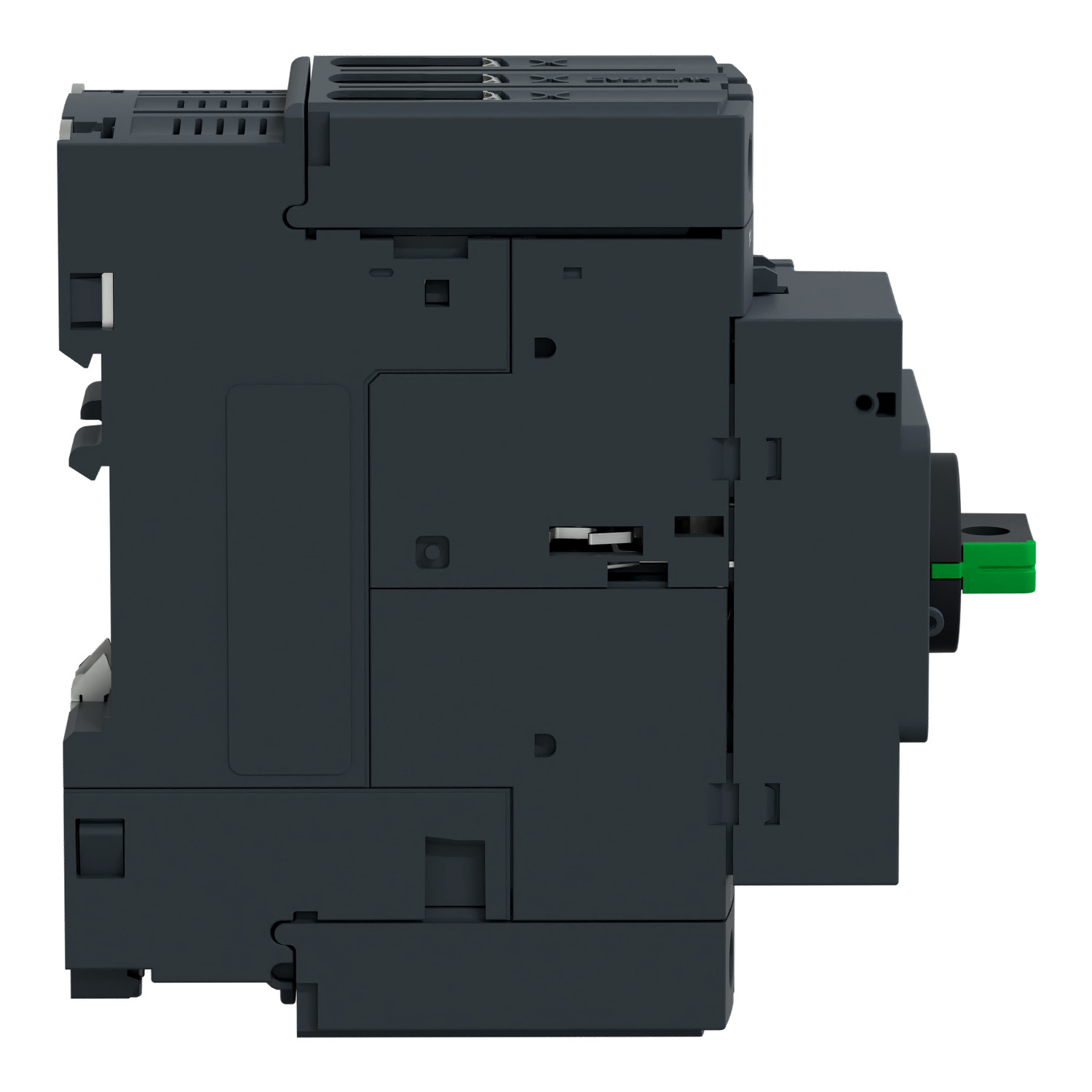

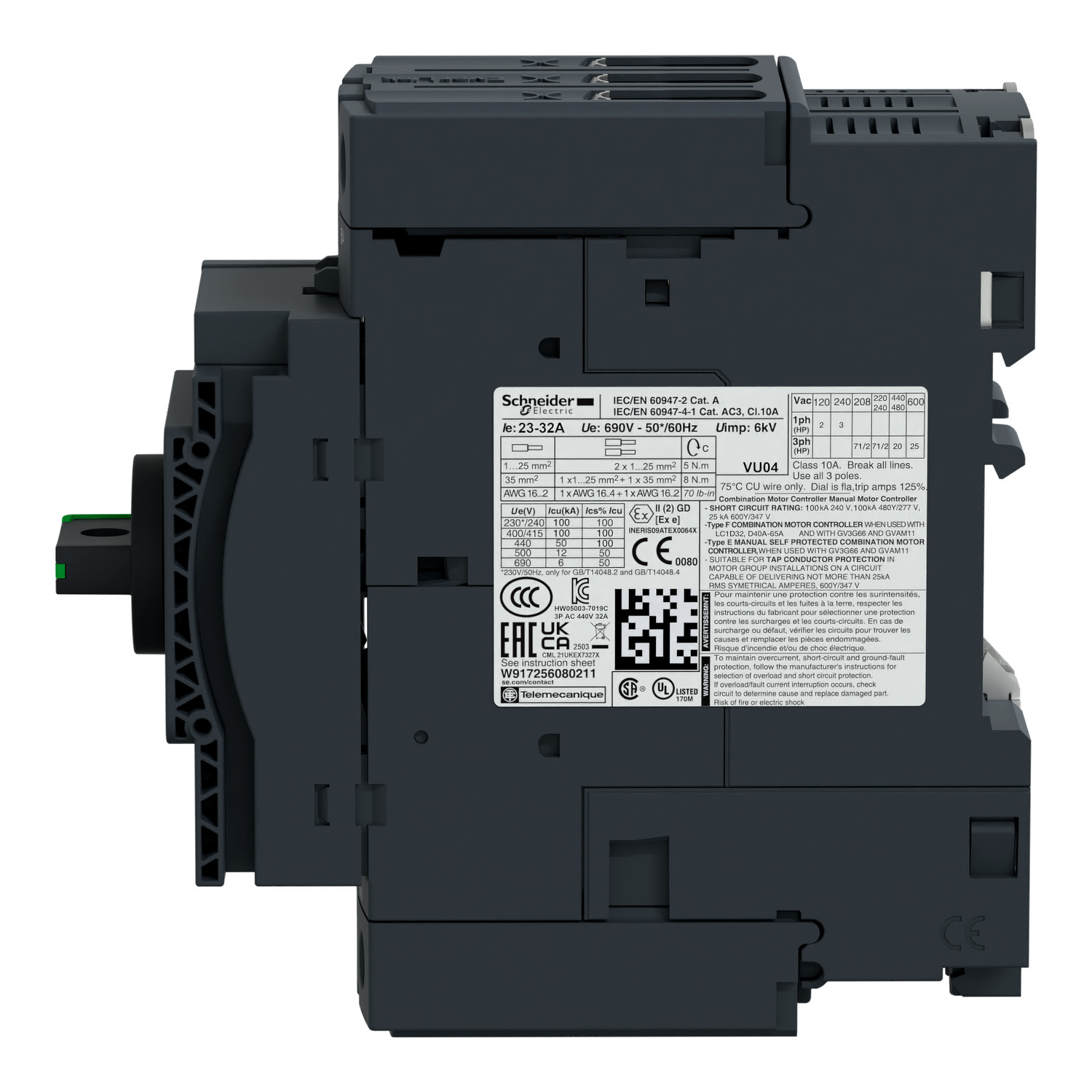

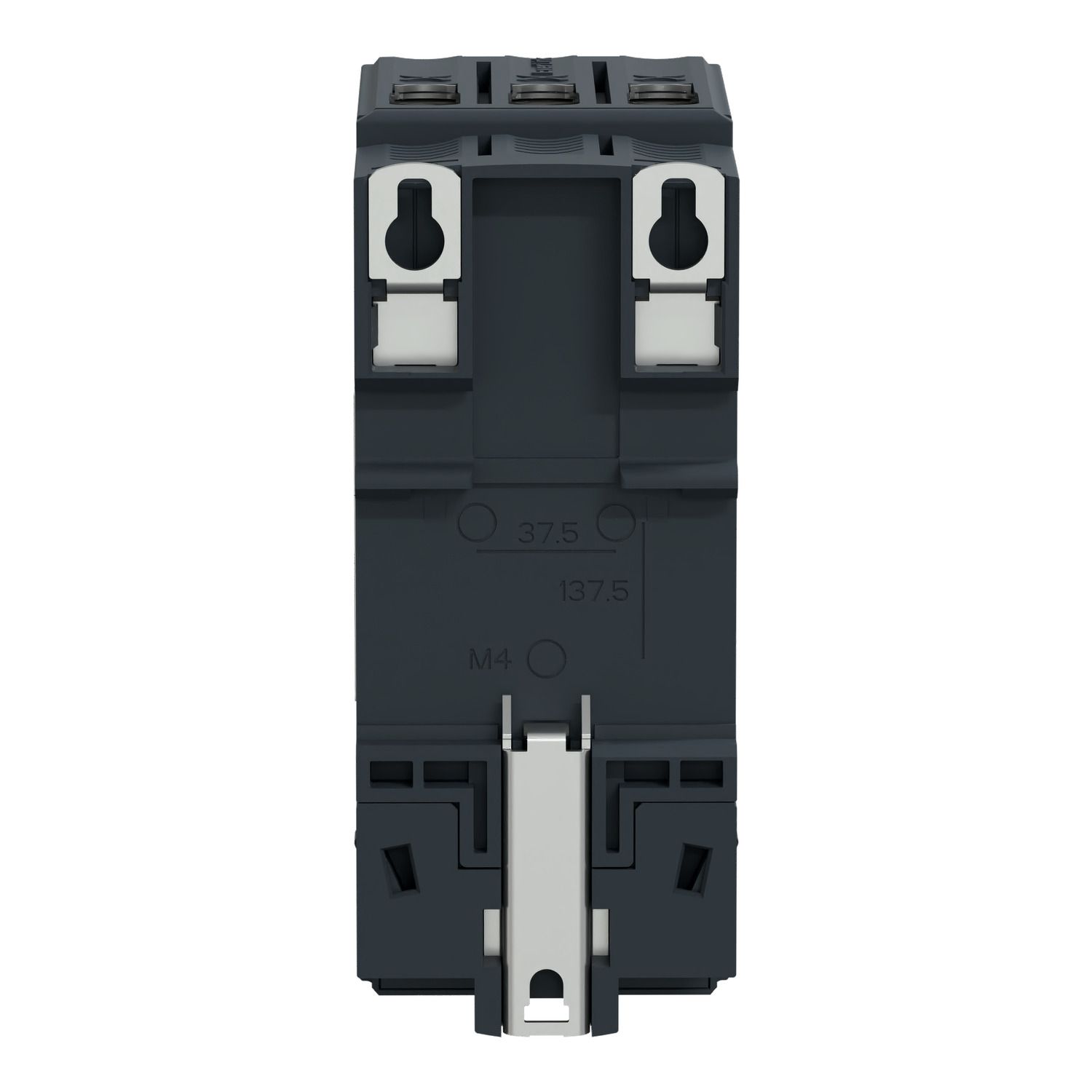

Motor circuit breaker,TeSys Deca frame 3,3P,25A,magnetic,rotary handle,EverLink terminals

Manufacturer: Schneider Electric

SKU: GV3L25

GTIN: 3389119405423

Catalog

User guide

Instruction sheet

Environmental Disclosure

Circularity Profile

Old price: $521.95 inc GST

Price: $207.16 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys GV motor circuit breaker, 3 poles (3P), 25A/690V, for 3-phase motor applications 11kW@400V. It provides a magnetic protection with a tripping level at 14xIn, high breaking capacity Icu 100kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary handle guaranteed for 50 000 cycles AC-3. To complete motor protection, use it in association with a thermal overload relay LRD325 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine).

Products specifications

Attribute name	Attribute value
Main
Device application	motor protection
Trip unit technology	magnetic
Device short name	GV3L
Range	TeSys Deca
Range of product	TeSys Deca, TeSys GV3
Product name	TeSys Deca, TeSys GV3
Product or component type	motor circuit breaker
Complementary
Compatibility code	GV3L
Suitability for isolation	yes conforming to IEC 60947-1
Electrical durability	50000 cycles for AC-3 at 415 V In
Power dissipation per pole	8 W
[Ics] rated service short-circuit breaking capacity	50 % at 690 V AC 50/60 Hz, 50 % at 500 V AC 50/60 Hz, 100 % at 440 V AC 50/60 Hz, 100 % at 400/415 V AC 50/60 Hz, 100 % at 230/240 V AC 50/60 Hz
Height	132 mm
[Ui] rated insulation voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
Net weight	0.96 kg
Network type	AC
Colour	dark grey
Mechanical durability	50000 cycles
Tightening torque	5 N.m - on screw clamp terminal
Breaking capacity	6 kA Icu at 690 V AC 50/60 Hz, 12 kA Icu at 500 V AC 50/60 Hz, 50 kA Icu at 440 V AC 50/60 Hz, 100 kA Icu at 400/415 V AC 50/60 Hz, 100 kA Icu at 230/240 V AC 50/60 Hz
Control type	rotary handle

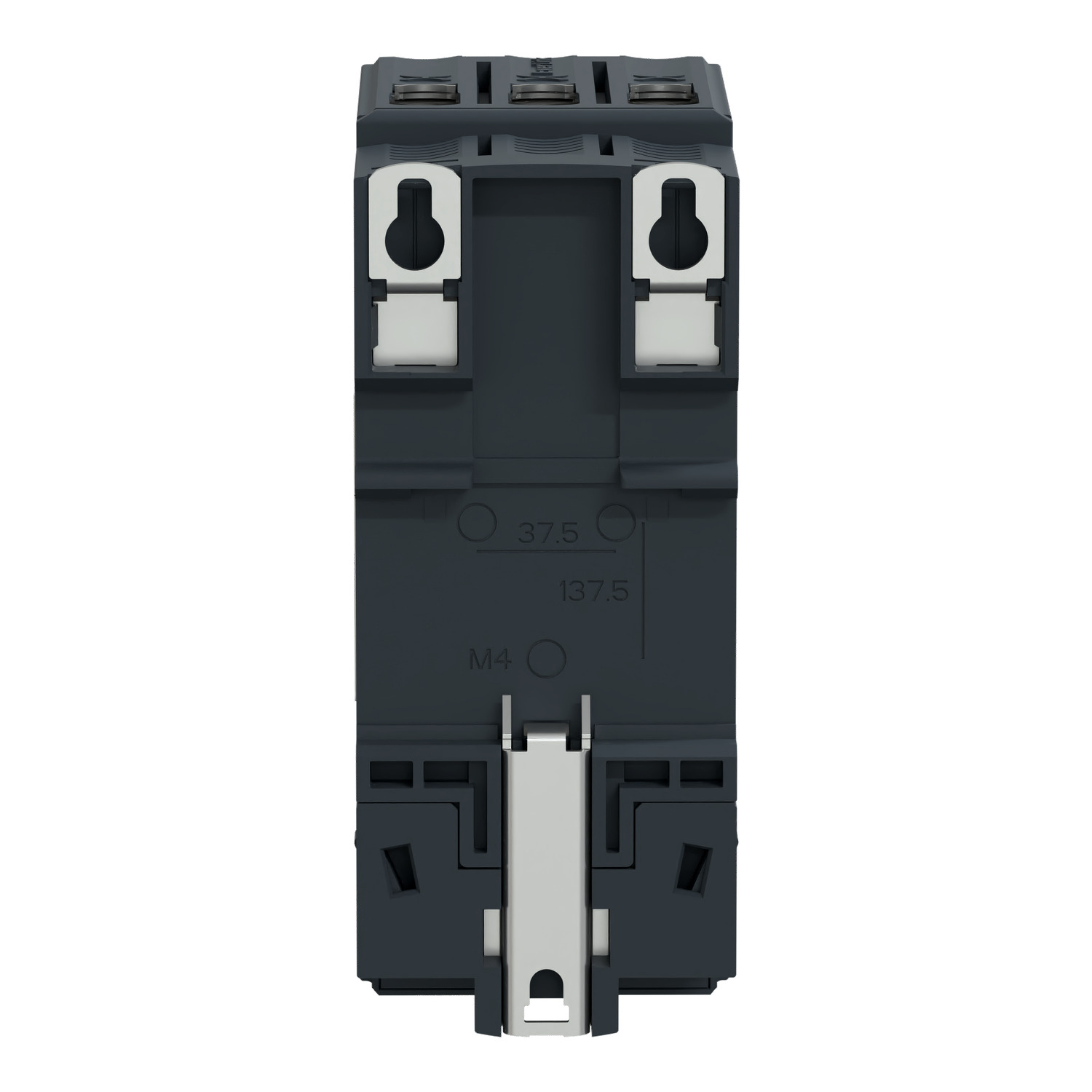

Fixing mode	panel: screwed (with 3 x M4 screws), 35 mm symmetrical DIN rail: clipped
Maximum operating rate	25 cyc/h
Magnetic tripping current	350-350 A
Network frequency	50/60 Hz
Depth	136 mm
Width	55 mm
Poles description	3P
Direct connector	without
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-2
Utilisation category	category A conforming to IEC 60947-2
Motor power kW	18.5-18.5 kW at 690 V AC 50/60 Hz, 15-15 kW at 500 V AC 50/60 Hz, 11-11 kW at 400/415 V AC 50/60 Hz
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current	25 A
Environment
Fire resistance	960 °C conforming to IEC 60695-2-11
Ambient air temperature for storage	-40-80 °C
Climatic withstand	conforming to IACS E10
Ambient air temperature for operation	-20-60 °C
Operating altitude	3000 m
Product certifications	UKCA, DNV-GL, ABS, BV, LROS (Lloyds register of shipping), EAC, CSA, UL, CCC
IP degree of protection	IP20 conforming to IEC 60529
Mechanical robustness	vibrations: 4 Gn, 5...300 Hz, shocks: 30 Gn for 11 ms contactor closed, shocks: 15 Gn for 11 ms contactor open
Standards	CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-2
