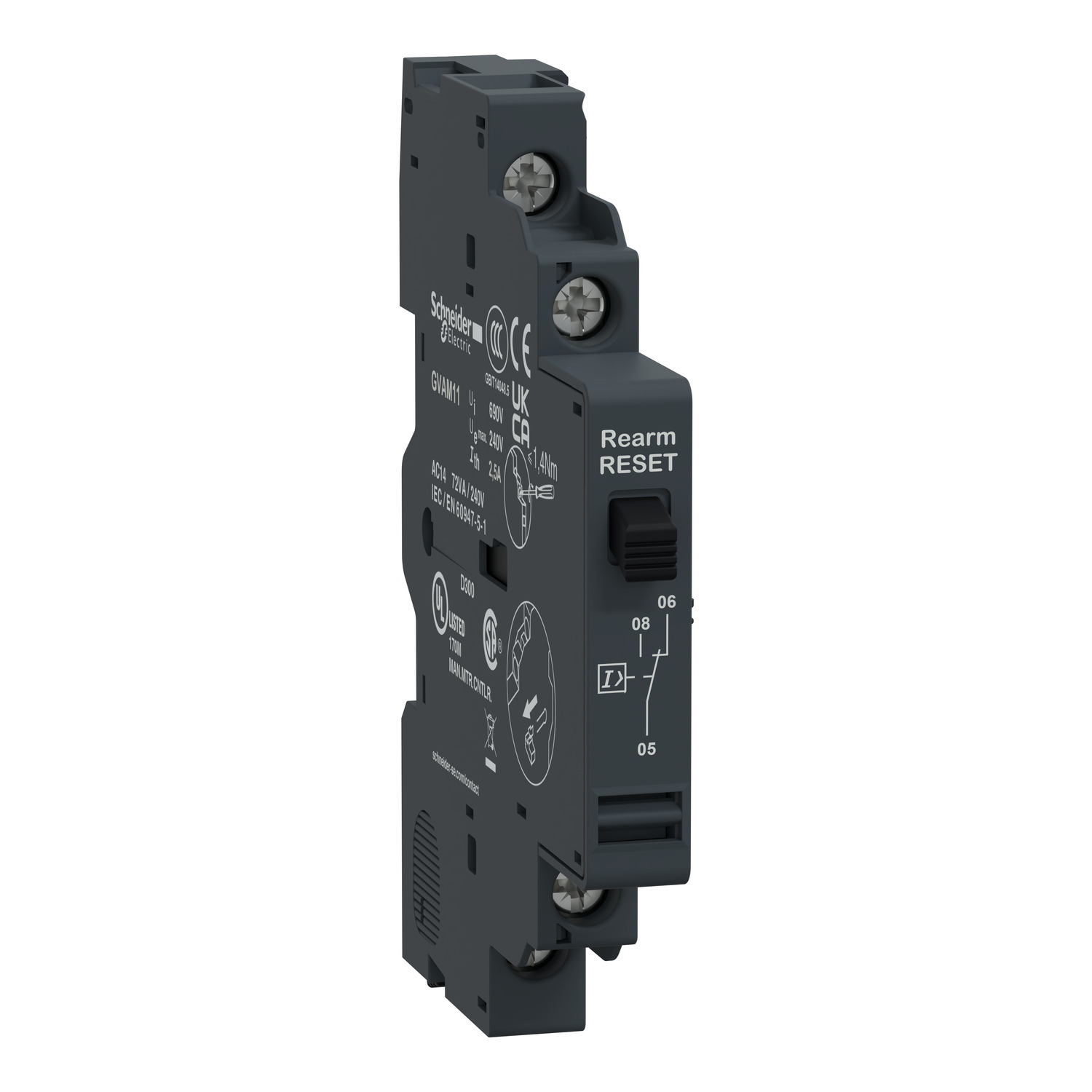

Auxiliary contact block, TeSys GV2, for motor circuit breakers, 2A/240V AC, 1A/60V DC

Manufacturer: Schneider Electric

SKU: GVAM11

GTIN: 3389110343564

Catalog

Instruction sheet

Environmental Disclosure

Circularity Profile

Old price: $224.40 inc GST

Price: $89.06 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1C/O contact for short circuit signaling. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Products specifications

Attribute name	Attribute value
Main
Device short name	GVAM
Auxiliary contacts operation	short-circuit signal 1 C/O
Product compatibility	GV2LE, GV3P, GV2P, GV3L, GV2RT, GV2ME, GV2L
Pole contact composition	1 C/O
Mounting location	left side
Range	TeSys Deca, TeSys
Product or component type	auxiliary contact block
Range compatibility	TeSys GV3 GV3L circuit breaker, TeSys GV3 GV3P circuit breaker, TeSys
Range of product	TeSys Deca, TeSys GV2, TeSys GV3
Complementary
Rated operational power in W	9 W at 60 V DC-13 - electrical durability: 1000 cycles, 24 W at 24 V DC-13 - electrical durability: 1000 cycles, 15 W at 48 V DC-13 - electrical durability: 1000 cycles, 240 W at 48 V DC-13 - electrical durability: 100000 cycles, 180 W at 60 V DC-13 - electrical durability: 100000 cycles, 140 W at 24 V DC-13 - electrical durability: 100000 cycles, 140 W at 110 V DC-13 - electrical durability: 100000 cycles, 120 W at 240 V DC-13 - electrical durability: 100000 cycles
Depth	66 mm
Width	9.3 mm
Colour	dark grey
Compatibility code	GVAM
Mechanical durability	100000 cycles
Rated operational power in VA	72 VA at 230-240 V AC-14 - electrical durability: 1000 cycles at 0.3 A, 72 VA at 110-127 V AC-14 - electrical durability: 1000 cycles at 0.5 A, 48 VA at 48-48 V AC-14 - electrical durability: 1000 cycles at 1 A, 36 VA at 24-24 V AC-14 - electrical durability: 1000 cycles at 1.5 A
Tightening torque	1.4 N.m - on screw clamp terminals
Minimum switching voltage	17 V
[Ui] rated insulation voltage	300 V conforming to CSA C22.2 No 14, 300 V conforming to UL 508, 690 V conforming to IEC 60947-1
Net weight	0.055 kg
Protection type	gG fuse 10 A, GB2CB... circuit breaker
[Ue] rated operational voltage	24...60 V DC, 24...240 V AC
[Ith] conventional free air thermal current	2.5 A for fault signalling
Height	89 mm
Minimum switching current	5 mA
Environment
Environmental characteristic	normal environment
Product certifications	UKCA
