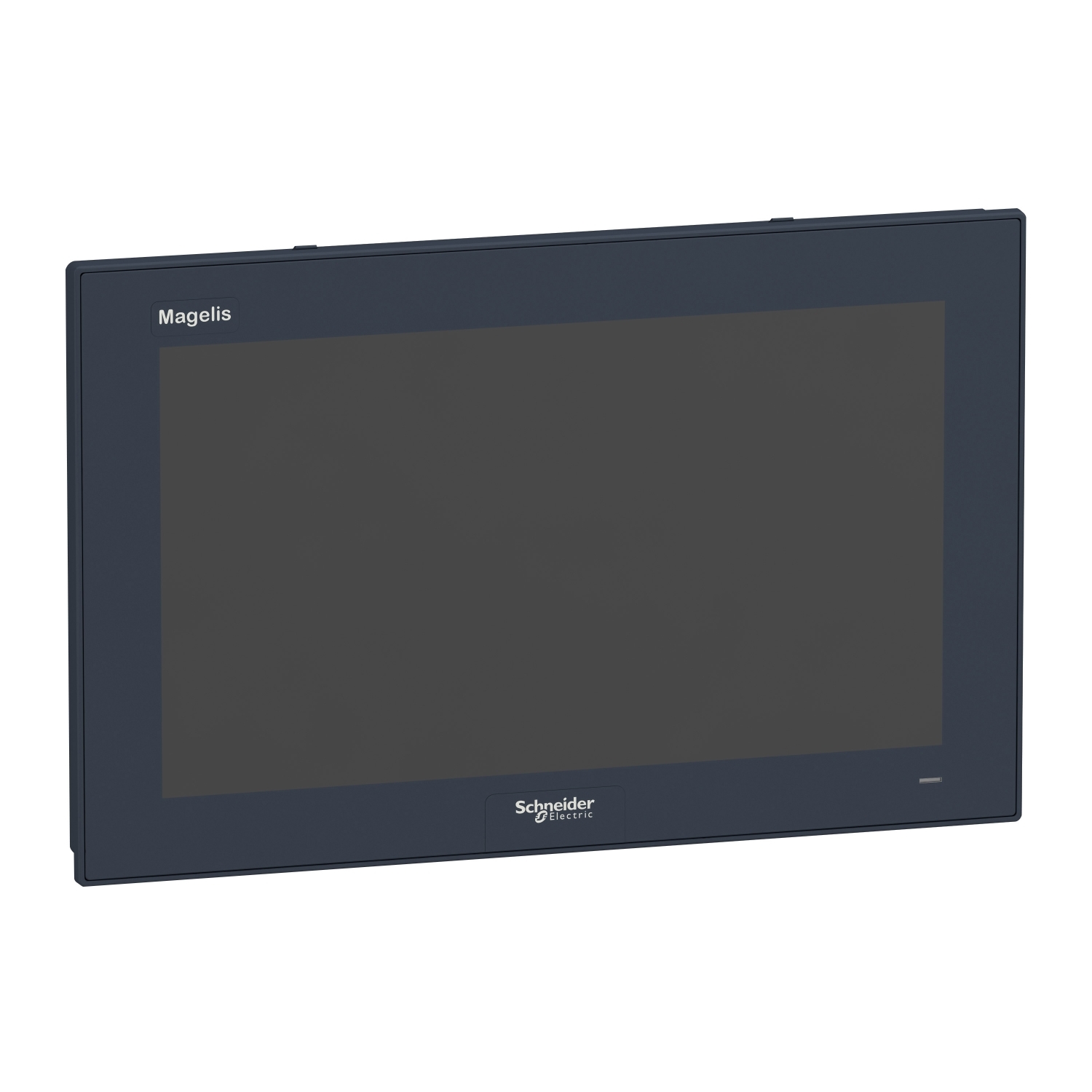

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Operating system | Windows 10 IoT Enterprise 64 bitmulti-language |
| Display colour | 16777216 colors |
| Display size | 15.6 inch |
| Free slots | 1 CFast, 1 Internal SATA HDD/SSD |
| Processor name | Intel Core i3 4010U at 1.7 GHz |
| Chipset type | Intel QM87 |
| Software package | Vijeo Citect DVD SCADA license not included, EcoStruxure augmented operator advisor server augmented operator license not included, EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only, EcoStruxure Operator Terminal Expert run time HMI license not included, EcoStruxture secure connect advisor annual subscription cyber security license not included |
| Range of product | Harmony iPC |
| Luminance | 300 cd/m² |
| Product or component type | multi-touch screen |
| Video controller type | Intel HD Graphics 4400 |
| Pixel resolution | 4096 x 4096 |
| Complementary | |
| Data storage equipment | 256 GB back side SSD 1500000 h mtbf |
| Display type | colour TFT LCD, LED |
| Type of cooling | passive, fanless |
| Cut-out dimensions | 412.4 (+/- 0.7) x 261.7 (+/- 0.4) |
| Display size | 15" wide multi-touch |
| Function available | operate with water on screen |
| Watchdog timer | 1-255 ms |
| [Us] rated supply voltage | 100...240 V AC with additional adaptor HMIYPSPMAC1, 24 V DC +/- 20 % |
| Height | 269 mm |
| Electrical connection | connector, connector type: SMA, 3 ways |
| Backlight lifespan | 50000 hours |
| Mechanical robustness | hardness anti-scratch 7H |
| Power consumption in W | 18-60 W |
| Aspect ratio | 16:9 |
| Depth | 56.7 mm |
| Width | 419.7 mm |
| Local signalling | LED (orange) for stand-by, LED (green) for on, buzzer |
| Touch panel | projected capacitive technology (PCT) |
| Memory type | 8 GB RAM DDR3 internal |
| View angle horizontal x vertical | 150 x 140° |
| Net weight | 6 kg |
| Terminal type | touchscreen display |
| Display resolution | 1366 x 768 pixels WXGA |
| Main type | Performance |
| Number of slots | 1 mini PCI Express full-size |
| Number of points | 5 |
| Environment | |
| IP degree of protection | IP66 front panel: |
| Relative humidity | 10-95 % non-condensing |
| Ambient air temperature for storage | -20-60 °C |
| Directives | 2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility |
| Pollution degree | 2 |
| Ambient air temperature for operation | 0-45 °C Mini PCIe, 0-45 °C HDD, 0-55 °C Cfast card, 0-55 °C SSD |
| Operating altitude | 2000 |
| Vibration resistance | 2 gn (f = 5-500 Hz)Cfast card, 2 gn (f = 5-500 Hz)SSD, 1 gn (f = 5-500 Hz)HDD |
| Standards | CSA C22.2 No 60950, UL 60950, IEC 60950, CISPR 11, IEC 61000-6-2, IEC 61000-6-4, FCC part 15 class A |
| Product certifications | RCM, CCC, C-Tick, AS/NZS, CE, EAC |
