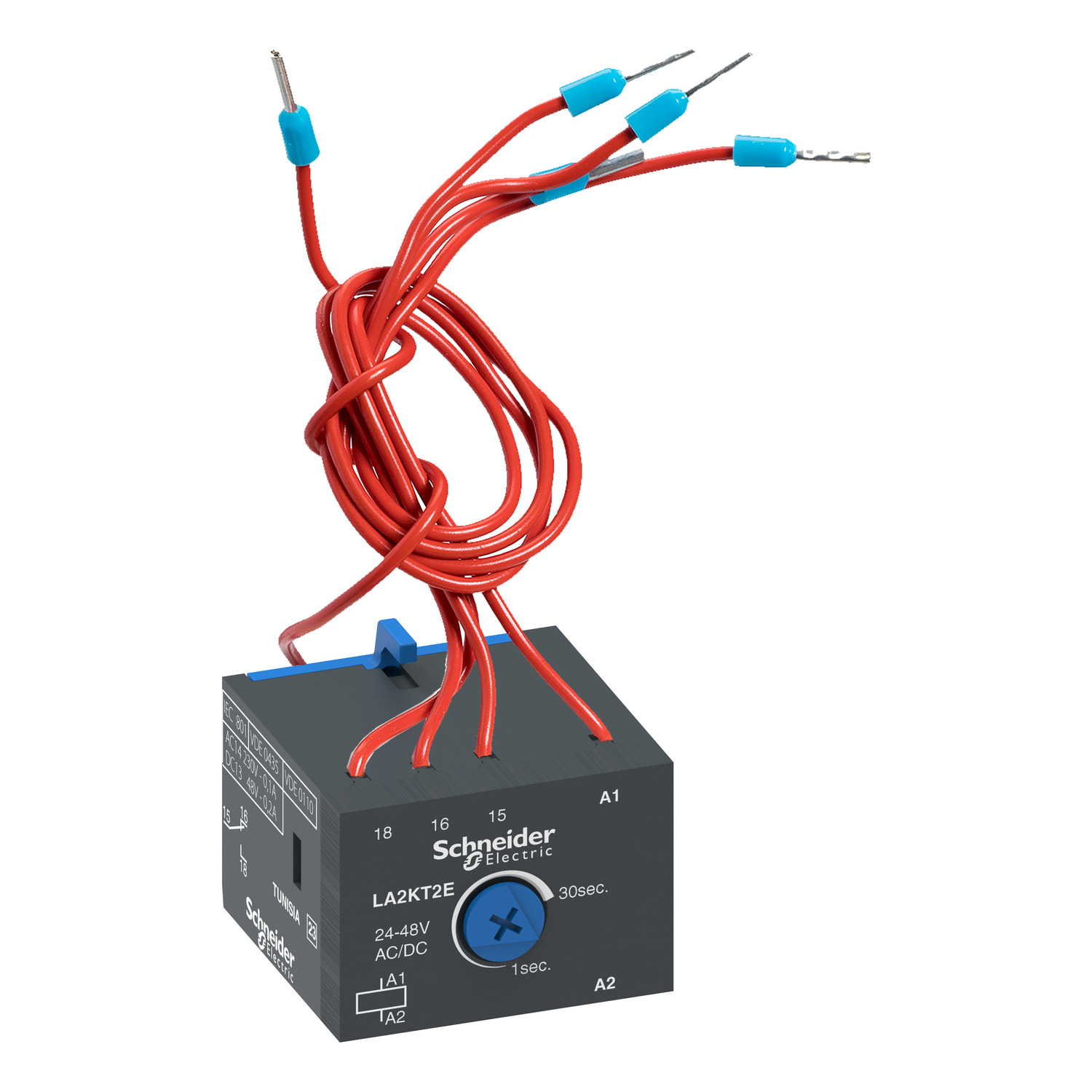

Electronic time delay Auxiliary Contact Block, TeSys k, TeSys K, 1C/O, on delay 1-30s, front, control 24-48 V AC/DC

Manufacturer: Schneider Electric

SKU: LA2KT2E

GTIN: 3389110230048

Catalog

Instruction sheet

Environmental Disclosure

CAD

Old price: $139.48 inc GST

Price: $55.36 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys K electronic time delay contact block, for contactors LC.K, LP.K, CA.K. It provides 1C/O contact rated up to 2A 240V AC, with an on-delay setting range 1-30s. To be used for contactors with 24-48V AC/DC coils (B7 to E7, BD to ED). Front mounting by clip-on, connections by attached wires to the contactor. It conforms to RoHS/REACh regulation.

Products specifications

Attribute name	Attribute value
Main
Device short name	LA1
Auxiliary contacts operation	time delay
Range	TeSys
Rated operational voltage limits	0.85...1.1 Uc
Timer type	on delay
[Ith] conventional free air thermal current	2 A for signalling circuit
Range of product	TeSys K, TeSys K control relay
Time delay range	1...30 s
Pole contact composition	1 C/O
Mounting location	front
Product name	TeSys K
Product or component type	time delay auxiliary contact block
Range compatibility	TeSys K CA4K, TeSys K CA3K, TeSys K CA2K, TeSys K LC1K
[Ue] rated operational voltage	240 V AC for signalling circuit, 24...48 V AC/DC for control circuit
Standards	CSA C22.2 No 60947-5-1, UL 60947-5-1, EN/IEC 60947-5-1
Product certifications	UKCA, CE, CSA, UL
Complementary
Compatibility code	LA1
Connections - terminals	slip-on terminals
Height	27 mm
Shielding continuity terminal	without
Depth	38 mm
Width	38 mm
Reset time	0.5 s after time delay, 1.5 s during time delay
Net weight	0.04 kg
Insulation resistance	> 10 MOhm
Environment
Protective treatment	TC conforming to IEC 60068
Environmental characteristic	normal environment
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-10-60 °C
