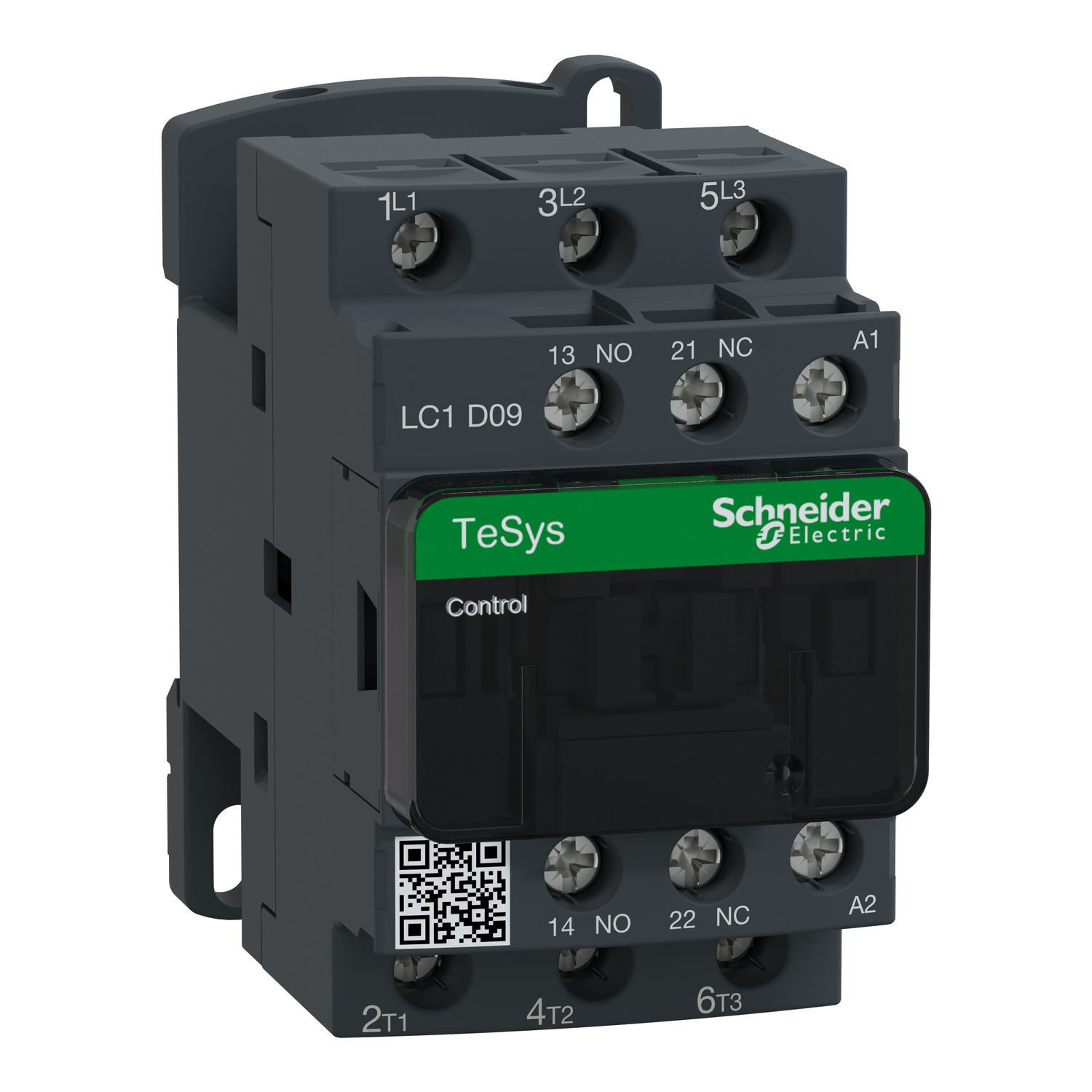

Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 9A, 24VAC 50/60Hz coil, bulk qty

Manufacturer: Schneider Electric

SKU: LC1D09B7TQ

GTIN: 3389110348699

Catalog

Environmental Disclosure

Instruction sheet

Circularity Profile

Old price: $93.06 inc GST

Price: $36.94 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 24V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Pack of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Products specifications

Attribute name	Attribute value
Main
[Ie] rated operational current	9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Utilisation category	AC-3e, AC-1, AC-3
[Uc] control circuit voltage	24 V AC 50/60 Hz
Device short name	LC1D
Range	TeSys Deca, TeSys
Range of product	TeSys Deca
Poles description	3P
Product or component type	contactor
Contactor application	resistive load, motor control
[Ue] rated operational voltage	power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility code	LC1D
Associated fuse rating	25 A at <= 690 V coordination type 1 for power circuit, 20 A at <= 690 V coordination type 2 for power circuit, 10 A gG for control circuit conforming to IEC 60947-5-1
Control circuit type	AC at 50/60 Hz
Protective cover	with
[Ui] rated insulation voltage	power circuit: 690 V conforming to IEC 60947-4-1, control circuit: 690 V conforming to IEC 60947-4-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified, control circuit: 600 V UL certified, control circuit: 600 V CSA certified
Overvoltage category	III
Coil technology	without built-in bidirectional peak limiting diode suppressor
Inrush power in VA	70-70 VA cos phi 0.75 (at 20 °C)
Auxiliary contact composition	1 NO + 1 NC
Average impedance	2.5 mOhm - Ith 25 A 50 Hz for power circuit
Power dissipation per pole	0.2 W AC-3e, 1.56 W AC-1, 0.2 W AC-3
Minimum switching current	5 mA for control circuit
Non-overlap time	1.5 ms on energisation between NC and NO contacts, 1.5 ms on de-energisation between NC and NO contacts
Heat dissipation	2-3 W at 50/60 Hz for control circuit
Mechanical durability	15000000 cycles
Tightening torque	power circuit: 1.7 N.m - with screwdriver pozidriv No 2, control circuit: 1.7 N.m - with screwdriver pozidriv No 2, power circuit: 1.7 N.m - with screwdriver Philips No 2, power circuit: 1.7 N.m - with screwdriver flat Ø 6 mm, control circuit: 1.7 N.m - with screwdriver Philips No 2, control circuit: 1.7 N.m - with screwdriver flat Ø 6 mm
Minimum switching voltage	17 V for control circuit
Operating time	12...22 ms closing, 4...19 ms opening
Irms rated making capacity	250 A at 440 V for power circuit conforming to IEC 60947, 140 A AC for control circuit conforming to IEC 60947-5-1
Rated breaking capacity	250 kA at 440 V for power circuit conforming to IEC 60947
Safety reliability level	B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits	0.85...1.1 Uc (60-60 °C):operational AC 60 Hz, 0.8...1.1 Uc (60-60 °C):operational AC 50 Hz, 0.3...0.6 Uc (60-60 °C):drop-out AC 50/60 Hz
[Ith] conventional free air thermal current	25 A (at 60 °C) for power circuit, 10 A (at 60 °C) for control circuit
Motor power hp	2 hp at 200/208 V AC 50/60 Hz for 3 phases motors conforming to UL, 7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors conforming to UL, 7.5 hp at 575/600 V AC 50/60 Hz for 3 phases motors conforming to CSA, 5 hp at 460/480 V AC 50/60 Hz for 3 phases motors conforming to UL, 5 hp at 460/480 V AC 50/60 Hz for 3 phases motors conforming to CSA, 2 hp at 230/240 V AC 50/60 Hz for 3 phases motors conforming to UL, 2 hp at 230/240 V AC 50/60 Hz for 3 phases motors conforming to CSA, 2 hp at 200/208 V AC 50/60 Hz for 3 phases motors conforming to CSA, 1 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to UL, 1 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to CSA, 0.5 hp at 115 V AC 60 Hz for 1 phase motors conforming to UL, 0.5 hp at 115 V AC 60 Hz for 1 phase motors conforming to CSA
Motor power kW	2.2 kW at 400 V AC (AC-4), 2.2 kW at 220...230 V AC 50/60 Hz, 4 kW at 415...440 V AC 50/60 Hz, 5.5 kW at 660...690 V AC 50/60 Hz, 5.5 kW at 500 V AC 50/60 Hz, 4 kW at 380...400 V AC 50/60 Hz
Hold-in power consumption in VA	7-7 VA 50/60 Hz cos phi 0.3 (at 20 °C)
Maximum operating rate	3600 cyc/h 60 °C
Connections - terminals	power circuit: screw clamp terminal 2 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminal 2 1-4 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminal 2 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminal 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminal 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminal 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: solid without cable end
Pole contact composition	3 NO
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947
Insulation resistance	> 10 MOhm for control circuit
Mounting support	rail, plate
Environment
Fire resistance	850 °C conforming to IEC 60695-2-1
Quantity per set	set of 10
Mechanical robustness	vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor opened (2 Gn, 5...300 Hz) , shocks contactor closed (15 Gn for 11 ms) , shocks contactor opened (10 Gn for 11 ms)
Climatic withstand	conforming to IEC 60947-1 Annex Q category D exposure to damp heat, conforming to IACS E10 exposure to damp heat
Standards	IEC 60335-1, EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508, EN/IEC 60947-4-1
Height	77 mm
Permissible ambient air temperature around the device	-40-70 °C at Uc, -5-60 °C
Operating altitude	3000 m without derating
Net weight	3.2 kg
Product certifications	UKCA, RINA, GL, GOST, CCC, LROS (Lloyds register of shipping), CSA, BV, DNV, UL
IP degree of protection	IP2X conforming to VDE 0106, IP2X conforming to IEC 60529
Depth	86 mm
Width	45 mm
Flame retardance	V1 conforming to UL 94
