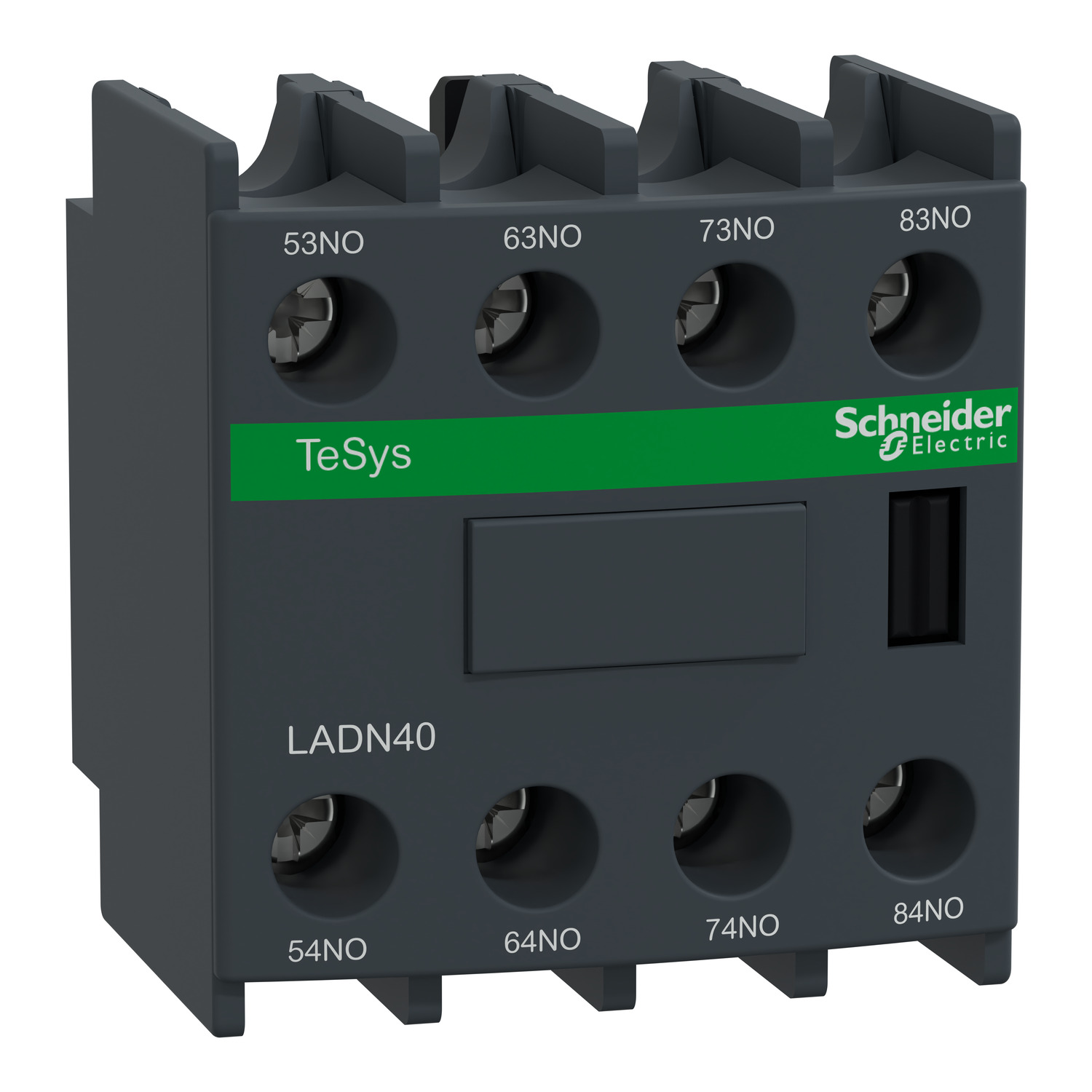

Auxiliary Contact Block, TeSys D, TeSys Deca, 4NO, front mounting, screw clamp terminals

Manufacturer: Schneider Electric

SKU: LADN40

GTIN: 3389110384437

Catalog

Instruction sheet

Environmental Disclosure

Old price: $103.51 inc GST

Price: $41.08 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys Deca instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 4NO contacts rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Sustainability compliant.

Products specifications

Attribute name	Attribute value
Main
[Ie] rated operational current	0.1 A at 600 V DC-13, 0.55 A at 125 V DC-13, 1.04 A at 690 V AC-15, 6 A at 120 V AC-15
[Ui] rated insulation voltage	600 V conforming to CSA, 600 V conforming to UL, 690 V conforming to IEC 60947-5-1
Mounting location	front
Range compatibility	TeSys Deca LC1D, TeSys Deca CAD, TeSys F CR1F, TeSys F LC1F, TeSys D LC1D, TeSys D CAD
Product certifications	UKCA, EAC, CCC, CSA, UL, CB
Device short name	LADN
Auxiliary contacts operation	instantaneous
Range	TeSys Deca, TeSys
[Ith] conventional free air thermal current	10 A (at 60 °C)
Range of product	TeSys Deca
Pole contact composition	4 NO
Product name	TeSys Deca
Product or component type	auxiliary contact block
[Ue] rated operational voltage	690 V AC 25...400 Hz
Standards	EN 50012, GB/T 14048.5, CSA C22.2 No 60947-5-1, UL 60947-5-1, EN/IEC 60947-5-1
Complementary
Connections - terminals	screw clamp terminals 2 cable(s) 1-4 mm²rigid without cable end, screw clamp terminals 1 cable(s) 1-4 mm²rigid without cable end, screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end
Height	48 mm
Net weight	0.05 kg
Minimum switching current	5 mA
Permissible short-time rating	140 A 60 °C 100 ms, 120 A 60 °C 500 ms, 100 A 60 °C 1 s
Non-overlap time	1.5 ms on energisation no overlap between NC and NO contact, 1.5 ms on de-energisation no overlap between NC and NO contact
Colour	dark grey
Mechanical durability	30 Mcycles
Tightening torque	1.7 N.m - with screwdriver pozidriv No 2, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver flat Ø 6 mm
Minimum switching voltage	17 V
Irms rated making capacity	250 A DC conforming to IEC 60947-5-1, 140 A AC conforming to IEC 60947-5-1
Protection type	gG fuse 10 A
Shielding continuity terminal	without
Depth	42 mm
Width	44 mm
Insulation resistance	> 10 MOhm
Environment
Ambient air temperature for storage	-60-80 °C
Operating altitude	3000 m
Protective treatment	TH conforming to IEC 60068
Environmental characteristic	normal environment
IP degree of protection	IP2X conforming to IEC 60529
Ambient air temperature for operation	-5-60 °C
