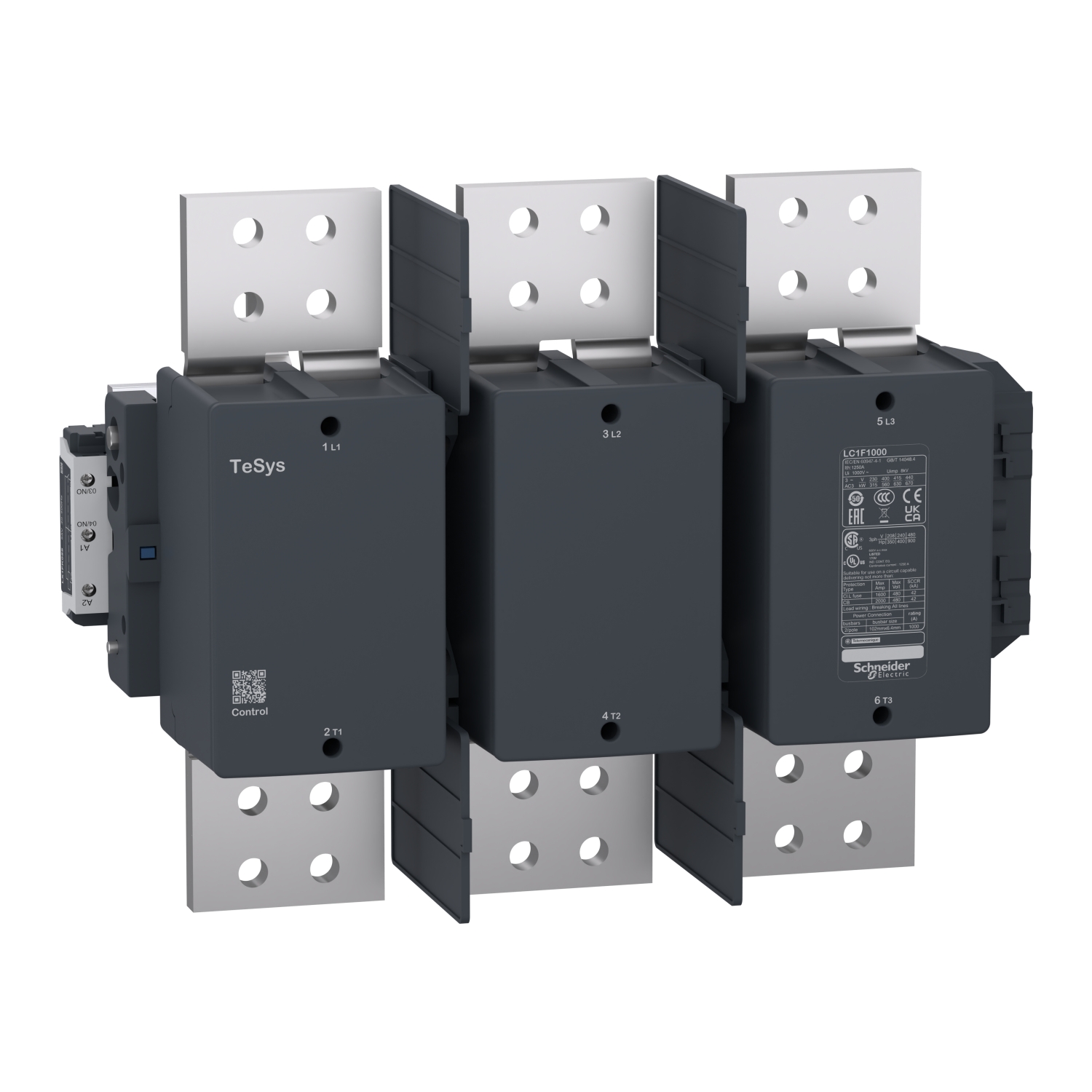

contactor, TeSys F, 3P(3NO), AC-3, <=440V 1000A, coil 110V AC

Manufacturer: Schneider Electric

SKU: LC1F1000F7

GTIN: 3606485432137

Catalog

Instruction sheet

Environmental Disclosure

Brochure

Circularity Profile

Declaration of conformity

Old price: $32,934.00 inc GST

Price: $13,071.50 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys F contactor, 3 poles (3NO), 1000A, AC-3, for motor applications up to 400kW@400V. Two coils model, it provides low sealed consumption 110V 40-400Hz AC coils, bolt terminals for bars or cables with lugs. For high operating rates until 600 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Sustainability compliant.

Products specifications

Attribute name	Attribute value
Main
Device short name	LC1F
Poles description	3P
[Ie] rated operational current	1000 A (at <55 °C) at <= 440 V AC AC-3, 1250 A (at <40 °C) at <= 440 V AC AC-1
Utilisation category	AC-1, AC-3
Range	TeSys
Product or component type	contactor
Contactor application	resistive load, motor control
[Ue] rated operational voltage	<= 440 V AC 50/60 Hz
Range of product	TeSys F
[Uc] control circuit voltage	110 V AC 40...400 Hz
Complementary
[Icw] rated short-time withstand current	3000 A 40 °C - 10 min, 4200 A 40 °C - 3 min, 5500 A 40 °C - 1 min, 7500 A 40 °C - 30 s, 10000 A 40 °C - 10 s
[Ui] rated insulation voltage	1500 V conforming to VDE 0110 group C, 1000 V conforming to IEC 60947-4-1
Overvoltage category	III
Compatibility code	LC1F
Tightening torque	power circuit: 58 N.m, control circuit: 1.2 N.m
Maximum operating rate	600 cyc/h 55 °C
Operating time	100...200 ms opening, 40...80 ms closing
Motor starter type	direct on-line contactor
Pole contact composition	3 NO
Connections - terminals	power circuit: bar 4 cable(s) , power circuit: bar 3 cable(s) , control circuit: screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end
[Uimp] rated impulse withstand voltage	8 kV
Power range	670-670 kW at 440-440 V 3 phases, 630-630 kW at 415-415 V 3 phases, 560-560 kW at 380-400 V 3 phases, 315-315 kW at 220-230 V 3 phases
Associated fuse rating	2000 A gG at <= 440 V
Rated breaking capacity	8 kA conforming to IEC 60947-4-1
Contactor coil voltage	110 V AC standard
Control circuit type	AC at 40...400 Hz
Mounting support	plate
Standards	EN 60947-4-1, EN 60947-1, IEC 60947-1, IEC 60947-4-1
[Ith] conventional free air thermal current	1250 A (at 40 °C)
Average impedance	0.1 mOhm - Ith 1250 A 50 Hz
Power dissipation per pole	200 W AC-1
Product certifications	UKCA, CSA, CCC, CB
Environment
Permissible ambient air temperature around the device	-40-60 °C
Depth	238.6 mm
Width	438 mm
Operating altitude	3000 m without derating
IP degree of protection	IP20 front face with shrouds conforming to VDE 0106, IP20 front face with shrouds conforming to IEC 60529
Protective treatment	TH
Ambient air temperature for storage	-60-80 °C
Net weight	31 kg
Ambient air temperature for operation	-5-40 °C
Height	332 mm
