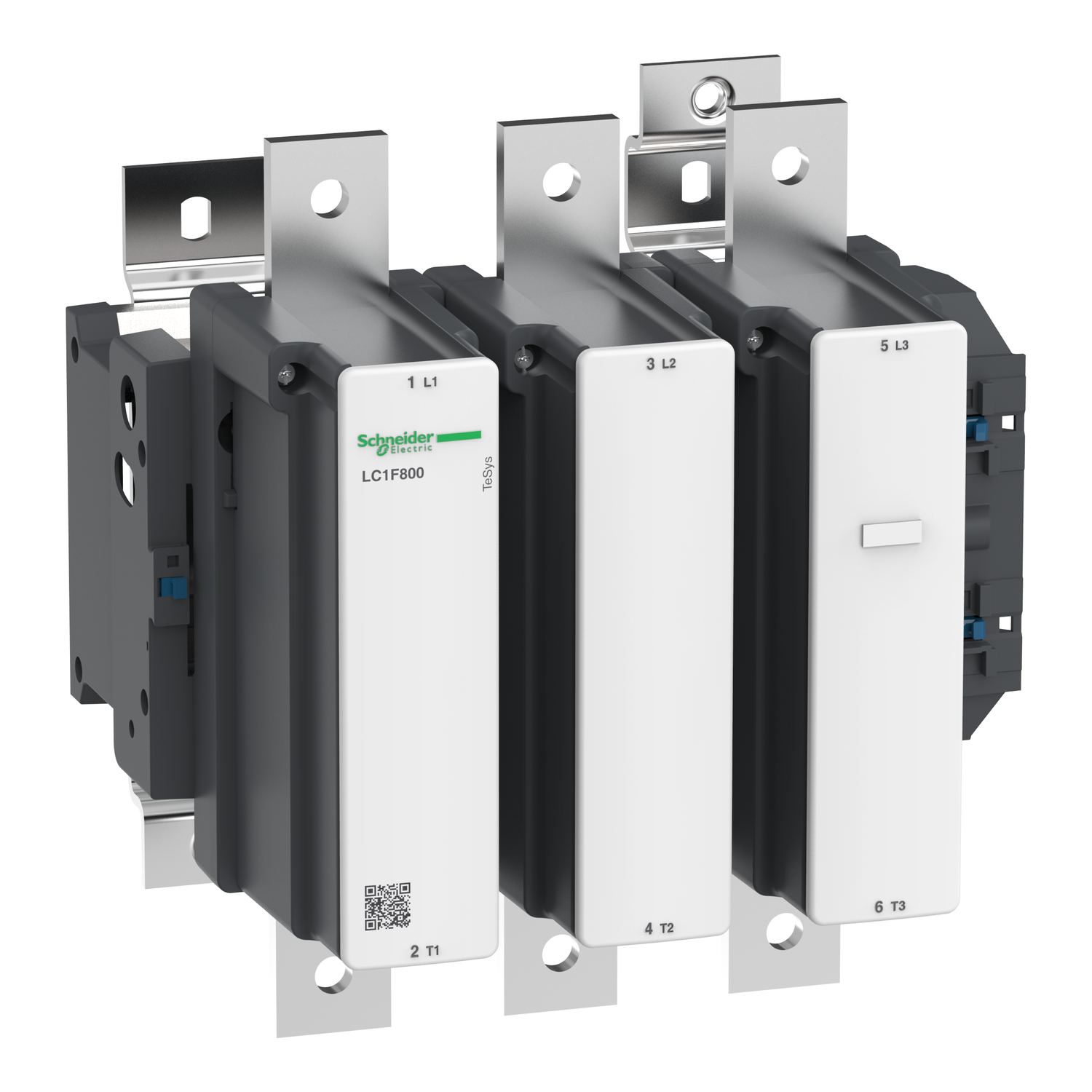

TeSys F contactor, 3 poles (3NO), 800A/1000V AC-3, for motor applications up to 450kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 600 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, Marine), Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LC1F |
| [Ie] rated operational current | 800 A (at <55 °C) at <= 440 V AC AC-3, 1000 A (at <40 °C) at <= 440 V AC AC-1 |
| Range | TeSys |
| Range of product | TeSys F |
| Motor power kW | 250 kW at 220...240 V AC 50/60 Hz (AC-3), 450 kW at 440 V AC 50/60 Hz (AC-3), 450 kW at 415 V AC 50/60 Hz (AC-3), 450 kW at 380...400 V AC 50/60 Hz (AC-3), 110 kW at 400 V AC 50/60 Hz (AC-4), 475 kW at 660...690 V AC 50/60 Hz (AC-3), 450 kW at 500 V AC 50/60 Hz (AC-3), 450 kW at 1000 V AC 50/60 Hz (AC-3) |
| Poles description | 3P |
| Utilisation category | AC-4, AC-1, AC-3 |
| Pole contact composition | 3 NO |
| Product name | TeSys F |
| Product or component type | contactor |
| Contactor application | resistive load, motor control |
| [Ue] rated operational voltage | <= 460 V DC, <= 1000 V AC 50/60 Hz |
| Complementary | |
| Heat dissipation | 2.2-5.5 W, 25-25 W |
| [Icw] rated short-time withstand current | 1700 A 40 °C - 10 min, 3600 A 40 °C - 1 min, 4600 A 40 °C - 30 s, 5500 A 40 °C - 10 s, 2600 A 40 °C - 3 min |
| Compatibility code | LC1F |
| Mechanical durability | 5 Mcycles |
| Tightening torque | control circuit: 1.2 N.m, power circuit: 58 N.m |
| Operating time | 6...54 ms opening for with LXE coil, 40...80 ms closing for with LXE coil, 40...50 ms opening for with LX4 coil, 60...80 ms closing for with LX4 coil, 160...180 ms opening for with LX1/LX9 coil, 60...80 ms closing for with LX1/LX9 coil |
| Connections - terminals | control circuit: screw clamp terminals 2 cable(s) 1-4 mm², control circuit: screw clamp terminals 1 cable(s) 1-4 mm², control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²solid without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end, power circuit: bolted connection, power circuit: bar 2 cable(s) - busbar cross section: 60 x 5 mm |
| Associated fuse rating | 800 A aM at <= 440 V, 1000 A gG at <= 440 V |
| Irms rated making capacity | 8000 A AC conforming to IEC 60947-4-1 |
| Rated breaking capacity | 6400 A conforming to IEC 60947-4-1 |
| Control circuit voltage limits | drop-out: 0...45 V DC with LXE coil, operational: 85...418 V DC with LXE coil, drop-out: 0...60 V AC 50/60 Hz with LXE coil, operational: 85...275 V AC 50/60 Hz with LXE coil, drop-out: 0.3...0.5 Uc DC with LX4 coil, operational: 0.85...1.1 Uc DC with LX4 coil, drop-out: 0.3...0.5 Uc AC 40...400 Hz with LX1/LX9 coil, operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil |
| [Ith] conventional free air thermal current | 1000 A (at 40 °C) |
| [Ui] rated insulation voltage | 1500 V conforming to VDE 0110 group C, 1000 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| Hold-in power consumption in VA | 4.0-5.5 VA cos phi 0.5 (at 20 °C)with LXE coil, 7-10 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 12-12 VA (at 20 °C)with LX4 coil, 12-12 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil |
| Maximum operating rate | 600 cyc/h 55 °C |
| Inrush power in VA | 500-680 VA cos phi 0.5 (at 20 °C)with LXE coil, 460-730 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 1900-1900 VA (at 20 °C)with LX4 coil, 1700-1700 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Mounting support | plate |
| [Uc] control circuit voltage | 100...380 V DC with LXE coil, 100...250 V AC 50/60 Hz with LXE coil, 110...400 V DC with LX4 coil, 110...400 V AC 40...400 Hz with LX1/LX9 coil |
| Standards | EN 60947-4-1, IEC 60947-4-1, EN 60947-1, JIS C8201-4-1, IEC 60947-1 |
| Average impedance | 0.12 mOhm - Ith 1000 A 50 Hz |
| Power dissipation per pole | 77 W AC-3, 120 W AC-1 |
| Product certifications | UKCA, UL, CCC, ABS, LROS (Lloyds register of shipping), CSA, CB |
| Environment | |
| IP degree of protection | IP20 front face with shrouds conforming to VDE 0106, IP20 front face with shrouds conforming to IEC 60529 |
| Protective treatment | TH |
| Ambient air temperature for storage | -60-80 °C |
| Ambient air temperature for operation | -5-55 °C |
| Height | 304 mm |
| Mechanical robustness | shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms), shocks contactor open: 6 Gn for 1/2 sine wave (11 ms), vibrations contactor closed: 4 Gn, 5...300 Hz, vibrations contactor open: 2 Gn, 5...300 Hz |
| Permissible ambient air temperature around the device | -5-55 °C |
| Depth | 255 mm |
| Width | 309 mm |
| Operating altitude | 3000 m without derating |
| Net weight | 18.75 kg |
