Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | TeSys |
| Mechanical durability | 0.5 Mcycles for use with LC1F2600 |
| Device short name | LXEFL |
| Product compatibility | LC1F2600 |
| Tightening torque | control circuit: 1.08-1.32 N.m |

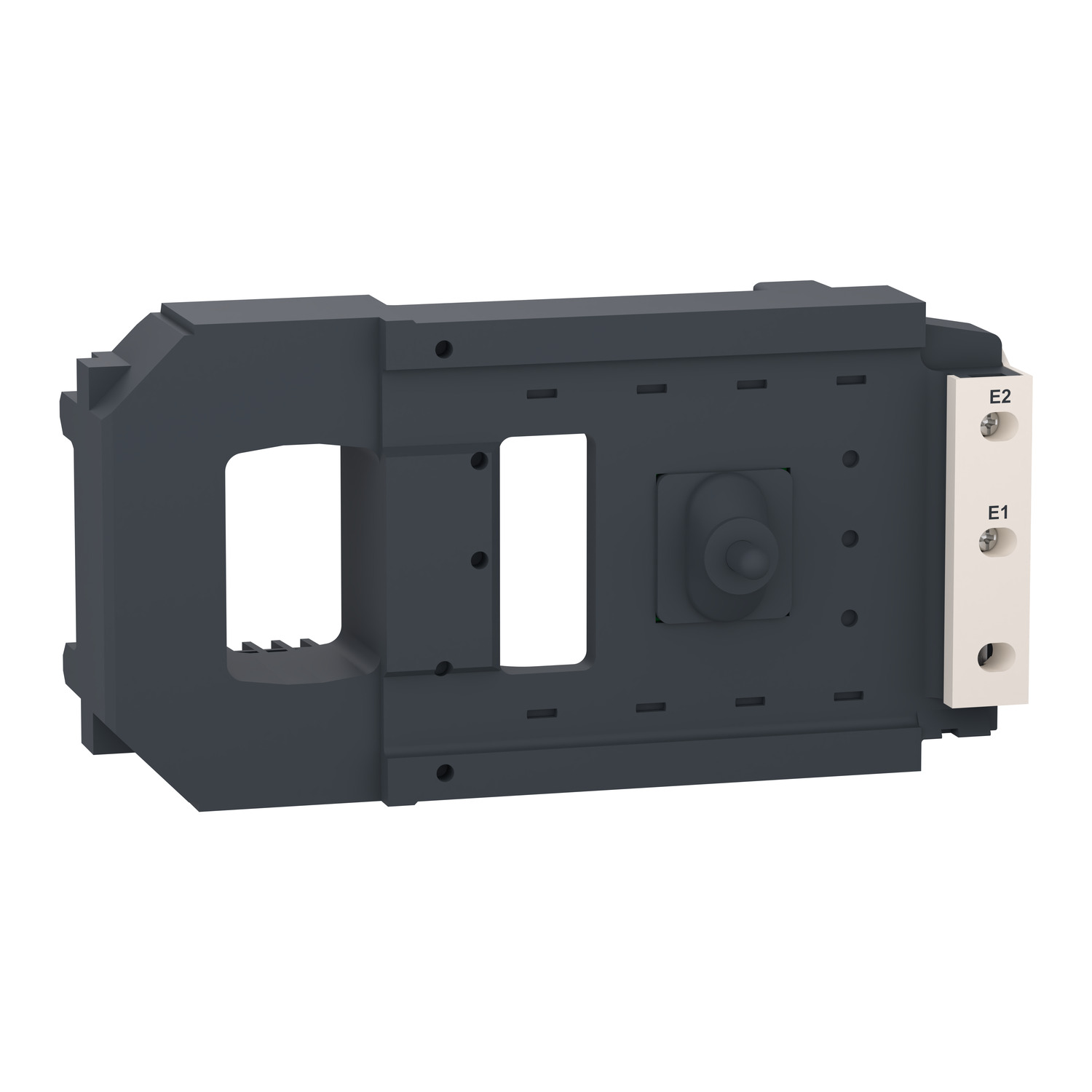

| Product or component type | specific contactor coil |
| Operating time | 20...28 ms opening, 54...88 ms closing |
| Range compatibility | TeSys TeSys F LA4EM electronic control module, TeSys TeSys F LC1F contactor |
| Control circuit type | DC electronic, AC at 50/60 Hz electronic |
| Range of product | TeSys F |
| Maximum operating rate | 600 cyc/h 55 °C |
| [Uc] control circuit voltage | 100...250 V DC, 100...250 V AC 50/60 Hz |
| Installed device | LA4EM250FL2 |
| Complementary | |
| Heat dissipation | 16-20 W |
| Inrush power in VA | 1100-2300 VA 50/60 Hz cos phi 0.5 (at 20 °C) |
| Hold-in power consumption in W | 14-18 W at 20 °C |
| Hold-in power consumption in VA | 21.1-24.5 VA 50/60 Hz cos phi 0.5 (at 20 °C) |
| Inrush power in W | 1300-2400 W (at 20 °C) |
| Control circuit voltage limits | drop-out: 0...51 V DC (at 55 °C), drop-out: 0...65 V AC (at 55 °C), operational: 85...275 V AC/DC (at 55 °C) |
| Coil technology | built-in bidirectional peak limiting |
| Environment | |
| Net weight | 1.45 kg |
