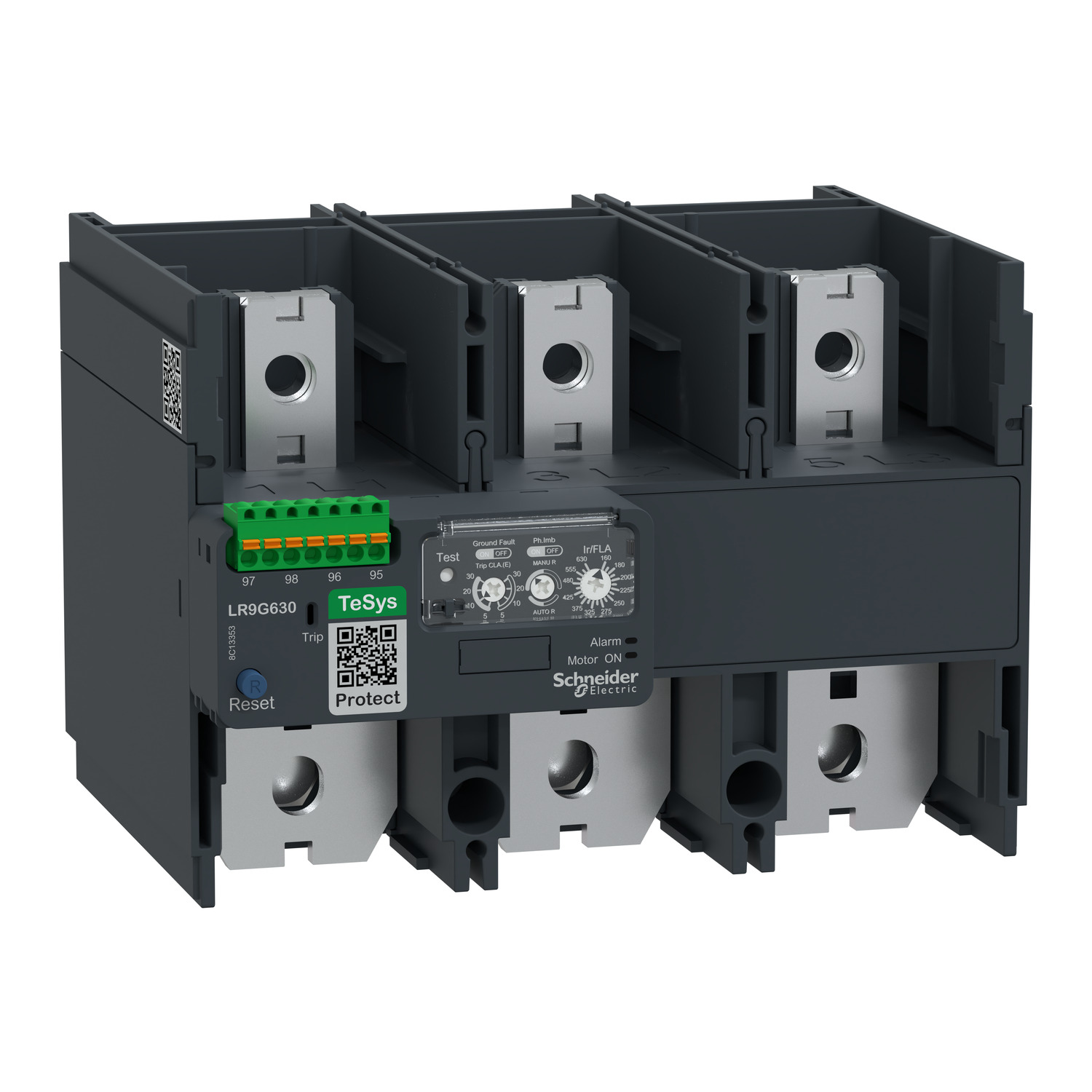

TeSys LR9G 630A thermal overload relay is compatible with TeSys Giga high power contactor, push-in control connection. It provides phase imbalance, phase failure, in-built ground-fault and single-phase loads protections. It is available for manual and auto reset options and LED indicator for Motor ON and pre-trip alarm. Tripping classes is selectable from class 5E to class 30E to suit different application needs from fast tripping, general purpose and high inertia loads. It is suitable for independent mounting or direct mounting with LC1G contactors. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature without derating up to 3000m altitude. Multi standards certified (CE,CB,CCC,cULus,EAC,KC,RCM,Marine). Unique QR code provides quick access to complete product data.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LR9G |
| Range | TeSys |
| Thermal overload class | class 5E...30E conforming to IEC 60947-4-1 |
| Product name | TeSys LRG |
| Product or component type | electronic thermal overload relay |
| Relay application | motor protection |
| Network type | AC |
| Thermal protection adjustment range | 160-630 A |
| Complementary | |
| Overvoltage category | III |
| Local signalling | trip indicator, LED |
| Mechanical durability | 7000 cycles |
| Mounting support | plate, direct on contactor |
| Tripping threshold | 1.125 +/- 0.07 In conforming to IEC 60947-4-1 |
| Surge withstand | 4 kV |
| Contacts type and composition | 1 NO + 1 NC |
| Connections - terminals | control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, power circuit: lugs-ring terminals 1 300-300 mm², power circuit: bar - busbar cross section: 50 x 10 mm |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Protection type | phase imbalance - tripping time adjustment: 0-5 s - for alarm circuit conforming to UL 60947-4-1, phase imbalance - tripping time adjustment: 0-5 s - for alarm circuit conforming to IEC 60947-4-1, phase loss - tripping time adjustment: 0-4 s - for alarm circuit, ground fault protection - tripping time adjustment: 0-1 s - for alarm circuit conforming to UL 60947-4-1, ground fault protection - tripping time adjustment: 0-1 s - for alarm circuit conforming to IEC 60947-4-1 |
| Electromagnetic compatibility | voltage dips and interruptions immunity test conforming to SEMI F47, immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3, emission tests criteria A conforming to IEC 60947-4-1, EMC immunity conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 1000 V AC 50/60 Hz |
| Standards | JIS C8201-5-1, JIS C8201-4-1, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1 |
| Reset | manual, automatic reset |
| Tightening torque | 58 N.m |
| [Ith] conventional free air thermal current | 5 A |
| [Uc] control circuit voltage | 24...250 V DC, 24...500 V AC 50/60 Hz |
| Network frequency | 100 Hz, 30...60 Hz |
| Product certifications | EAC, EU-RO-MR by DNV-GL, ATEX, UKCA, cULus, CCC, CB Scheme |
| Environment | |
| Permissible ambient air temperature around the device | -40-60 °C at Uc |
| Ambient air transport temperature | -25-60 °C |
| Depth | 186 mm |
| Width | 211 mm |
| Colour | dark grey |
| Mechanical robustness | shocks 15 gn 11 ms contactor closed, vibrations 5-300 Hz 6 gn contactor open |
| IP degree of protection | IP2X front face with shrouds conforming to VDE 0106, IP2X front face with shrouds conforming to IEC 60529 |
| Protective treatment | TH |
| Ambient air temperature for storage | -60-80 °C |
| Net weight | 2.67 kg |
| Ambient air temperature for operation | -25-60 °C |
| Height | 148 mm |
Only registered users can write reviews
Related products
TeSys Deca thermal overload relays, Mechanical remote control
LAD7305
TeSys Deca thermal overload relays, Mechanical remote control
$346.50 inc GST
$137.53 inc GST
Thermal Overload Relays, TeSys LR9, remote electrical stop, 110 V DC/AC
LAD703F
Thermal Overload Relays, TeSys LR9, remote electrical stop, 110 V DC/AC
$344.85 inc GST
$136.87 inc GST
Thermal Overload Relays, TeSys LR9, remote electrical stop, 220...230 V DC/AC
LAD703M
Thermal Overload Relays, TeSys LR9, remote electrical stop, 220...230 V DC/AC
$342.10 inc GST
$135.78 inc GST
Thermal Overload Relays, TeSys LR9, remote electrical stop, 24 V DC/AC
LAD703B
Thermal Overload Relays, TeSys LR9, remote electrical stop, 24 V DC/AC
$234.30 inc GST
$92.99 inc GST

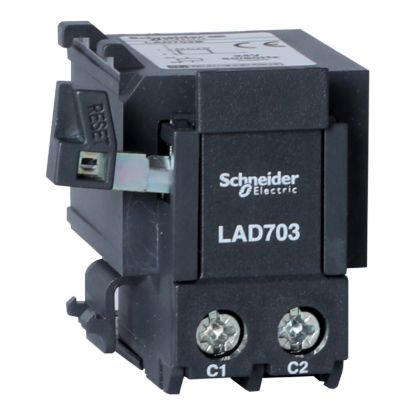

Thermal Overload Relays, TeSys LR9, remote electrical stop, 48 V DC/AC
