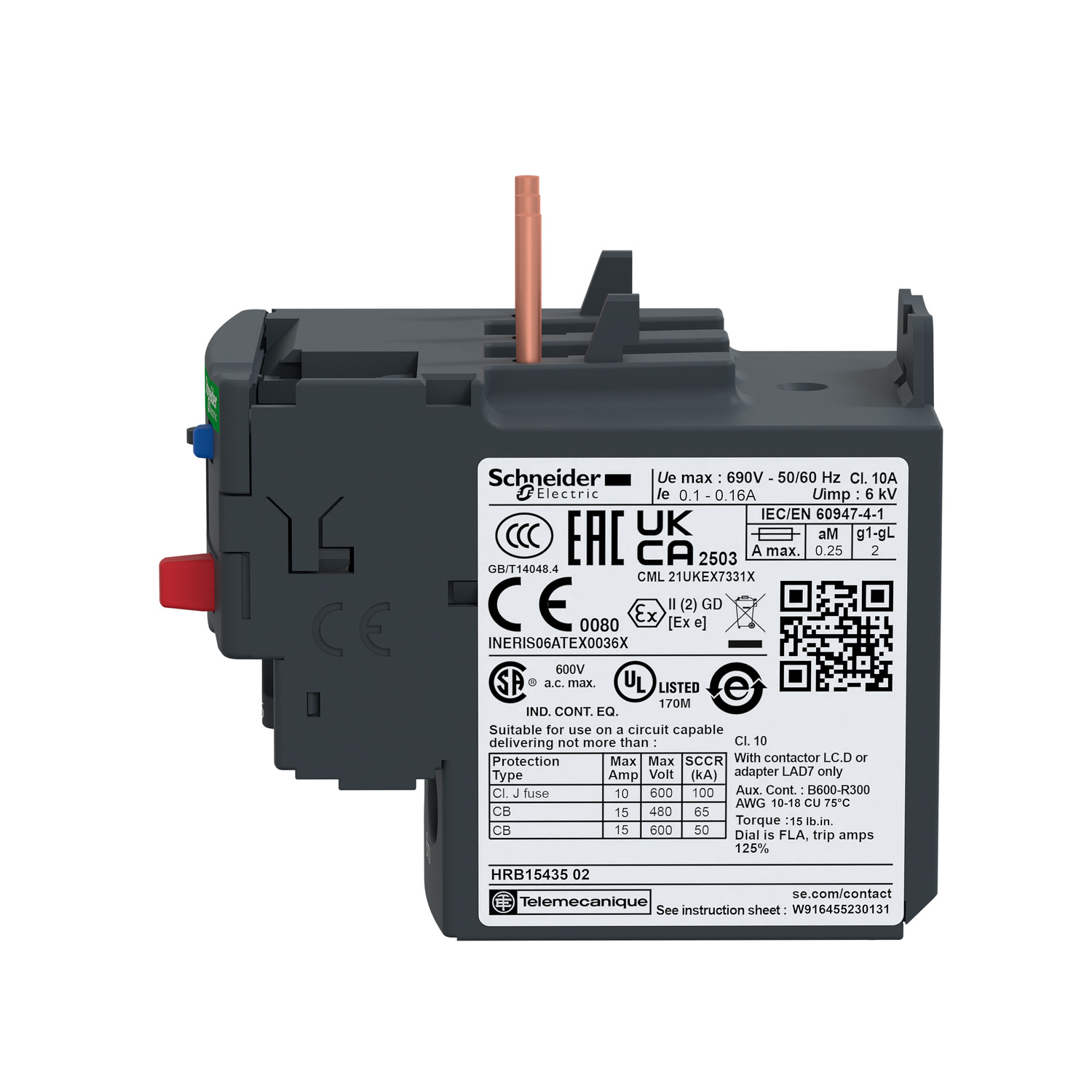

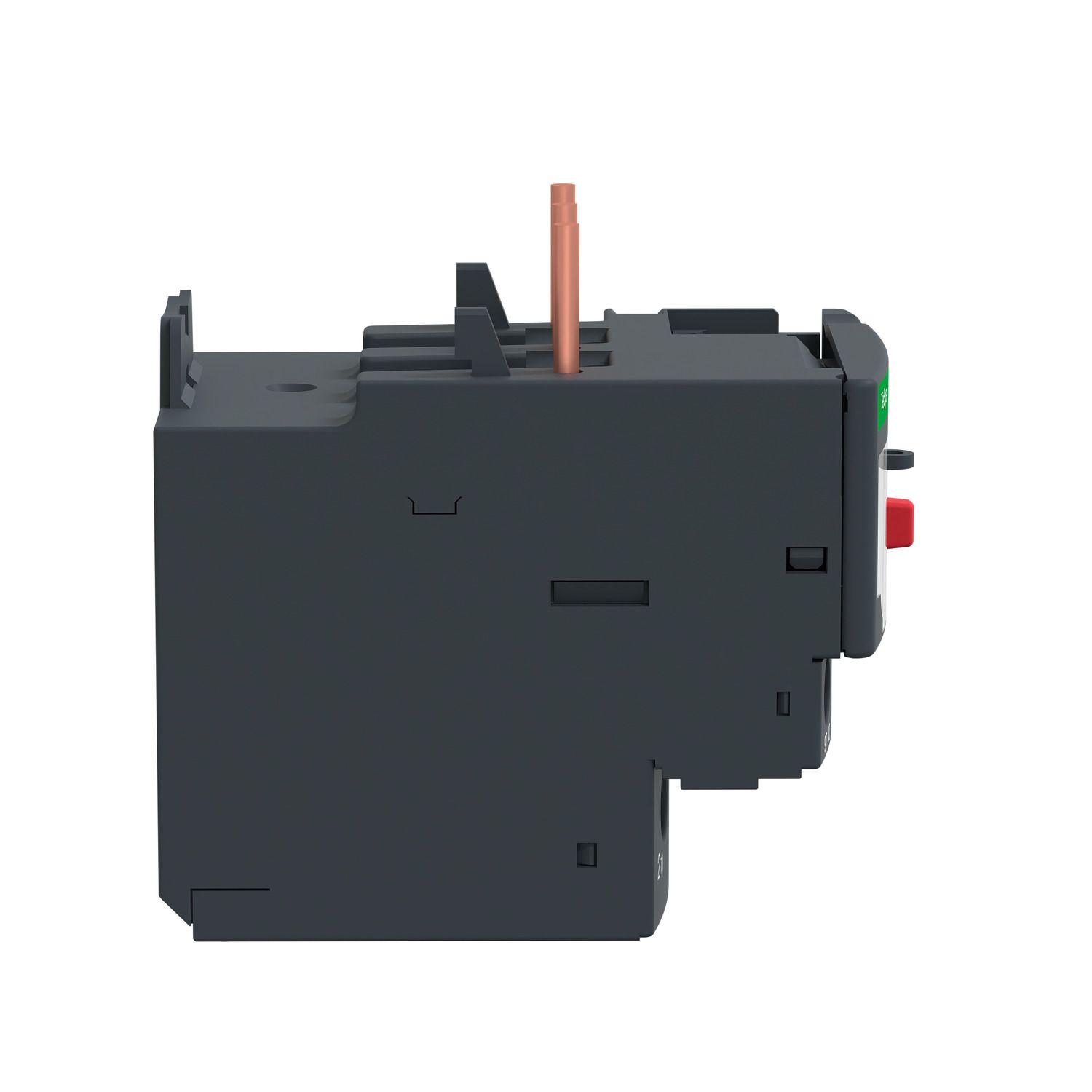

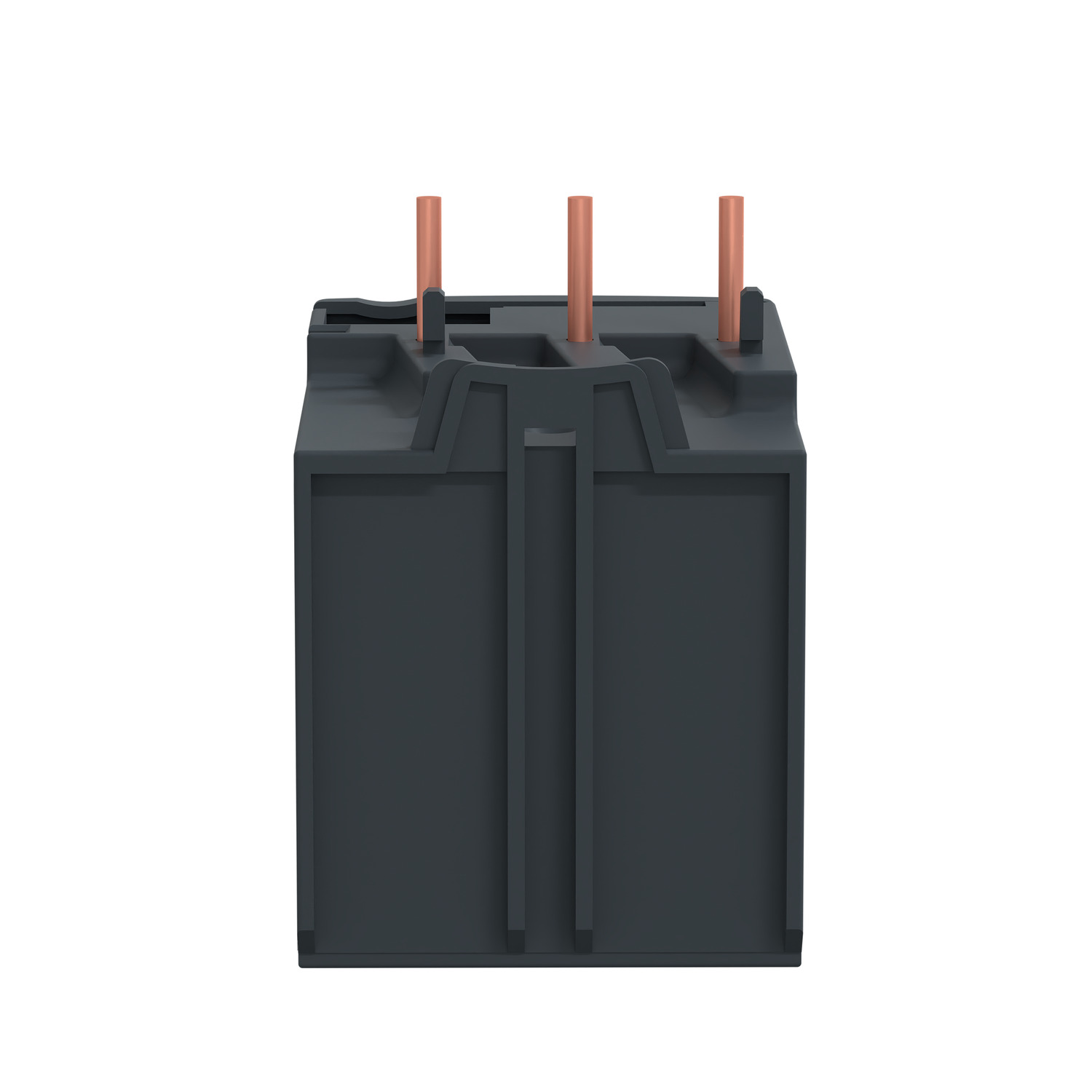

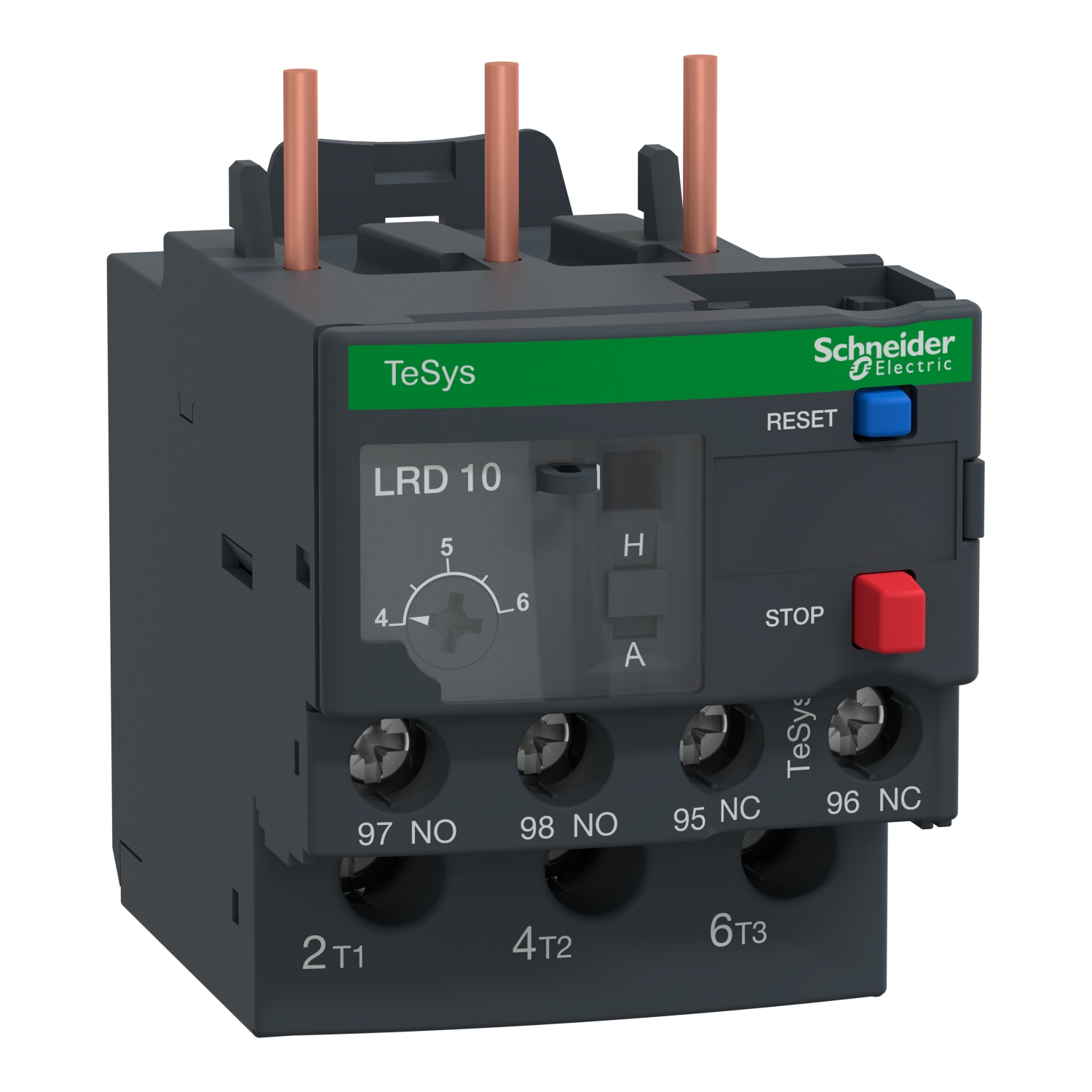

TeSys LRD thermal overload relay, 6A/690V, thermal setting range 4-6A, tripping class 10A, for protection of 3-phase motors 2.2kW@400V. Differential device with phase failure (loss). It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LRD |
| Product compatibility | LC1D25, LC1D18, LC1D12, LC1D38, LC1D32, LC1D09 |
| [Ui] rated insulation voltage | power circuit: 690 V conforming to IEC 60947-4-1, power circuit: 600 V conforming to UL, power circuit: 600 V conforming to CSA |
| Range | TeSys Deca, TeSys |
| Thermal overload class | class 10A conforming to IEC 60947-4-1 |
| Product name | TeSys Deca, TeSys LRD |
| Product or component type | differential thermal overload relay |
| Relay application | motor protection |
| Network type | AC, DC |
| Thermal protection adjustment range | 4-6 A |
| Complementary | |
| Temperature compensation | -20-60 °C |
| Depth | 70 mm |
| Width | 45 mm |
| Compatibility code | LRD |
| Mounting support | under contactor, rail, with specific accessories, plate, with specific accessories |
| Control type | blue push-button: reset, red push-button: stop |
| Tightening torque | power circuit: 1.7 N.m - on screw clamp terminals, control circuit: 1.7 N.m - on screw clamp terminals |
| Tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Permissible current | 0.22 A at 125 V DC-13 for signalling circuit, 3 A at 120 V AC-15 for signalling circuit |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Net weight | 0.124 kg |
| Associated fuse rating | 4 A BS for signalling circuit, 4 A gG for signalling circuit |
| [Ue] rated operational voltage | 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Phase failure sensitivity | tripping current 130 % of Ir on two phase, the last one at 0 |
| Connections - terminals | power circuit: screw clamp terminals 1 cable(s) 1-6 mm² solid without cable end, power circuit: screw clamp terminals 1 cable(s) 1-4 mm² flexible with cable end, power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end |
| [Ith] conventional free air thermal current | 5 A for signalling circuit |
| Auxiliary contact composition | 1 NO + 1 NC |
| Height | 66 mm |
| Network frequency | 0...400 Hz |
| Environment | |
| Ambient air temperature for storage | -60-70 °C |
| Flame retardance | V1 conforming to UL 94 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Dielectric strength | 1.89 kV at 50 Hz conforming to IEC 60947-1 |
| Ambient air temperature for operation | -20-60 °C without derating conforming to IEC 60947-4-1 |
| Climatic withstand | conforming to IACS E10 |
| Standards | EN 50495, GB/T 14048.5, GB/T 14048.4, CSA C22.2 No 60947-5-1, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1 |
| Mechanical robustness | shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7, vibrations: 6 Gn conforming to IEC 60068-2-6 |
| Product certifications | UKCA, ATEX INERIS, LROS (Lloyds register of shipping), DNV-GL, RINA, BV, EAC, CCC, CSA, UL, IEC |
