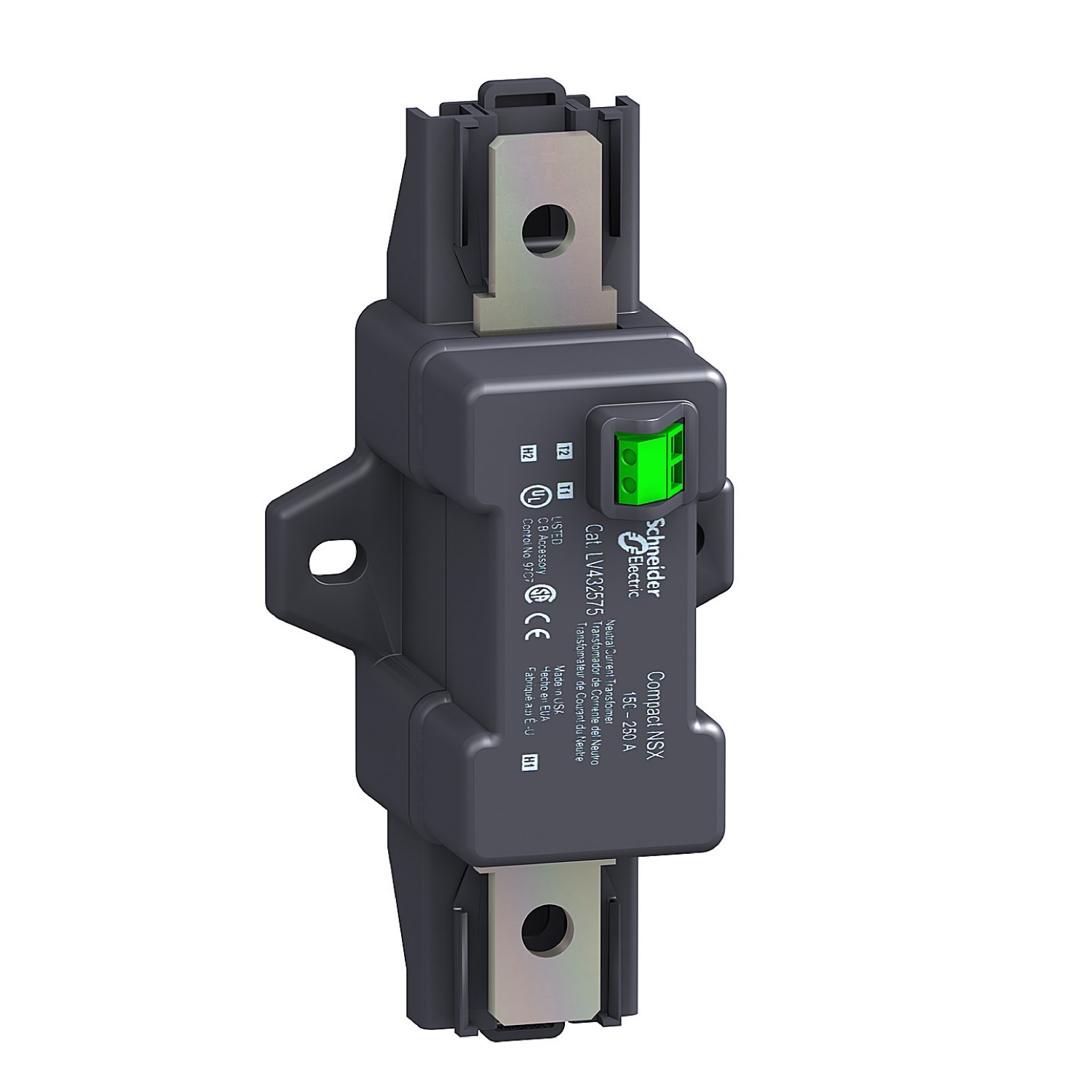

It is an external neutral current transformer (ENCT) for Compact NSX100 equipped with Micrologic 5/6 trip unit. With 3P devices, the distributed neutral of the installation can be protected by installing this external sensor. The sensor rated current is from 25 A to 100 A. The ENCT must be connected to the Micrologic trip unit by a shielded twisted pair. The wiring maximum length is 10 m and the cross section is from 0.4 mm² to 1.5 mm².
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | power supply |
| Range | ComPacT |
| Product or component type | neutral sensor |
| Range compatibility | ComPact ComPact NSX100 |
| Range of product | ComPact NSX100...250 |
| Complementary | |
| [In] rated current | 25-100 A |
