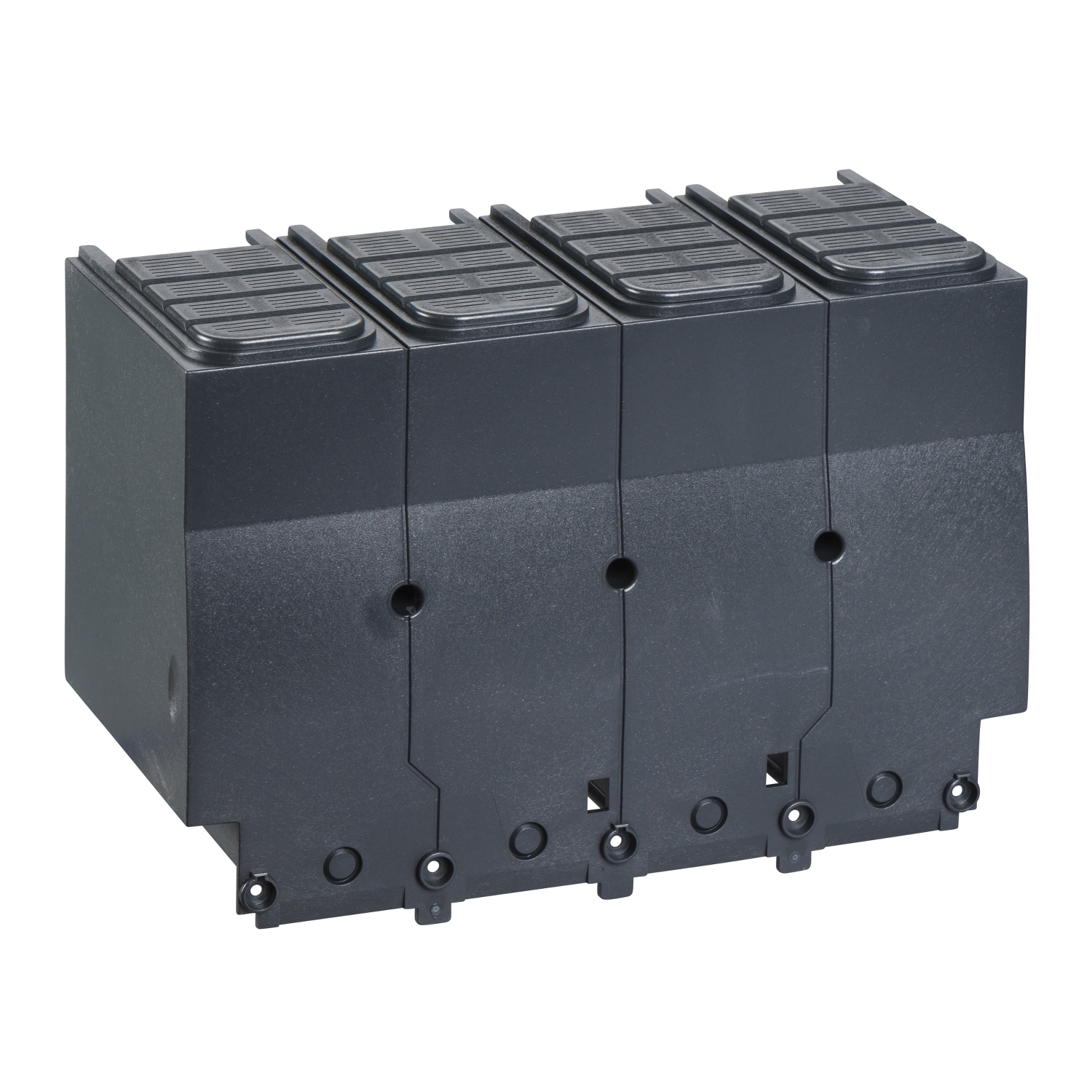

This is an insulation accessory for 4 poles Compact NSX 400/630 or EasyPact CVS 400/630. This long terminal shield protects against direct contact with power circuit It is used for front connection with cables or insulated bars. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 52.5mm. It provides IP40 degree of protection and IK07 mechanical impact protection.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part type | insulation accessories |
| Quantity per set | 1 |
| Poles description | 4P |
| Range | ComPacT |
| Product or component type | long terminal shield |
| Range compatibility | ComPact ComPacT INS, ComPact Compact INV, EasyPact EasyPact CVS630, EasyPact EasyPact CVS400, ComPact ComPact NSX630, ComPact ComPact NSX400, ComPacT new generation ComPacT NSX630 new generation, ComPacT new generation ComPacT NSX400 new generation |
| Range of product | ComPact NSX400...630, ComPacT NSX400...630 new generation |
| Complementary | |
| Compatibility code | terminal shields |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Connection pitch | 52.5 mm |
