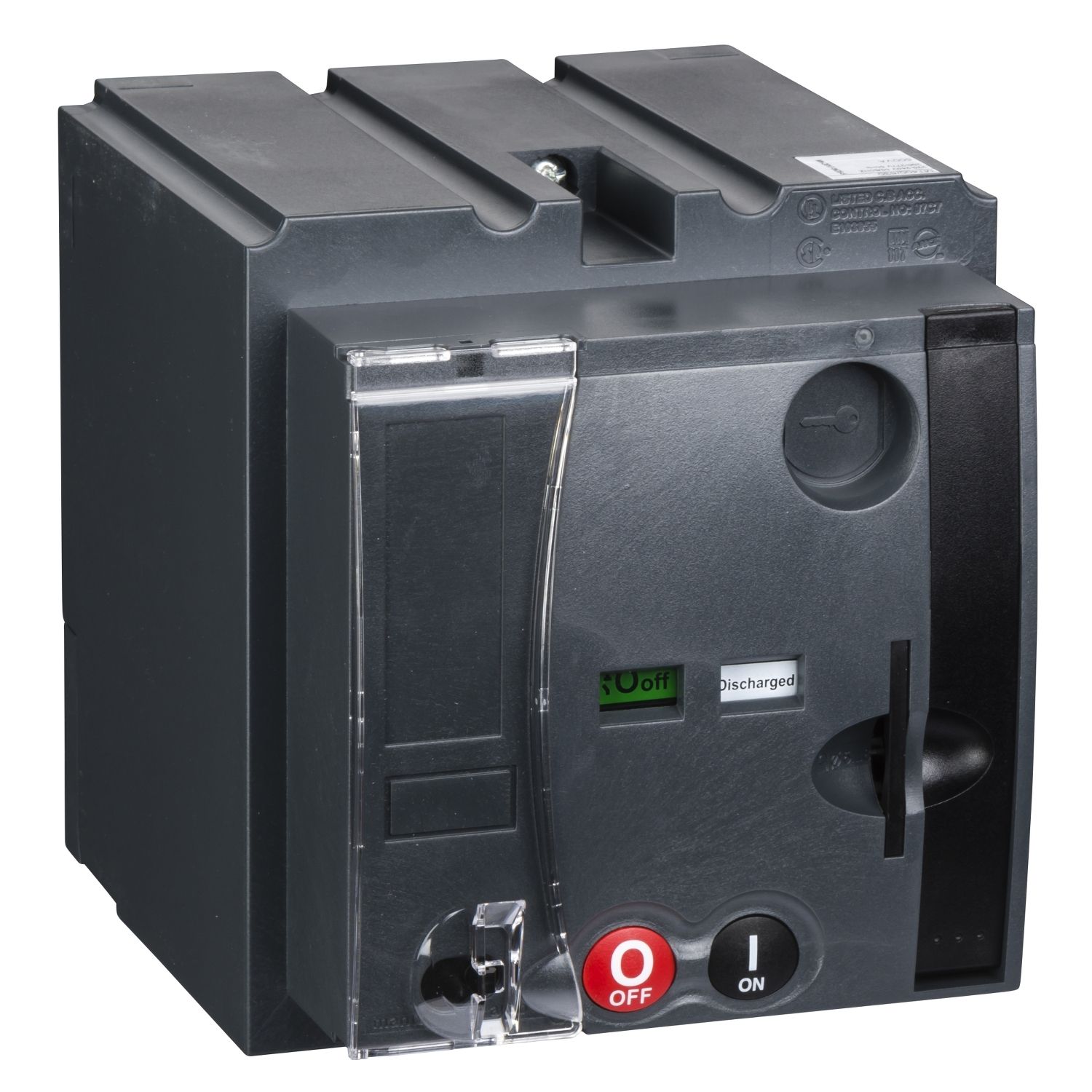

This is a standard motor mechanism for Compact NSX 400/630 and PowerPact Multistandard L frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 48VAC to 60VAC 50/60Hz. The consumption is less than 500VA. Padlocking of the device remains possible.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | MT400/630 |
| Device application | automatic spring charging |
| [In] rated current | 630 A, 400 A |
| Mounting mode | fixed |
| Control type | standard |
| Range | ComPacT |
| Product or component type | motor mechanism |
| Range compatibility | ComPact ComPacT NSX DC new generation NSX630 DC, ComPact ComPacT NSX DC new generation NSX400 DC, ComPacT new generation ComPacT NSX630 new generation, ComPacT new generation ComPacT NSX400 new generation |
| Range of product | ComPact NSX400...630 DC, ComPact NSX400...630, ComPacT NSX400...630 DC new generation, ComPacT NSX400...630 new generation |
| [Uc] control circuit voltage | 48...60 V AC 50/60 Hz |
| Complementary | |
| Maximum power consumption in VA | 500 VA opening, 500 VA closing |
| Maximum operating frequency | 4 per minute |
| Control signal type | maintained, impulse |
| Response time | < 80 ms closed, < 700 ms open |
| Locking options description | 1 to 3 padlocks Ø 5 to Ø 8, padlocking in OFF position |
