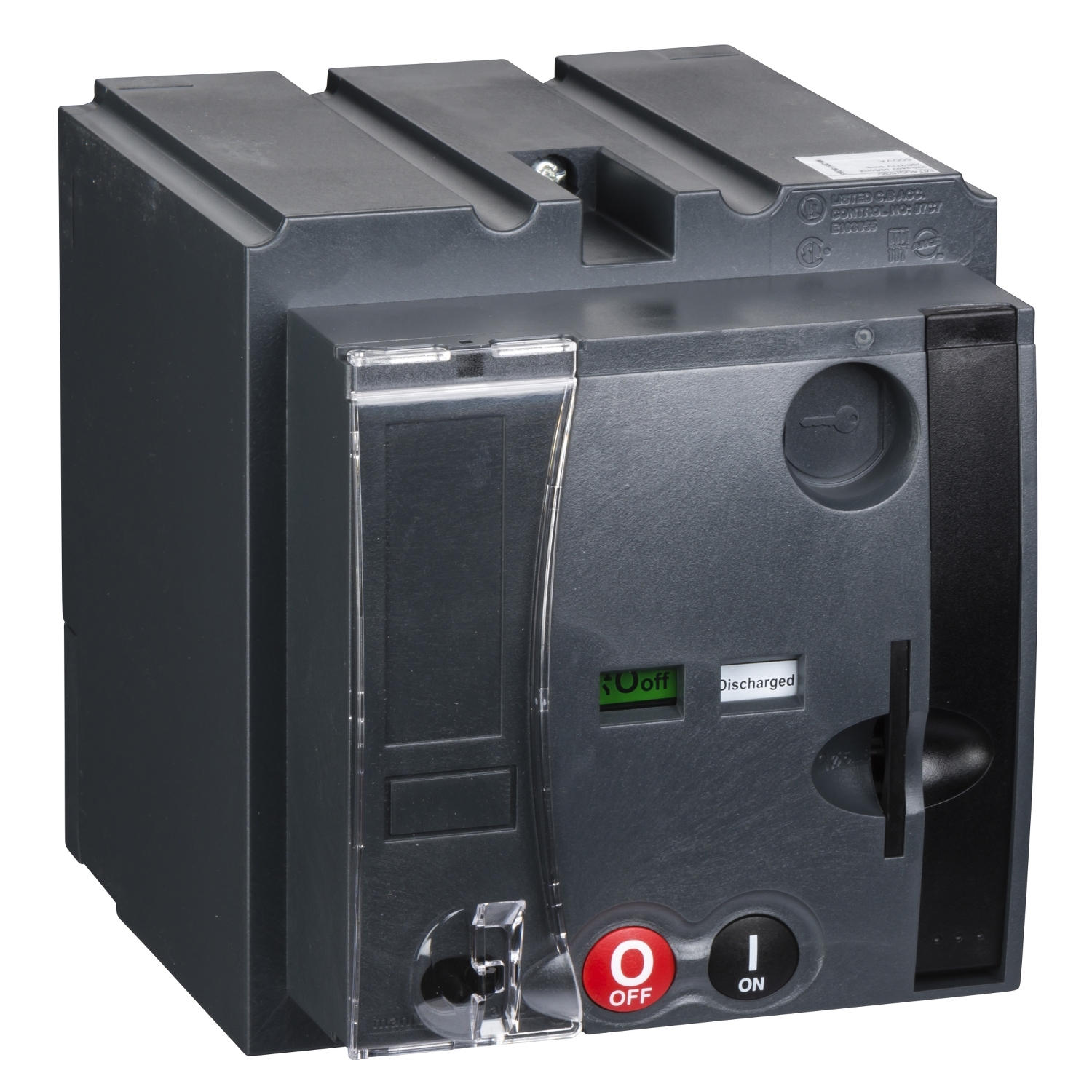

This is a standard motor mechanism for Compact NSX 400/630 and PowerPact Multistandard L frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 250VDC. The consumption is less than 500W. Padlocking of the device remains possible.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | MT400/630 |
| Device application | automatic spring charging |
| [In] rated current | 630 A, 400 A |
| Mounting mode | fixed |
| Control type | standard |
| Range | ComPacT |
| Product or component type | motor mechanism |
| Range compatibility | ComPact ComPacT NSX DC new generation NSX630 DC, ComPact ComPacT NSX DC new generation NSX400 DC, ComPacT new generation ComPacT NSX630 new generation, ComPacT new generation ComPacT NSX400 new generation |
| Range of product | ComPact NSX400...630 DC, ComPact NSX400...630, ComPacT NSX400...630 DC new generation, ComPacT NSX400...630 new generation |
| [Uc] control circuit voltage | 250 V DC |
| Complementary | |
| Maximum power consumption in W | 500 W - opening, 500 W - closing |
| Maximum operating frequency | 4 per minute |
| Control signal type | maintained, impulse |
| Response time | < 80 ms closed, < 700 ms open |
| Locking options description | padlocking in OFF position, 1 to 3 padlocks Ø 5 to Ø 8 |
