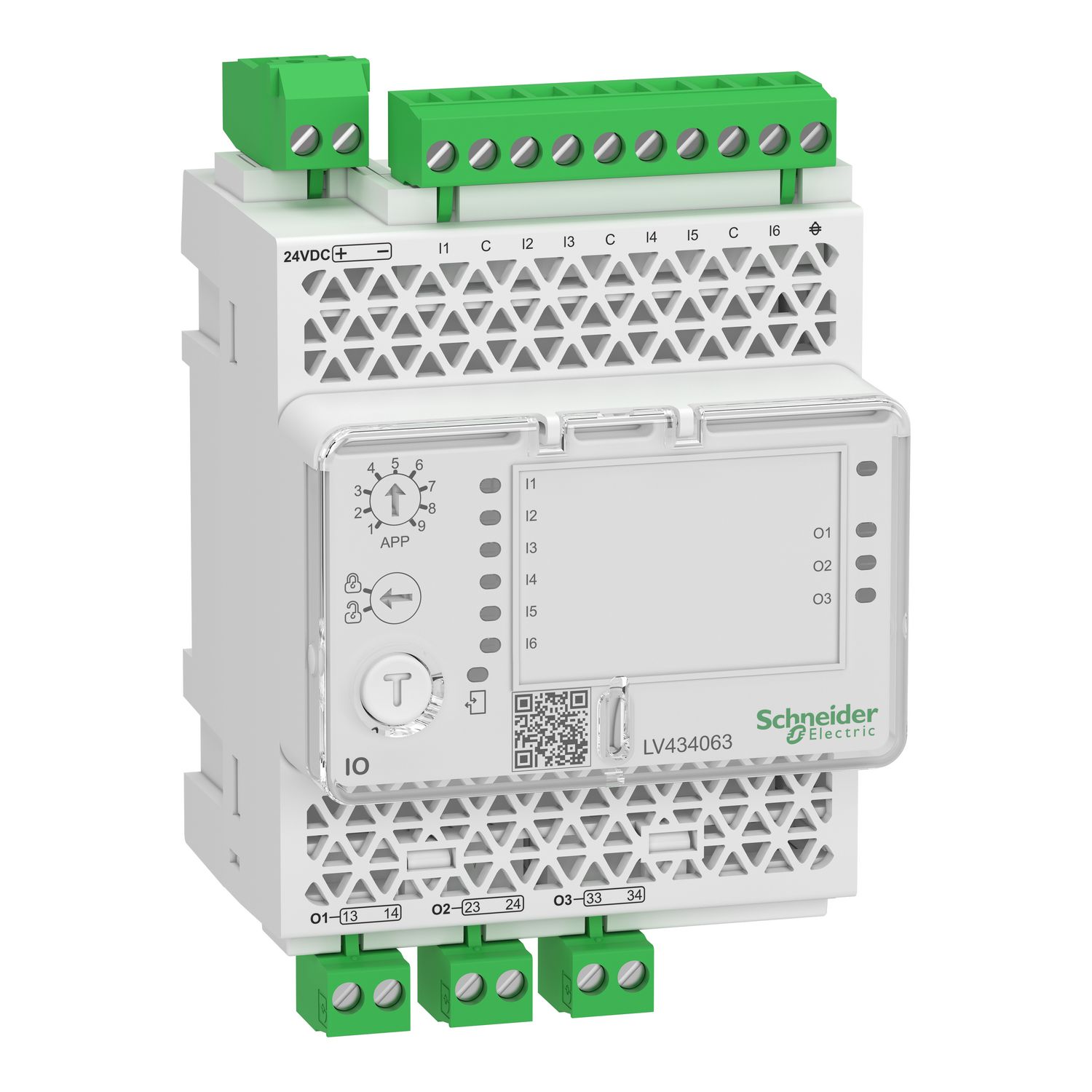

This I/O module is an Input/Output application module and it is part of EnerlinX communication system. This I/O module is compatible with Masterpact, Compact and PowerPact devices. It is used for protection, circuit breaker control, motor control, energy management and monitoring applications. It provides six digital inputs, three digital outputs and one analog input. It is equipped on the top with one 24VDC screw clamp terminal block and one terminal block for the 6 digital inputs. There are two RJ45 sockets on the bottom for ULP, and 4 terminal blocks for the digital outputs and analog input. The I/O module is a DIN rail mounting device and its dimensions are 72mm x 116mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The I/O module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The I/O module can be configured and updated (firmware) using EcoStruxure Power Commission software.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | I/O |
| Range | Enerlin'X |
| Range of product | ComPact NS1600b...3200, ComPact NS630b...1600, ComPact NSX400...630, ComPact NSX100...250 |
| Product name | Enerlin'X IO |
| Product or component type | I/O module |
| Range compatibility | PowerPact PowerPact R, PowerPact PowerPact P, PowerPact PowerPact H, PowerPact PowerPact L, PowerPact PowerPact J, ComPact ComPact NS1600b...3200, ComPact ComPact NS630b...1600, ComPact ComPact NSX, Masterpact MasterPact NW, Masterpact MasterPact NT, Masterpact MasterPact MTZ |
| Complementary | |
| Compatibility code | I/O |
| Mounting mode | by clips |
| Control type | by software |
| Communication network type | Universal Logic Plug on 2 RJ45 connectors |
| Output type | digital: 250 V - AC - 5 A |
| Number of inputs | 1-1 analog, 6-6 digital |
| Time delay | 0...20 s |
| Vibration frequency | 5-8.4 Hz |
| Electromagnetic compatibility | surge immunity test conforming to EN/IEC 61000-4-5, immunity to radiated fields 10 V/m conforming to EN/IEC 61000-4-3, electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 |
| Cable length | 10 m |
| Height | 116 mm |
| [Us] rated supply voltage | 24 V DC - 20...10 % |
| Input type | digital at state 0: 0-19.8 V - DC - 0-0 mA, digital at state 1: 19.8-25.2 V - DC - 6.1-8.8 mA |
| Depth | 70.6 mm |
| Width | 71.7 mm |
| Current consumption | 165 mA |
| Net weight | 229.5 g |
| Mounting support | 35 mm DIN rail |
| Number of outputs | 3 digital |
| Standards | UL 508, IEC 60950, UL 60950, IEC 60947-6-2 |
| Connections - terminals | screw terminal block |
| Product certifications | cULus, CE, GOST, FCC |
| Environment | |
| IP degree of protection | IP3x other parts: , IP4X front panel: , IP2X connectors: |
| Relative humidity | 5-85 % |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 3 |
| Ambient air temperature for operation | -20-70 °C |
| Shock resistance | 1000 m/s² |
| Flame retardance | V0 conforming to UL |
