| Attribute name | Attribute value |
|---|---|
| Main | |
| Standards | IEC 61439-1, inside enclosure, IEC 61439-2, inside enclosure |
| Range | PrismaSeT |

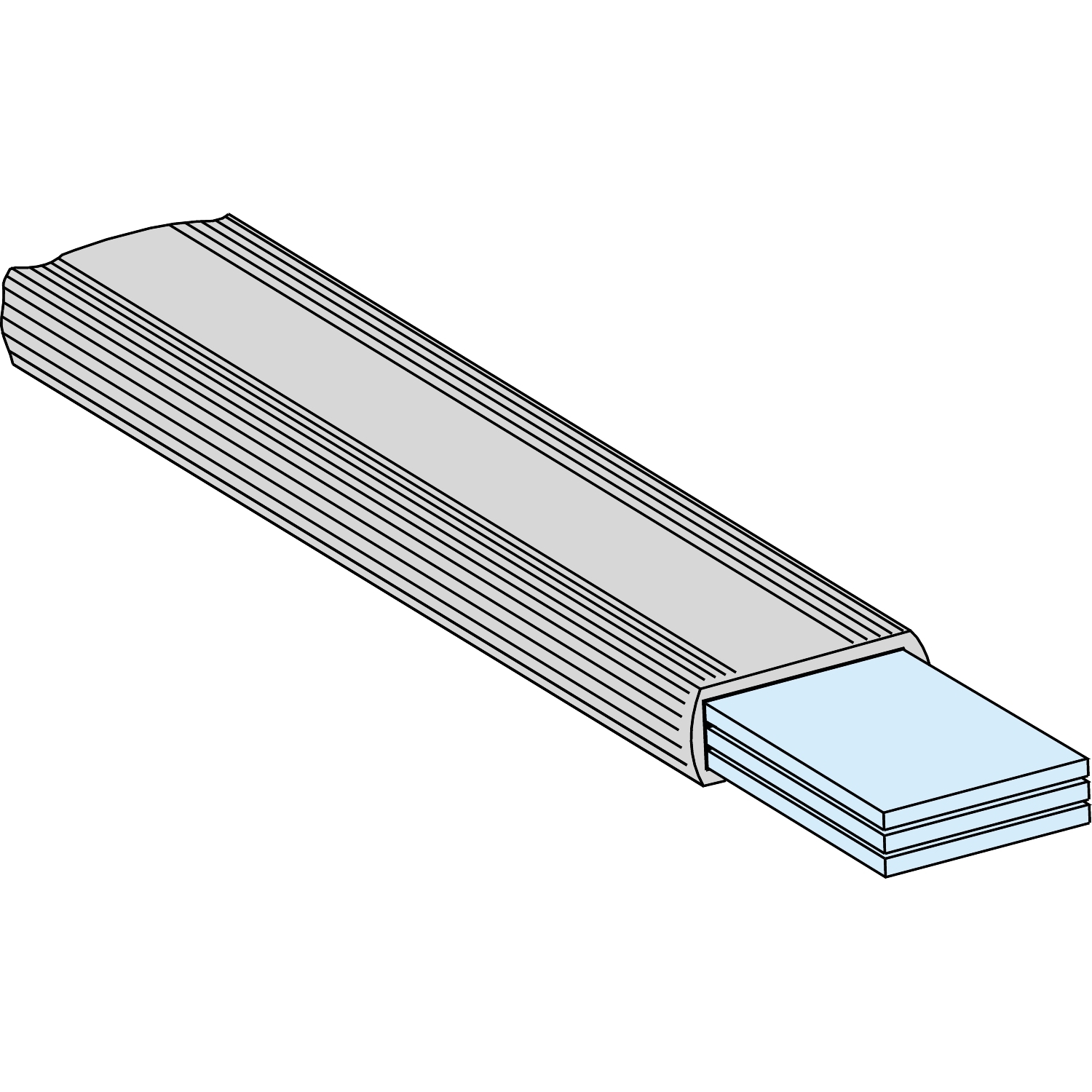

| Product or component type | insulated flexible bar |
| Accessory / separate part category | current distribution accessory |
| Range compatibility | Linergy Linergy FM device feeder, PrismaSeT Prisma iPM M enclosure, PrismaSeT Prisma iPM L enclosure, PrismaSeT PrismaSeT P enclosure, PrismaSeT PrismaSeT G enclosure |
| Range of product | PrismaSeT P, PrismaSeT G |
| Product certifications | ASTA |
| Complementary | |
| Quantity per set | set of 1 |
| [Ie] rated operational current | 250 A |
| Busbar cross section | 20 x 3 mm |
| Net weight | 1.68 kg |
| Length | 1800 mm |
| Installed device | Linergy FM 200 A, EasyPact: CVS160...250, ComPact: INV250, ComPact: INS250, ComPact: NSX250, ComPact: NSX160 |
| Enclosure/cubicle description | wall-mounted enclosure, floor-standing enclosure, cubicle |
| Cubicle-device connection | Linergy FM distribution block |
