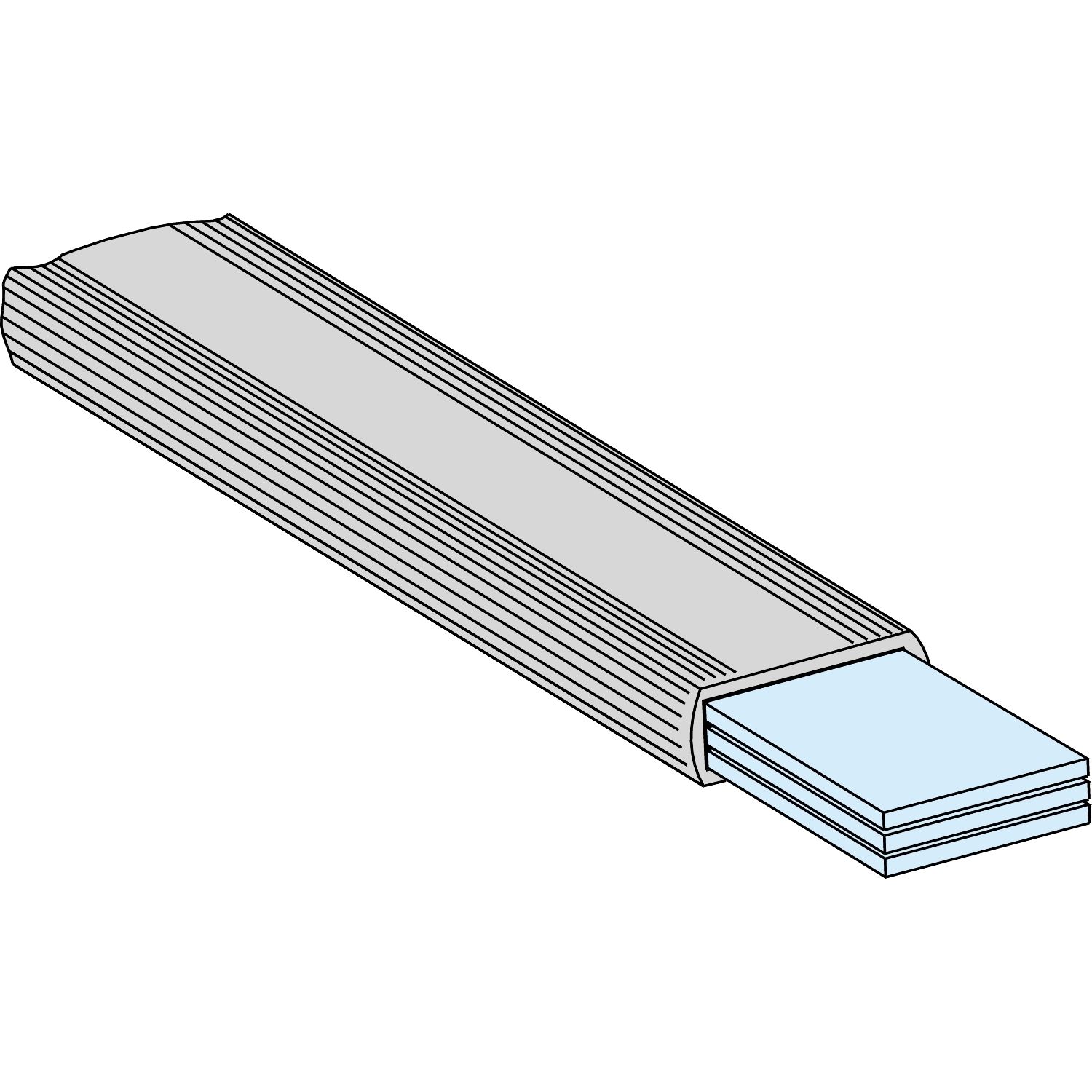

Linergy Insulated Flexible Bar is a critical component for efficient and safe power distribution within electrical panels. Designed for use within PrismaSeT P and G enclosures. Busbar can handle currents up to 520A, making it suitable. Insulated flexible bars with dimension of 32 x 5mm.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Standards | IEC 61439-1, inside enclosure, IEC 61439-2, inside enclosure |
| Range | PrismaSeT |
| Product or component type | insulated flexible bar |
| Accessory / separate part category | current distribution accessory |
| Range compatibility | PrismaSeT Prisma iPM M enclosure, PrismaSeT Prisma iPM L enclosure, PrismaSeT PrismaSeT P enclosure, PrismaSeT PrismaSeT G enclosure |
| Range of product | PrismaSeT P, PrismaSeT G |
| Product certifications | ASTA |
| Complementary | |
| Quantity per set | set of 1 |
| [Ie] rated operational current | 520 A |
| Busbar cross section | 32 x 5 mm |
| Net weight | 3.38 kg |
| Length | 1800 mm |
| Installed device | ComPact: CVS400, ComPact: INV320...400, ComPact: INS320...400, ComPact: NSX400 |
| Enclosure/cubicle description | wall-mounted enclosure, floor-standing enclosure, cubicle |
