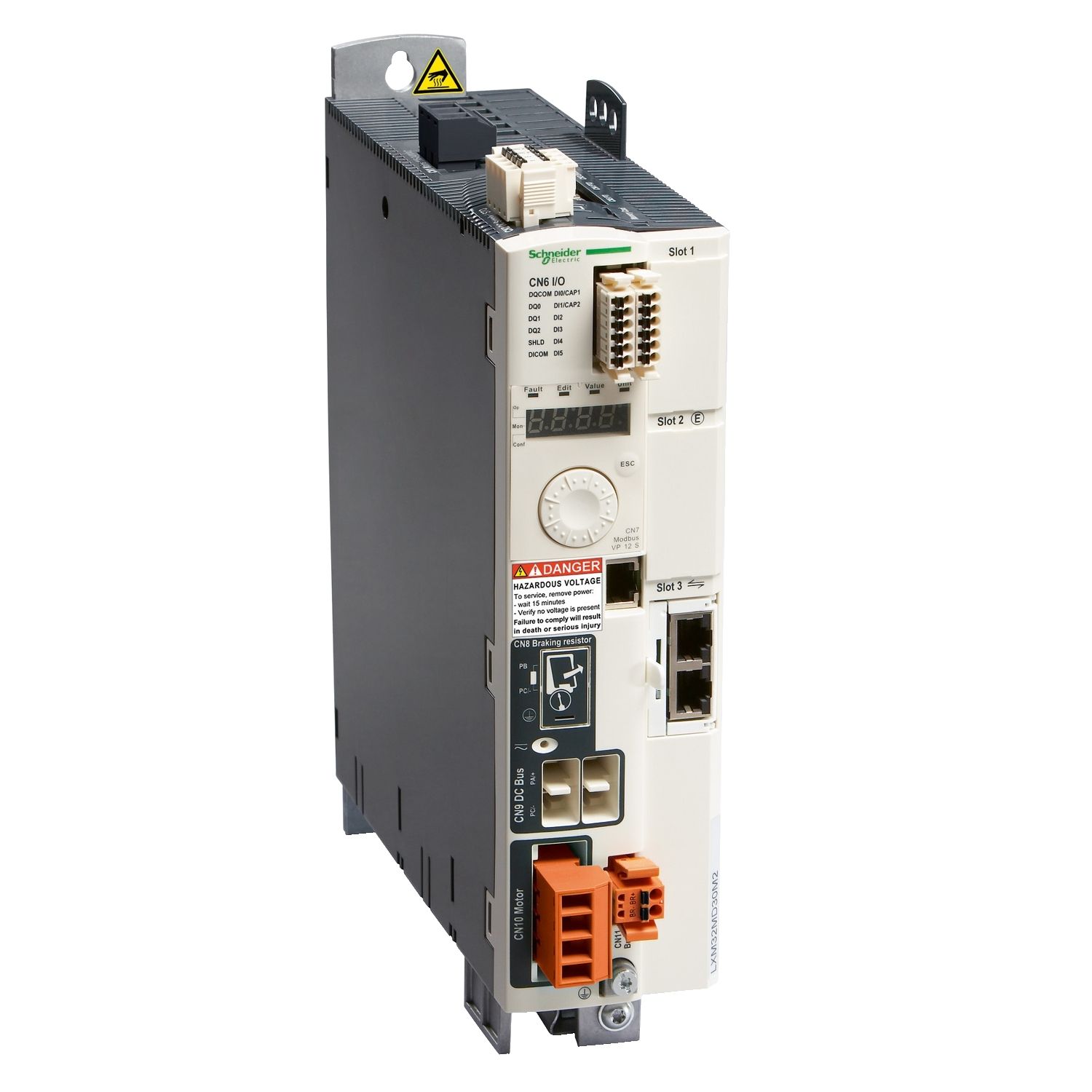

motion servo drive, Lexium 32, 30A, three phase, supply voltage 208 to 480V, 3kW

Manufacturer: Schneider Electric

SKU: LXM32MD30N4

GTIN: 3606480076893

Catalog

User guide

Environmental Disclosure

Circularity Profile

Brochure

Declaration of conformity

Availability: Out of stock

Old price: $2,765.40 inc GST

Price: $3,982.18 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This Lexium 32 servo drive works at a rated supply voltage from 208V ac to 480V ac. It can feed 3-phase synchronous motors BMH or BSH, its continuous output current is 10A at 8kHz. The compact size of the servo drive and associated servo motor provides maximum power in the minimum space. This servo drive is specifically designed for industrial machines. It offers high performance, power and simplicity of use in motion control applications. It complies with international standards IEC/EN 61800-5-1, IEC/EN 61800-3, and is UL and CSA and is UL and CSA certified and CE marked. It has been developed to meet the requirements of directives regarding protection of the environment (RoHS).

Products specifications

Attribute name	Attribute value
Main
Device short name	LXM32M
Continuous power	5600 W at 480 V, 5600 W at 400 V, 2800 W at 208 V
Continuous output current	10 A at 8 kHz
EMC filter	integrated
Supply voltage limits	323-528 V, 170-264 V
Line current	7 A 152 % at 480 V, without line choke, 8.3 A 148 % at 400 V, without line choke, 9.8 A 128 % at 208 V, without line choke, 9.6 A 85 % at 480 V, with external line choke of 1 mH, 11.1 A 77 % at 400 V, with external line choke of 1 mH, 9.2 A 59 % at 208 V, with external line choke of 1 mH
Range of product	Lexium 32
[Us] rated supply voltage	380...480 V - 15...10 %, 200...240 V - 15...10 %
Supply frequency	50/60 Hz - 5...5 %
Nominal power	3 kW at 480 V 8 kHz, 3 kW at 400 V 8 kHz, 2 kW at 208 V 8 kHz
Network number of phases	three phase
Product or component type	motion servo drive
Format of the drive	book
Output current 3s peak	30 A at 480 V for 5 s, 30 A at 208 V for 5 s
Network frequency	47.5...63 Hz
Complementary
Response time on output	250 µs (DO) for discrete output(s)
Drive voltage drop coefficient	0.95
Discrete input number	4 logic discrete input(s), 2 safety discrete input(s), 2 capture discrete input(s)
Protection type	against short-circuits: outputs signal, against reverse polarity: inputs signal
Switching frequency 3	8 kHz
Switching frequency 2	8 kHz
Tightening torque	CN10: 0.7-0.7 N.m, CN1: 0.7-0.7 N.m, CN8: 0.5-0.5 N.m
Operating position	vertical +/- 10 degree
Output voltage	<= power supply voltage
Compatibility code	LXM32M
Control signal type	pulse/direction (P/D), A/B, CW/CCW RS422 <1000 kHz <100 m, pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (push-pull) <200 kHz <10 m, pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (open collector) <10 kHz <1 m, pulse train output (PTO) RS422 <500 kHz <100 m, servo motor encoder feedback
Discrete input type	safety (compliment of STO_A, compliment of STO_B terminals), logic (DI terminals), capture (CAP terminals)
Supply voltage description	three phase 400 V, three phase 230 V
Electrical connection	terminal, clamping capacity: 5 mm², AWG 10 (CN10), terminal, clamping capacity: 5 mm², AWG 10 (CN1), terminal, clamping capacity: 3 mm², AWG 12 (CN8)
Communication interface	Profinet, with separated communication card, I/O, with separated communication card, DeviceNet, with separated communication card, Profibus, with separated communication card, EtherCAT, with separated communication card, Ethernet/IP, with separated communication card, CANmotion, with separated communication card, CANopen, with separated communication card, Modbus, integrated
Connector type	RJ45 (labelled CN7) for Modbus
Output current 3s peak 3	30 A
Contact bounce time	0.25 µs...1.5 ms for DI, 2 µs for CAP, <= 1 ms for compliment of STO_A, compliment of STO_B
Number of inputs/outputs	4 DI + 2 CI + 3 DO
Output current 3s peak 2	30 A
Marking	CE
Transmission rate	9600, 19200, 38400 bps for bus length of 40-40 m for Modbus
Discrete input voltage	24 V DC for safety, 24 V DC for logic, 24 V DC for capture
Status LED	1 LED (red) servo drive voltage
Height	270 mm
Product compatibility	servo motor BSH (140 mm, 4 motor stacks), servo motor BSH (140 mm, 3 motor stacks), servo motor BSH (140 mm, 2 motor stacks), servo motor BMH (205 mm, 3 motor stacks), servo motor BMH (190 mm, 3 motor stacks), servo motor BMH (190 mm, 2 motor stacks), servo motor BMH (190 mm, 1 motor stacks), servo motor BMH (140 mm, 3 motor stacks), servo motor BMH (100 mm, 3 motor stacks)
Sampling duration	0.25 ms, DI: 0.25 ms discrete
Safety level	PL = e conforming to ISO 13849-1, SIL 3 conforming to EN/IEC 61508
Discrete output type	logic output(s) (DO)24 V DC
Network number of phases	3
Depth	237 mm
Overvoltage category	III
Width	68 mm
Maximum leakage current	30 mA
Number of addresses	1-247 for Modbus
Safety function	SOS (safe operating stop), with separated eSM safety card, SLS (safe limited speed), with separated eSM safety card, SS2 (safe stop 2), with separated eSM safety card, SS1 (safe stop 1), with separated eSM safety card, STO (safe torque off), integrated
Field weakening	False
Emc filter compatibility	type 022
Communication iinterface	pulse train
Discrete output logic	positive or negative (DO) conforming to EN/IEC 61131-2
Discrete output number	3
Discrete output voltage	<= 30 V DC
Switching frequency	8 kHz
Braking current	50 mA
Net weight	2.7 kg
Signalling function	display of faults 7 segments
Response time	<= 5 ms compliment of STO_A, compliment of STO_B
Physical interface	2-wire RS485 multidrop for Modbus
Electrical isolation	between power and control
Continuous output current 3	10 A
Continuous output current 2	10 A
Discrete input logic	positive or negative (DI) at State 0: < 5 V at State 1: > 15 V conforming to EN/IEC 61131-2 type 1, positive (DI) at State 0: > 19 V at State 1: < 9 V conforming to EN/IEC 61131-2 type 1, positive (compliment of STO_A, compliment of STO_B) at State 0: < 5 V at State 1: > 15 V conforming to EN/IEC 61131-2 type 1
Type of cable	single-strand IEC cable (temperature: 50-50 °C) copper 90 °C XLPE/EPR
Environment
Relative humidity	Class 3K3 (5 to 85 %) without condensation conforming to IEC 60721-3-3
IP degree of protection	IP20 conforming to EN/IEC 61800-5-1, IP20 conforming to EN/IEC 60529
Type of cooling	integrated fan
Ambient air temperature for storage	-25-70 °C
Pollution degree	2 conforming to EN/IEC 61800-5-1
Electromagnetic compatibility	radiated EMC, category C3 conforming to EN/IEC 61800-3, radiated EMC, class A group 2 conforming to EN 55011, electrical fast transient/burst immunity test, level 4 conforming to EN/IEC 61000-4-4, 1.2/50 µs shock waves immunity test, level 3 conforming to EN/IEC 61000-4-5, susceptibility to electromagnetic fields, level 3 conforming to EN/IEC 61000-4-3, electrostatic discharge immunity test, level 3 conforming to EN/IEC 61000-4-2, conducted EMC, environments 1 and 2 conforming to EN/IEC 61800-3, conducted EMC, category C2 conforming to EN/IEC 61800-3, conducted EMC, environment 2 category C3 conforming to EN/IEC 61800-3, conducted EMC, class A group 2 conforming to EN 55011, conducted EMC, class A group 1 conforming to EN 55011
Ambient air temperature for operation	0-50 °C conforming to UL
Operating altitude	> 1000...3000 m with conditions, <= 1000 m without derating
Vibration resistance	1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6
Environmental characteristic	classes 3C1 conforming to IEC 60721-3-3
Shock resistance	15 gn for 11 ms conforming to EN/IEC 60028-2-27
Standards	EN/IEC 61800-3, EN/IEC 61800-5-1
Product certifications	CSA, TÜV, UL
