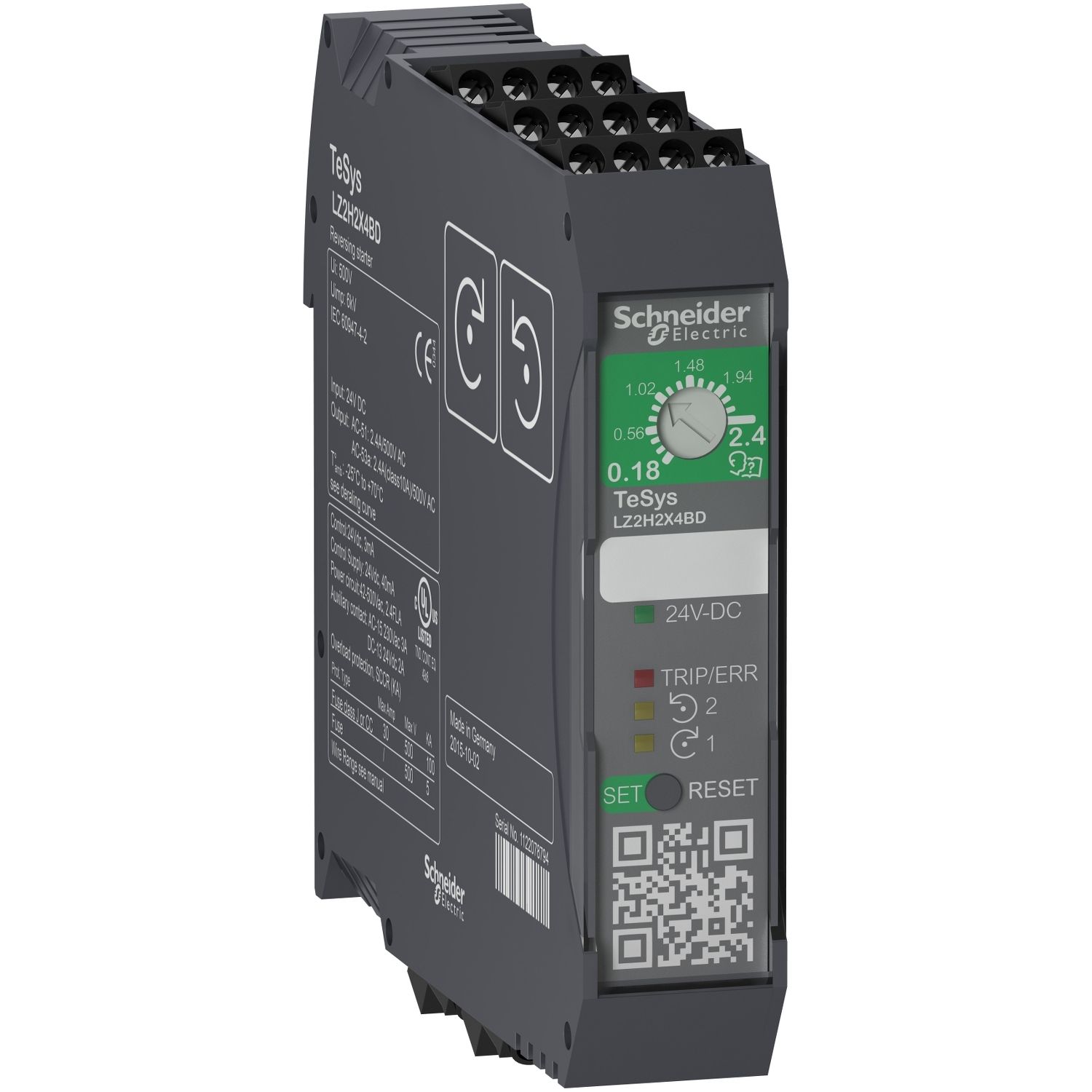

TeSys H ultra compact reverse starter, 3 poles, 6.5A/500V AC-53, for control and protection of 3-phase motors up to 3kW@400V (3HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for 2 directions of rotation, an adjustable motor current 1.5-6.5A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for FW/RV motor direction and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. DIN rail mounting, screw terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70°C. Multi standards certified (IEC, UL, CCC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LZ2H |
| [Ie] rated operational current | 7 A at 500 V AC-51 mounting side by side, 5 A at 500 V AC-53A mounting side by side, 9 A at 500 V AC-51, 6.5 A at 500 V AC-53A |
| Motor starter type | direct on line |
| Range | TeSys |
| Motor power kW | 3 kW at 500 V AC 0.65 , 3 kW at 440 V AC 0.65 , 3 kW at 415 V AC 0.65 , 3 kW at 400 V AC 0.65 , 2.2 kW at 380 V AC 0.65 , 1.5 kW at 230 V AC 0.65 , 1.5 kW at 220 V AC 0.65 |
| Thermal overload class | class 10A conforming to IEC 60947-4-2 |
| Motor power hp | 3 hp at 460 V AC, 1.5 hp at 230 V AC, 1 hp at 200 V AC |
| Poles description | 3P |
| Product name | TeSys Hybrid |
| Product or component type | reversing ultra-compact starter |
| Thermal protection adjustment range | 1.5-9 A |
| [Ue] rated operational voltage | 500 V AC |
| [Uc] control circuit voltage | 24 V DC |
| Complementary | |
| Tightening torque | 0.5-0.6 N.m flat Ø 2.5 mm screwdriver 3 mm |
| Control circuit voltage limits | 19.2...30 V DC |
| Auxiliary contact composition | 1 C/O fault signalling |
| Mounting mode | by clips |
| Pollution degree | 2 |
| Height | 99 mm |
| Electrical durability | 30 Mcycles |
| Depth | 114.5 mm |
| Width | 22.5 mm |
| Certifications | CE, cULus |
| Maximum operating rate | 6 cyc/mn AC-53A 50 % ON, 120 cyc/mn AC-51 50 % ON |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| Current consumption | <= 40 mA at 24 V DC |
| Connections - terminals | screw clamp terminals 1 cable(s) 0.2-2.5 mm² - flexible - without cable end, screw clamp terminals 1 cable(s) 0.25-2.5 mm² - flexible - with cable end, screw clamp terminals 1 cable(s) 0.2-2.5 mm² - rigid |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Net weight | 212 g |
| Mounting support | DIN rail |
| Standards | UL 60947-4-1, IEC 60947-4-2 |
| Reset | electrical reset, automatic reset, manual |
| Environment | |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-80 °C |
| Ambient air temperature for operation | 30-70 °C with derating, -25-30 °C without derating |
