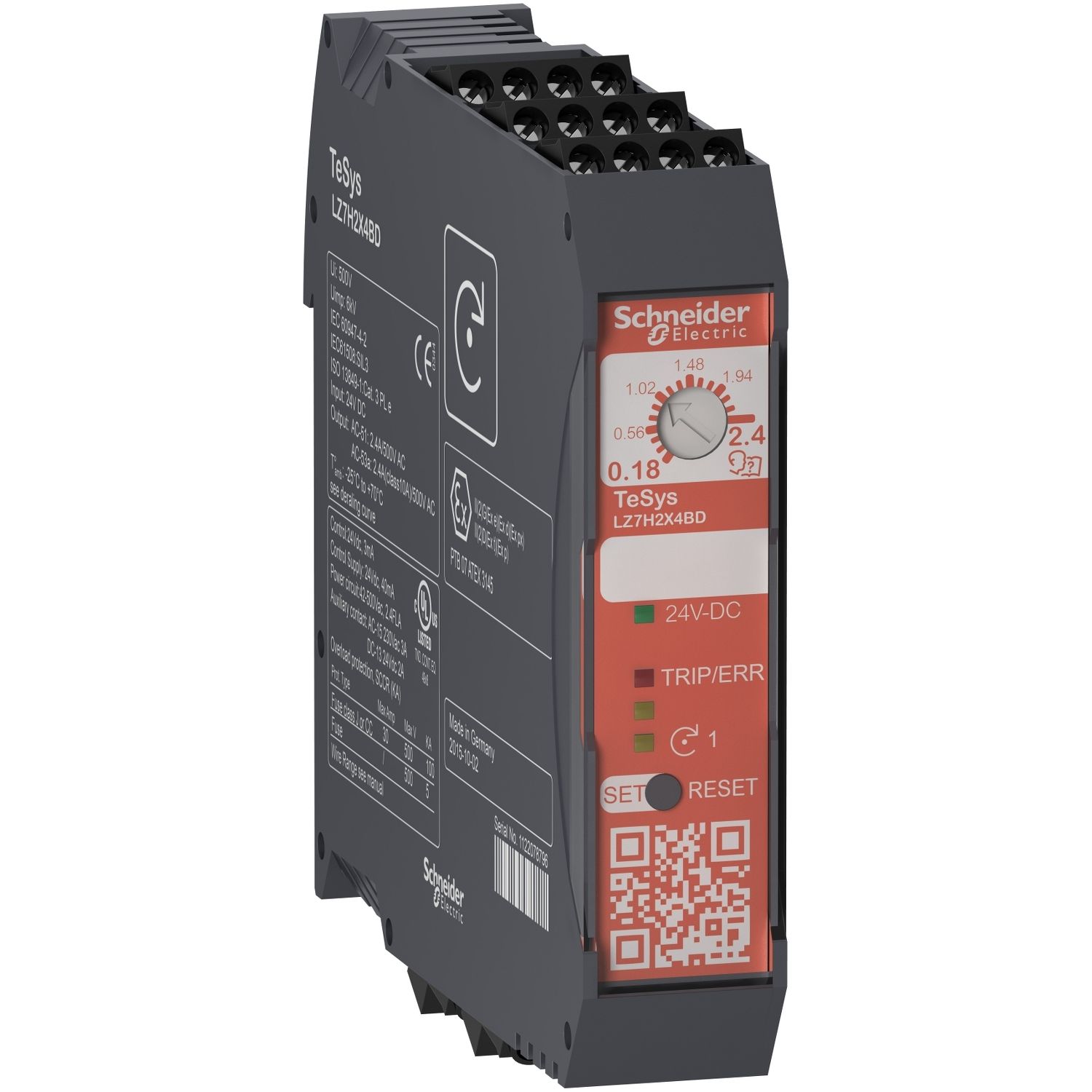

TeSys H ultra compact direct safety starter, 3 poles, 6.5A/500V AC-53, for control and protection of 3-phase motors up to 3kW@400V (3HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for one direction of rotation, an adjustable motor current 1.5-6.5A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for ON/OFF motor running and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. With an integrated Safe Torq Off (STO) function with SIL3 level according IEC61508-1 and PLe level according ISO13849-1, it can be integrated to safety chain applications. DIN rail mounting, screw terminals for control and power, it can be used for ambient temperatures from -25 to 70°C, without derating until 30°C. Multi standards certified (IEC, UL, CCC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LZ7H |
| Safety reliability data | PFHd = 2.40E-9 1/h stop function, MTTFd = 447 years motor protection, SFF = 99 % motor protection, SFF = 99 % stop function, MTTFd = 517 years stop function |
| [Ie] rated operational current | 7 A at 500 V AC-51 mounting side by side, 5 A at 500 V AC-53A mounting side by side, 9 A at 500 V AC-51, 6.5 A at 500 V AC-53A |
| Motor starter type | direct on line |
| Range | TeSys |
| Motor power kW | 3 kW at 500 V AC 0.65 , 3 kW at 440 V AC 0.65 , 3 kW at 415 V AC 0.65 , 3 kW at 400 V AC 0.65 , 2.2 kW at 380 V AC 0.65 , 1.5 kW at 230 V AC 0.65 , 1.5 kW at 220 V AC 0.65 |
| Thermal overload class | class 10A conforming to IEC 60947-4-2 |
| Safety level | SIL 2 conforming to IEC 61508-1 motor protection, PL = e conforming to ISO 13849-1 stop function, SIL 3 conforming to IEC 61508-1 stop function |
| Motor power hp | 3 hp at 460 V AC, 1.5 hp at 230 V AC, 1 hp at 200 V AC |
| Poles description | 3P |
| Product name | TeSys Hybrid |
| Product or component type | ultra-compact starter |
| Thermal protection adjustment range | 1.5-9 A |
| [Ue] rated operational voltage | 500 V AC |
| [Uc] control circuit voltage | 24 V DC |
| Complementary | |
| Tightening torque | 0.5-0.6 N.m flat Ø 2.5 mm screwdriver 3 mm |
| Control circuit voltage limits | 19.2...30 V DC |
| Auxiliary contact composition | 1 C/O fault signalling |
| Mounting mode | by clips |
| Pollution degree | 2 |
| Height | 99 mm |
| Electrical durability | 30 Mcycles |
| Depth | 114.5 mm |
| Width | 22.5 mm |
| Certifications | cULus, CE, ATEX as associated device for motor protection in zones 1 and 21 |
| Maximum operating rate | 6 cyc/mn AC-53A 50 % ON, 120 cyc/mn AC-51 50 % ON |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| Current consumption | <= 40 mA at 24 V DC |
| Connections - terminals | screw clamp terminals 1 cable(s) 0.2-2.5 mm² - flexible - without cable end, screw clamp terminals 1 cable(s) 0.25-2.5 mm² - flexible - with cable end, screw clamp terminals 1 cable(s) 0.2-2.5 mm² - rigid |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Net weight | 212 g |
| Mounting support | DIN rail |
| Standards | IEC 60947-4-2, UL 60947-4-1 |
| Reset | electrical reset, manual |
| Environment | |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-80 °C |
| Ambient air temperature for operation | 30-70 °C with derating, -25-30 °C without derating |
