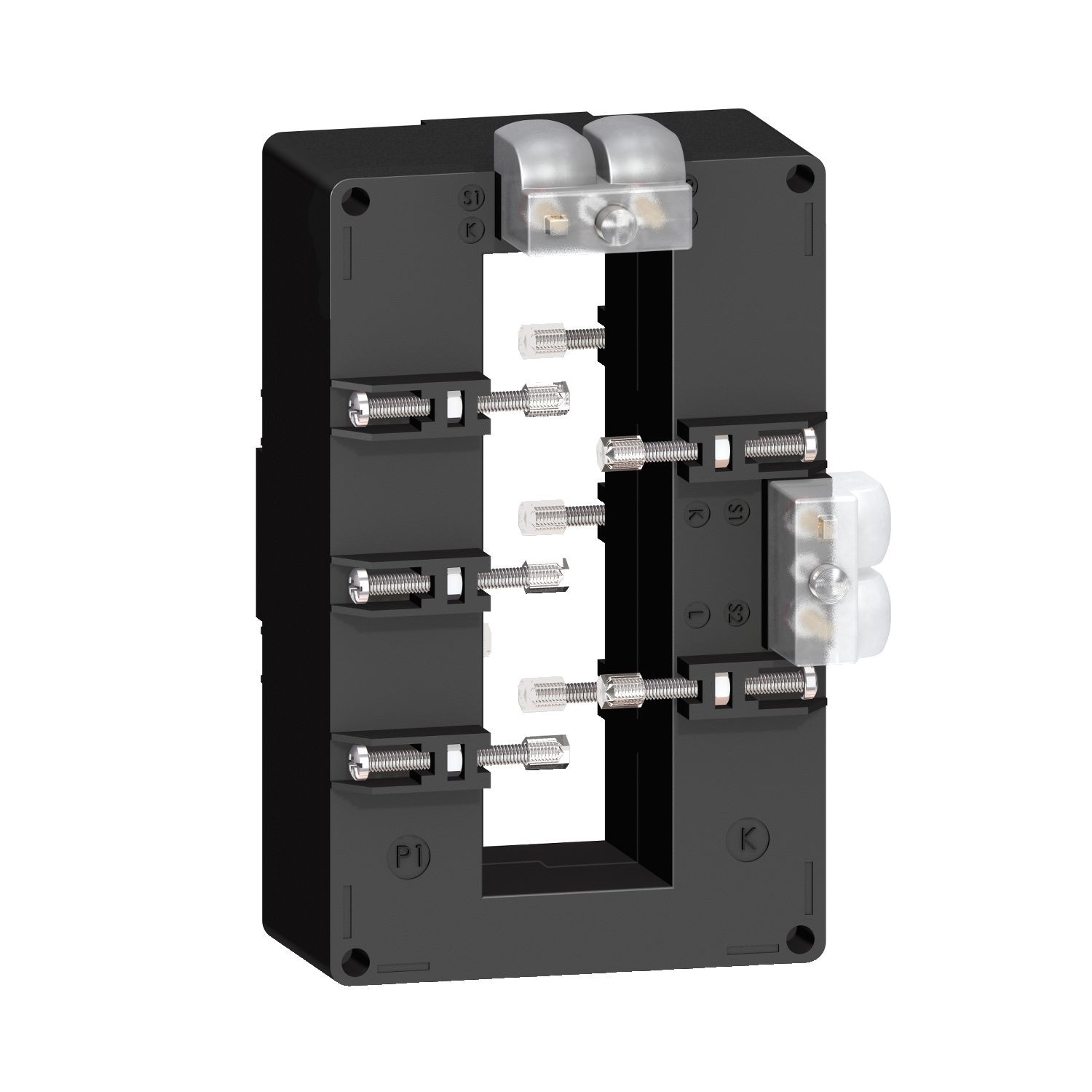

current transformer tropicalised 1250 5 double output for bars 38x127

Manufacturer: Schneider Electric

SKU: METSECT5DB125

GTIN: 3303431123735

Catalog

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $220.55 inc GST

Price: $159.35 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This current transformer, tropicalised for busbar, has a line rated current of 1250 A and a secondary current rating of 5 A. This current transformer do have a 38 mm x 127 mm opening. Compatible with a single output for bar: 127 mm x 38 mm. Burden and accuracy class as follows: class 0.5 maximum power: 8 VA, class 1 maximum power: 12 VA.

Products specifications

Attribute name	Attribute value
Main
Accuracy class	class 1 at 12 VA, class 0.5 at 8 VA
[In] rated current	1250 A
Range	PowerLogic
Product name	CT
Product or component type	current transformer
Range of product	PowerLogic CT
Secondary current	5 A
Complementary
[Uimp] rated impulse withstand voltage	3 kV
Current transformer type	tropicalised for busbar
Compatibility code	DB
Height	160 mm outside: , 127 mm inner:
Width	99 mm outside: , 38 mm inner:
Current transformer ratio	1250/5
Mounting mode	insulated locking screw
Dynamic withstand current	2.5 Ith
Electrical insulation class	class B
Opening of bars	127 x 38
Sealing	with
Depth	78.4 mm total: , 40 mm frame:
Net weight	0.76 kg
[Ith] conventional free air thermal current	60 kA
[Ui] rated insulation voltage	3 kV
Mounting support	busbar
Maximum safety factor	5
[Ue] rated operational voltage	< 720 V AC 50/60 Hz
Environment
Relative humidity	0-95 %
IP degree of protection	IP20
Standards	VDE 0414, IEC 61869-2
Ambient air temperature for operation	-25-50 °C
Product certifications	CE, EAC
