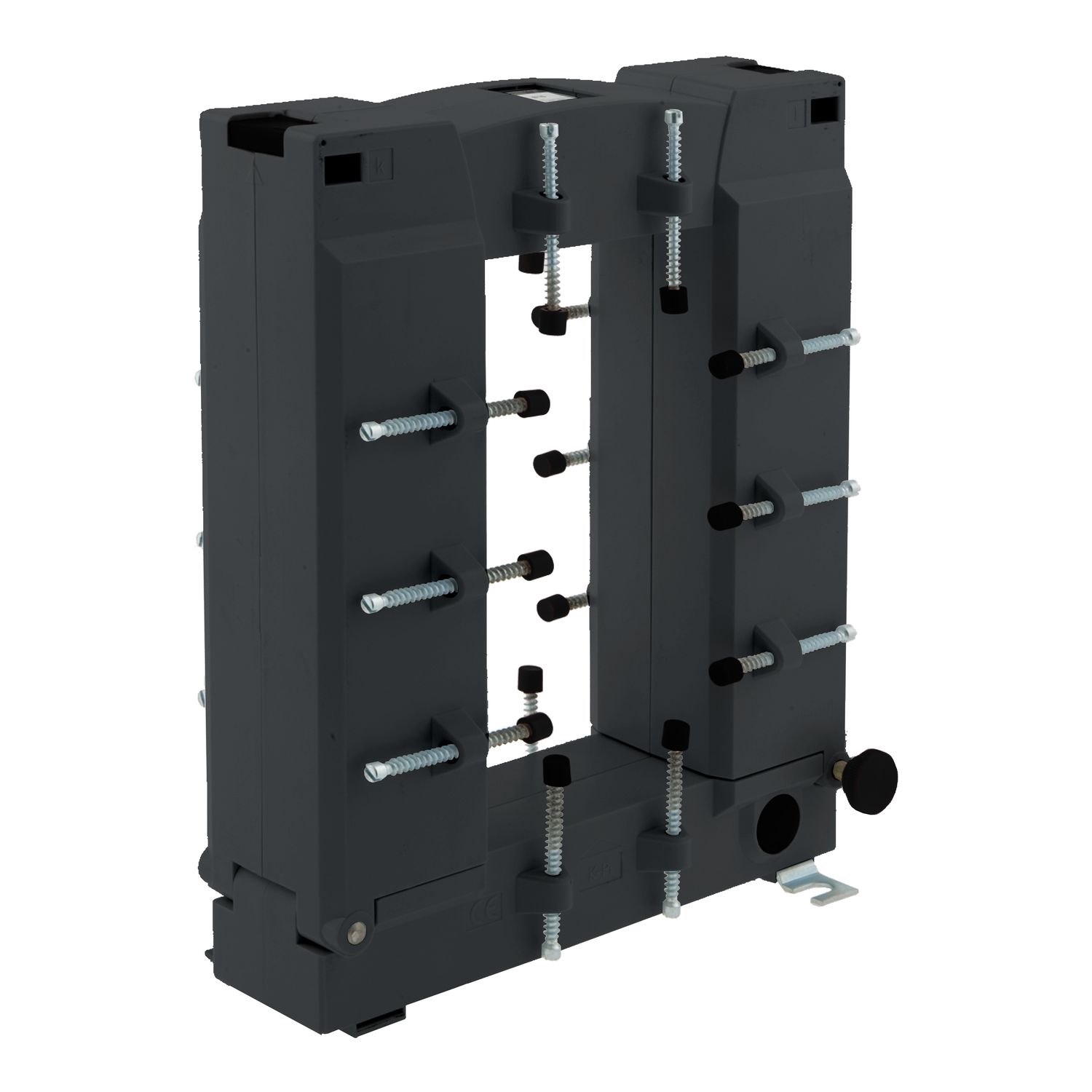

PowerLogic Split Core Current Transformer - Type GJ, for bar - 3000A / 5A

Manufacturer: Schneider Electric

SKU: METSECT5GJ300

GTIN: 3606489608101

Catalog

Instruction sheet

Environmental Disclosure

CAD

Circularity Profile

Declaration of conformity

Old price: $471.35 inc GST

Price: $340.55 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This current transformer, standard for busbar, has a line rated current of 3000 A and a secondary current rating of 5 A. This current transformer do have a 85 mm x 165 mm opening. Compatible with a single output for bar: 80 mm x 160 mm. Burden and accuracy class as follows: class 0.5 maximum power: 15 VA.

Products specifications

Attribute name	Attribute value
Main
Accuracy class	class 0.5 at 15 VA
[In] rated current	3000 A
Range	PowerLogic
Product name	CT
Product or component type	current transformer
Secondary current	5 A
Complementary
Current transformer type	split core, standard for busbar
Height	165 mm inner: , 243 mm outside:
Width	85 mm inner: , 195 mm outside:
Current transformer ratio	5/1/3000 12:00:00 AM
Permissible current	180000 A during 1 s
Mounting mode	by screws
Electrical insulation class	class E
Opening of bars	80 x 160
Depth	79 mm
[Ith] conventional free air thermal current	3000 A
[Ui] rated insulation voltage	3 kV
Mounting support	fastened onto a surface with screws, DIN rail
Maximum safety factor	10
[Ue] rated operational voltage	< 720 V 50 Hz
Environment
Ambient air temperature for storage	-25-70 °C
Standards	DIN EN 61869-2, DIN EN 61869-1, DIN 42600-2, VDE 0414
Ambient air temperature for operation	-5-40 °C
