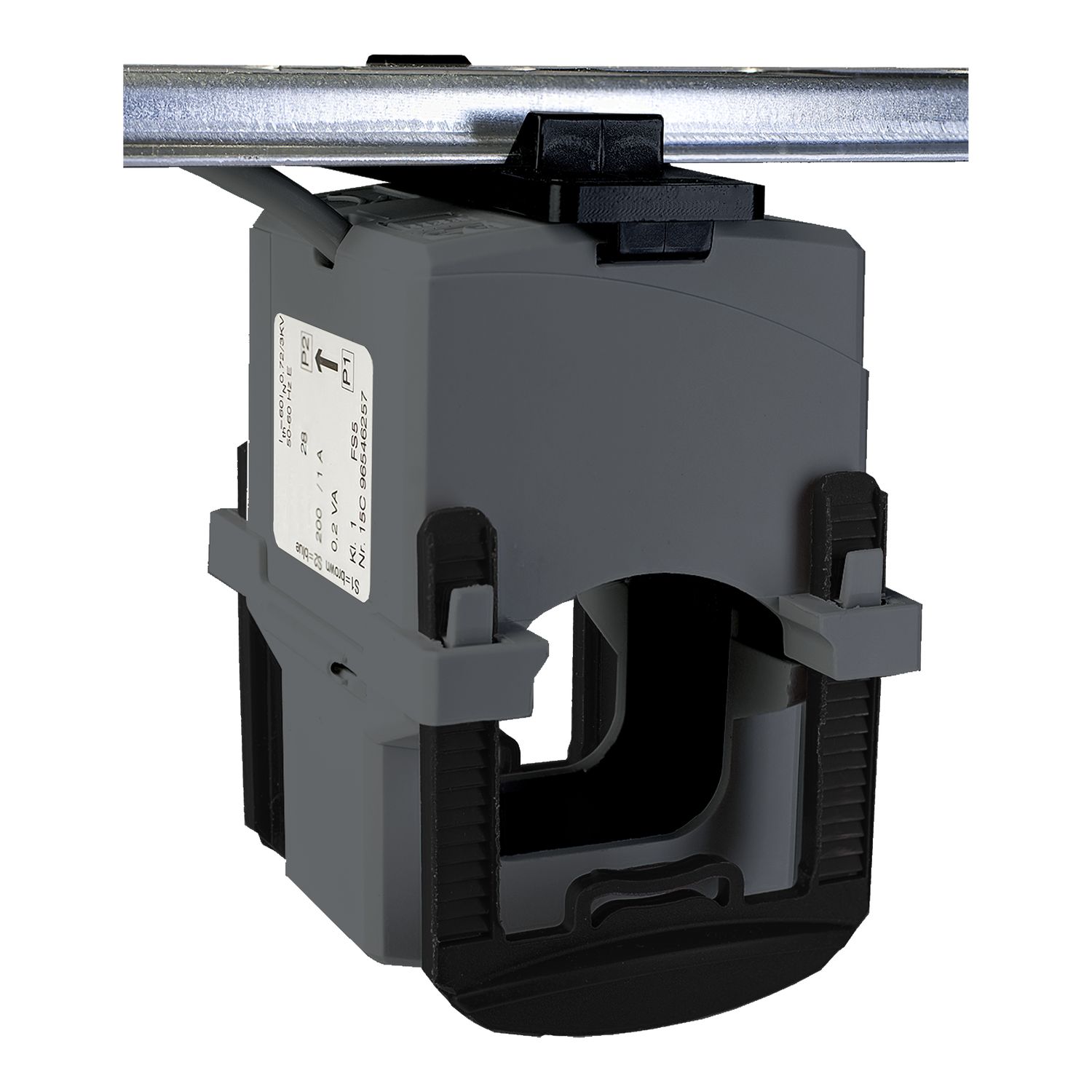

PowerLogic Split Core Current Transformer - Type HA, for cable - 0250A / 5A

Manufacturer: Schneider Electric

SKU: METSECT5HA025

GTIN: 3606489608132

Catalog

Instruction sheet

Environmental Disclosure

CAD

Circularity Profile

Declaration of conformity

Old price: $205.04 inc GST

Price: $148.14 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This current transformer, standard for cable, has a line rated current of 250 A and a secondary current rating of 5 A. This current transformer allow a maximum cable outer diameter of 18.4 mm. Burden and accuracy class as follows: class 0.5 maximum power: 1 VA.

Products specifications

Attribute name	Attribute value
Main
Accuracy class	class 0.5 at 1 VA
[In] rated current	250 A
Range	PowerLogic
Product name	CT
Product or component type	current transformer
Secondary current	5 A
Complementary
Diameter	18.4 mm inner:
Current transformer type	split core, standard for cable
Height	80.1 mm outside:
Width	49 mm outside:
Current transformer ratio	250/5
Permissible current	15000 A during 1 s
Mounting mode	clip-on
Electrical insulation class	class E
Depth	59 mm
Connections - terminals	cable 2 cable(s) 0.5-1.5 mm² 0.5 m
[Ith] conventional free air thermal current	300 A
Cable outer diameter	18.4 mm
[Ui] rated insulation voltage	3 kV
Maximum safety factor	5
[Ue] rated operational voltage	< 720 V 50 Hz
Environment
Ambient air temperature for storage	-25-70 °C
Standards	VDE 0414, DIN EN 61869-2, DIN EN 61869-1, DIN EN 60044-1
Ambient air temperature for operation	-5-50 °C
