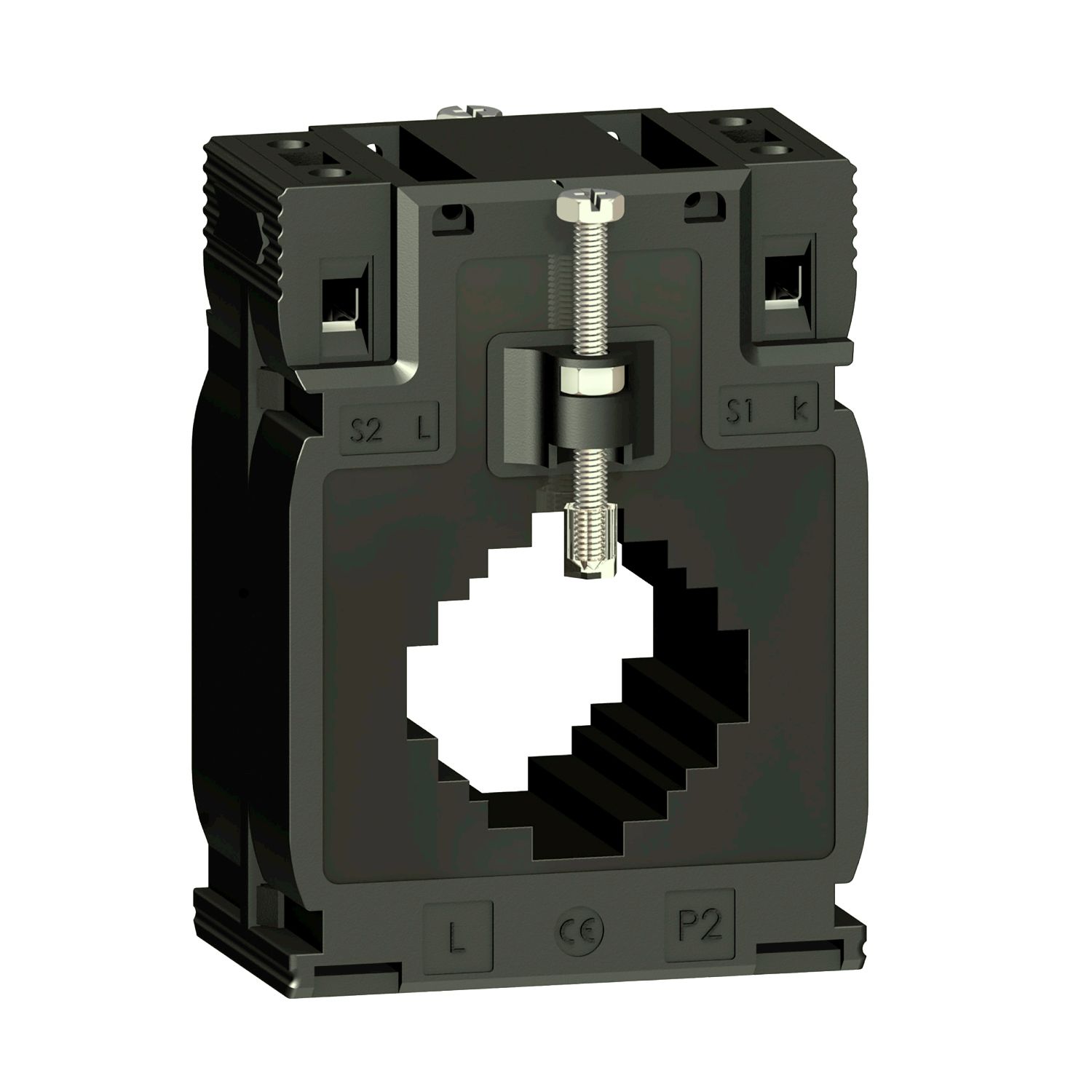

Current transformer tropicalised, PowerLogic, DIN mount 500 5 for bars 10x40 20x32 25x25

Manufacturer: Schneider Electric

SKU: METSECT5MC050

GTIN: 3606480618840

Catalog

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $116.16 inc GST

Price: $83.93 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This current transformer, tropicalised for busbar and cable, has a line rated current of 500 A and a secondary current rating of 5 A. This current transformer do have a 41 mm x 41 mm opening. Compatible with a triple output for bar: 40.5 mm x 10.5 mm or 32.5 mm x 20.5 mm or 25.5 mm x 25.5 mm. Burden and accuracy class as follows: class 0.5 maximum power: 10 VA, class 1 maximum power: 12 VA.

Products specifications

Attribute name	Attribute value
Main
Accuracy class	class 1 at 12 VA, class 0.5 at 10 VA
[In] rated current	500 A
Range	PowerLogic
Product name	CT
Product or component type	current transformer
Range of product	PowerLogic CT
Secondary current	5 A
Complementary
Diameter	32 mm
[Uimp] rated impulse withstand voltage	3 kV
Current transformer type	tropicalised for busbar and cable
Compatibility code	MC
Height	41 mm inner: , 95 mm outside:
Width	41 mm inner: , 70 mm outside:
Current transformer ratio	500/5
Mounting mode	clip-on, insulated locking screw, by screws
Dynamic withstand current	2.5 Ith
Electrical insulation class	class B
Opening of bars	32.5 x 20.5, 25.5 x 25.5, 40.5 x 10.5
Sealing	without
Depth	65 mm total: , 45 mm frame:
Net weight	0.429 kg
[Ith] conventional free air thermal current	30 kA
Cable outer diameter	32 mm
[Ui] rated insulation voltage	3 kV
Mounting support	DIN rail, mounting plate, busbar
Maximum safety factor	5
[Ue] rated operational voltage	< 720 V AC 50/60 Hz
Environment
Relative humidity	0-95 %
IP degree of protection	IP20
Standards	IEC 61869-2, VDE 0414
Ambient air temperature for operation	-25-60 °C
Product certifications	EAC, CE
