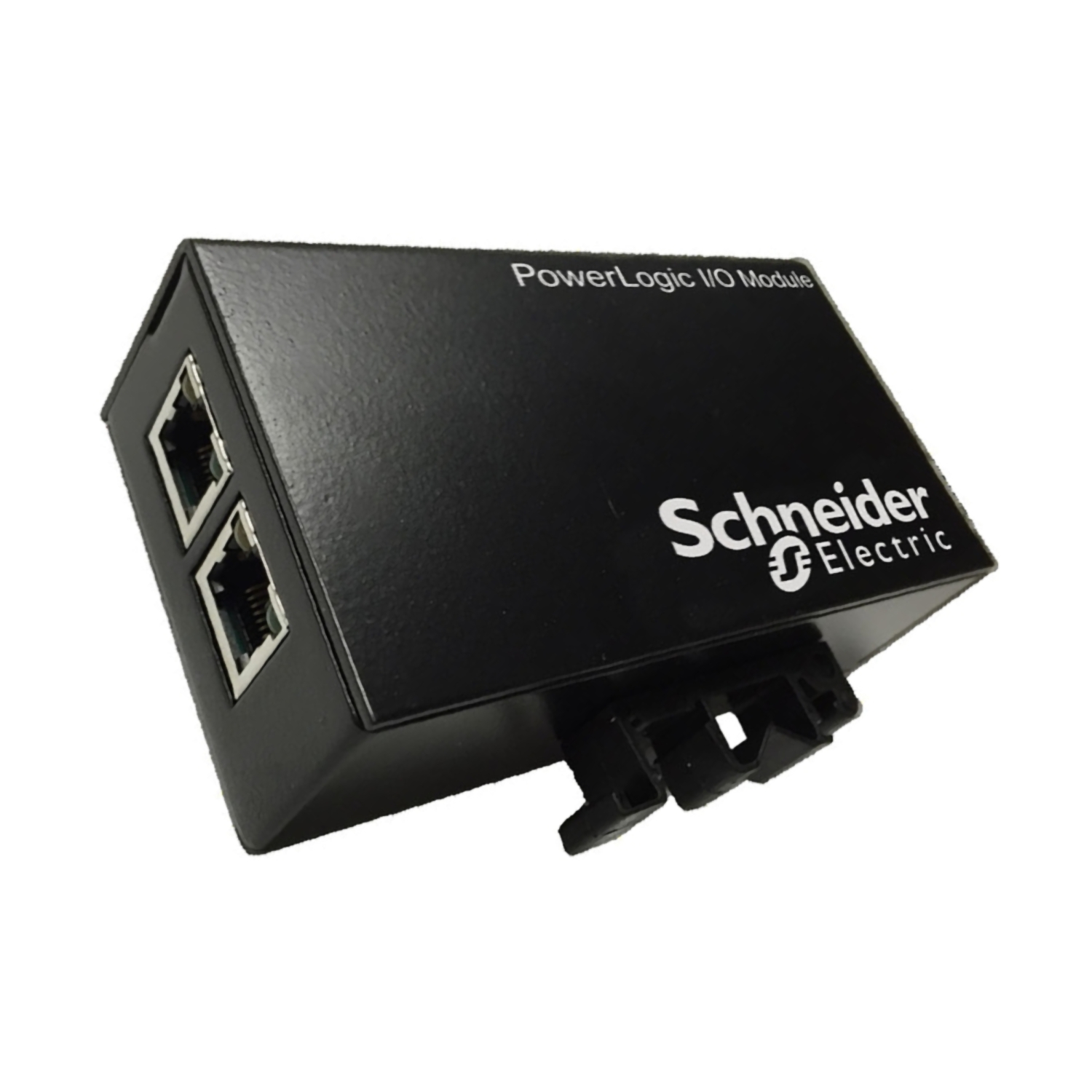

Optional Input Output module compatible with PowerLogic HDPM6000 devices that provides additional feature to the multi-circuit meter. This IO module provide 2 dry contact inputs, 1 analog input, 1 relay output and an additional current transformer input. Maximum input voltage is 5VDC. The relay output can be connected to a 30VDC or 48VAC network. The analog input is a 0 to 10VDC voltage type. The IO module dimensions are 112mm in width, 87mm in height and 29mm in depth. The elements can be mounted on a DIN rail thanks to the clips on the side. To be connected to the PowerLogic HDPM6000 head unit with Ethernet cable in daisy-chain.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range | PowerLogic |
| Product or component type | I/O module |
| Range compatibility | PowerLogic PowerLogic HDPM6000 current transformer, PowerLogic PowerLogic HDPM6000 base unit |
| Complementary | |
| Number of inputs | 1 current transformer, 2 dry contact |
| Depth | 28.70 mm |
| Width | 111.76 mm |
| Analogue input type | analog input 0...10 V1 x |
| Input impedance | 50 Ohm |
| Output voltage | 48 V AC, 30 V DC |
| Input voltage | 5 V DC |
| Mounting support | enclosure, 35 mm DIN rail |
| Number of outputs | 1 relay |
| Height | 86.87 mm |
| Environment | |
| Ambient air temperature for storage | -20-70 °C |
| Ambient air temperature for operation | -20-60 °C |
