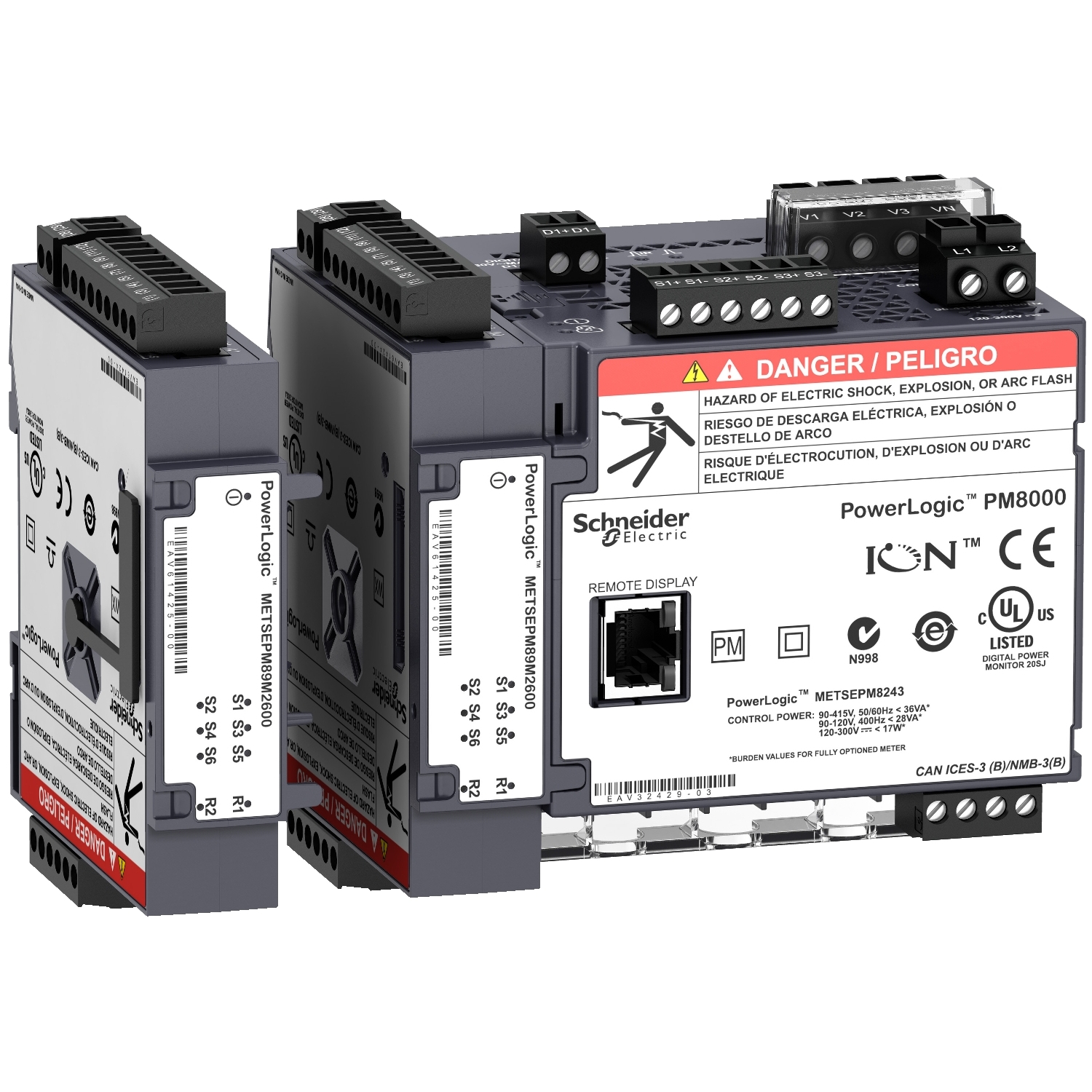

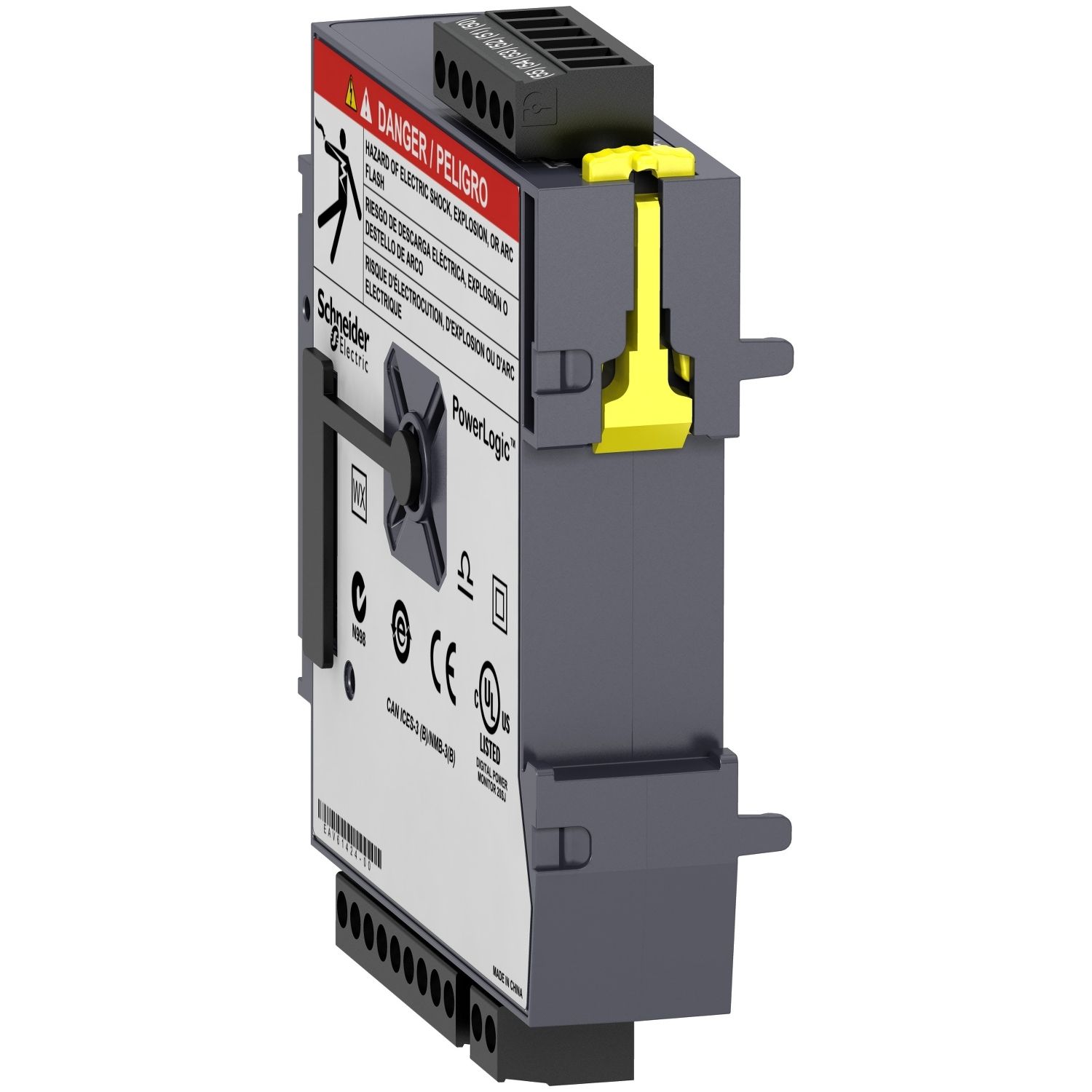

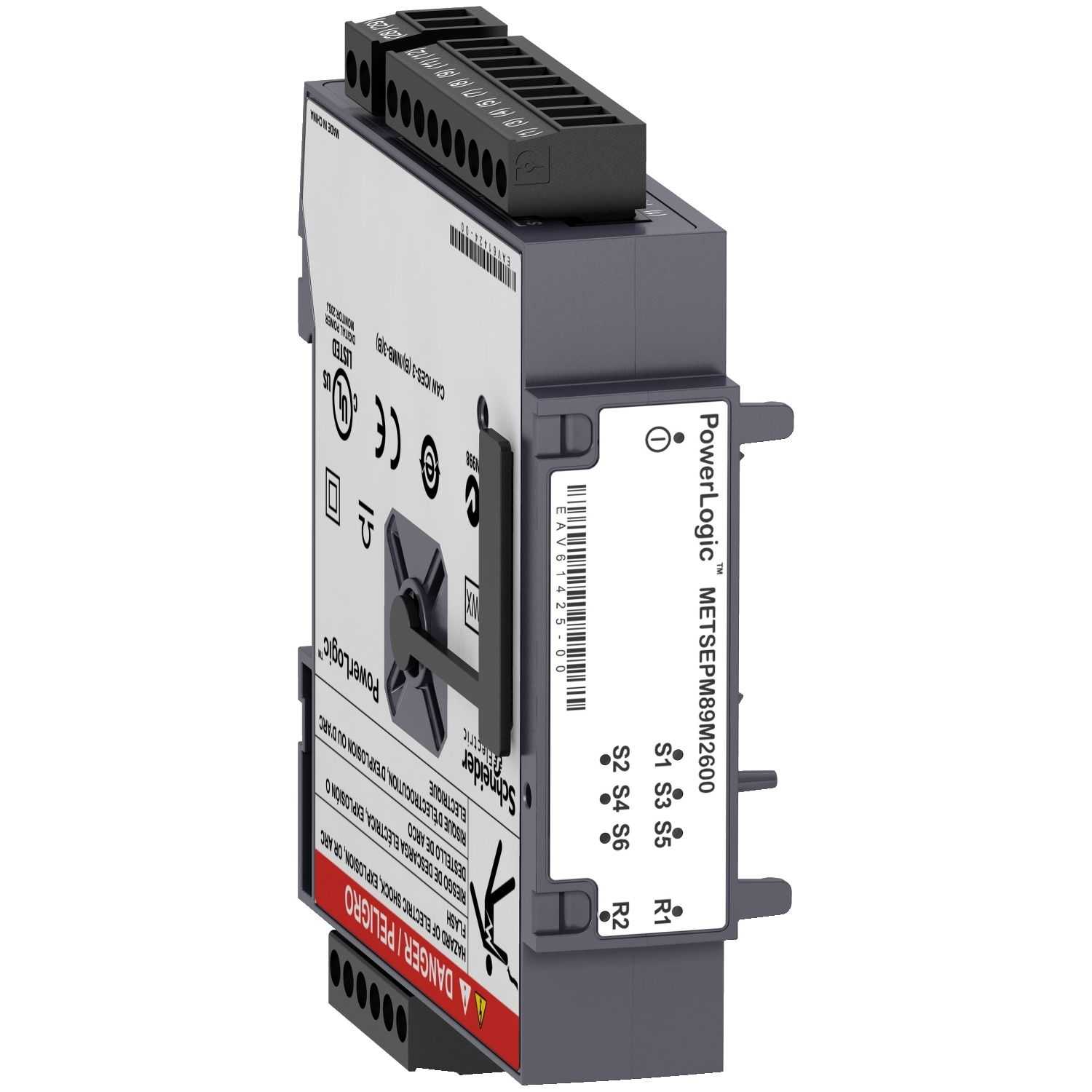

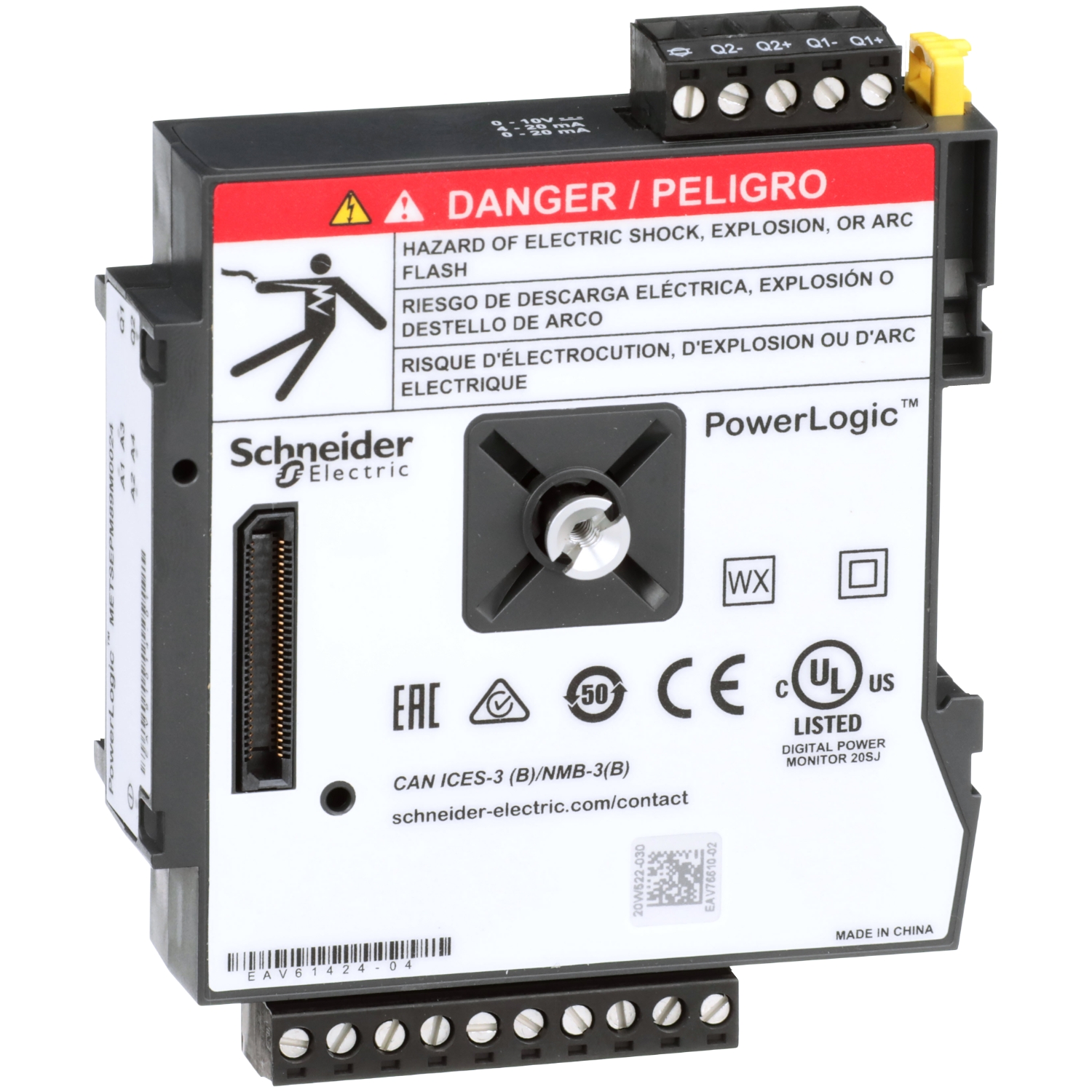

Optional Input Output module compatible with PowerLogic PM8000, ION7400 and ION9000 devices that provides additional analog inputs and analog outputs. This analog module provides 4 analog inputs that support 0 to 20mA, 4 to 20mA and 0 to 30V. Plus 2 analog outputs to interface with BMS and other systems. The analog outputs support 0 to 20mA, 4 to 20mA and 0 to 10V. Analog inputs and outputs are sampled by the host meter at a 1/2 cycle (8-10ms) rate. The option modules are attached to the side of the meter providing connection for control power and interfacing bus. The PowerLogic PM8000, ION7400 and ION9000 devices allow up to 4 input/output option modules per meter.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | optional expansion module |
| Range | PowerLogic |
| Product or component type | I/O module |
| Range compatibility | PowerLogic PowerLogic ION9000, PowerLogic PowerLogic ION7400, PowerLogic PowerLogic PM8000 |
| Complementary | |
| Depth | 90.5 mm |
| Width | 22 mm |
| Number of inputs | 4 analog 0...20 mA/4...20 mA 0...30 V |
| Net weight | 140 g |
| Number of outputs | 2 analog, 0-20 mA or 4-20 mA or 0...10 V |
| Height | 90.5 mm |
| Environment | |
| IP degree of protection | IP30 conforming to IEC 60529 |
| Ambient air temperature for storage | -40-85 °C |
| Ambient air temperature for operation | -25-70 °C |
