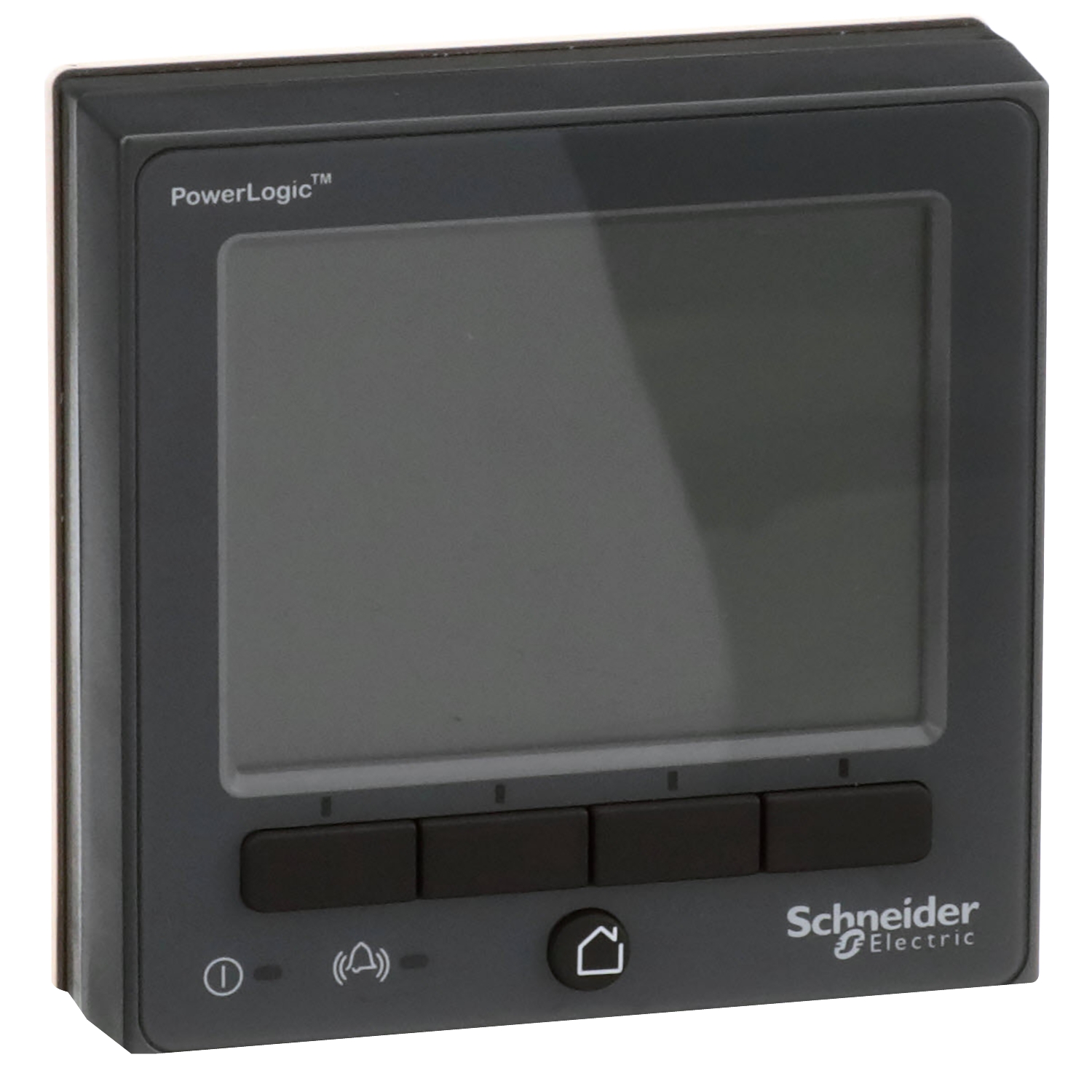

Display (RD96) compatible with PowerLogic PM8000, ION7400 and ION9000. 96mm by 96mm color graphical LCD with push-button interface. Information avaiable from the display: power, energy consumption, harmonics, frequency, voltage, current, alarms and input output status. Viewable area: color TFT LCD, 320 pixels by 240 pixels QVGA. Panel mounting using a 30 mm push-button hole or 1/4 DIN cutout. Ingress Protection IP54 (UL type 12) rating.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | human-machine dialogue application |
| Display type | colour TFT LCD |
| Range | PowerLogic |
| Product or component type | remote display |
| Range compatibility | PowerLogic PowerLogic ION7400, PowerLogic PowerLogic PM8000 |
| Complementary | |
| Projecting depth | 27 mm |
| Width | 96 mm |
| Display size | 3.5 inch |
| Mounting support | framework remote display |
| Local signalling | alarm: LED (red), status: LED (green) |
| Mounting mode | flush-mounted |
| Control type | 5 x push-button |
| Connector type | RJ45 |
| Messages display capacity | graphic objects (bargraph, button, light...) |
| Provided equipment | cable (with 3 m, mounting hardware |
| Net weight | 300 g |
| Display resolution | 320 x 240 pixels QVGA |
| Height | 96 mm |
| Information displayed | I/O status, system alarm, current, frequency, harmonic distortion, power, voltage, energy consumption |
| Environment | |
| Operating altitude | 0...3000 m |
| IP degree of protection | IP54 conforming to IEC 60529 |
| Relative humidity | 5-95 % |
| Ambient air temperature for storage | -40-85 °C |
| Ambient air temperature for operation | -25-60 °C |
| Product certifications | IEC |
