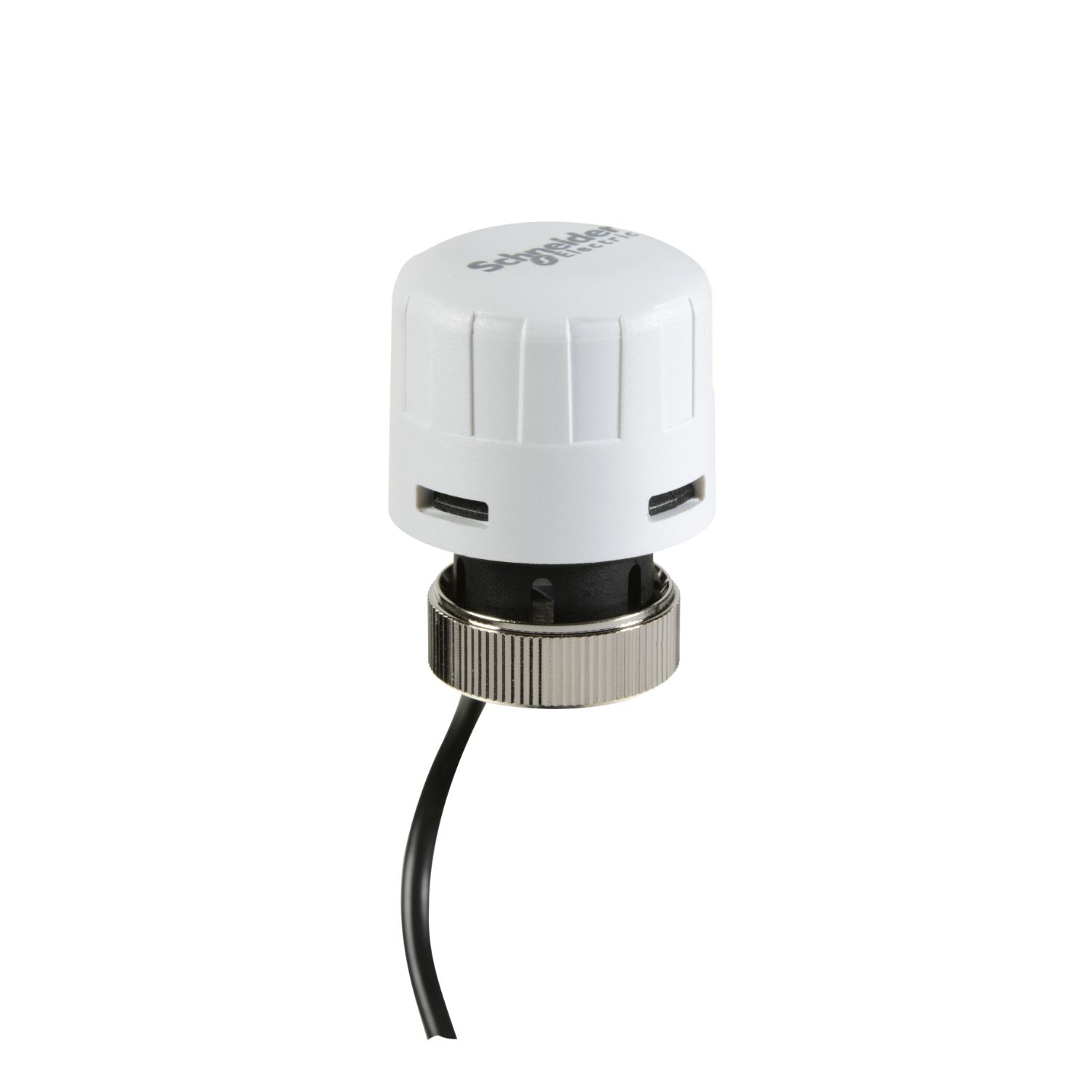

MP140 is a thermoelectric actuator designed to provide two position on/off control together with the VP223R pressure independent control valves. The MP140, when connected to the VP223R valve, provides pressure independent flow limiting on/off control. Normally open version. Supply Voltage: 100 - 230 Vac. Stem Force: 140 N. Protection class IP44 / IP42. Max stroke 4 mm. EMC: 24/18/CE, LVD 26/95/CE.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Force N | 140 N |
| Hold-in power consumption in W | 2-2 W |
| Material | polycarbonate: housing |
| IP degree of protection | IP22 |
| Relative humidity | 0-95 % RH, non-condensing |
| Ambient air temperature for storage | -45-60 °C |
| [Us] rated supply voltage | 110...230 V AC |
| Product destination | pressure independent control valves |
| Control type | automatic reset |
| Product or component type | actuator |
| Targeted region | Australia., Asia Pacific., Europe |
| Power consumption in W | 2 W |
| Force lbf | 32 lbf |
| Actuator | linear |
| Ambient air temperature for operation | 2-50 °C |
| Control signal | 2-position (on/off) |
| Actuator type | thermoelectric |
| Actuator product series | MP140 |
