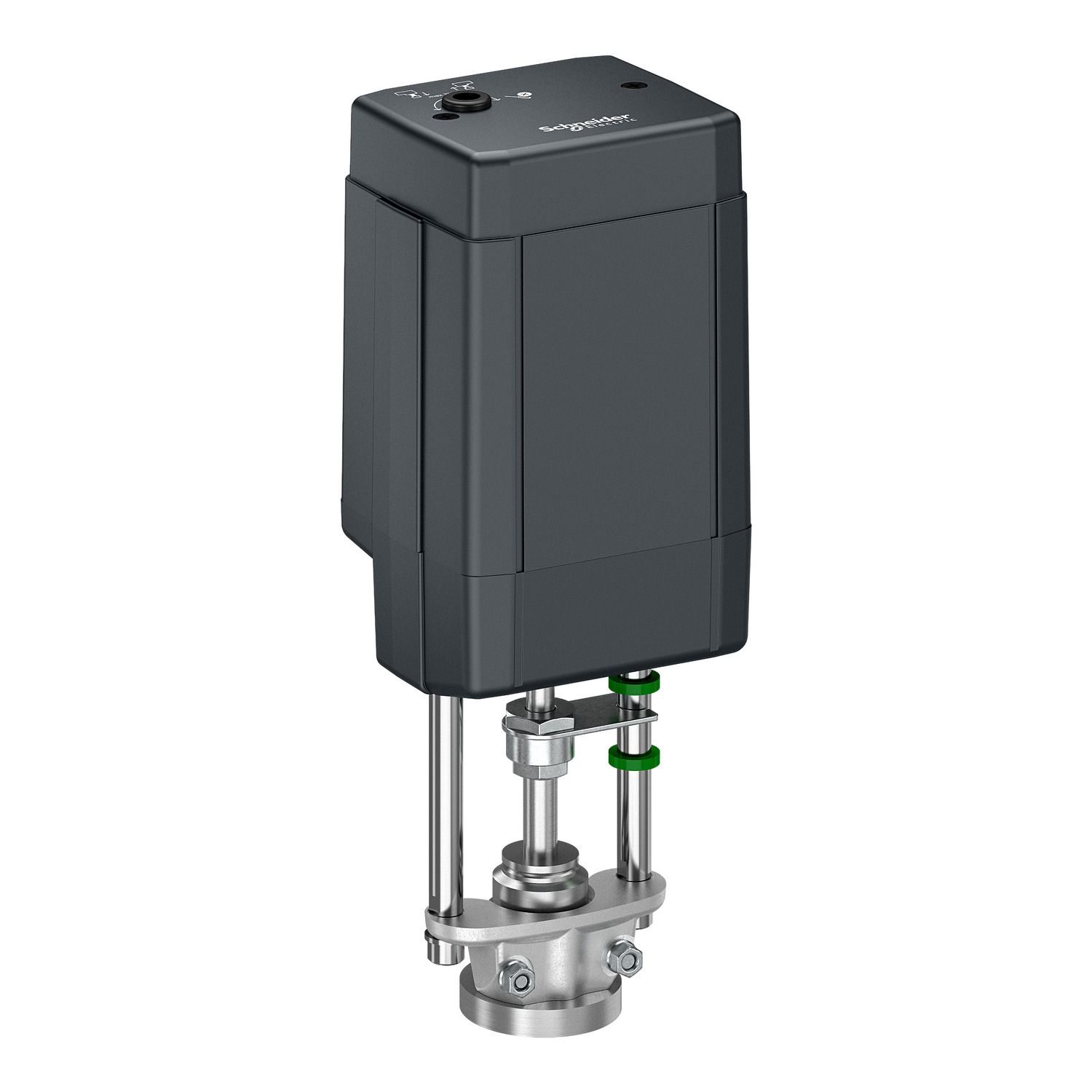

The MP2000 is fine regualtion of large control valves under the demand of the HVAC controller. The actuator can be controlled by either a modulating or 3 point control signal and is used specially with the VP221x SmartX PIBCV valves. With automatic stroke calibration function, and anti-oscillation function. Nominal voltage: 24 Vac/Vdc. Force : 2000 N. Grade of enclosure IP54, NEMA Type 2. Stroke 5 mm.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product destination | pressure independent control valves |
| Product or component type | actuator |
| Power consumption in VA | 9 VA AC |
| Targeted region | Australia., Asia Pacific., Europe |
| Complementary | |
| Force N | 2000 N |
| Switch function | 2 SPDT |
| Stroke running time | 8 s |
| [Us] rated supply voltage | 24 V AC |
| Electrical insulation class | class III |
| Control type | automatic reset |
| Stroke length | 40-40 mm |
| Analogue input range | 0...10 V DC |
| Force lbf | 450 lbf |
| Actuator | linear |
| Environment | |
| IP degree of protection | IP54 |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | 0-55 °C |
| Power loss return | non-spring return |
| Actuator model | MP2000 |
| Feedback signal | 2...10 V DC, 0...10 V DC |
| Control signal | proportional/modulating |
| Stroke auto calibration | True |
| Conduit connection | conduit connector holes |
| Leads and connections | terminal block |
| Actuator type | electric |
| Actuator product range | SmartX Actuator |
| Actuator product series | MP2000 |
| Position indicator | Stroke indicator on bracket |
| Additional features | LED status indicator |
