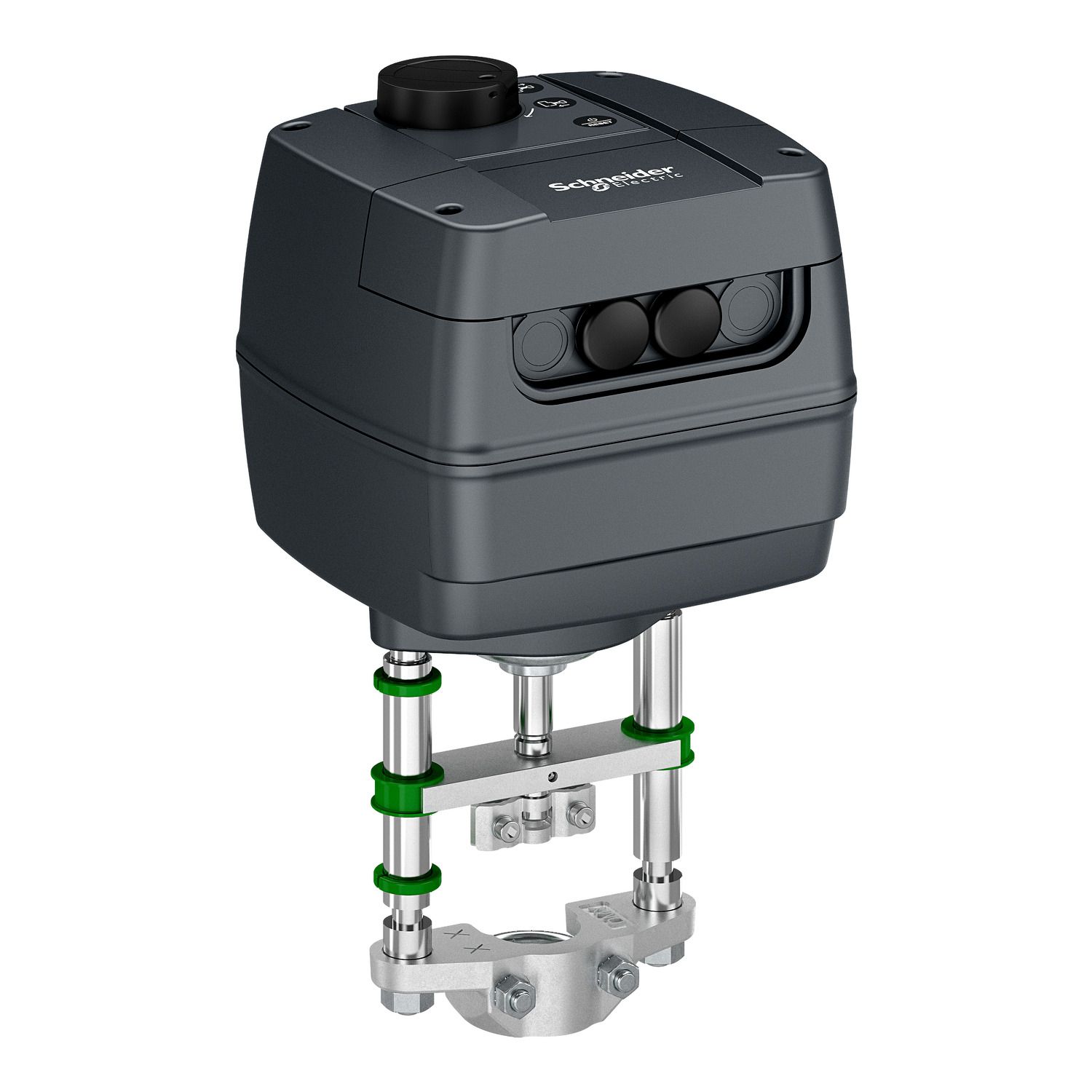

The MP2000 spring return safety function is fine regualtion of large control valves under the demand of the HVAC controller. The actuator can be controlled by either a modulating or 3 point control signal and is used specially with the VP221x SmartX PIBCV valves. With automatic stroke calibration function, and anti-oscillation function. Nominal voltage: 24 Vac/Vdc. Force : 2000 N. Grade of enclosure IP54, NEMA Type 2. Stroke 5 mm.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product destination | pressure independent control valves |
| Product or component type | actuator |
| Power consumption in VA | 15 VA AC |
| Targeted region | Australia., North America., Asia Pacific., Europe |
| Complementary | |
| Force N | 2000 N |
| Switch function | 1 SPDT |
| Stroke running time | 6 s |
| [Us] rated supply voltage | 24 V AC/DC |
| Electrical insulation class | class II |
| Control type | automatic reset |
| Stroke length | 50-50 mm |
| Analogue input range | 0...10 V DC |
| Force lbf | 450 lbf |
| Actuator | linear |
| Environment | |
| IP degree of protection | IP54 |
| Relative humidity | 5-95 % non-condensing |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | 0-55 °C |
| Power loss return | spring return |
| Feedback signal | 4...20 mA DC, 0...20 mA DC, 2...10 V DC, 0...10 V DC |
| Control signal | proportional/modulating, floating |
| Stroke auto calibration | True |
| Conduit connection | conduit connector holes |
| Leads and connections | terminal block |
| Actuator type | electric |
| Actuator product range | SmartX Actuator |
| Actuator product series | MP2000-SR |
| Position indicator | Stroke indicator on bracket |
| Additional features | LED status indicator |
