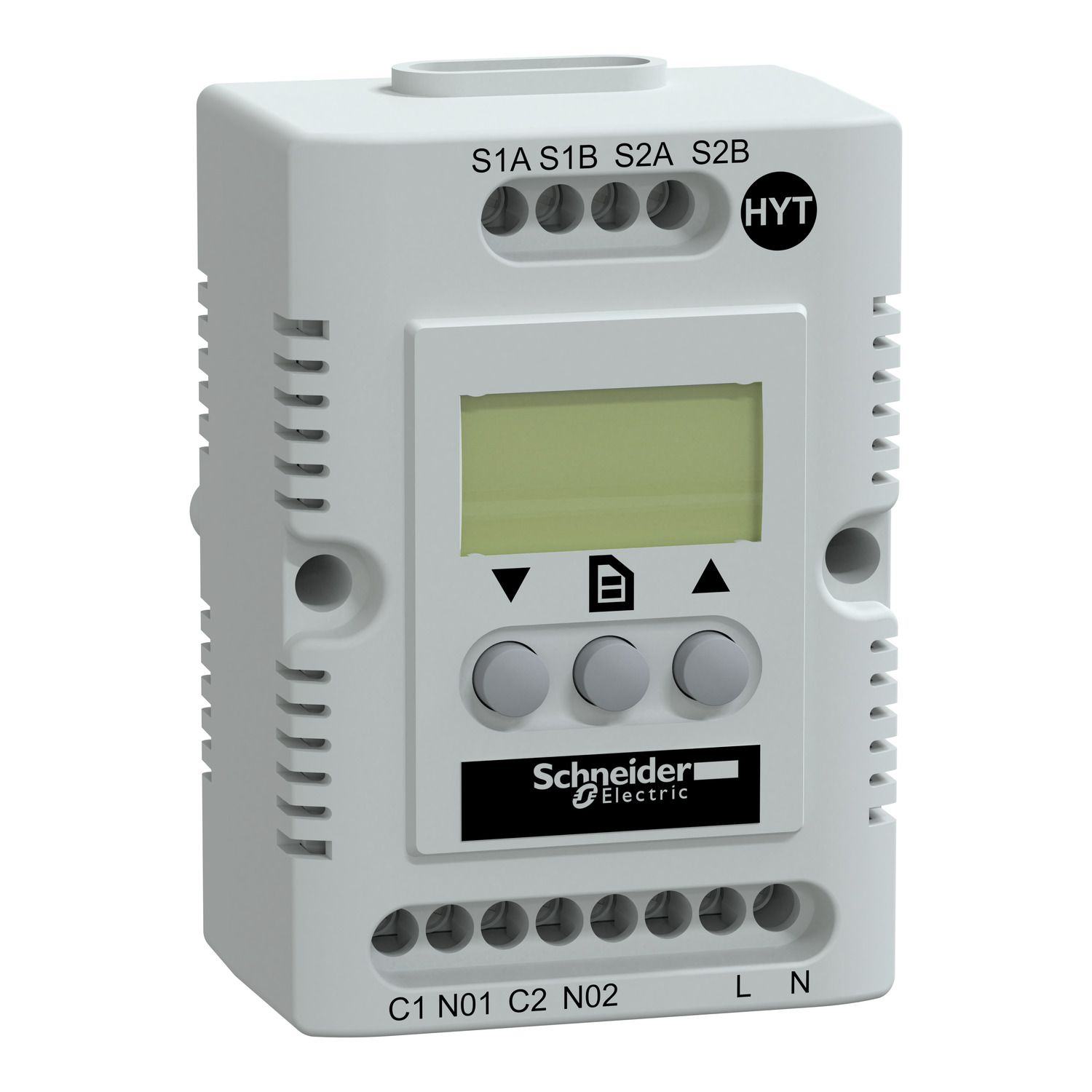

ClimaSys CC Electronic hygrotherm. Display type by OLED screen. 200V AC to 240 V AC. 85 x 56 x 44 mm. Optional NTC external sensor. Electrical connection by 8 connectors 2.5mm². Mounting mode by screws or clipped. 2 ventilation/heating function. Made in PC. Light grey. Self-extinguishing UL94 (material V0), Protection IP20.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Display type | OLED screen |
| Temperature setting range | -40-80 °C |
| Humidity setting range | 20-80 % |
| Range | ClimaSys |
| Product name | ClimaSys CC |
| Product or component type | electronic hygrotherm |
| Information displayed | temperature in °C, temperature in °F, relative humidity |
| Complementary | |
| Sensor type | optional NTC external sensor |
| Height | 85 mm external: |
| Width | 56 mm external: |
| Colour | light grey |
| Mounting mode | by screws, clipped |
| Flame retardance | self-extinguishing conforming to UL94 (material V0) |
| Hysteresis | 3 %, 2 K programmed value |
| Electrical connection | 8 connectors, clamping capacity: 2.5 mm² |
| Input voltage | 200...240 V AC |
| Mounting location | on mounting plate, Spacial upright, cross rails, 35 mm DIN rail |
| Depth | 44 mm external: |
| Material | PC |
| Number of outputs | 2 ventilation/heating function |
| Ambient air temperature for operation | -40-80 °C |
| Maximum switching capacity | 4 A 230 V AC |
| Product certifications | UR |
