Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Temperature setting range | 5-60 °C |
| Range | ClimaSys |

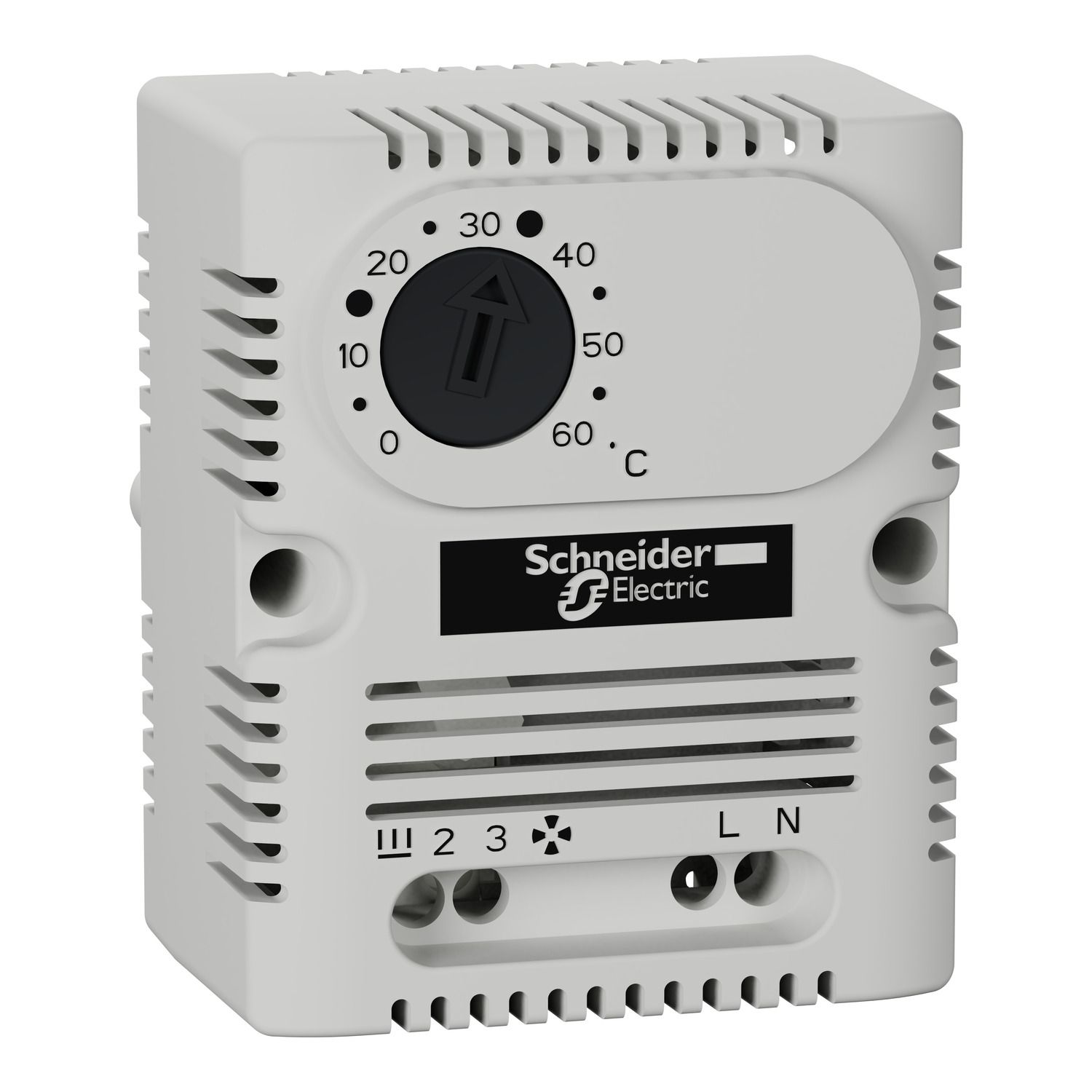

| Product name | ClimaSys CC |
| Product or component type | thermostat |
| Information displayed | temperature in °C |
| Complementary | |
| Contact resistance | 10 mOhm |
| IP degree of protection | IP20 |
| Sensor type | bimetal |
| Height | 68 mm external: |
| Width | 56 mm external: |
| Colour | light grey |
| Mounting mode | clipped |
| Flame retardance | self-extinguishing conforming to UL94 (material V0) |
| Contacts type and composition | 1 NO/NC |
| Electrical connection | 4 terminals, clamping capacity: 2.5 mm² |
| Input voltage | 250 V |
| Mounting location | Spacial upright, 35 mm DIN rail, on mounting plate, cross rails |
| Depth | 44 mm external: |
| Net weight | 100 g |
| Material | PC |
| Service life in cycles | 100000 cycles |
| Number of outputs | 1 ventilation function, 1 heating function |
| Ambient air temperature for operation | -20-80 °C |
| Hysteresis | 7 K +/- 0.4K |
| Maximum switching capacity | 10 A 250 V AC inductive, 30 W DC, 4 A 250 V AC inductive pf: 0.6 |
| Product certifications | UL |
