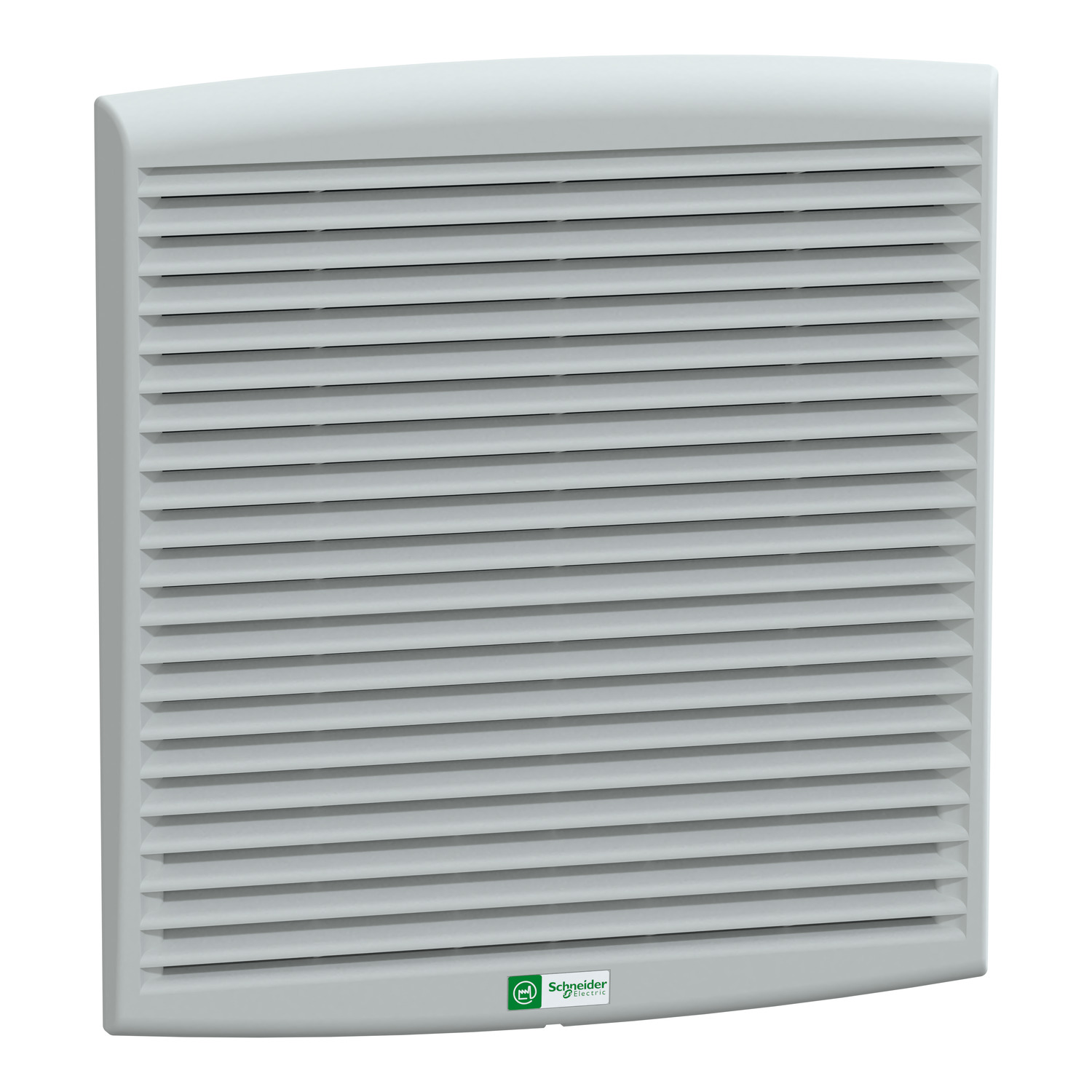

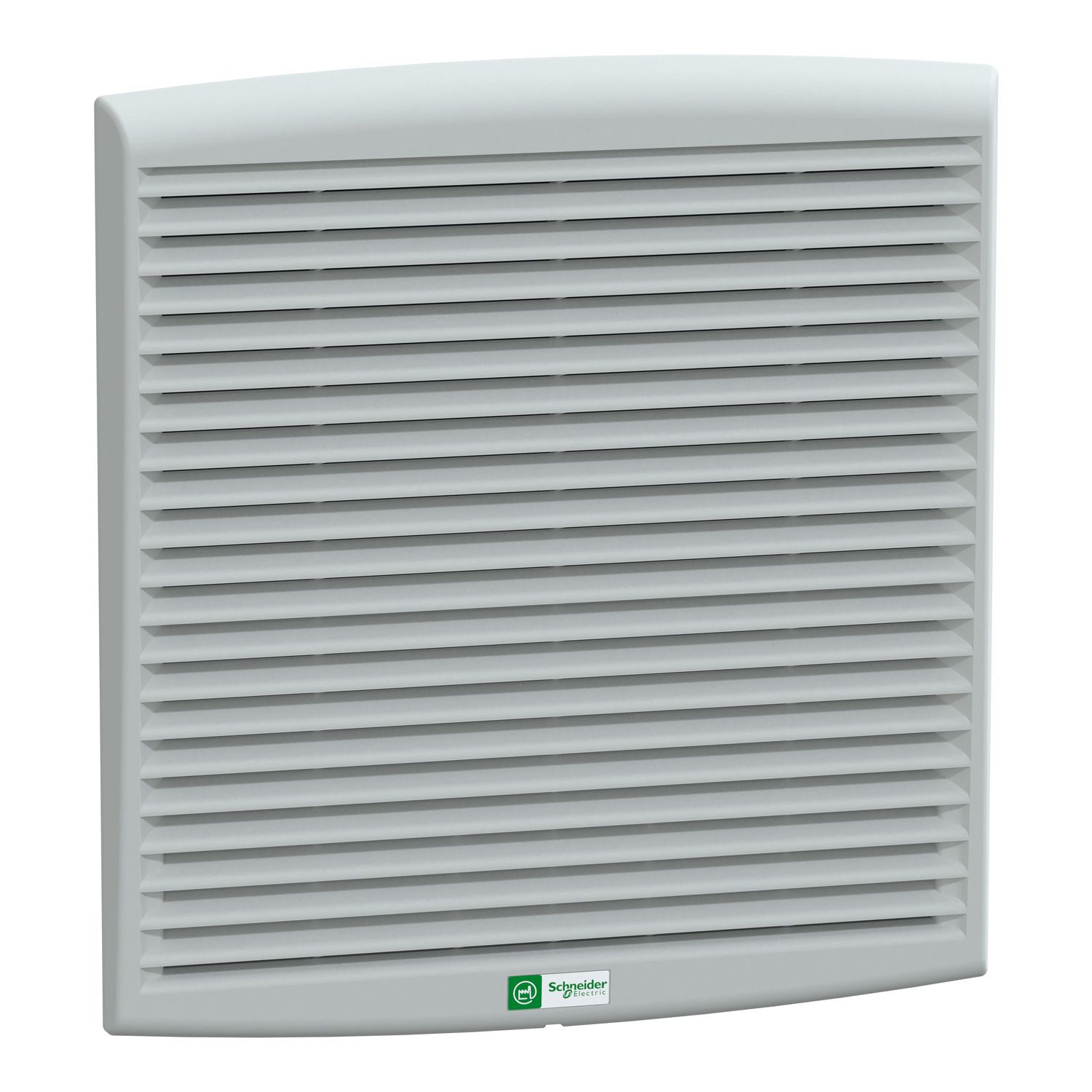

ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 68 W 50 Hz, 85 W 60 Hz. Free flow rate of 550 m3/h at 50 Hz and 60 Hz. 336 x 316 x 161 mm. Cut-out dimensions of 291 x 291 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Input voltage | 230 V 50/60 Hz |
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | fan |
| Type of ventilation filter | standard |
| Range compatibility | Prisma G, Prisma P |
| Air flow | free flow rate with standard filter: 586 m3/h at 60 Hz, free flow rate with standard filter: 562 m3/h at 50 Hz |
| [Us] rated supply voltage | 207...244 V |
| Complementary | |
| Noise level | 59-59 dB |
| Bearing type | ball |
| [In] rated current | 0.37-0.37 A 60 Hz, 0.52-0.52 A 50 Hz |
| Colour | outlet grille: grey (RAL 7035) |
| IP degree of protection | IP54 |
| Material | outlet grille: injected thermoplastic (ASA PC) |
| Height | 336 mm external: |
| Width | 316 mm external: |
| Ambient air temperature for storage | -40-70 °C |
| Cut-out dimensions | 291 x 291 mm |
| Depth | 161 mm external: |
| Net weight | 3.2 kg |
| Device composition | 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor |
| Maximum pressure | 140 Pa flow rate 0 m³/h |
| Condition of use | flow rates depends on the work point, see ProClima software, overfrequent filter replacement should be avoided, outside temperature must be 5 °C lower than inside temperature, surrounding environment must be relatively clean, filter must be cleaned and replaced regularly |
| Power range | 85 W 60 Hz, 68 W 50 Hz |
| Ambient air temperature for operation | -15-60 °C |
| Connections - terminals | terminal block |
