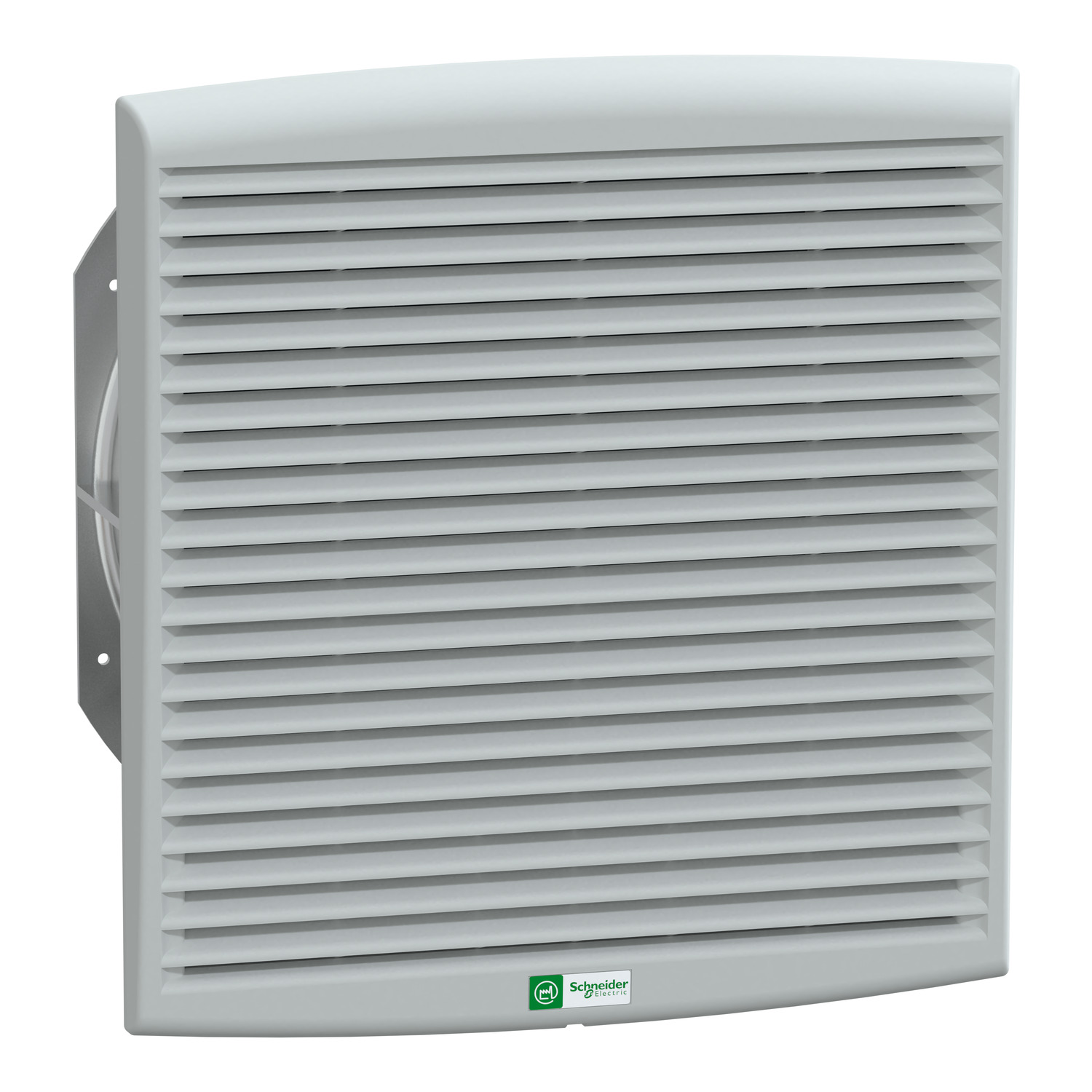

ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 150W 50 Hz, 195W 60 Hz. Free flow rate with standard filter of 803 m3/h at 50 Hz and 838 m3/h at 60 Hz. 336 x 316 x 162 mm. Cut-out dimensions of 291 x 291 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Input voltage | 230 V 50/60 Hz |
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | fan |
| Type of ventilation filter | standard |
| Air flow | free flow rate with standard filter: 803 m3/h at 60 Hz, free flow rate with standard filter: 838 m3/h at 50 Hz |
| [Us] rated supply voltage | 207...244 V |
| Complementary | |
| Noise level | 75-76 dB |
| Bearing type | ball |
| [In] rated current | 0.85-0.85 A 60 Hz, 0.65-0.65 A 50 Hz |
| Colour | outlet grille: grey (RAL 7035) |
| IP degree of protection | IP54 |
| Material | outlet grille: injected thermoplastic (ASA PC) |
| Height | 336 mm external: |
| Width | 316 mm external: |
| Ambient air temperature for storage | -40-70 °C |
| Cut-out dimensions | 291 x 291 mm |
| Depth | 162 mm external: |
| Net weight | 4.1 kg |
| Device composition | 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor |
| Maximum pressure | 170 Pa flow rate 0 m³/h |
| Condition of use | surrounding environment must be relatively clean, filter must be cleaned and replaced regularly, overfrequent filter replacement should be avoided, flow rates depends on the work point, see ProClima software, outside temperature must be 5 °C lower than inside temperature |
| Power range | 195 W 60 Hz, 150 W 50 Hz |
| Ambient air temperature for operation | -15-60 °C |
| Connections - terminals | terminal block |
