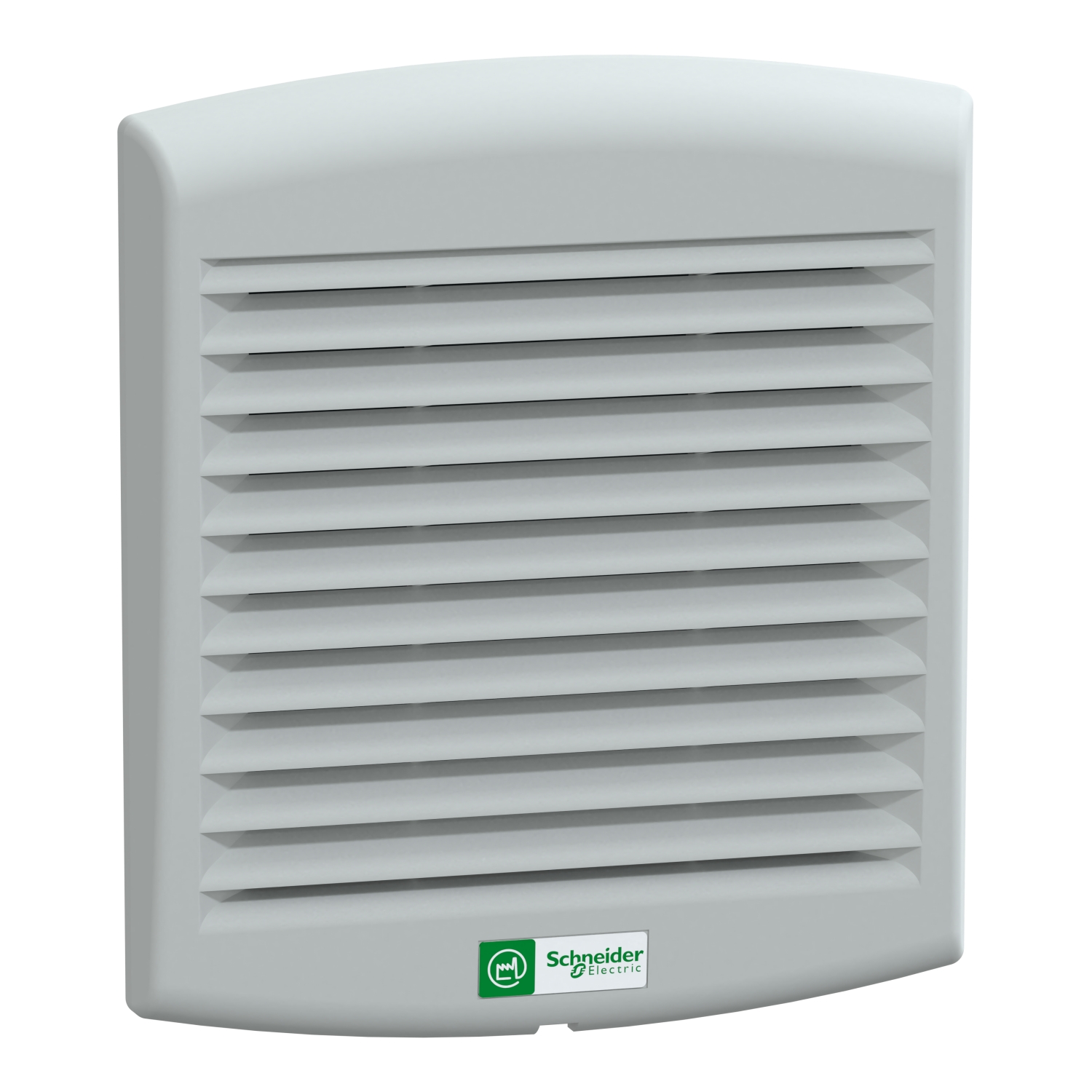

ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 17 W 50 Hz, 15 W 60 Hz. Free flow rate with standard filter of 85 m3/h at 50 Hz and 98 m3/h at 60 Hz. 170 x 150 x 62 mm. Cut-out dimensions of 125 x 125 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Input voltage | 230 V 50/60 Hz |
| Range | ClimaSys |
| Product name | ClimaSys CV |
| Product or component type | fan |
| Type of ventilation filter | standard |
| Air flow | free flow rate with standard filter: 98 m3/h at 60 Hz, free flow rate with standard filter: 85 m3/h at 50 Hz |
| [Us] rated supply voltage | 175...253 V |
| Complementary | |
| Noise level | 46-49 dB |
| Bearing type | ball |
| [In] rated current | 0.097-0.097 A 60 Hz, 0.121-0.121 A 50 Hz |
| Colour | outlet grille: grey (RAL 7035) |
| IP degree of protection | IP54 |
| Material | outlet grille: injected thermoplastic (ASA PC) |
| Height | 170 mm external: |
| Width | 150 mm external: |
| Ambient air temperature for storage | -40-70 °C |
| Cut-out dimensions | 125 x 125 mm |
| Depth | 62 mm external: |
| Net weight | 0.78 kg |
| Device composition | 1 power cord, 1 cut-out template, 1 outlet grille: front, 1 filter: front of axial motor, 2 protective grille: on the front and rear surfaces, 1 axial motor |
| Maximum pressure | 50 Pa flow rate 0 m³/h |
| Condition of use | outside temperature must be 5 °C lower than inside temperature, overfrequent filter replacement should be avoided, filter must be cleaned and replaced regularly, surrounding environment must be relatively clean, flow rates depends on the work point, see ProClima software |
| Power range | 17 W 50 Hz, 15 W 60 Hz |
| Ambient air temperature for operation | -20-60 °C |
| Connections - terminals | Faston connector |
