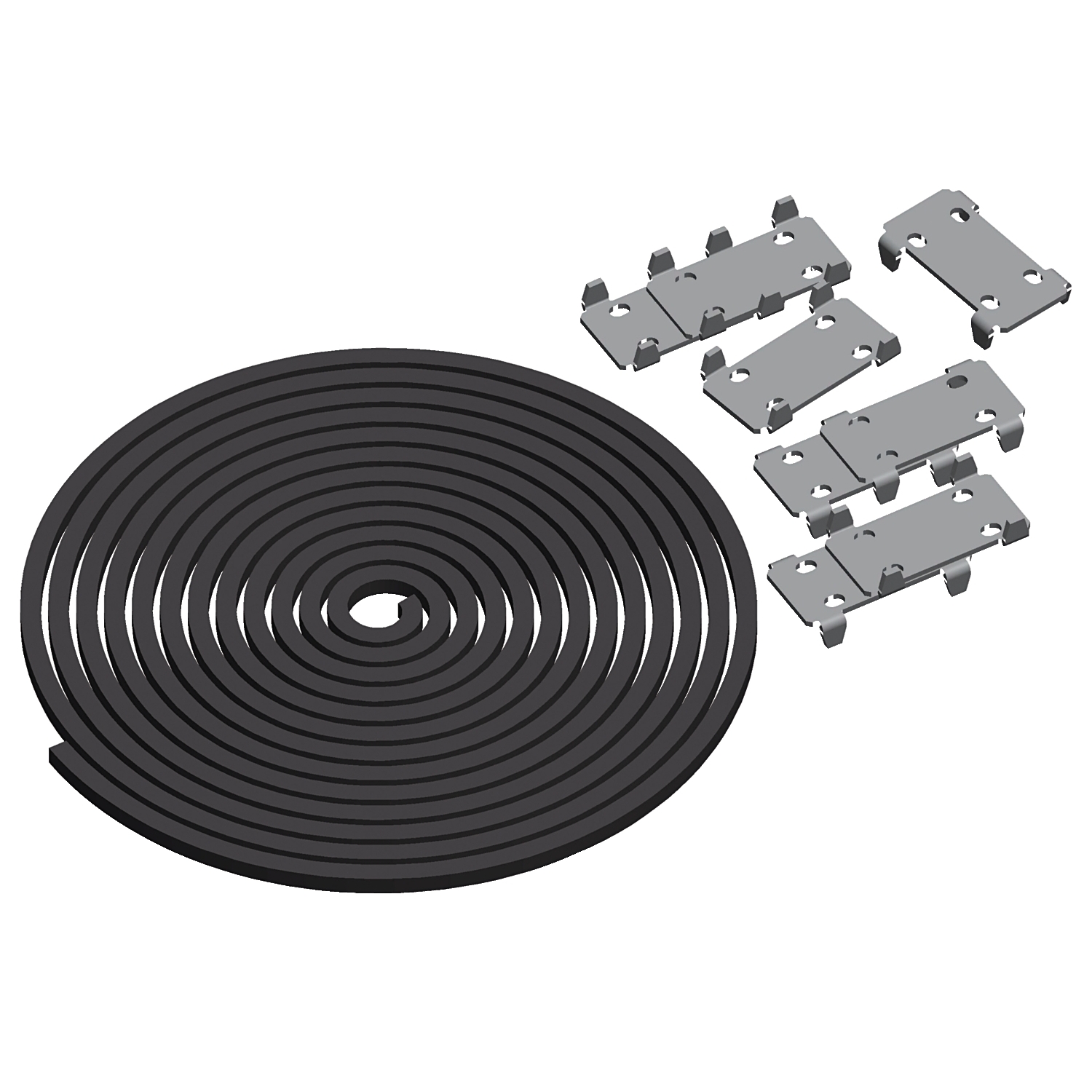

This is a coupling kit system suitable for PrsimaSeT, PanelSeT SFN and PanelSeT SF electrical enclosures equipped with swinging 19” rack. It is designed to form side-by-side or back-to-back combintations. The kit contains 8 flat connectors, sealing gasket and the fixing elements. The sealing gasket is made of EPDM and the flat connectors are made of steel. Anti-corrosion protection is ensured by an epoxy-polyester zinc coated coating. The IP degree of protection is 55. Ingress protection rating is IP55 This product is qualified as a green premium, with minimal use of hazardous substances
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | multi-purpose, Prisma application |
| Quantity per set | set of 1 |
| Mounting location | depthwise coupling of 2 enclosures, side coupling of 2 enclosures |
| Range | Spacial |
| Device composition | sealing gasket, fixing elements, 8 flat connector |
| Product or component type | coupling kit |
| Accessory / separate part category | coupling accessory |
| Range compatibility | Spacial Spacial SFM, Prisma Prisma PH, Spacial Spacial SFX suitable enclosure, Spacial Spacial SF suitable enclosure |
| Complementary | |
| Material | flat connector: steel, sealing gasket: EPDM |
| IP degree of protection | IP55 |
| Height | 80 mm |
| Width | 345 mm |
| Depth | 335 mm |
| Fixing mode | by screws - screw type M6 self tapping |
| Surface finish | zinc coated |
| Mounting diameter | 0 mm |
