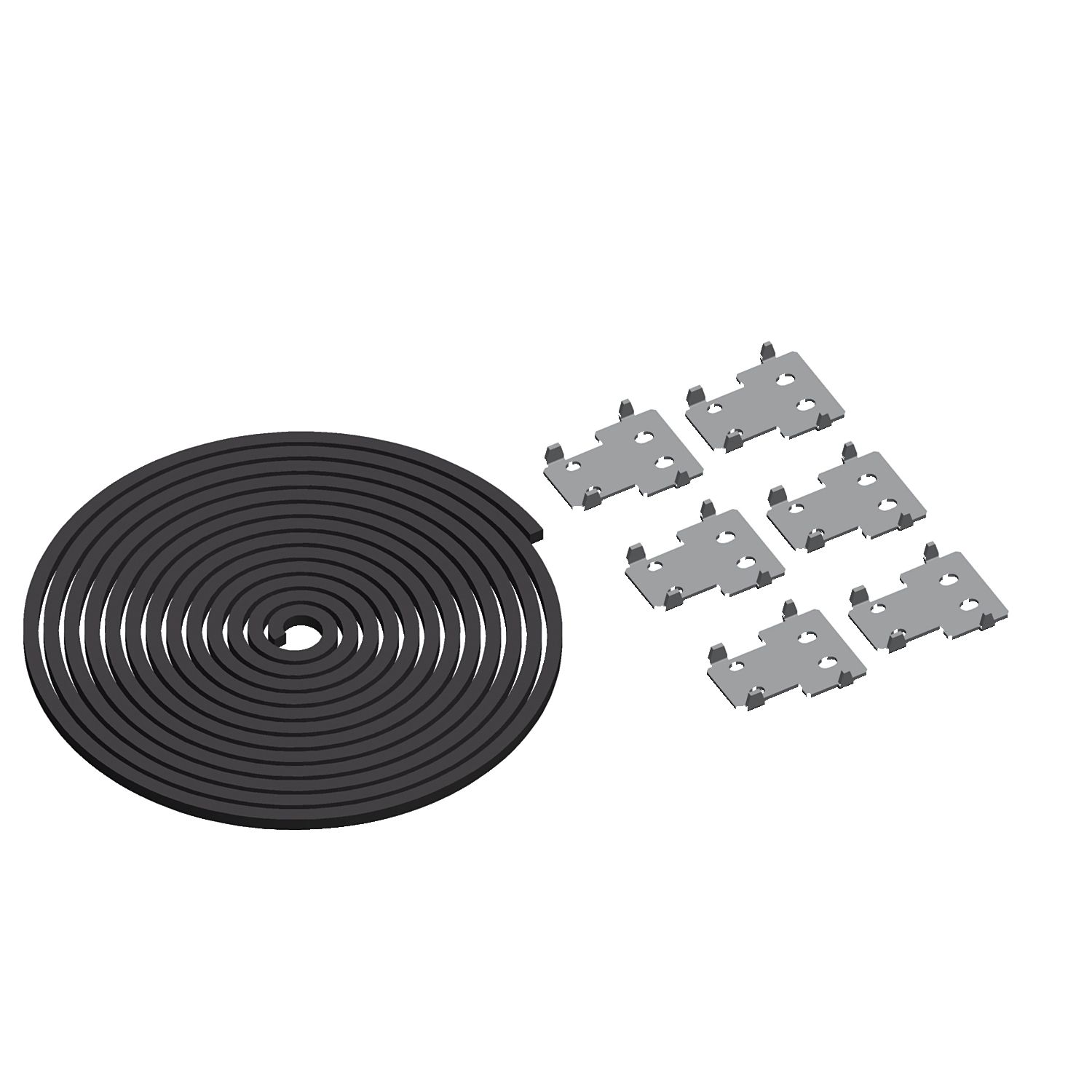

This is a coupling kit for PanelSeT SF electrical enclosures. It is used for coupling an enclosure of a previous version (OLN or PanelSeT 6000) side-to-side or depthwise with a PanelSeT SF enclosure. The kit contains 6 flat connectors, sealing gasket and fixing elements. The sealing gasket is made of EPDM and the flat connectors are made of steel. Anti-corrosion protection is ensured by an epoxy-polyester zinc coated coating. The ingress protection rating is IP55. Ingress protection rating is IP55 This product is qualified as a green premium, with minimal use of hazardous substances
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | multi-purpose |
| Quantity per set | set of 1 |
| Mounting location | depthwise coupling of 2 enclosures, side coupling of 2 enclosures |
| Range | Spacial |
| Device composition | sealing gasket, fixing elements, 4 flat connector, 4 spacer |
| Product or component type | coupling kit |
| Accessory / separate part category | coupling accessory |
| Range compatibility | Spacial Spacial SF suitable enclosure |
| Complementary | |
| Material | spacer: steel, flat connector: steel, sealing gasket: EPDM |
| IP degree of protection | IP55 |
| Height | 70 mm |
| Width | 400 mm |
| Depth | 400 mm |
| Fixing mode | by screws - screw type M6 self tapping |
| Surface finish | zinc coated |
| Mounting diameter | 0 mm |
