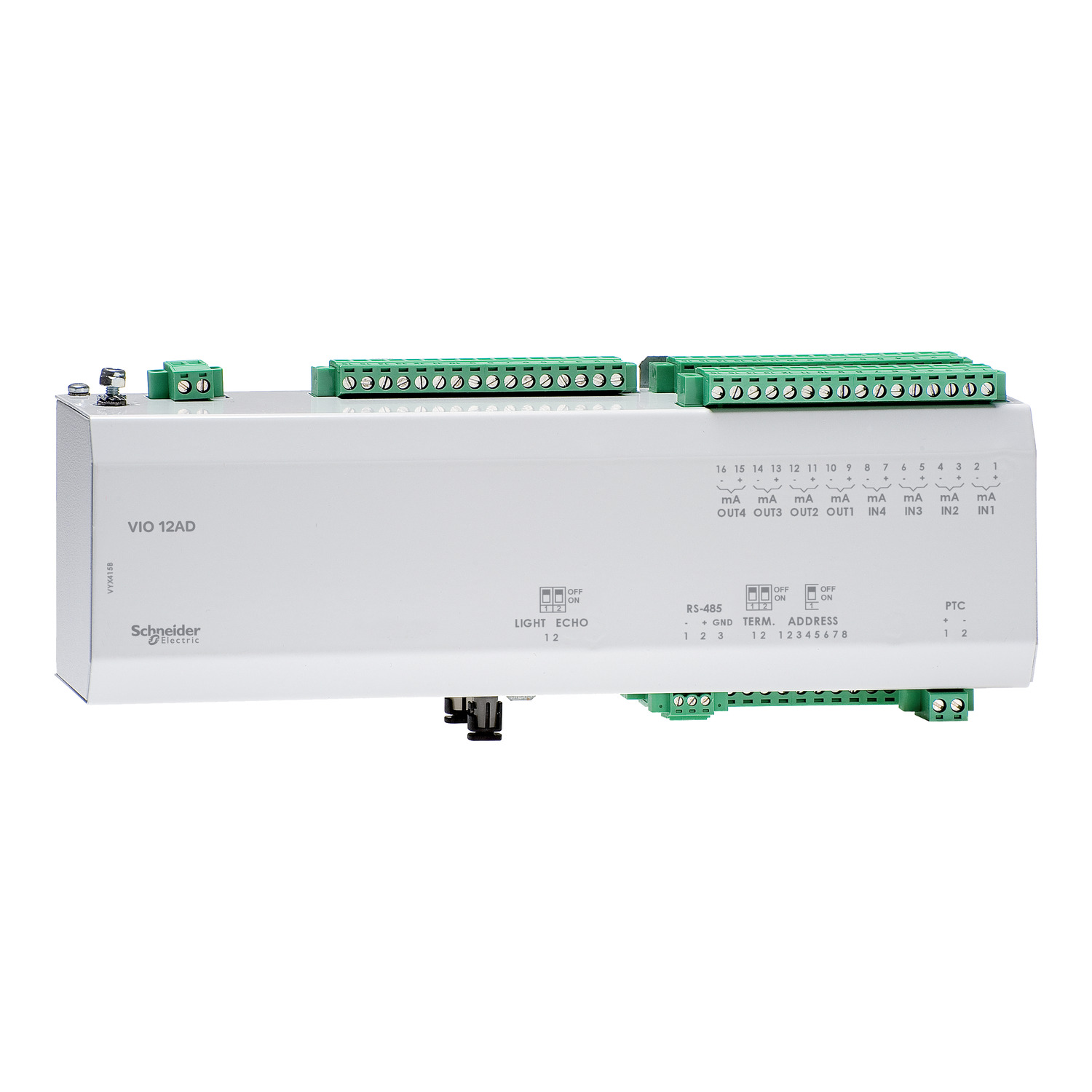

This analog temperature module for easergy P3 is used to connect temperature sensors from the field to the Easergy P3 devices using a communication port RS485 by twist-pair or fiber optic. The module accepts supply voltage ranging from 24 to 230VAC/VDC. The degree of protection is IP20. The module can be mounted using DIN-rail.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | analog temperature module |
| Mounting support | 35 mm symmetrical DIN rail, wall mounted |
| Range of product | Easergy P3 |
| [Us] rated supply voltage | 24...230 V AC/DC |
| Complementary | |
| Number of inputs | 12 RTD (temperature sensor) |
| Temperature probe type | Pt 100, Ni 100, Ni 120, Cu 10 |
| Communication port support | serial link |
| Environment | |
| Ambient air temperature for operation | 0-55 °C |
