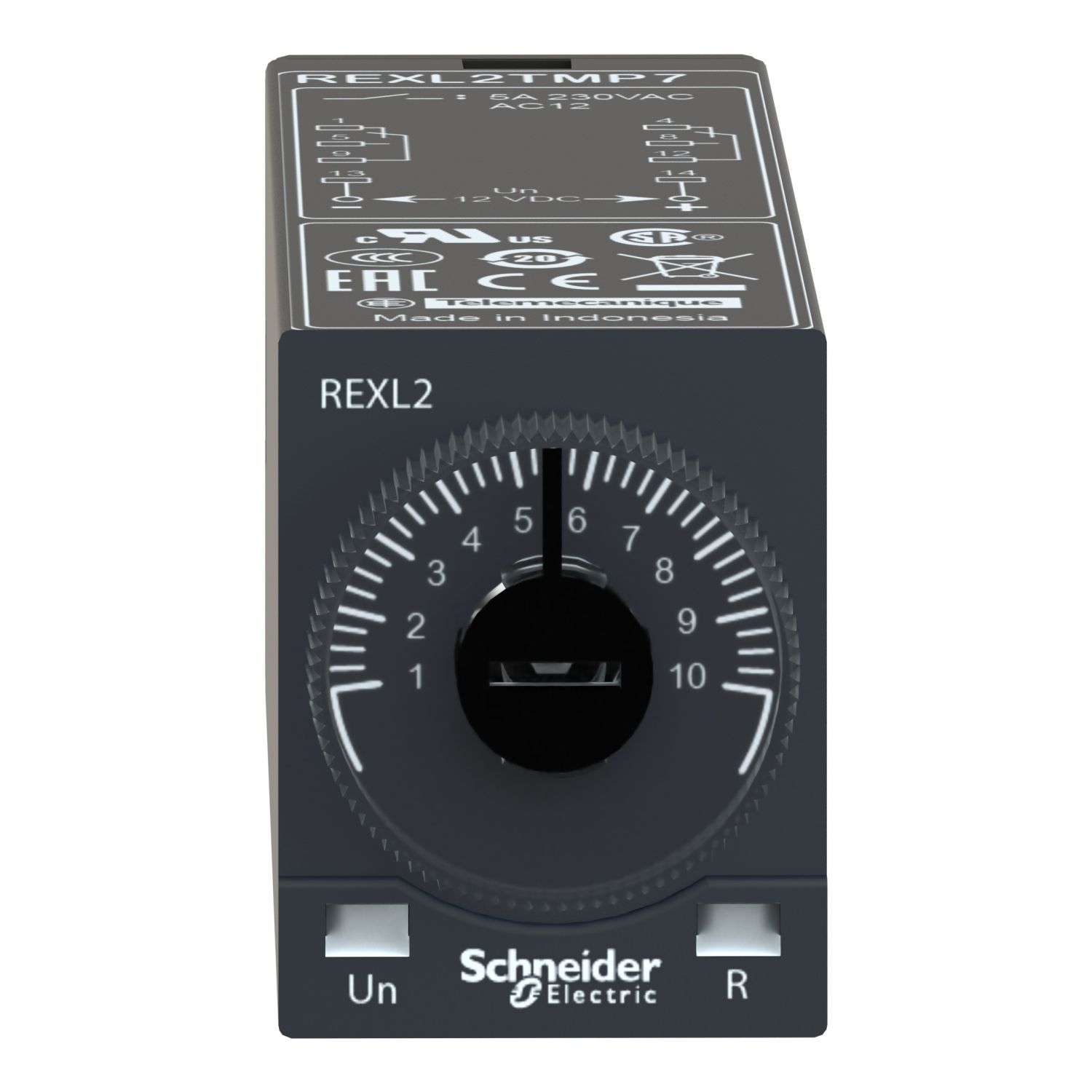

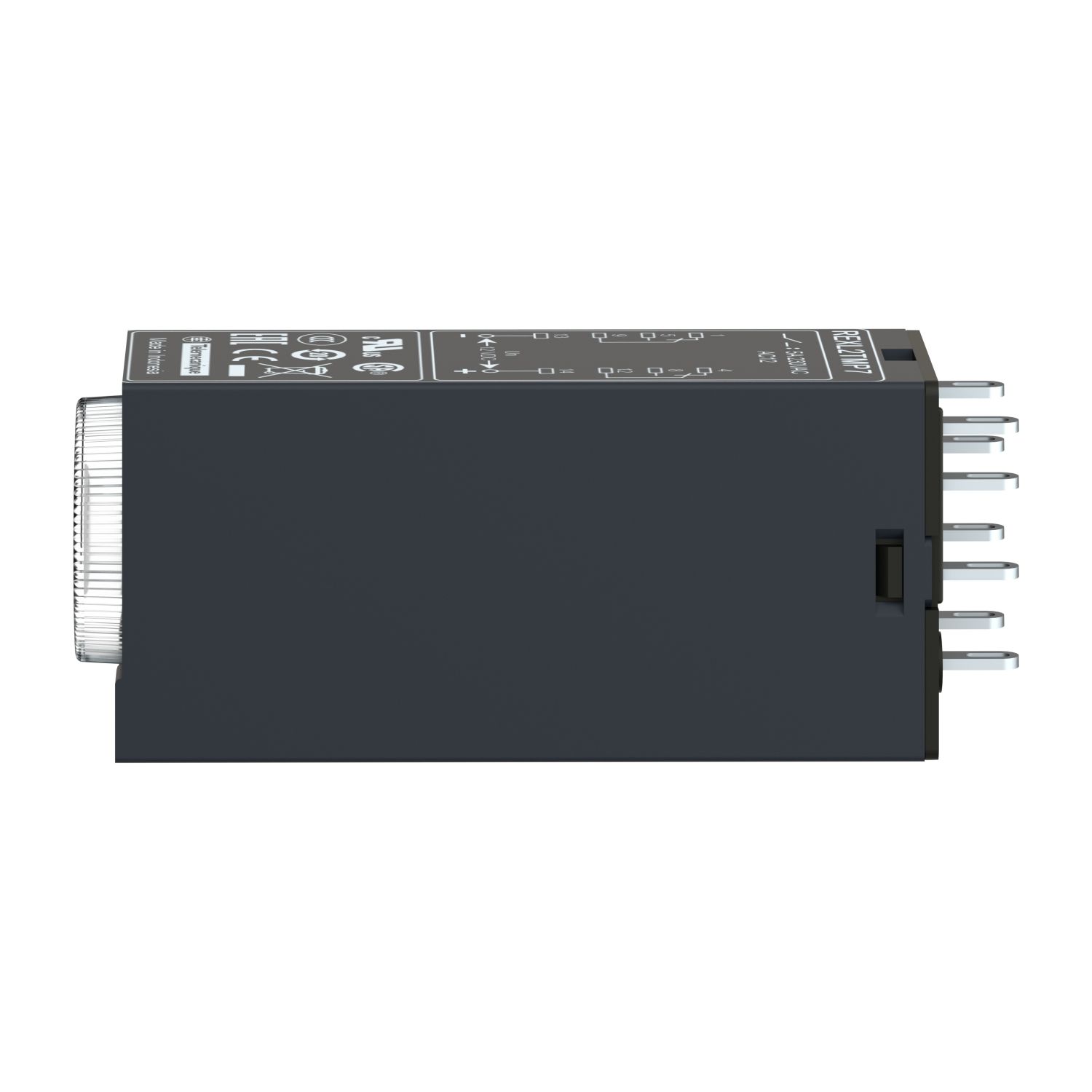

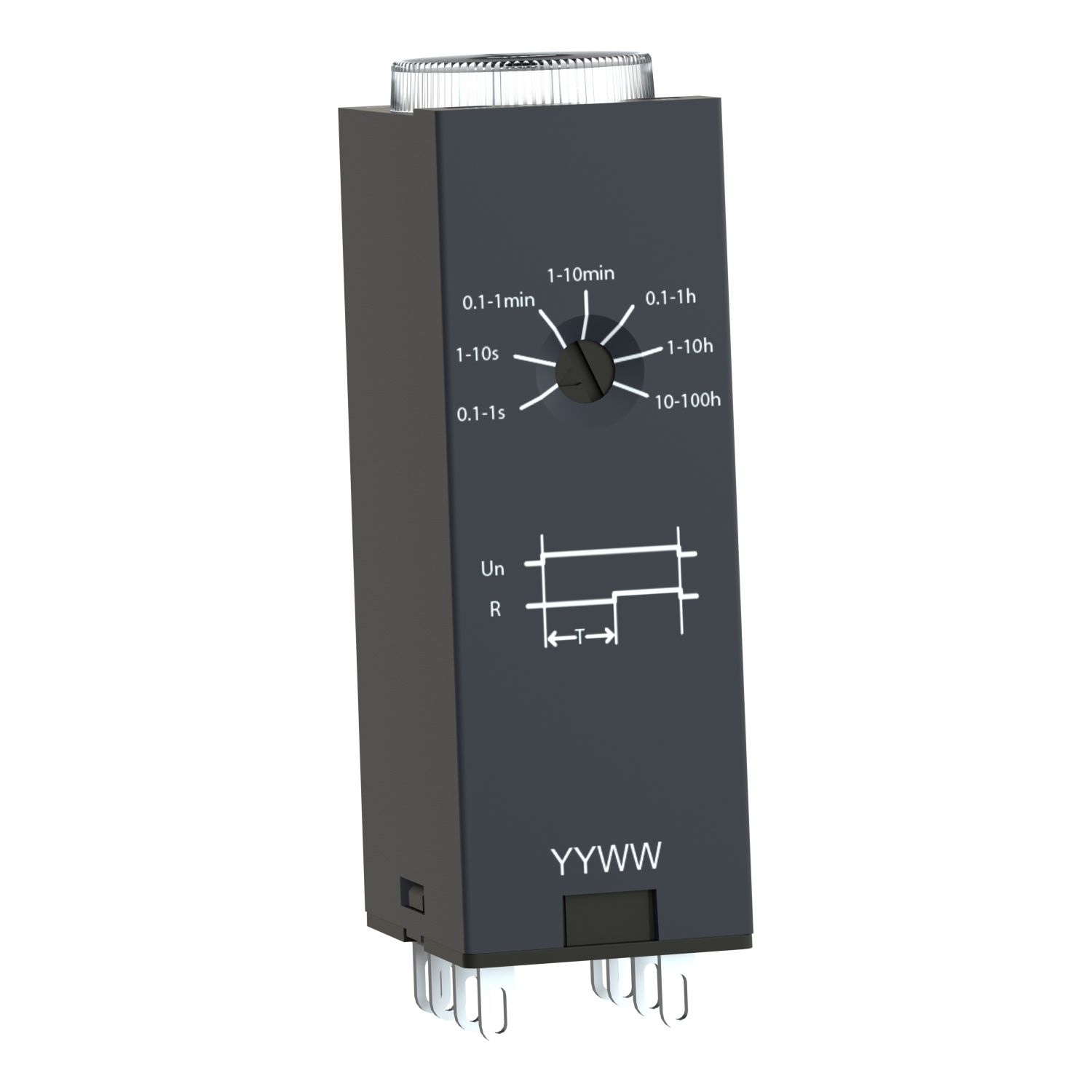

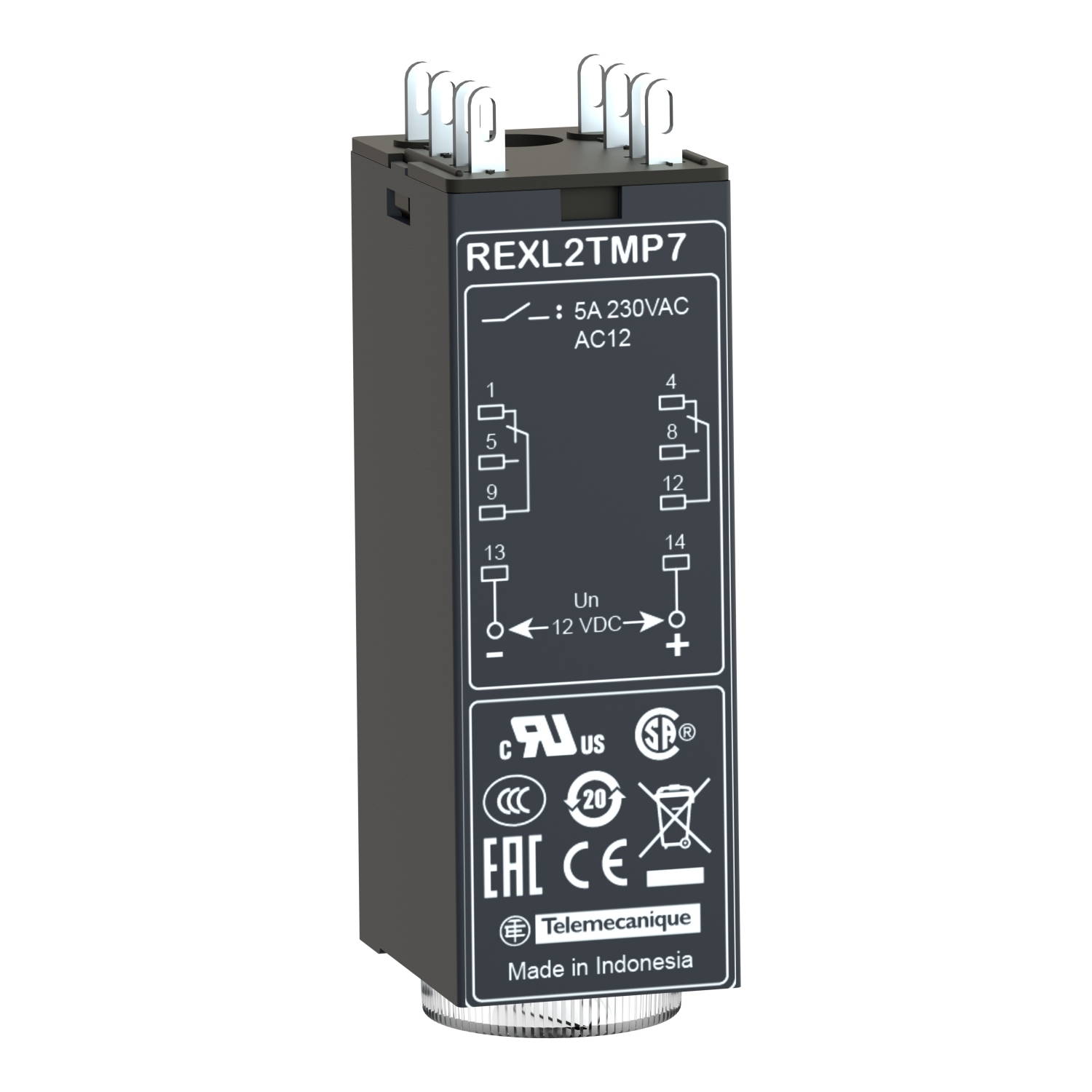

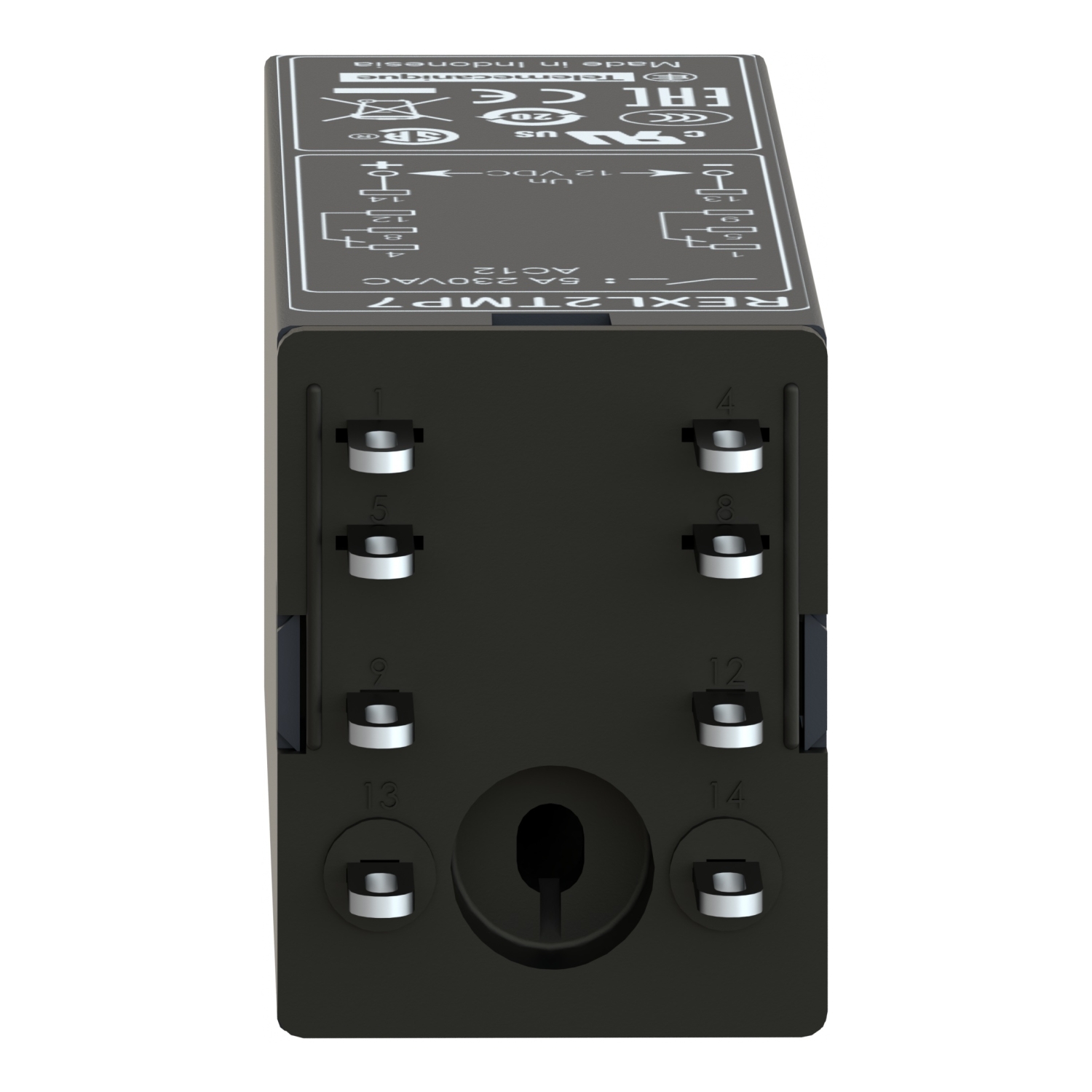

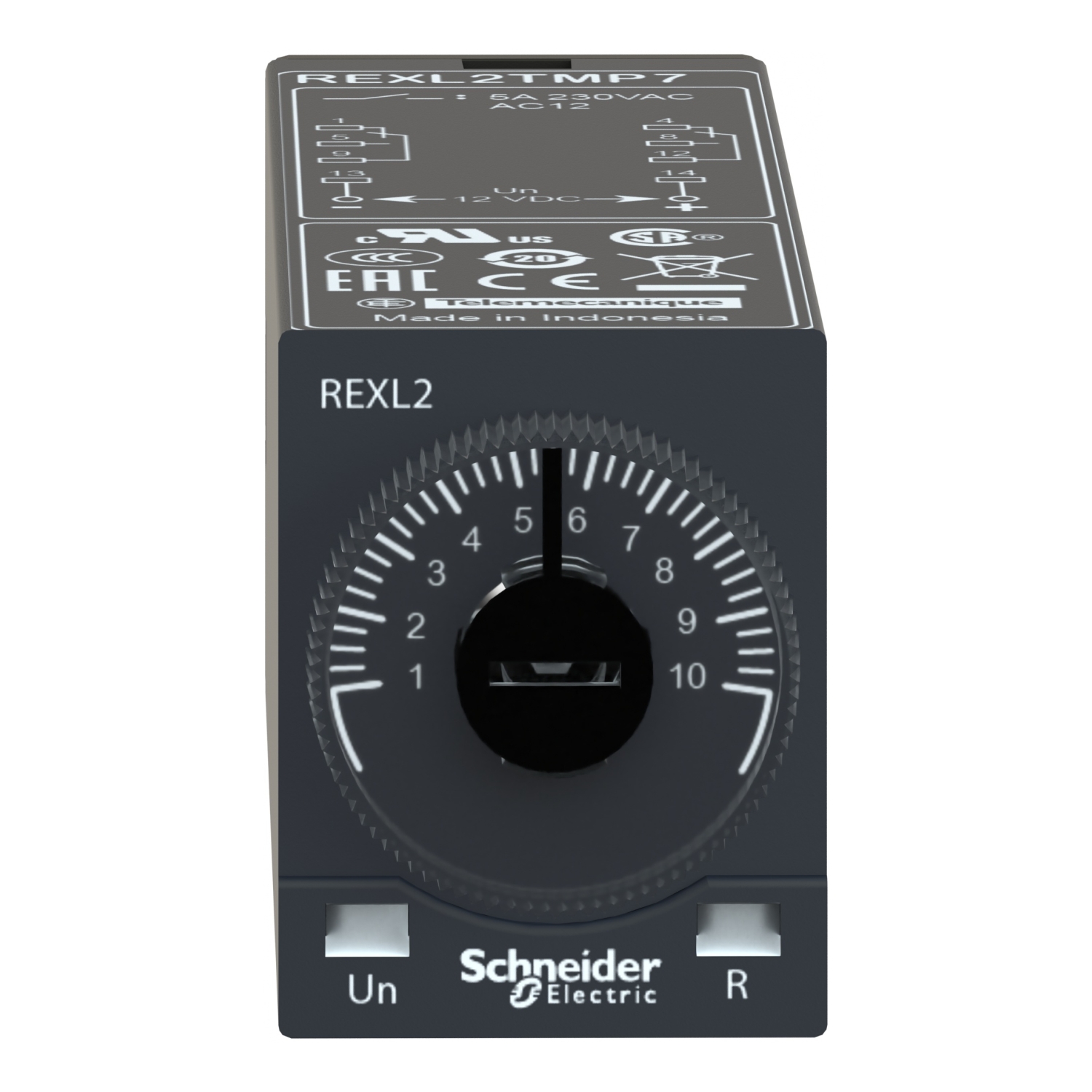

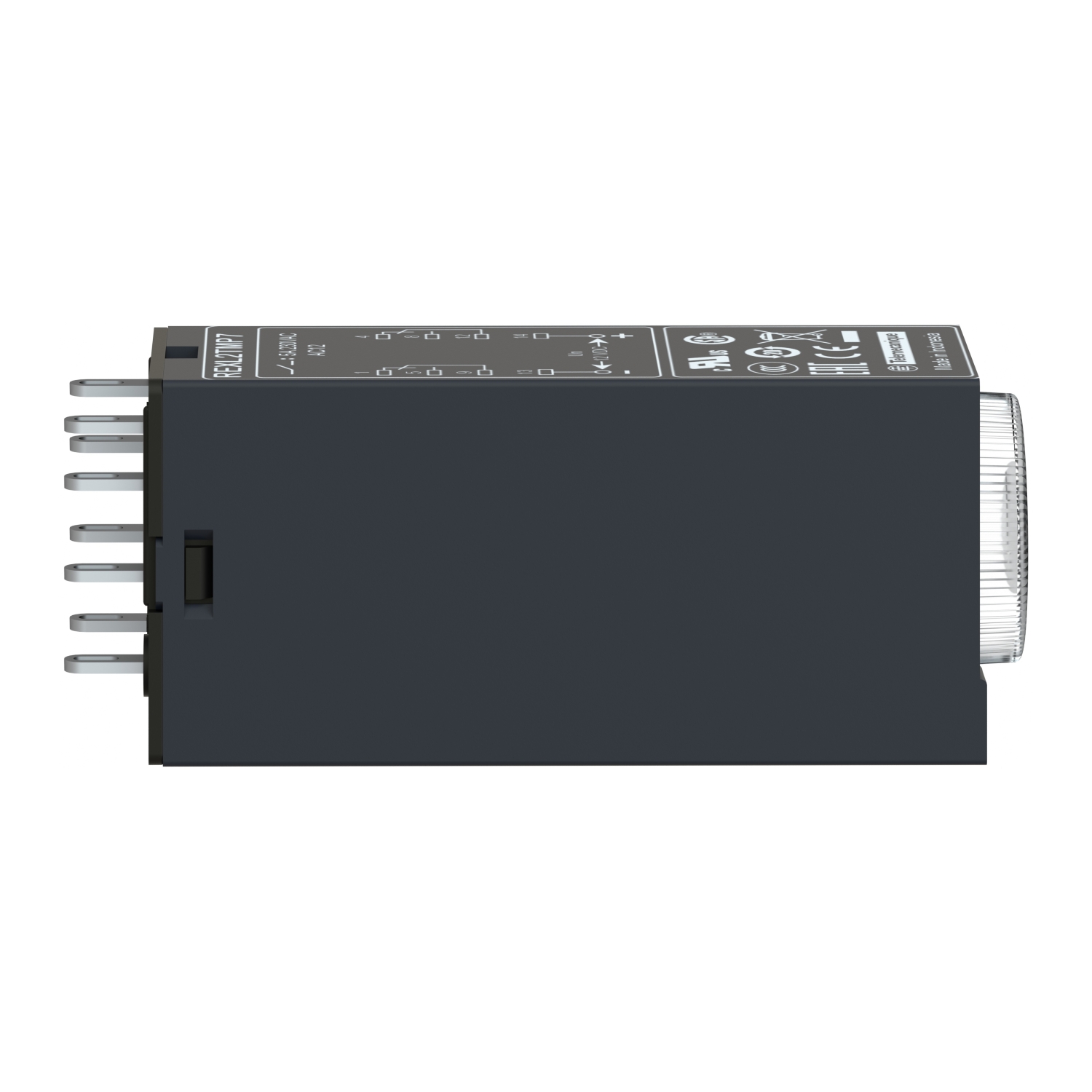

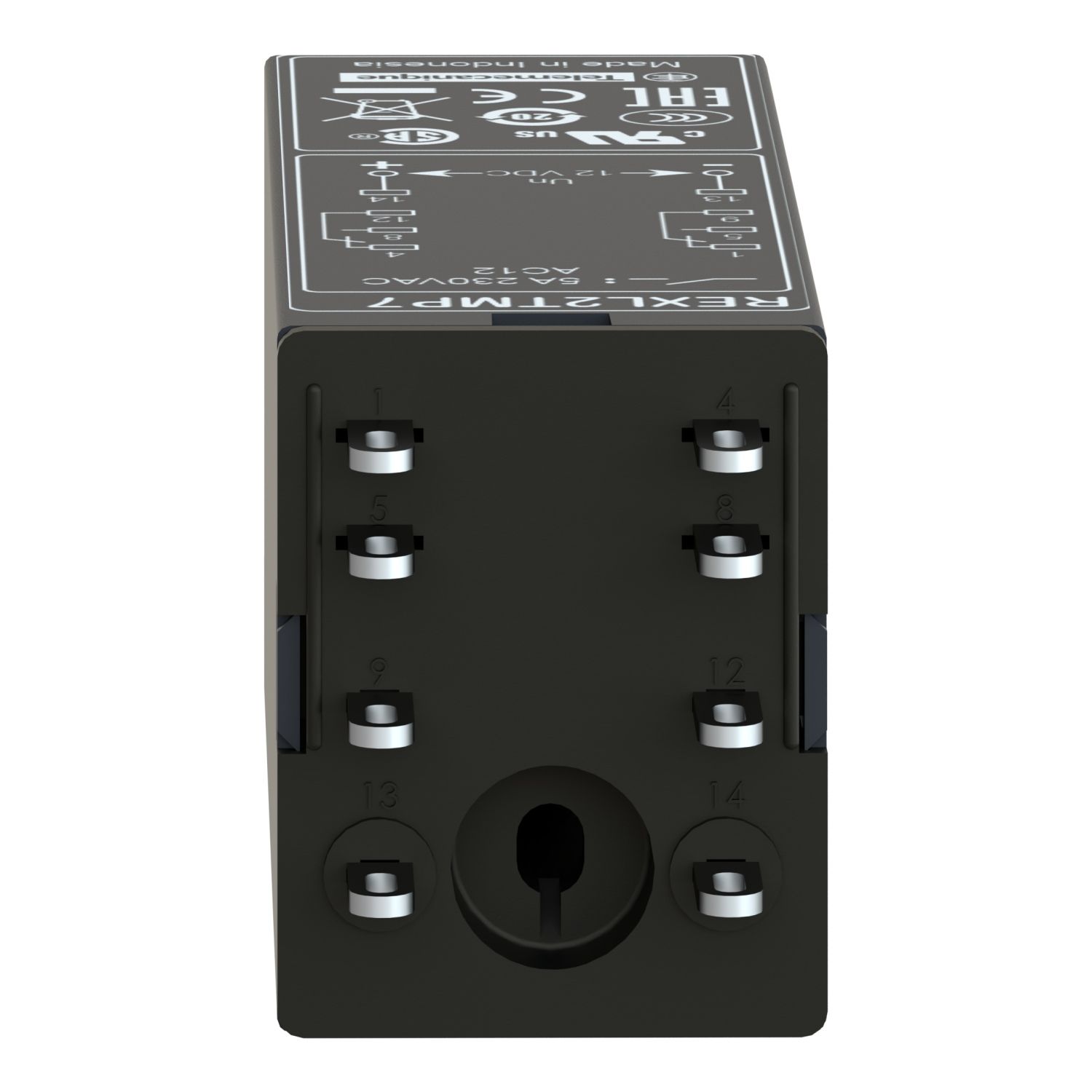

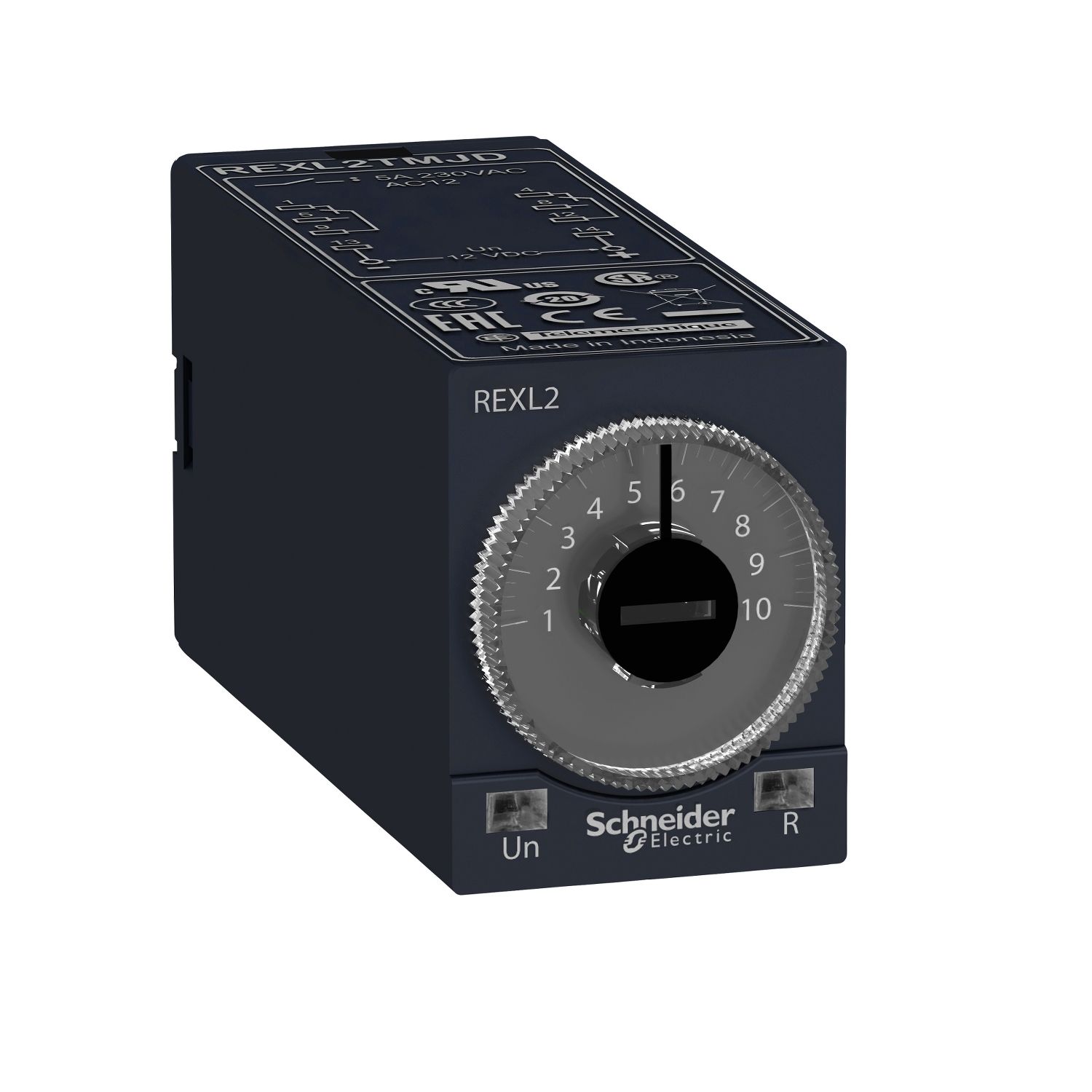

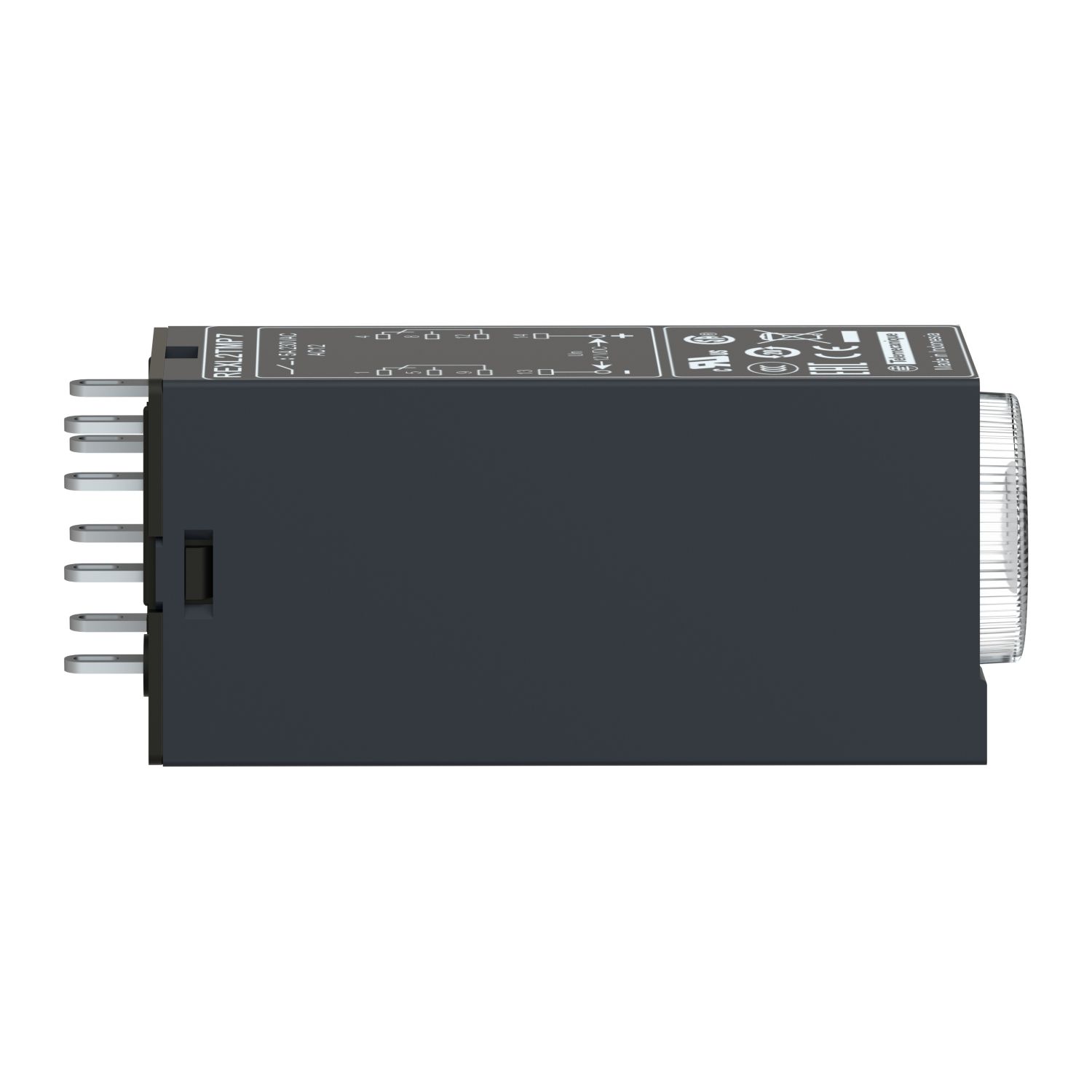

This Harmony REXL timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 5A, is 21mm wide and can be supplied with 24V DC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Uc] control circuit voltage | 24 V |
| Time delay type | power on-delay |
| Fixing mode | plug-in (socket) |
| Range of product | Harmony Timer Relays |
| Discrete output type | relay |
| Output type | relay |
| Width | 21 mm |
| [In] rated current | 5 A |
| Time delay range | 6...60 s, 10...100 h, 1...10 h, 0.1...1 s, 6...60 min, 1...10 min, 1...10 s |
| Contacts type and composition | 2 C/O |
| Component name | REXL |
| Product or component type | single function relay |
| Connections - terminals | screw connectors |
| Complementary | |
| Mechanical durability | 10000000 cycles |
| Temporary permissible current | 10 A for < 10 s |
| Surge withstand | 2 kV conforming to IEC 61000-4-5 level 3 |
| [Us] rated supply voltage | 24 V DC |
| Temperature drift | 0.05 %/°C |
| Functionality | on-delay timing |
| Voltage range | 0.9...1.1 Us |
| Power consumption in W | 1.2 W |
| Contacts material | cadmium free |
| Repeat accuracy | +/- 0.5 % |
| Setting accuracy of time delay | 10 % at full scale at 25 °C conforming to IEC 61812-1 |
| Maximum switching capacity | 4 x 5 A |
| Time delay type | A |
| Local signalling | 1 LED (yellow) for power ON, 1 LED (red) for output in operation |
| Minimum switching current | 100 mA |
| [Ui] rated insulation voltage | 250 V conforming to VDE 0010, 250 V conforming to IEC 255 Group C |
| Reset time | 50 ms during time delay, on de-energisation, 250 ms after time delay, on de-energisation |
| Voltage drift | +/- 0.2 %/V |
| Net weight | 0.05 kg |
| Electrical durability | 100000 cycles at 250 V AC resistive |
| Output overvoltage protection | 2 J |
| Creepage distance | 4 kV/3 conforming to IEC 60664-1 |
| [In] rated current | 5 A AC |
| Environment | |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 level 3 |
| Resistance to electrostatic discharge | 8 kV in air conforming to IEC 61000-4-2 level 3, 6 kV in contact conforming to IEC 61000-4-2 level 3 |
| Relative humidity | 95-95 % without condensation conforming to IEC 60068-2-6 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP50 conforming to IEC 60529 |
| Immunity to voltage dips | 60 % / 100 ms conforming to IEC 61000-4-11, 30 % / 10 ms conforming to IEC 61000-4-11, >= 95 % / 1 s conforming to IEC 61000-4-11 |
| Immunity to microbreaks | 5 ms |
| Disturbance radiated/conducted | class B conforming to EN 55022 (EN 55011 group 1) |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 level 3 |
| Ambient air temperature for operation | -20-60 °C |
| Dielectric strength | 2 kV for 1 mA/1 minute at 50 Hz conforming to IEC 61812-1, 2 kV for 1 mA/1 minute at 50 Hz conforming to IEC 60601-1 |
| Immunity to radioelectric fields | 10 V (0.15...80 MHz) conforming to IEC 61000-4-6 level 3 |
| Vibration resistance | 0.35 mm (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| Standards | 89/336/EEC, IEC 60601-2, IEC 60601-1, IEC 61000-6-2, IEC 61812-1, 93/68/EEC, EN 50081-2, 73/23/EEC |
| Product certifications | UL, cUL |
