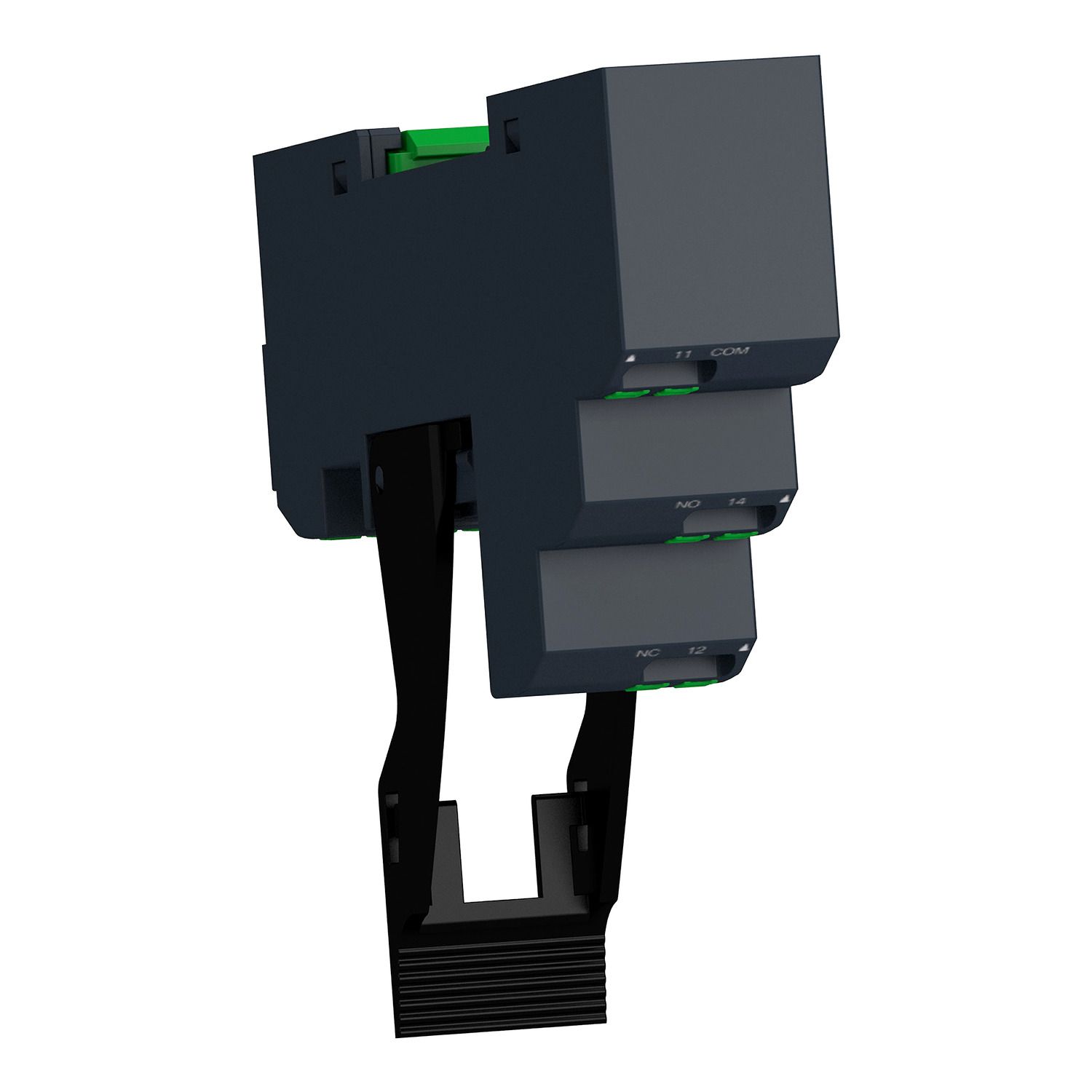

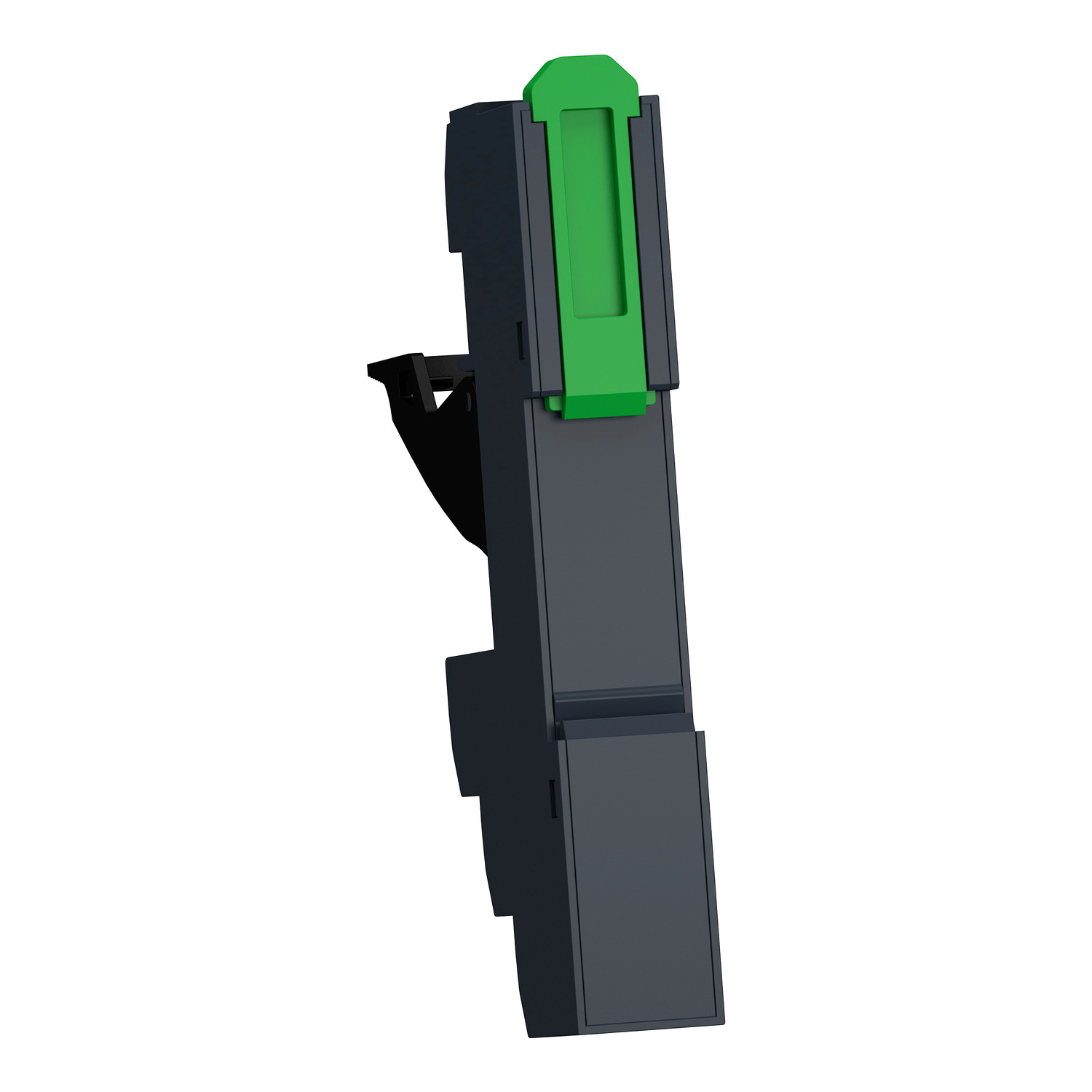

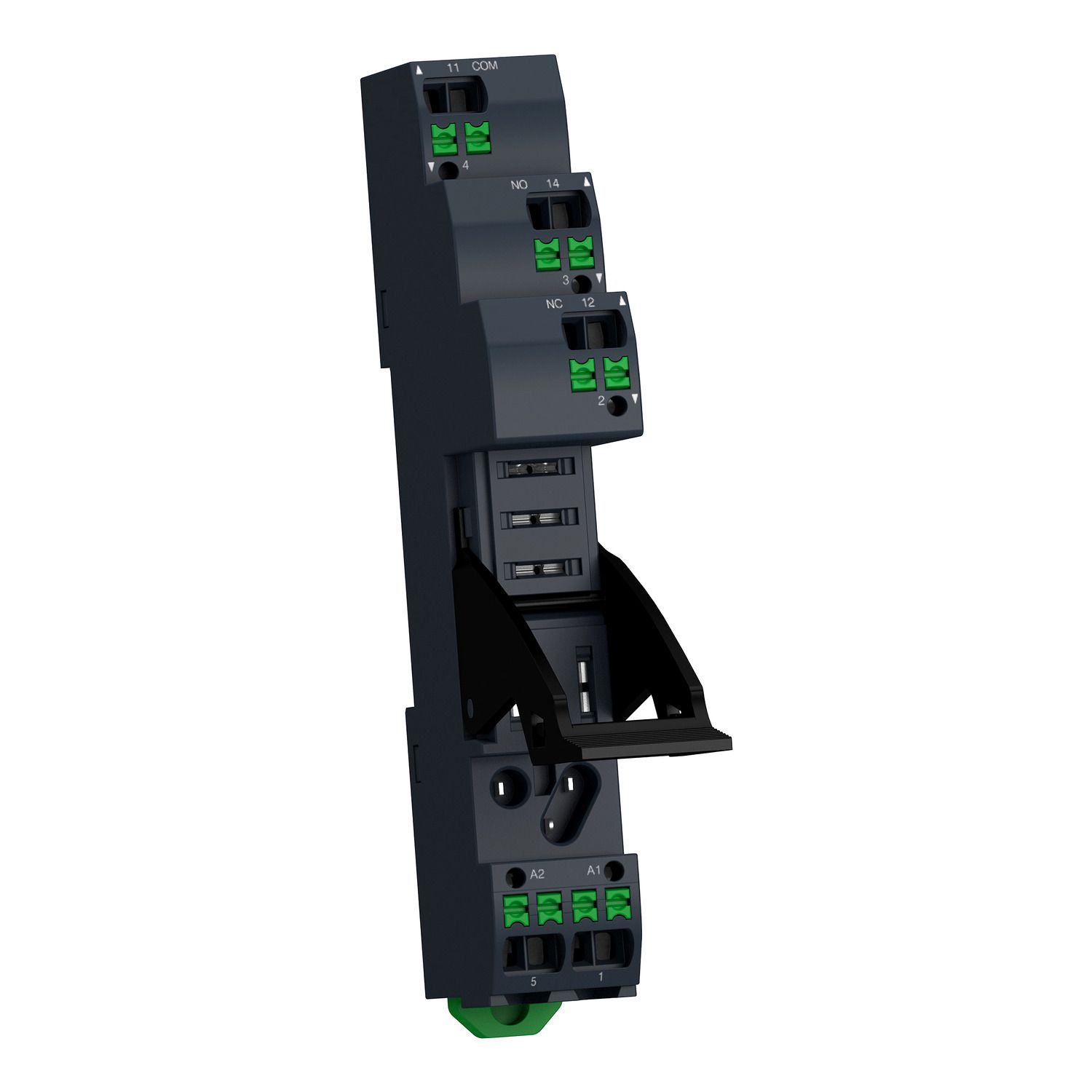

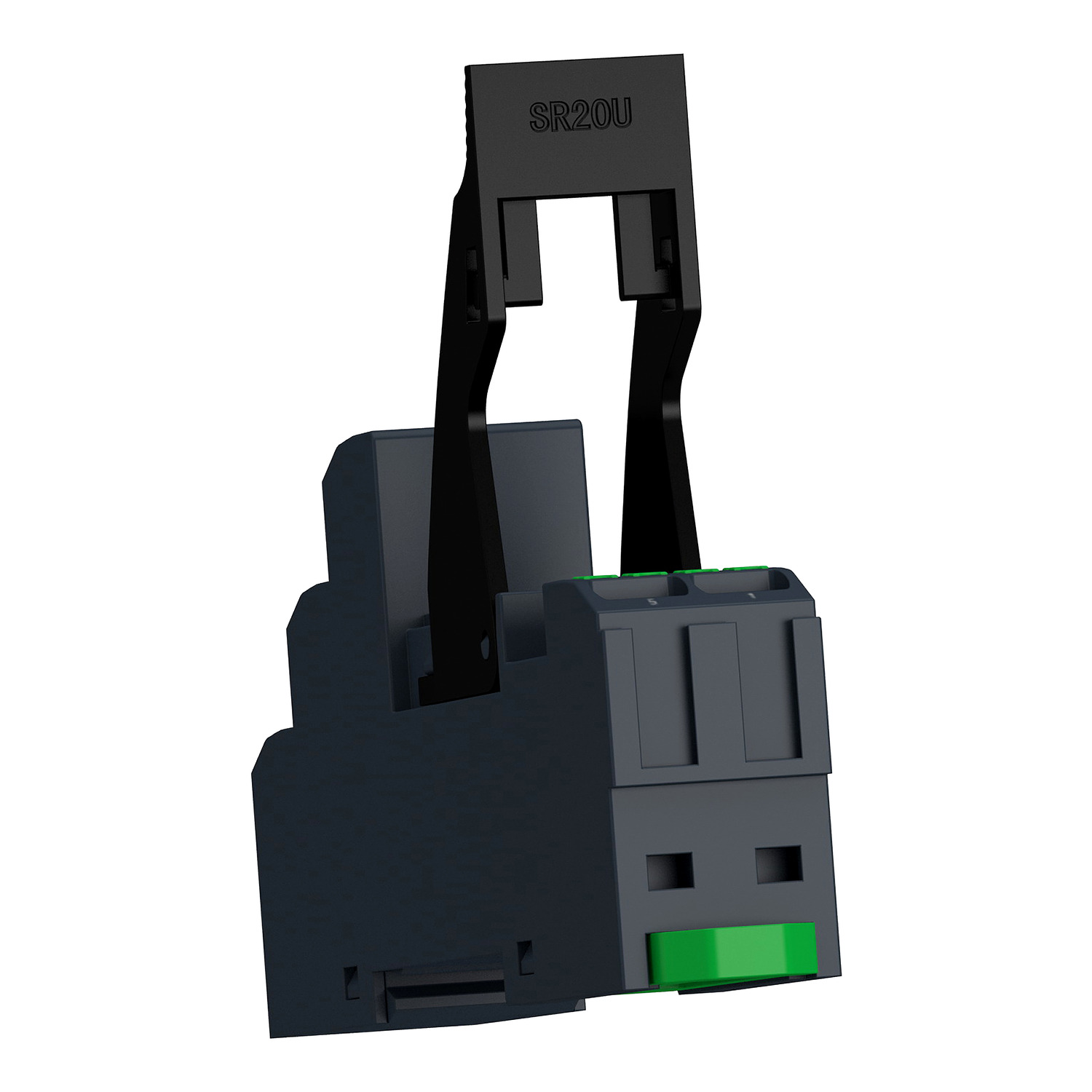

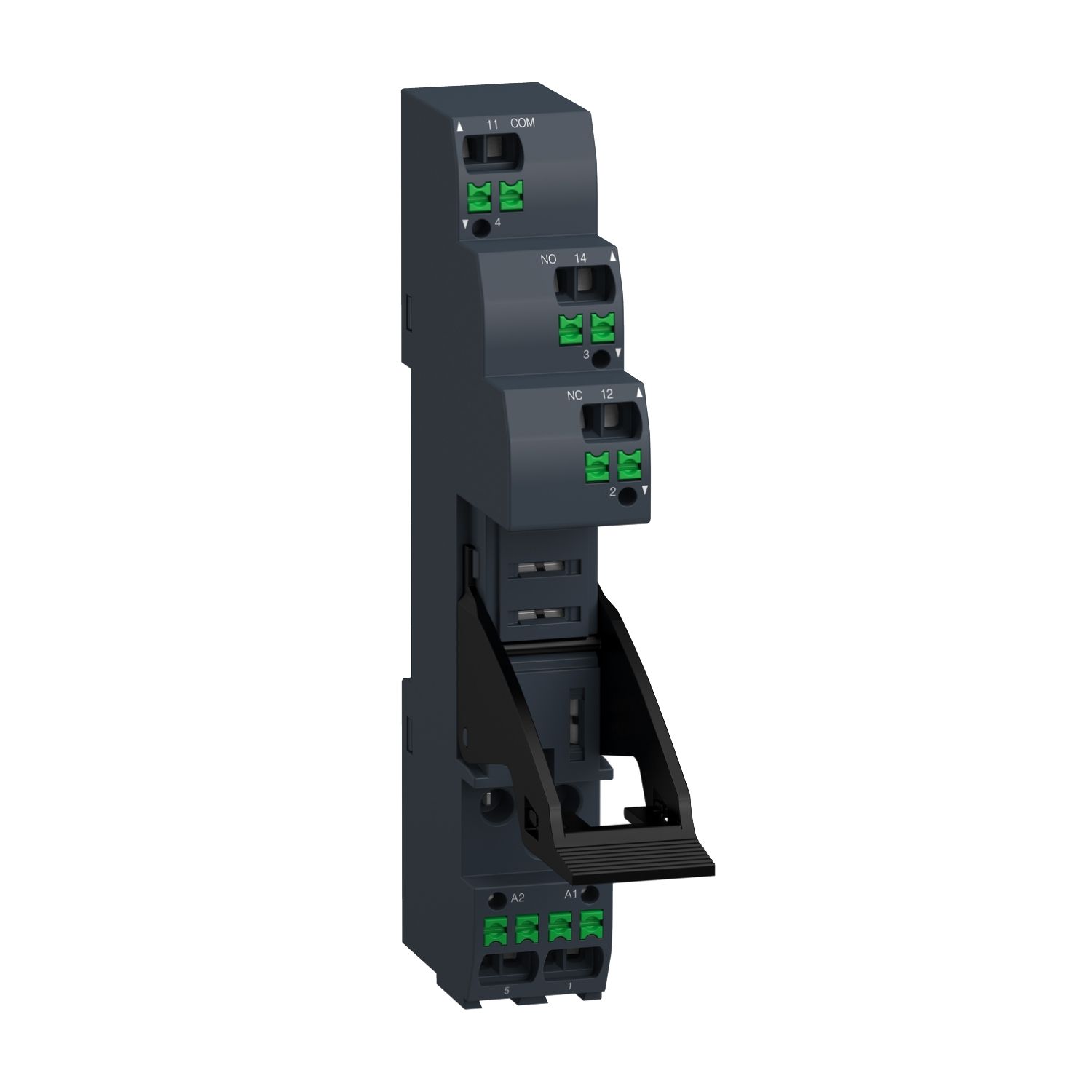

This Harmony RGZ range is a timing relay socket with a mixed contact terminals. It enables quick and easy plug-in installation of relays without the need for tools It is compatible with all 1 C/O RXG relays and its voltage is 10A. Simple relay retention via clamp allows quick replacement of relays and minimizes machine downtime. This premium product conforms to international standard and certifications.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | RGZ |
| [In] rated current | 10 A |
| Product compatibility | plug-in relay RXG with 1 C/O contact |
| Contacts type and composition | 1 C/O |
| Product or component type | socket |
| [Ui] rated insulation voltage | 250 V |
| Range of product | Harmony Electromechanical Relays |
| Complementary | |
| Overvoltage category | III |
| [Uimp] rated impulse withstand voltage | 4 kV between terminals and DIN rail with basic insulation, 6 kV between coil and contact with reinforced insulation |
| Width | 16 mm |
| Dielectric strength | 3 kV between terminals and DIN rail with basic insulation, 5 kV between coil and contact with reinforced insulation |
| Connections - terminals | spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) flexible with cable end, push-in terminals |
| Fixing mode | clip-on (35 mm symmetrical DIN rail) |
| Net weight | 0.039 kg |
| Contact terminal arrangement | separate |
| Length | 98 mm |
| Shape of pin | flat |
| Pollution degree | 3 |
| [Ue] rated operational voltage | 300 V conforming to UL, 250 V conforming to IEC |
| Height | 67 mm |
| Environment | |
| IP degree of protection | IP20 |
| Ambient air temperature for storage | -40-85 °C |
| Marking | CE |
| Standards | IEC 61984 |
| Ambient air temperature for operation | -40-70 °C |
| Product certifications | DNV-GL, EAC, UL, CSA |
Only registered users can write reviews
Related products
interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, clear cover, 24V DC
RXG15BD
interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, clear cover, 24V DC
$21.23 inc GST
$19.16 inc GST
interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, lockable test but to n, 24V DC
RXG11BD
interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, lockable test but to n, 24V DC
$16.94 inc GST
$15.29 inc GST
Interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, 24V DC
RXG13BD
Interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, 24V DC
$21.23 inc GST
$19.16 inc GST
Interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, lockable test button, 24V DC
RXG12BD
Interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, lockable test button, 24V DC
$21.23 inc GST
$19.16 inc GST
Legends, Harmony Electromechanical Relays, for RSZE/RGZE sockets, plastic
RSZL300
Legends, Harmony Electromechanical Relays, for RSZE/RGZE sockets, plastic
$2.13 inc GST
$1.92 inc GST

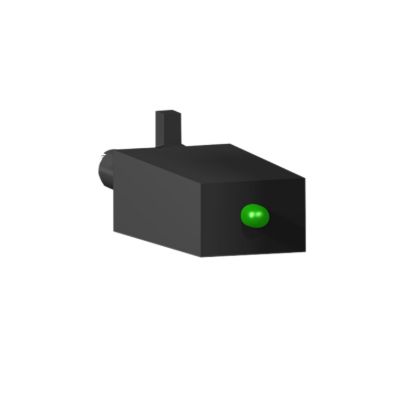

Protection module, Harmony Electromechanical Relays, Varistor+green LED, for all sockets, 110…230VAC DC
