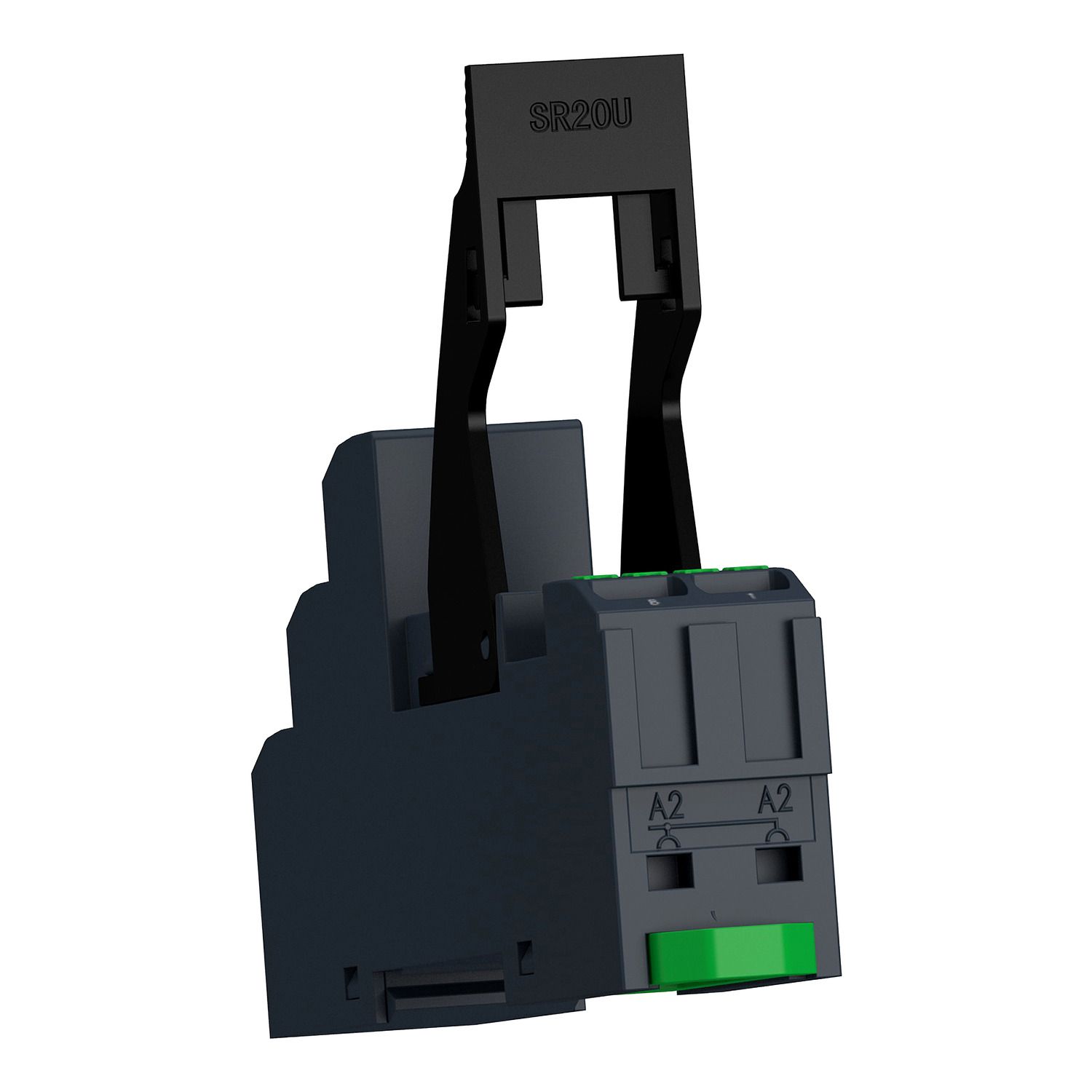

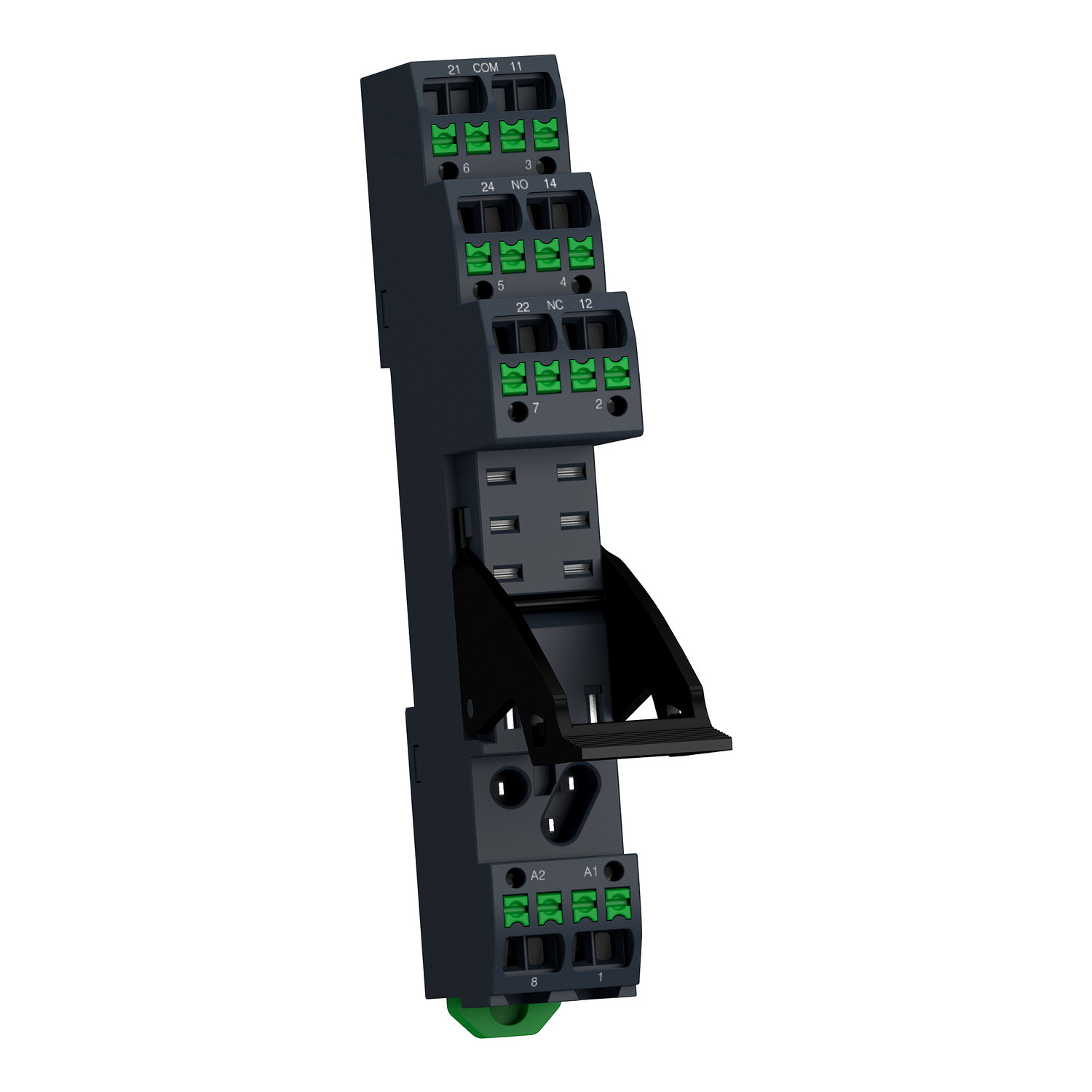

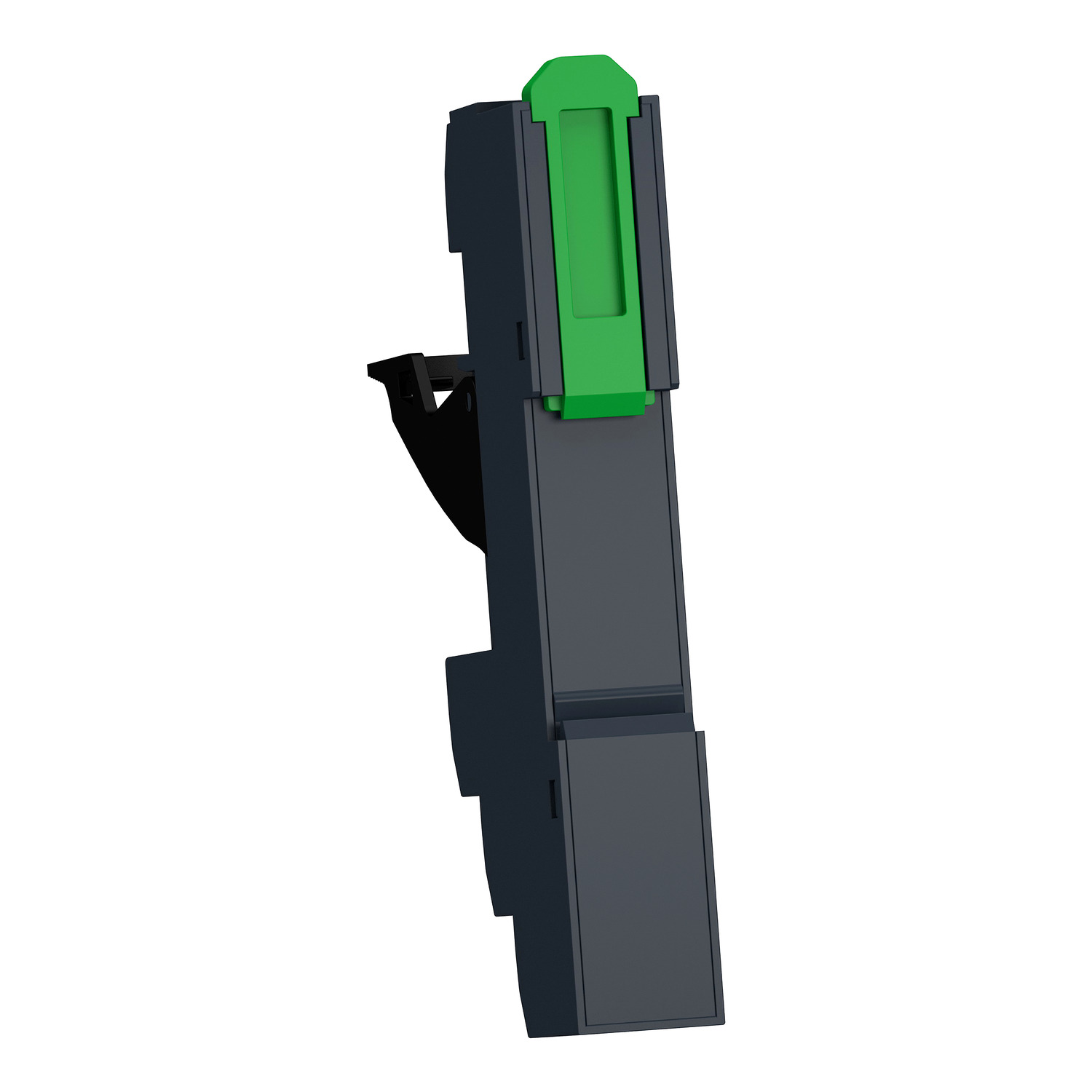

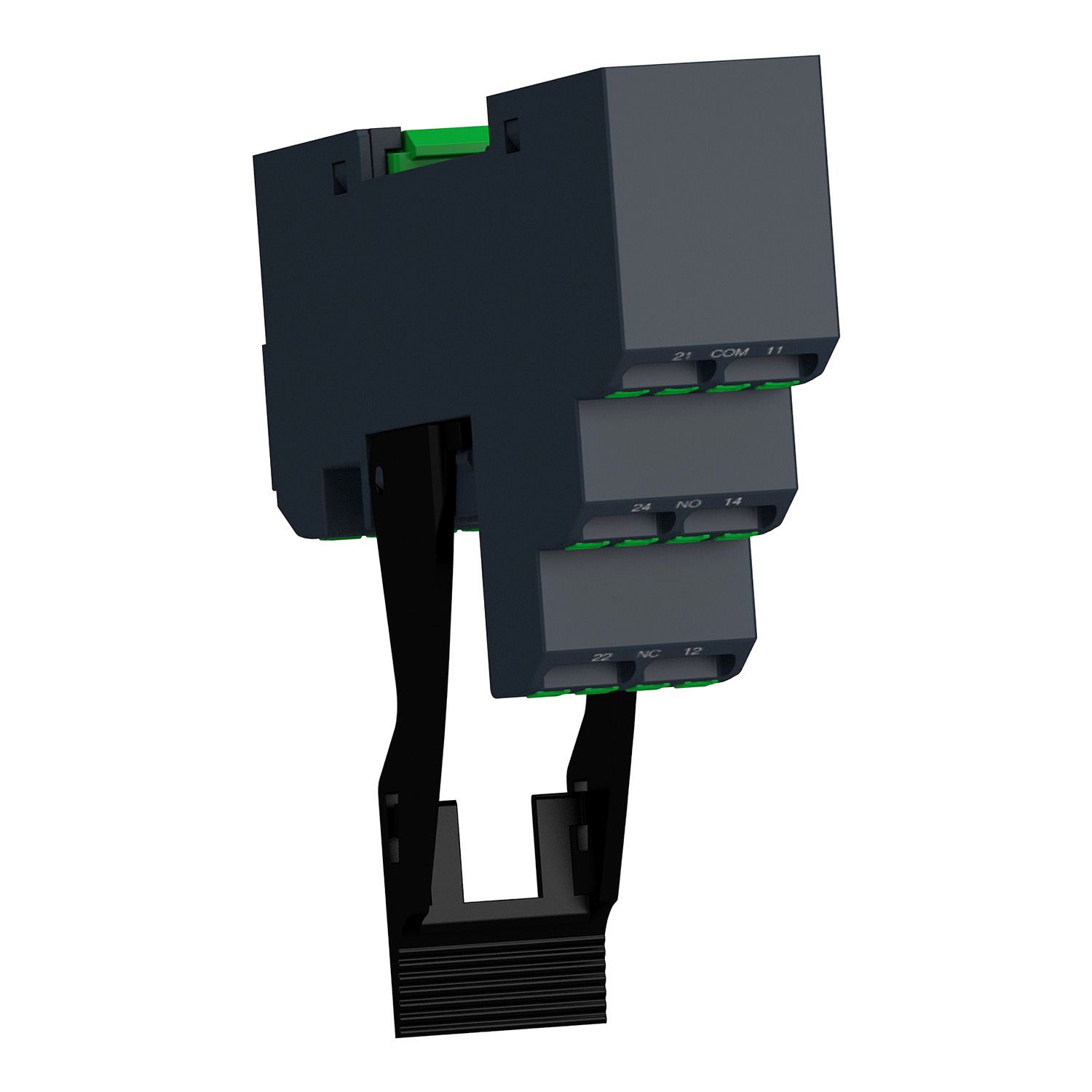

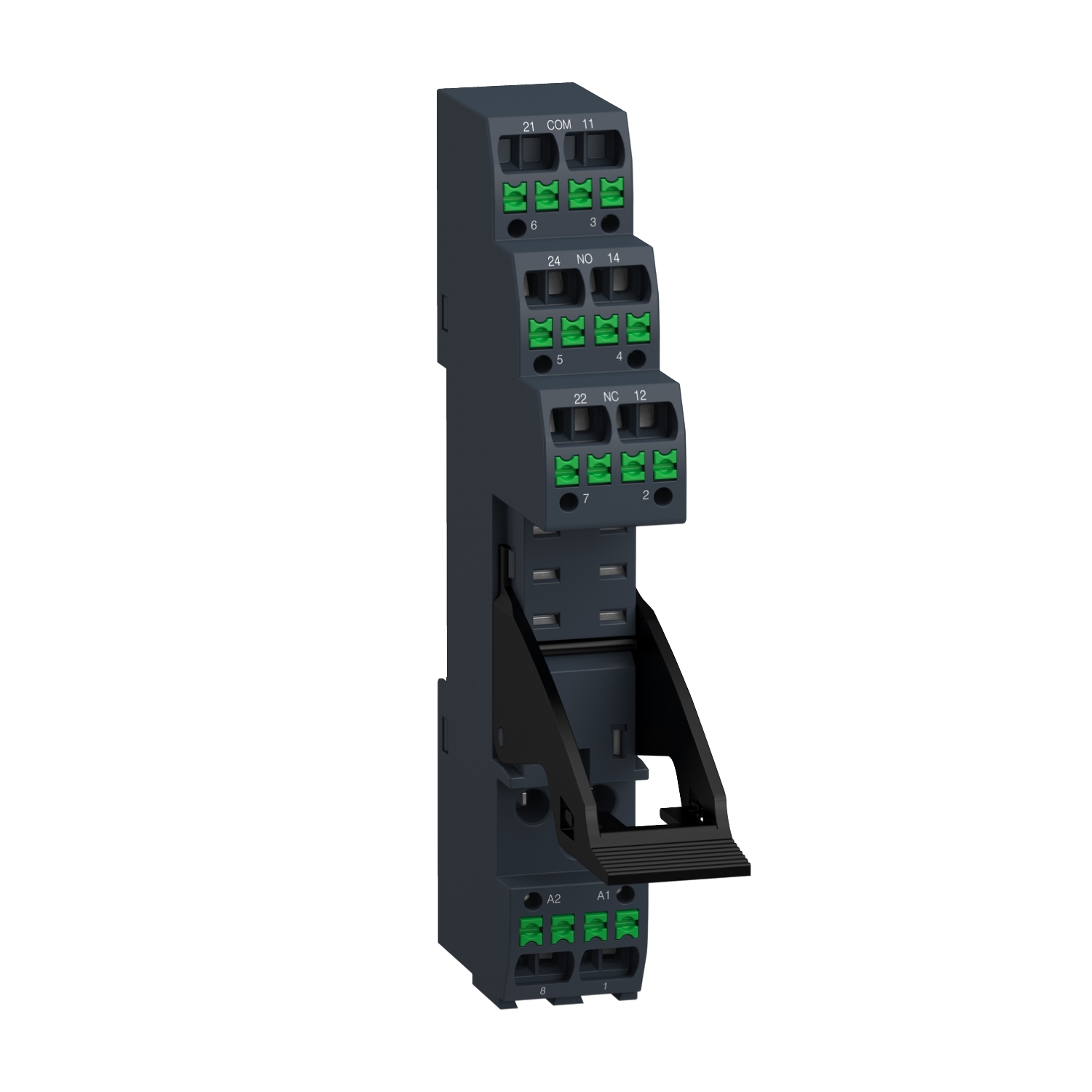

RGZ push-in relay socket is part of the Harmony Electromechanical relays range. This Harmony RGZ push-in relay socket has separate contact terminals. Its volatge is 5 A. It is compatible with all 2 C/O DPDT RXG relays. It also has a test button for easy debugging, testing and commissioning 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | RGZ |
| Product compatibility | plug-in relay RXG with 2 C/O contact |
| Range of product | Harmony Electromechanical Relays |
| [In] rated current | 5 A |
| Contacts type and composition | 2 C/O |
| Product or component type | socket |
| [Ui] rated insulation voltage | 250 V |
| Complementary | |
| [Uimp] rated impulse withstand voltage | 4 kV between terminals and DIN rail with basic insulation, 4 kV between poles with basic insulation, 6 kV between coil and contact with reinforced insulation |
| Dielectric strength | 3 kV between terminals and DIN rail with basic insulation, 3 kV between poles with basic insulation, 5 kV between coil and contact with reinforced insulation |
| Fixing mode | clip-on (35 mm symmetrical DIN rail) |
| Contact terminal arrangement | separate |
| Shape of pin | flat |
| Pollution degree | 3 |
| Height | 67 mm |
| Overvoltage category | III |
| Width | 16 mm |
| Connections - terminals | spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) flexible with cable end, push-in terminals |
| Net weight | 0.042 kg |
| Length | 98 mm |
| [Ue] rated operational voltage | 300 V conforming to UL, 250 V conforming to IEC |
| Environment | |
| IP degree of protection | IP20 |
| Ambient air temperature for storage | -40-85 °C |
| Marking | CE |
| Ambient air temperature for operation | -40-70 °C |
| Standards | IEC 61984 |
| Product certifications | DNV-GL, EAC, UL, CSA |
Only registered users can write reviews
Related products
interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, clear cover, 230V AC
RXG25P7
interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, clear cover, 230V AC
$25.19 inc GST
$22.73 inc GST

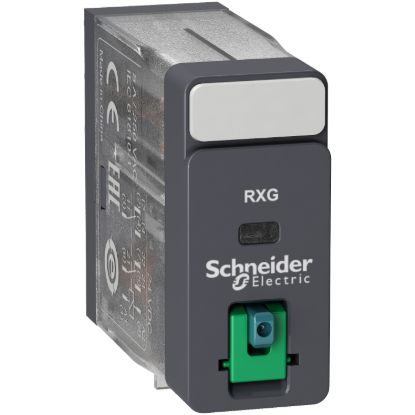

interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, lockable test but to n, 12V DC
