| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | RXZ |

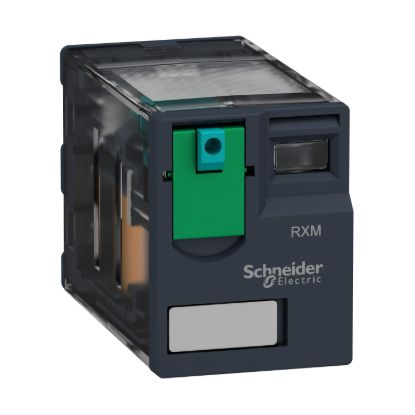

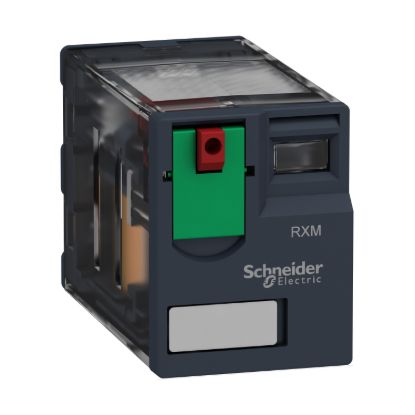

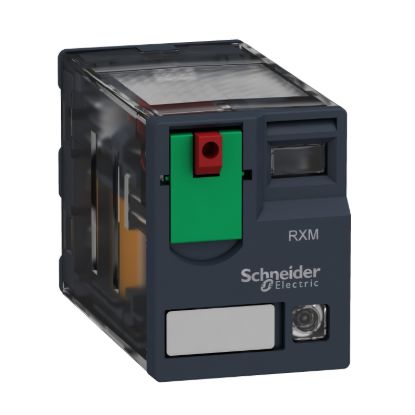

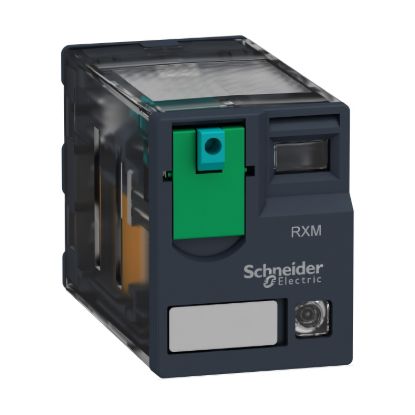

| Product compatibility | plug-in relay RXM with 4 C/O contact, plug-in relay RXM with 2 C/O contact |
| Range of product | Harmony Timer Relays, Harmony Electromechanical Relays |
| [Ith] conventional free air thermal current | 6 A 4 C/O relays, 12 A 2 C/O relays |
| Output type | relay |
| [In] rated current | 12 A |
| Contacts type and composition | 4 C/O |

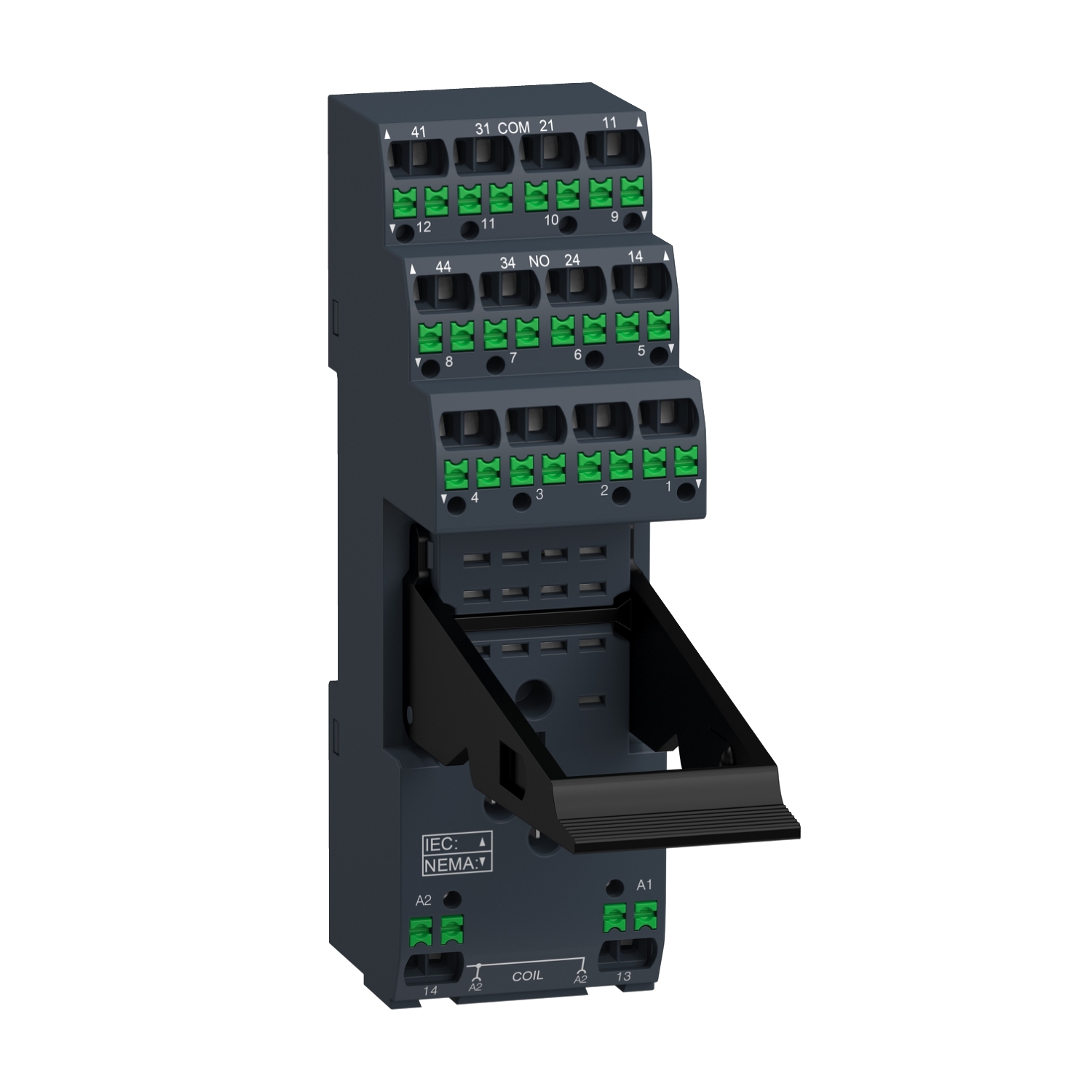

| Product or component type | socket |
| [Ui] rated insulation voltage | 250 V |
| Complementary | |
| Group of product | RXM_2-4_C/O_CON_SEP_FLAT |
| Sale per indivisible quantity | 10 |
| Fixing mode | clip-on (35 mm symmetrical DIN rail) |
| Contact terminal arrangement | separate |
| Shape of pin | flat |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Height | 85 mm |
| Overvoltage category | III |
| Width | 31 mm |
| Connections - terminals | spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) flexible with cable end, push-in terminals |
| Net weight | 0.080 kg |
| Length | 98 mm |
| [Ue] rated operational voltage | 300 V conforming to UL, 250 V conforming to IEC |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP20 |
| Marking | CE |
| Ambient air temperature for operation | -40-55 °C |
| Dielectric strength | 2500 V |
| Standards | IEC 61984 |
| Product certifications | EAC, UL, Lloyd's, CSA |
