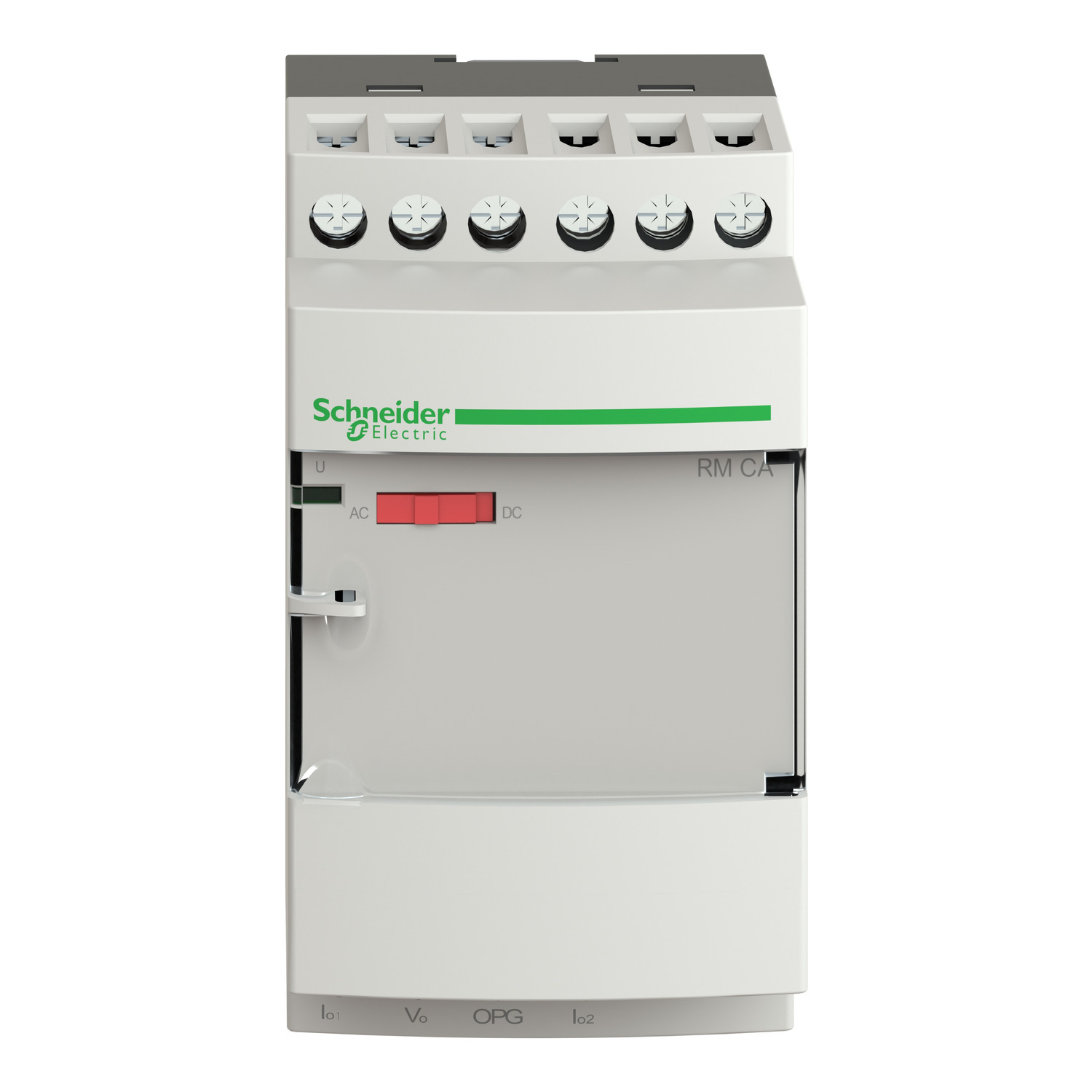

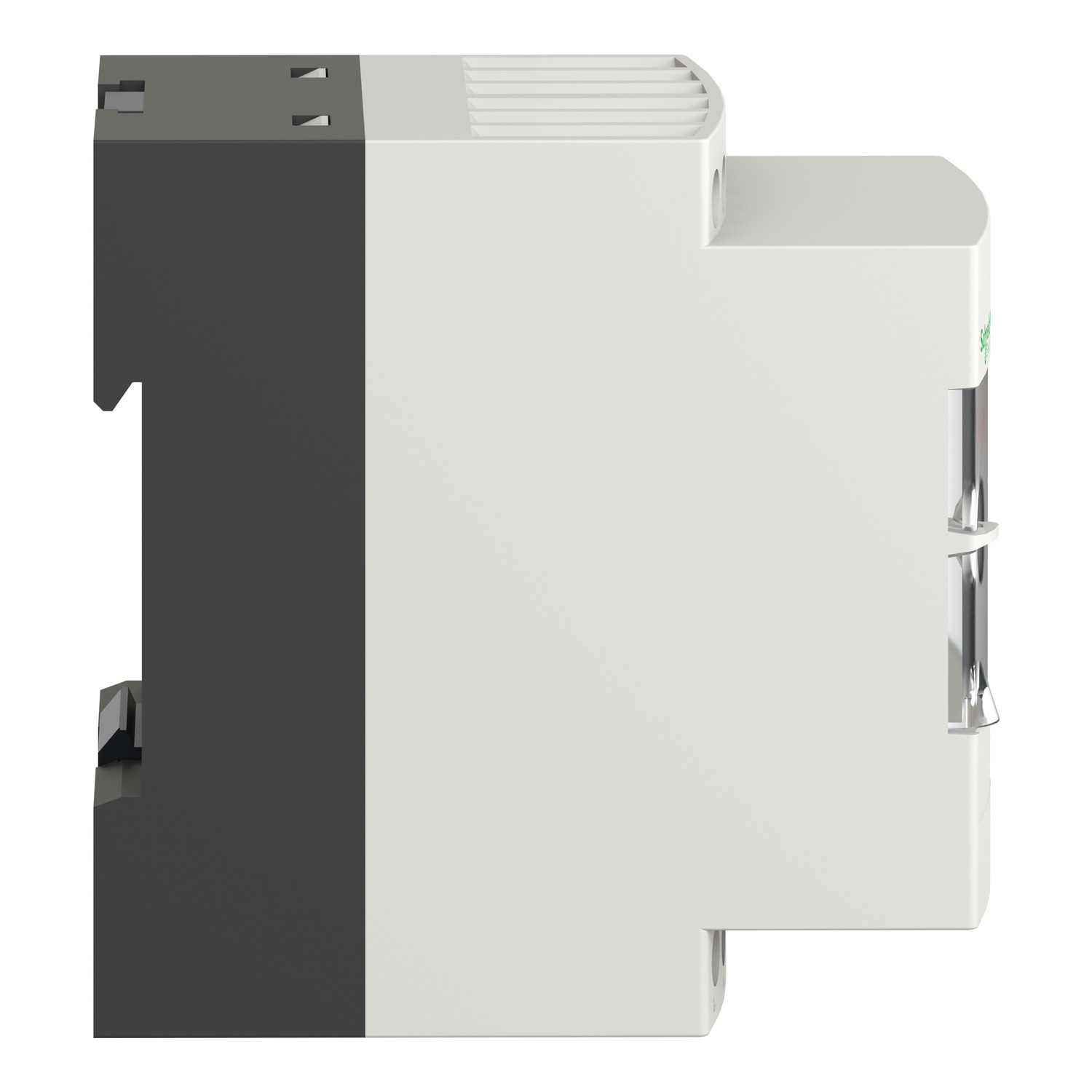

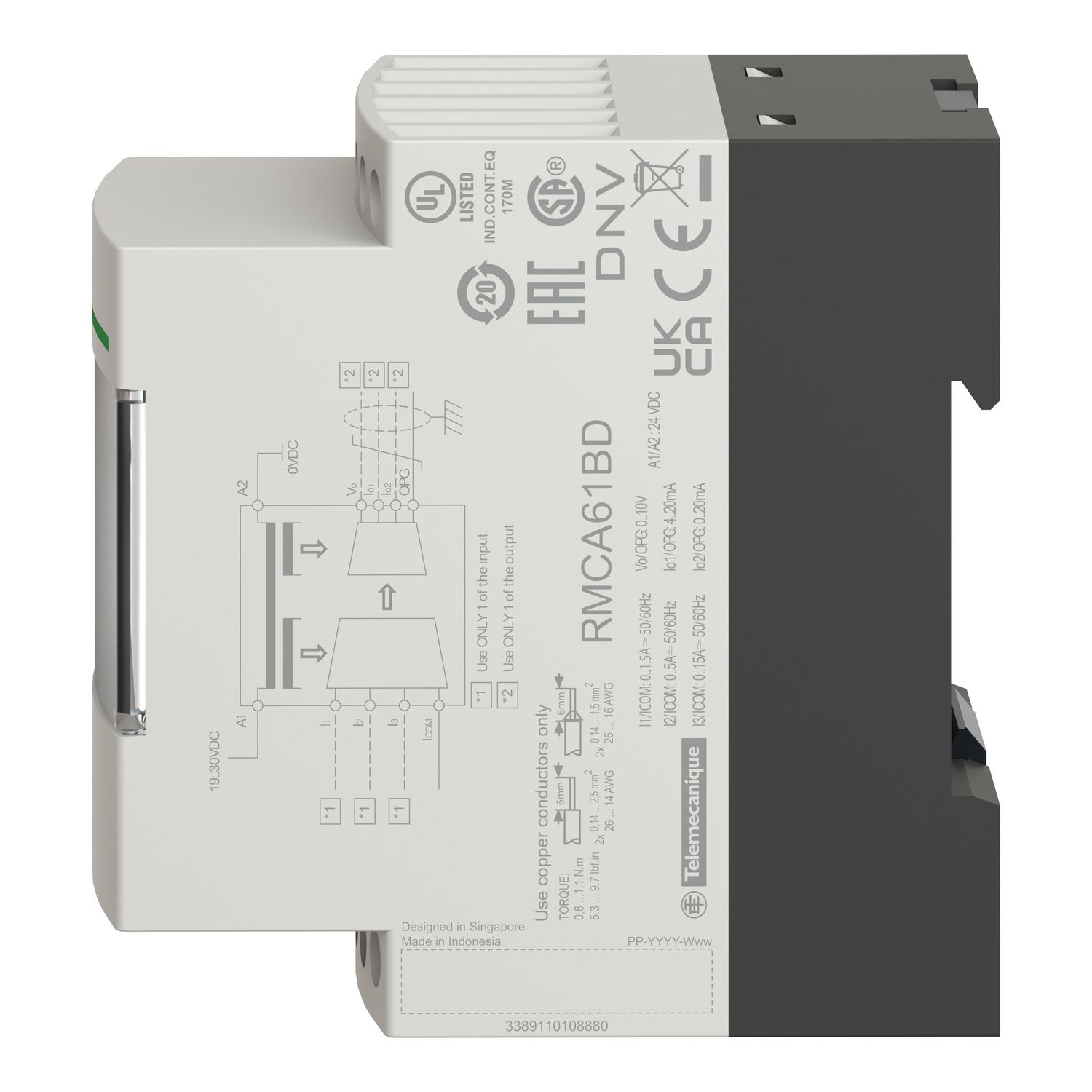

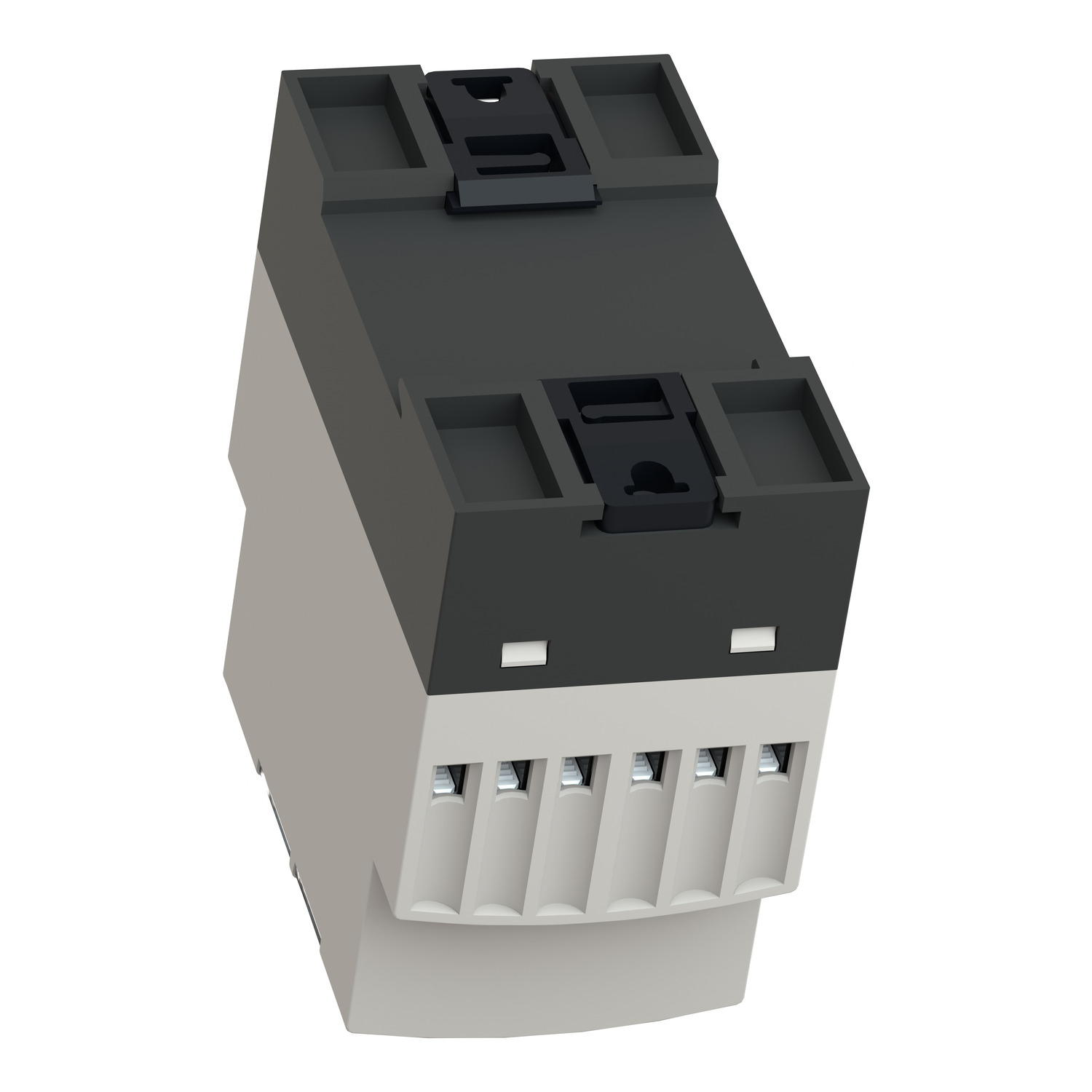

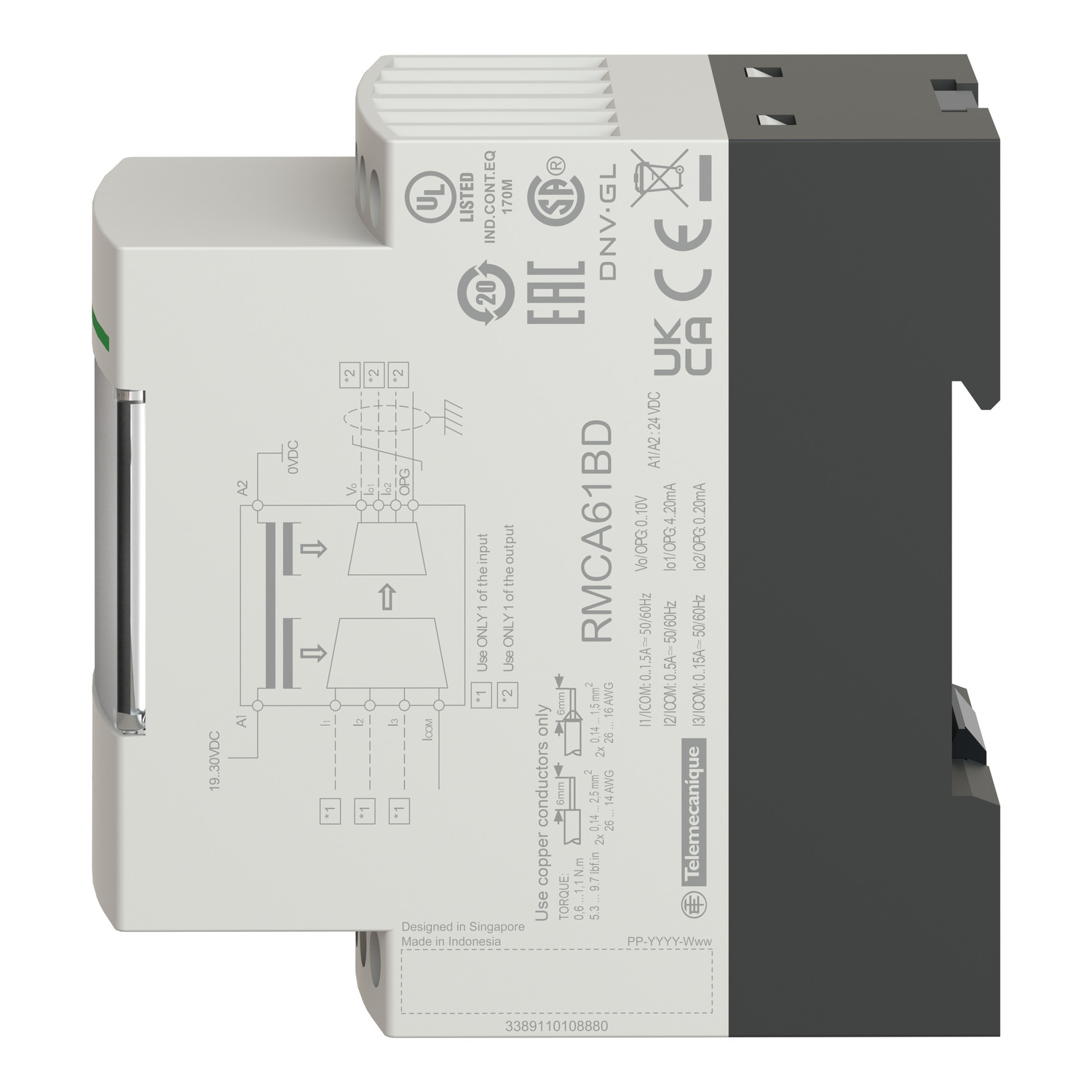

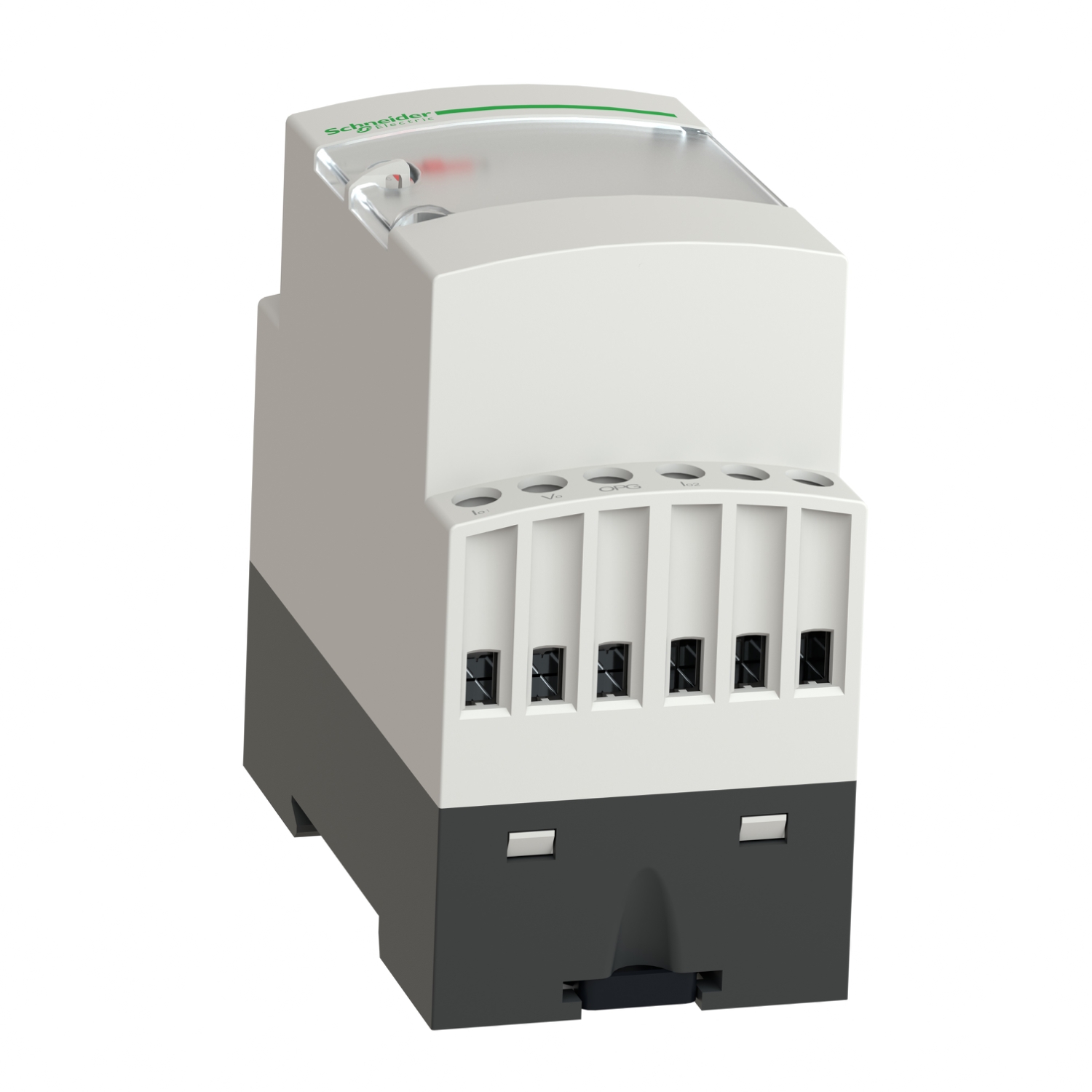

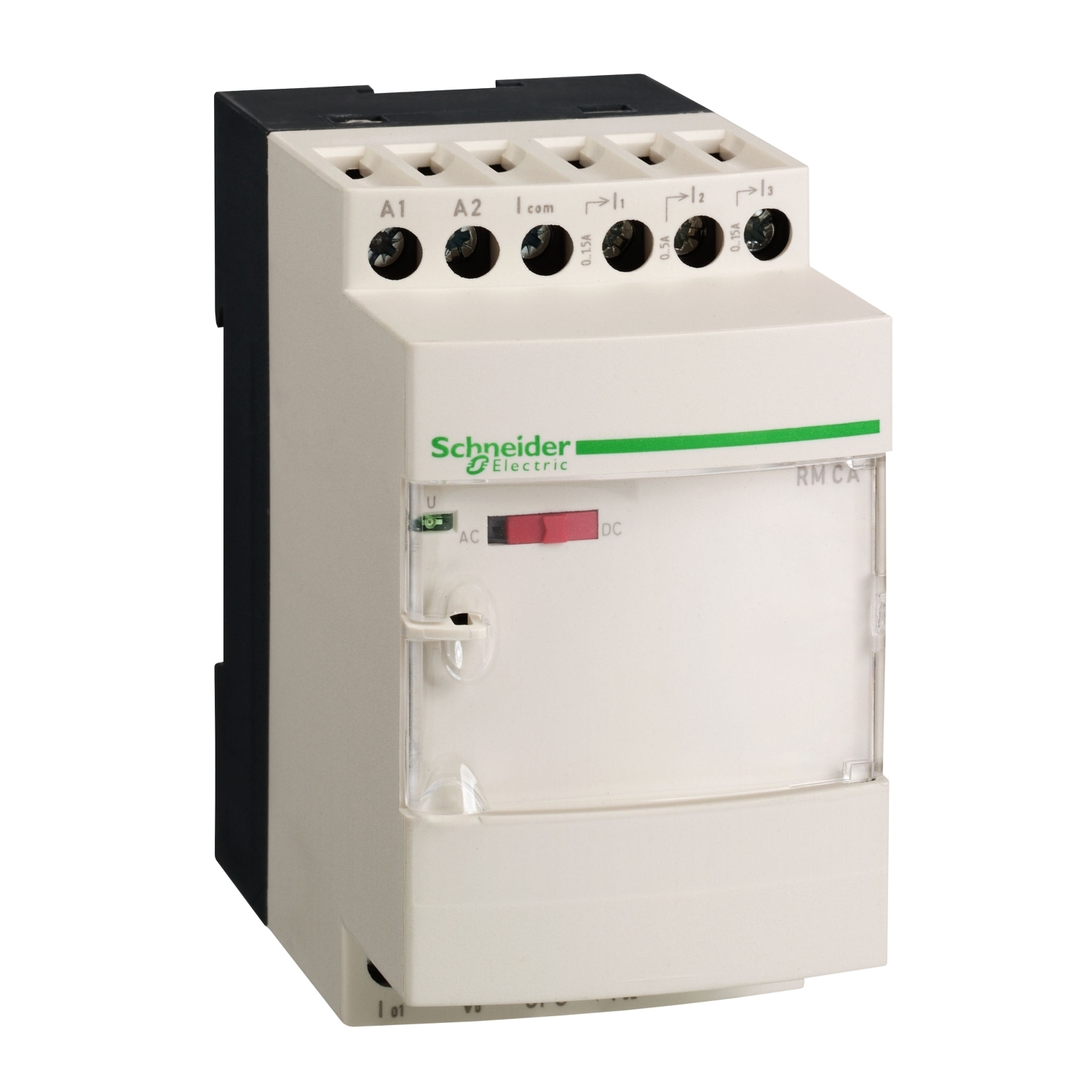

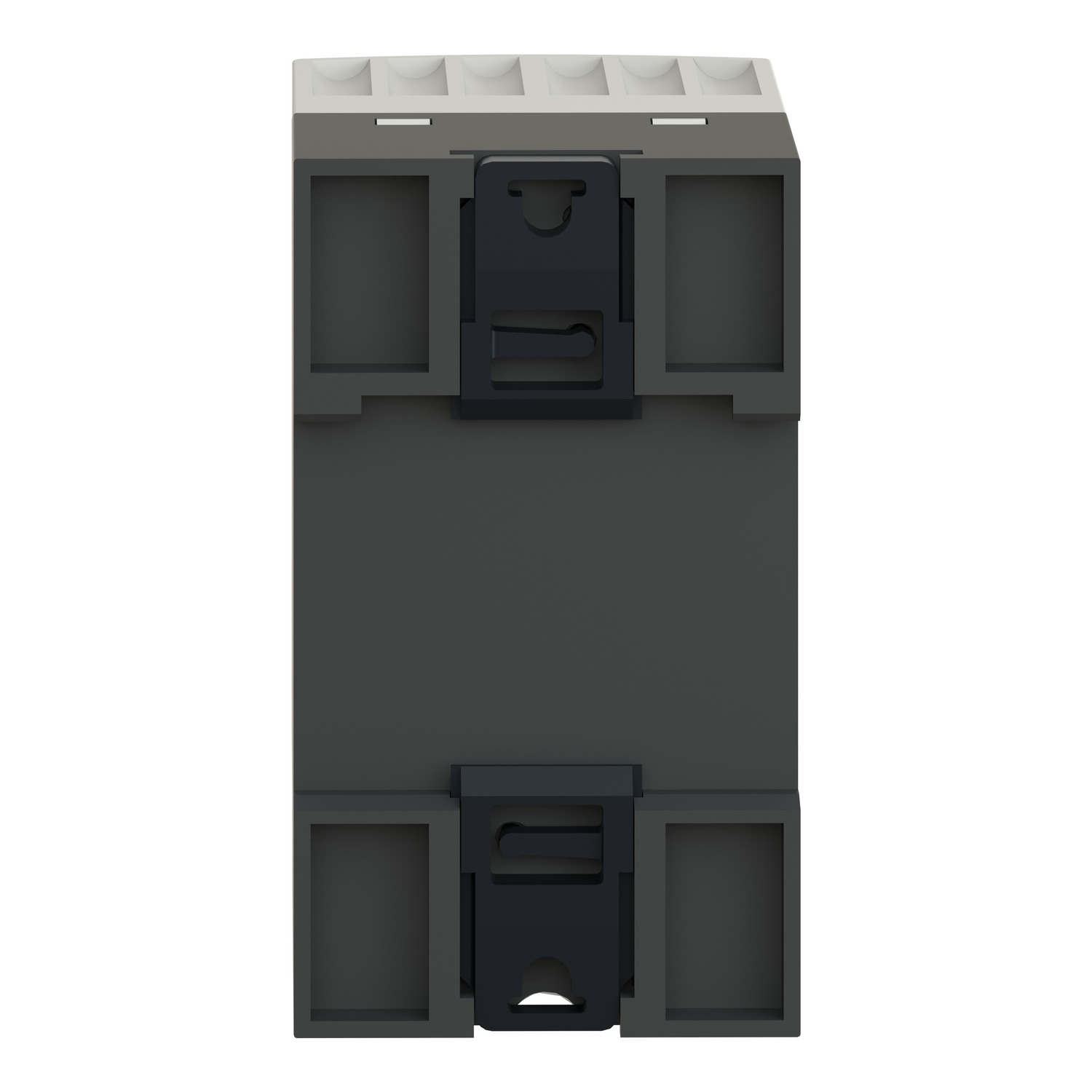

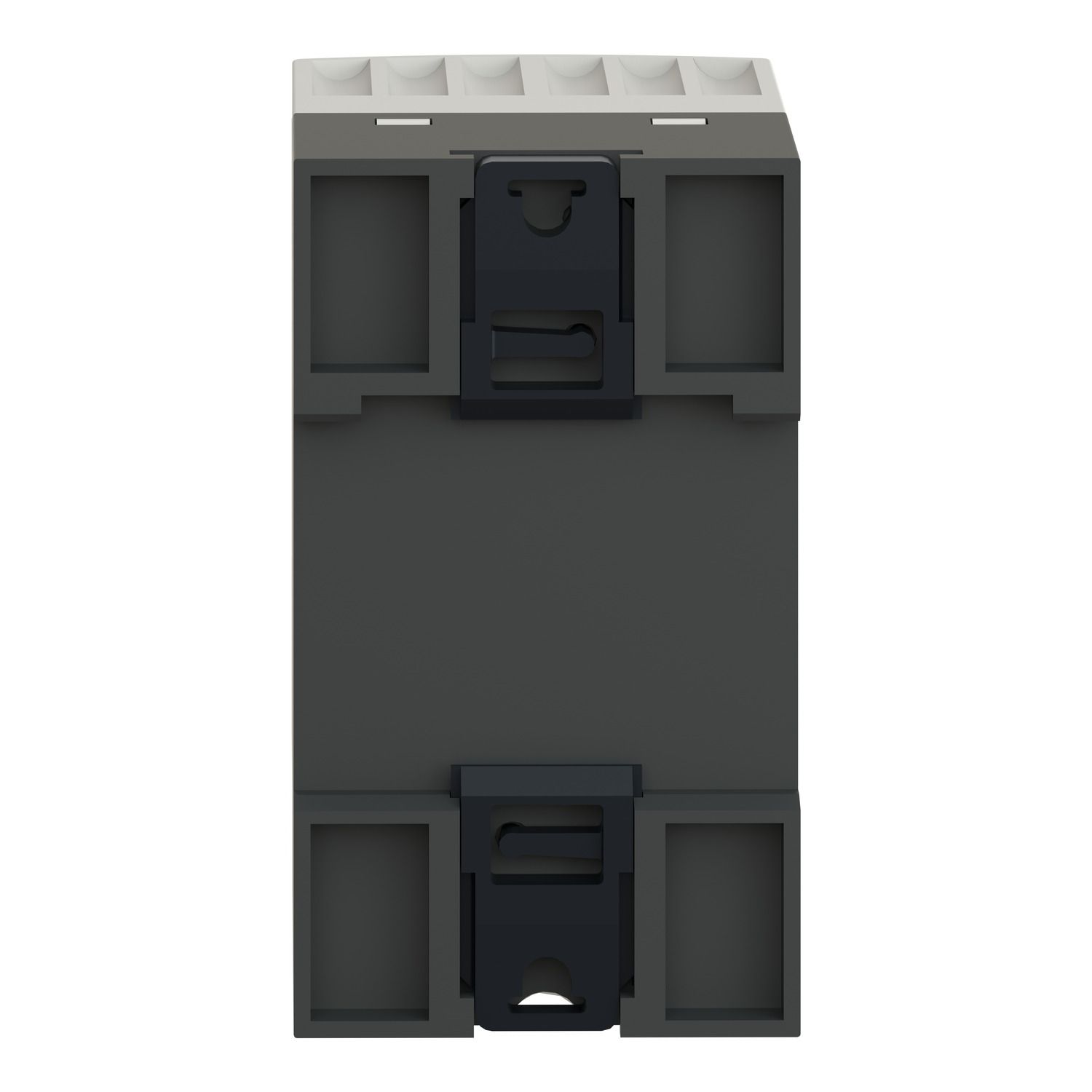

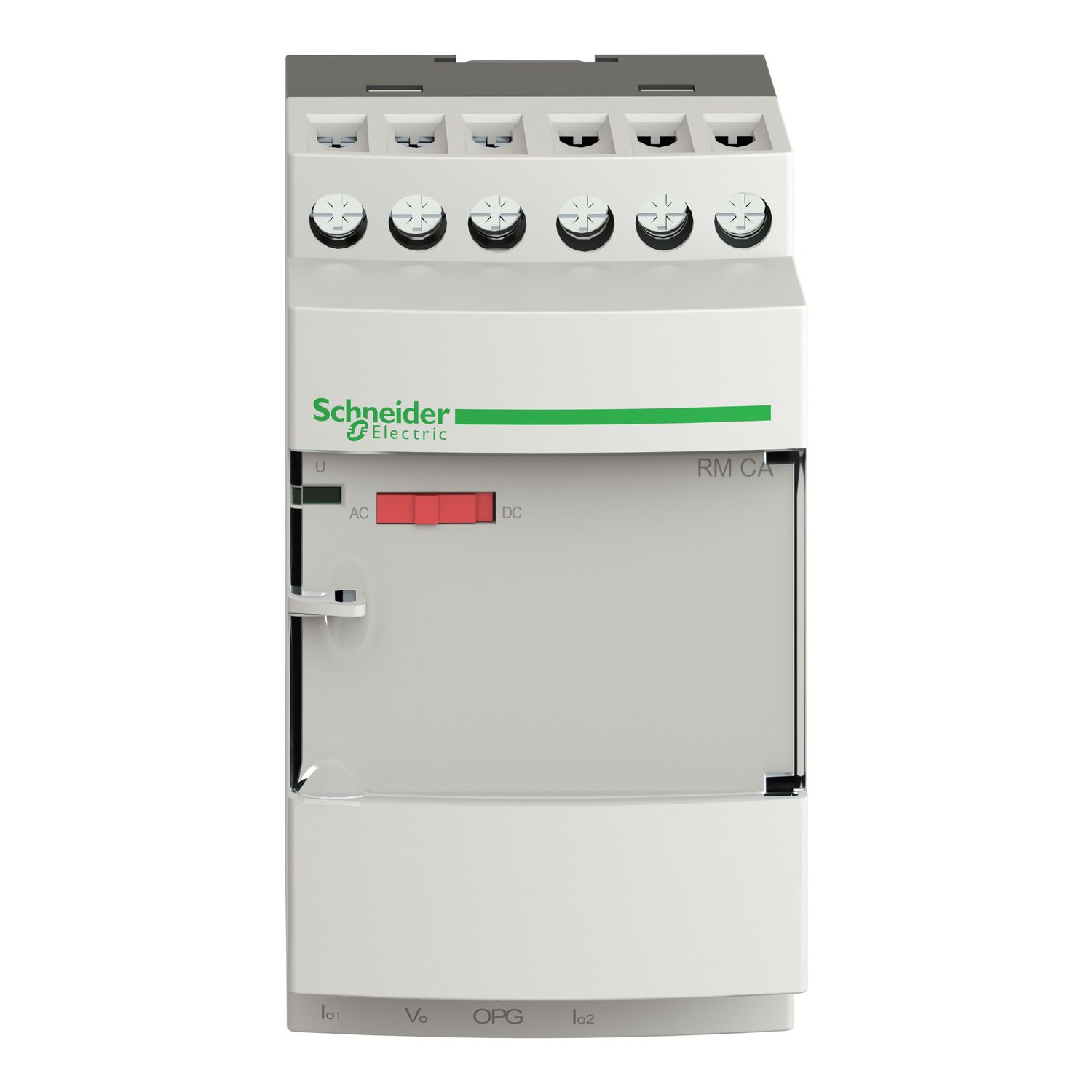

This voltage/current converter is part of the Harmony Analog range. It allows conversion of electrical power signals, both AC and DC. Its supply voltage is 24V DC, isolated. It features for current inputs with a range of 0A to 1.5A, 0A to 5A, 0A to 15A (AC/DC). It has outputs with a switchable voltage/current range of 0V to 10V, 0mA to 20mA, and 4mA to 20mA. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. 0 It weighs 0.140Kg. 0 0 Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 Quick and intuitive setting, easy to use with fixed input and output values according to the market needs. The settings are secure with sealable protective cover. 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Harmony Analog |
| Analogue input type | current 0...5 A AC/DC 50/60 Hz, current 0...15 A AC/DC 50/60 Hz, current 0...1.5 A AC/DC 50/60 Hz |
| Product or component type | voltage/current converter |
| Analogue output type | voltage 0...10 V >= 100 kOhm by cabling, current 4...20 mA <= 500 Ohm by cabling, current 0...20 mA <= 500 Ohm by cabling |
| Complementary | |
| Protection type | overvoltage protection on output (+/- 30 V), short-circuit protection on output, reverse polarity protection on output |
| Temperature coefficient | 500 ppm/°C, range: 0...1.5 A, 2000 ppm/°C, range: 0...15 A, 1000 ppm/°C, range: 0...5 A |
| Surge withstand | 0.5 kV during 1.2/50 µs conforming to IEC 61000-4-5 |
| Fixing mode | clip-on (35 mm symmetrical DIN rail), by screws (mounting plate) |
| Marking | CE |
| Clamping connection capacity | 1 x 2.5 mm², 2 x 1.5 mm² |
| Measurement error | +/- 5 % of full scale at 20 °C, +/- 10 % of full scale at 20 °C (electromagnetic interference of 10 V/m) |
| Safety reliability data | MTTFd = 23.9 years, B10d = 22108 |
| [Us] rated supply voltage | 24 V DC +/- 20 %, isolated |
| Repeat accuracy | +/- 0.6 % full scale at 60 °C, +/- 0.2 % full scale at 20 °C |
| Analogue output current | 4-30 mA, output selected 4...20 mA no input or input wire broken, -30-0 mA, output selected 0...20 mA no input or input wire broken |
| Tightening torque | 0.6-1.1 N.m |
| Local signalling | LED (green) for power ON |
| Net weight | 0.15 kg |
| Analogue output voltage | -15...0 V no input or input wire broken |
| [Ui] rated insulation voltage | 2 kV |
| Current consumption | <= 90 mA for current output, <= 70 mA for voltage output |
| Environment | |
| Resistance to fast transients | 2 kV (on power supply) conforming to IEC 61000-4-4, 1 kV (on input-output) conforming to IEC 61000-4-4 |
| Fire resistance | 850 °C conforming to UL, 850 °C conforming to IEC 60695-2-1 |
| Resistance to electrostatic discharge | 8 kV (in air) conforming to IEC 61000-4-2 level 3, 6 kV (in contact) conforming to IEC 61000-4-2 level 3 |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Disturbance radiated/conducted | CISPR 22 group 1 - class B, CISPR 11 |
| IP degree of protection | IP50 (housing), IP20 (terminal block) |
| Ambient air temperature for operation | 0-60 °C 2 cm spacing, 0-50 °C mounting side by side |
| Vibration resistance | 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Standards | IEC 60584-1, IEC 60947-1 |
| Product certifications | GL, UL, CSA |
