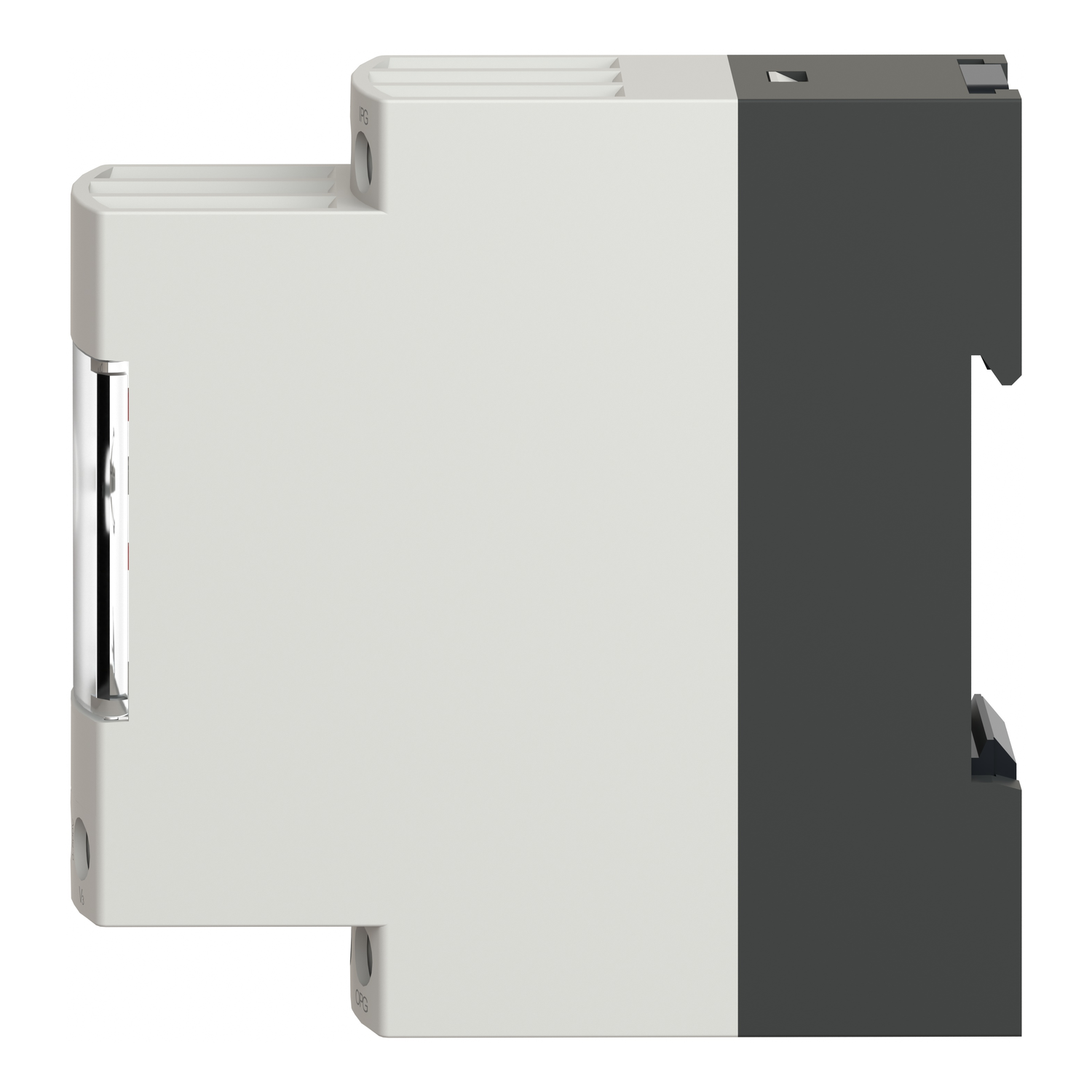

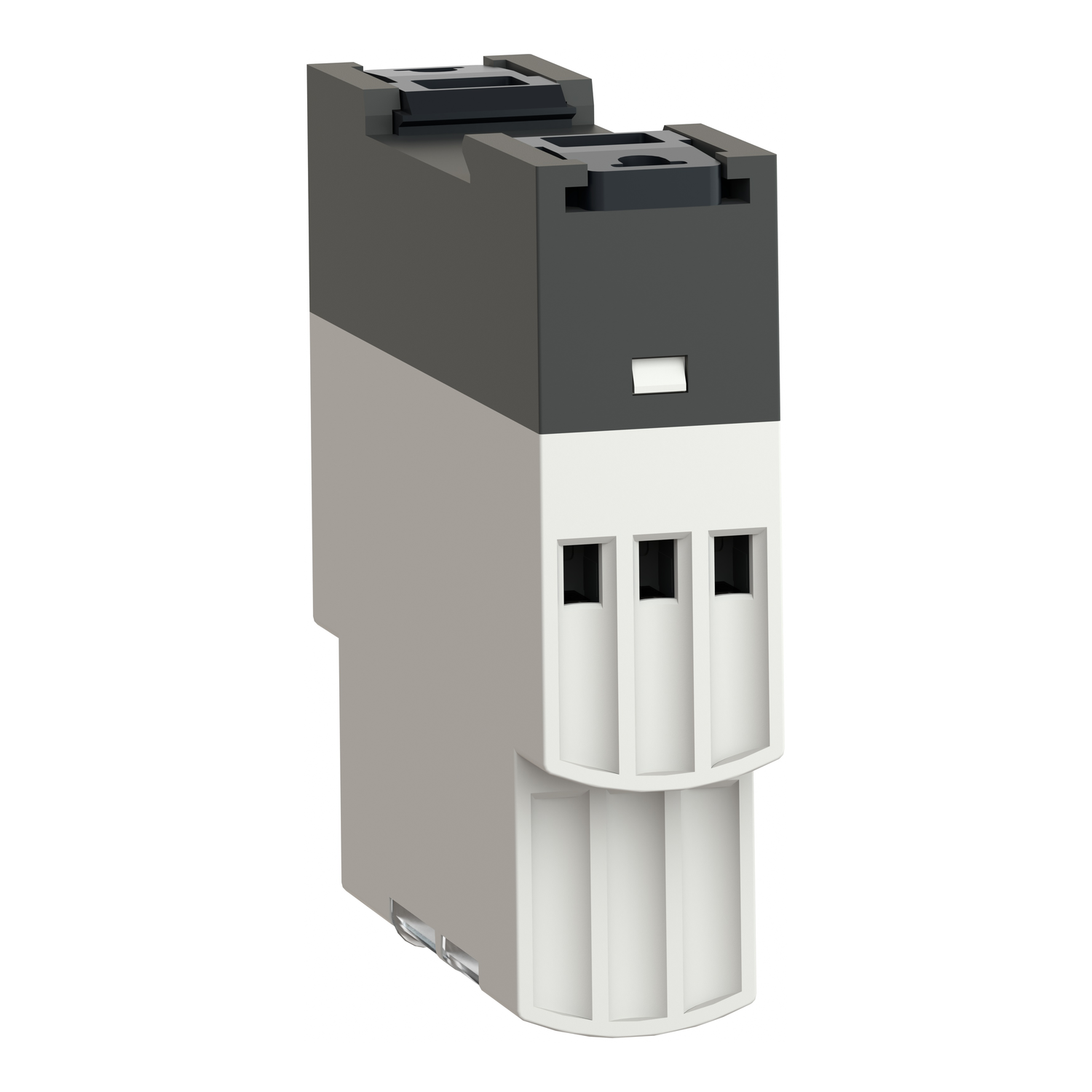

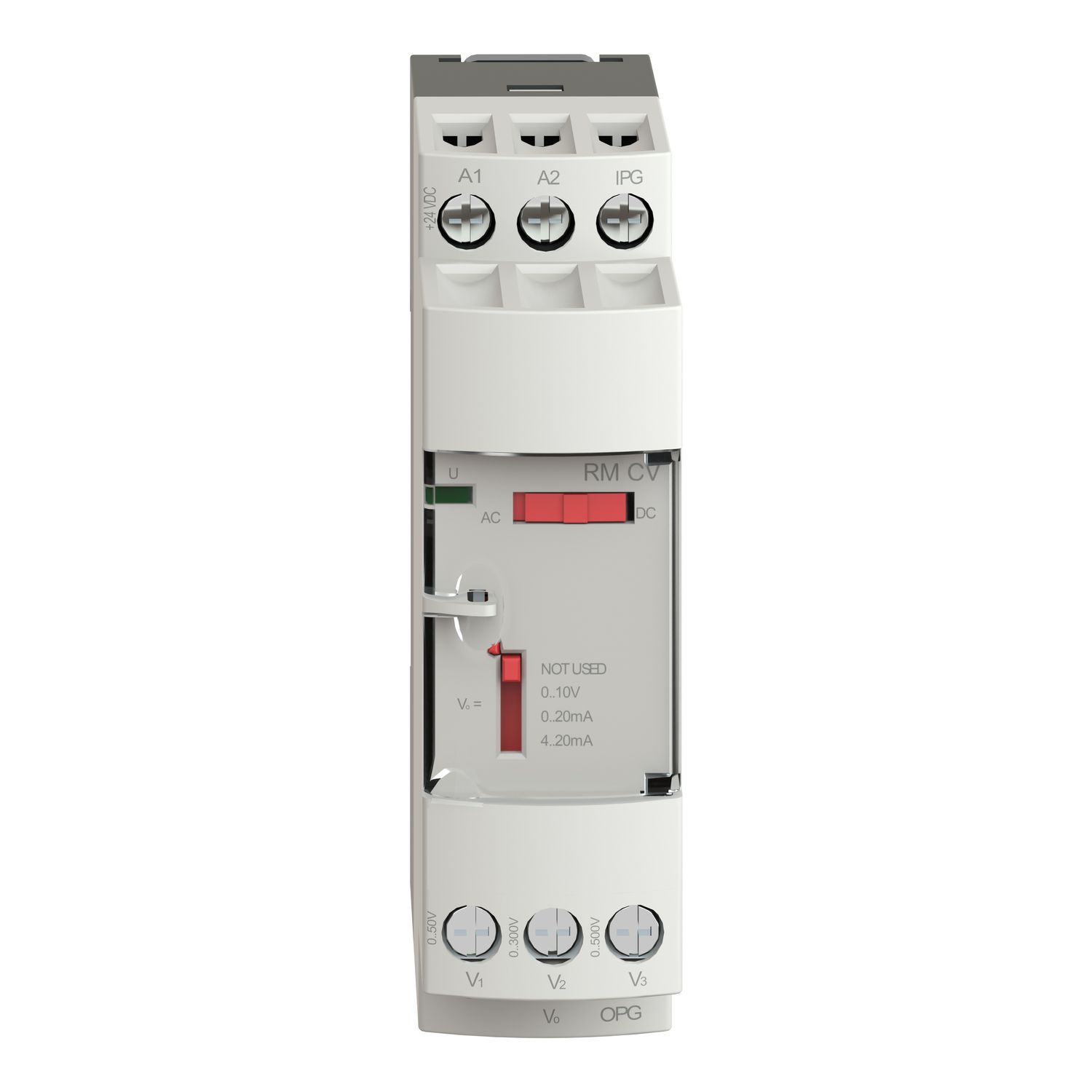

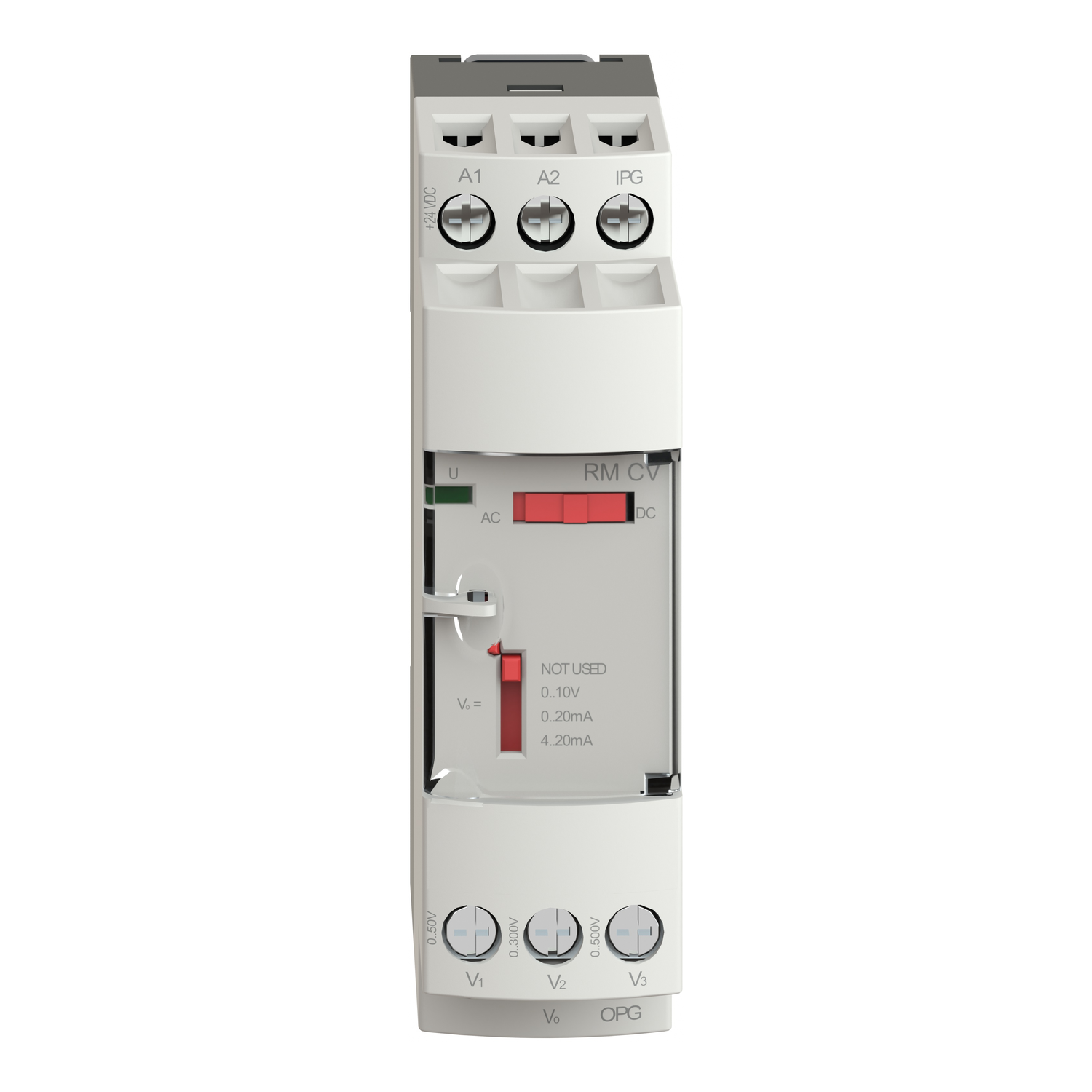

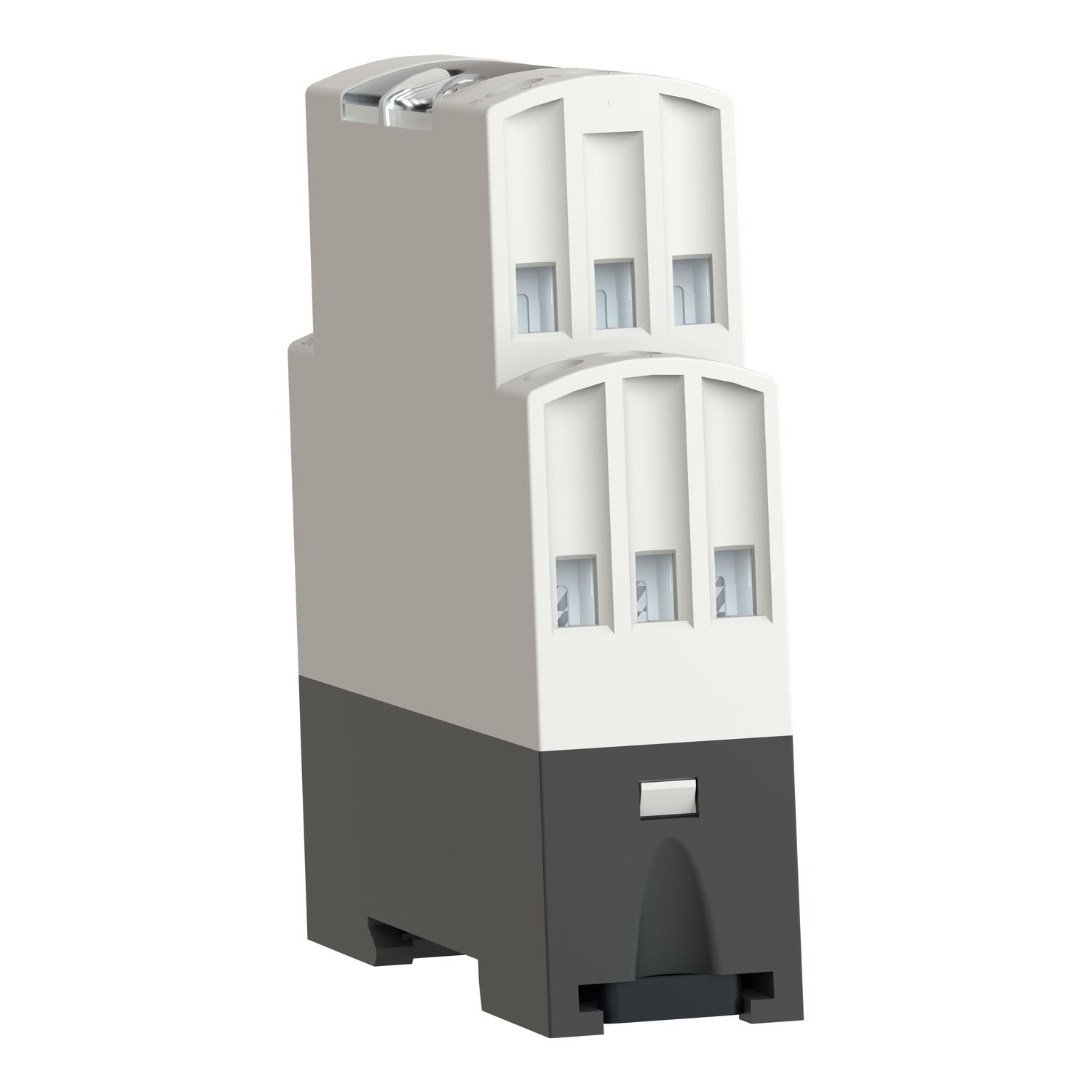

This voltage/current converter is part of the range of interfaces Harmony Analog. This cost effective converter converts a 0…50 V, 0…300 V, 0…500 V AC/DC signal to a switchable 0…10 V, ± 10 V, 0…20 mA or 4…20 mA signal. Its supply voltage is 24V DC, isolated. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. 0 0 It weighs 150g and its dimensions are, 25mm wide, 78mm high, 80mm deep. 0 0 Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 It can be mounted on 35mm DIN rail or fixed by screws on a mounting plate. 0 0 0
Products specifications

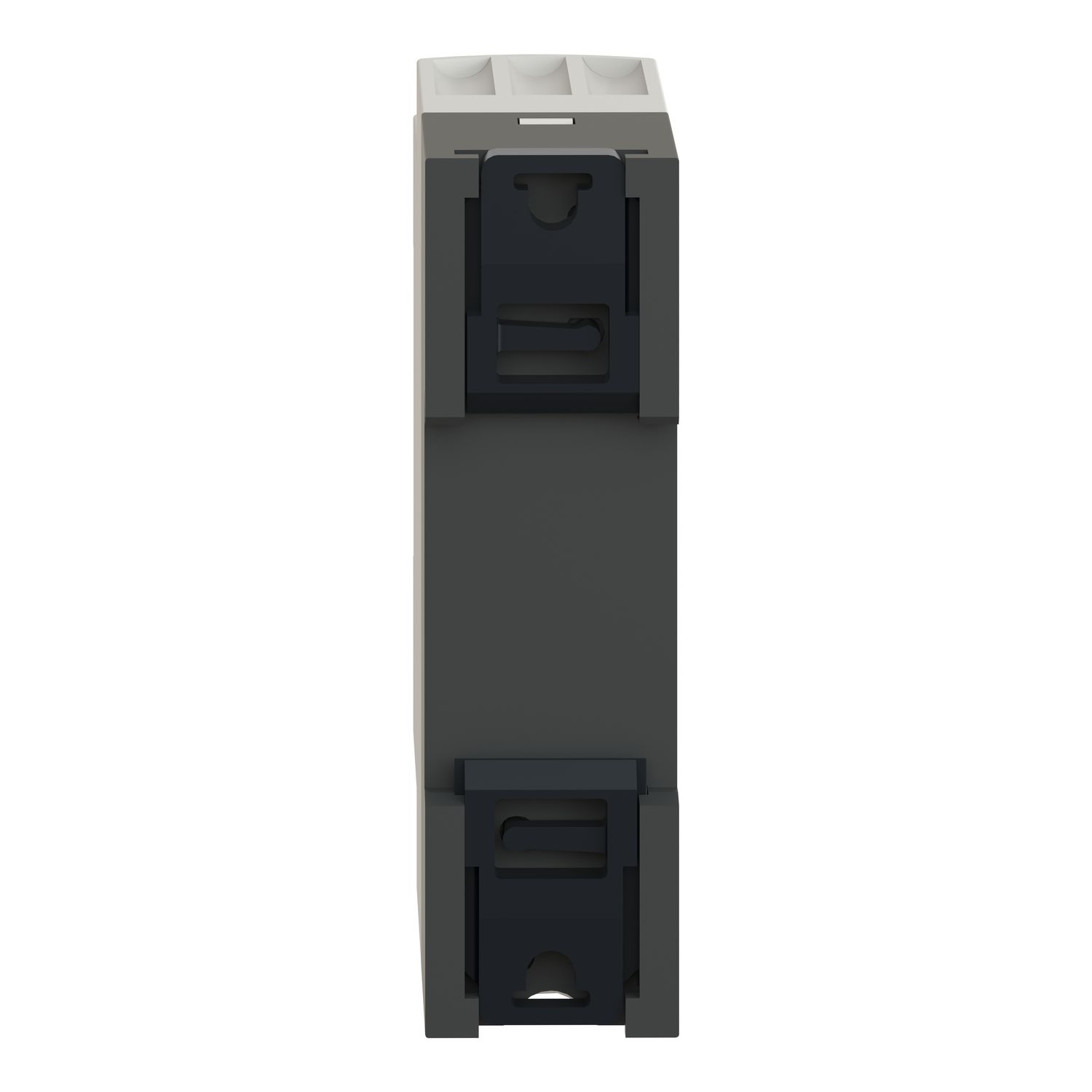

| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Harmony Analog |
| Analogue input type | voltage 0...500 V AC/DC 50/60 Hz, voltage 0...50 V AC/DC 50/60 Hz, voltage 0...300 V AC/DC 50/60 Hz |
| Product or component type | voltage/current converter |
| Analogue output type | voltage 0...10 V >= 100 kOhm switchable, current 4...20 mA <= 500 Ohm switchable, current 0...20 mA <= 500 Ohm switchable |
| Complementary | |
| Protection type | overvoltage protection on output (+/- 30 V), reverse polarity protection on output, short-circuit protection on output |
| Temperature coefficient | 200 ppm/°C |
| Surge withstand | 0.5 kV during 1.2/50 µs conforming to IEC 61000-4-5 |
| Fixing mode | clip-on (35 mm symmetrical DIN rail), by screws (mounting plate) |
| Marking | CE |
| Clamping connection capacity | 2 x 1.5 mm², 1 x 2.5 mm² |
| Measurement error | +/- 5 % of full scale at 20 °C, +/- 10 % of full scale at 20 °C (electromagnetic interference of 10 V/m) |
| Safety reliability data | B10d = 20000, MTTFd = 21.6 years |
| [Us] rated supply voltage | 24 V DC +/- 20 %, isolated |
| Repeat accuracy | +/- 0.6 % full scale at 60 °C, +/- 0.2 % full scale at 20 °C |
| Analogue output current | 4-30 mA, output selected 4...20 mA no input or input wire broken, -30-0 mA, output selected 0...20 mA no input or input wire broken |
| Tightening torque | 0.6-1.1 N.m |
| Local signalling | LED (green) for power ON |
| Net weight | 0.15 kg |
| Analogue output voltage | -15...0 V no input or input wire broken |
| [Ui] rated insulation voltage | 2 kV |
| Current consumption | <= 90 mA for current output, <= 70 mA for voltage output |
| Environment | |
| Resistance to fast transients | 2 kV (on power supply) conforming to IEC 61000-4-4, 1 kV (on input-output) conforming to IEC 61000-4-4 |
| Fire resistance | 850 °C conforming to UL, 850 °C conforming to IEC 60695-2-1 |
| Resistance to electrostatic discharge | 8 kV (in air) conforming to IEC 61000-4-2 level 3, 6 kV (in contact) conforming to IEC 61000-4-2 level 3 |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Disturbance radiated/conducted | CISPR 22 group 1 - class B, CISPR 11 |
| IP degree of protection | IP50 (housing), IP20 (terminal block) |
| Ambient air temperature for operation | 0-60 °C 2 cm spacing, 0-50 °C mounting side by side |
| Vibration resistance | 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Standards | IEC 60947-1, IEC 60584-1 |
| Product certifications | CSA, GL, UL |
