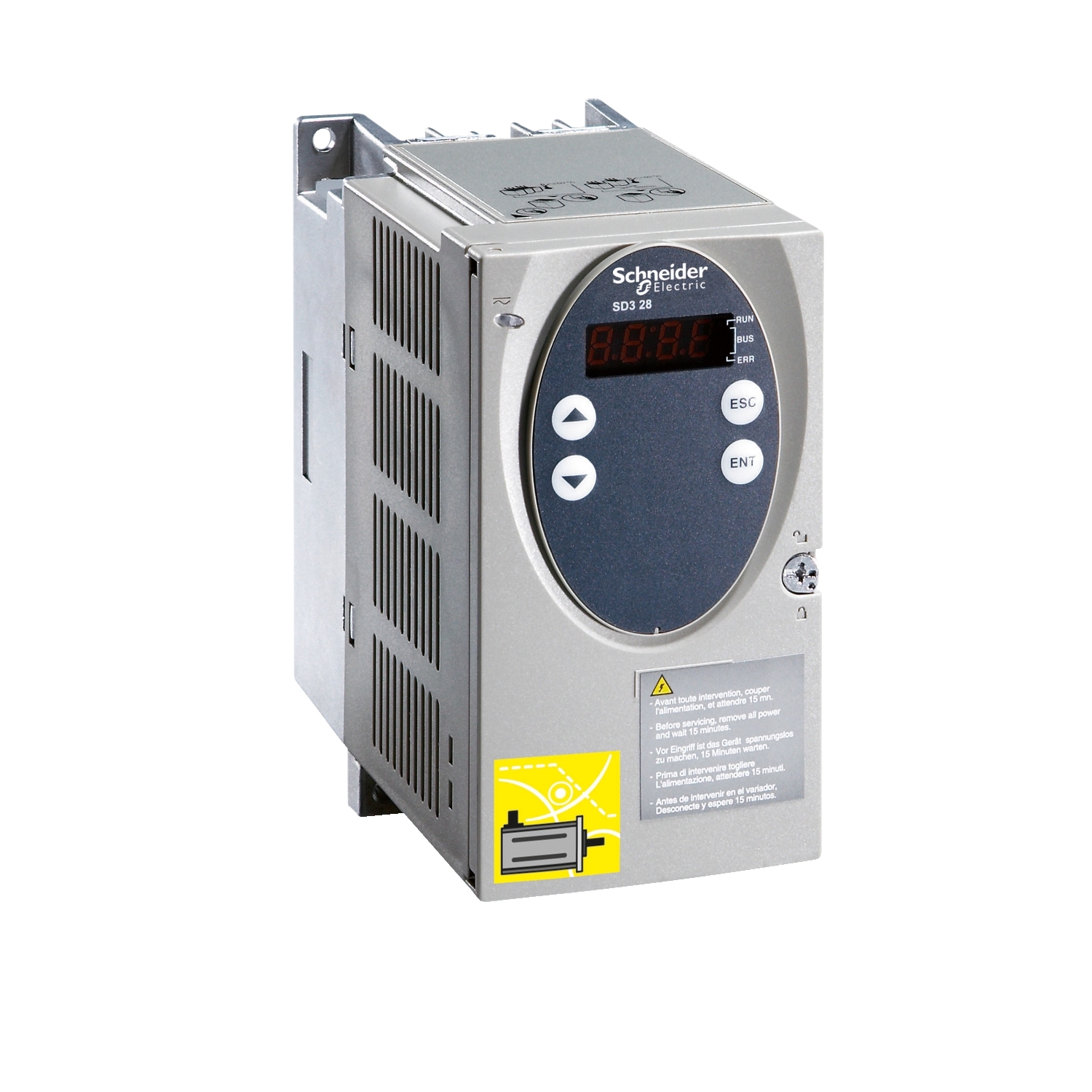

This product is part of the Lexium SD3 and motors an offer of 3-phase stepper drives and stepper motors. The 3-phase stepper motor drive with an integrated Profibus DP fieldbus communication interface. High torque is available even at low speeds. It is a motor drive with a rated supply voltage of 100V to 120V, 200V to 230V, a motor phase current of 2.5A, a nominal power of 270W at 230V and maximum mechanical speed of motor drive is 3000RPM. It is provided with natural convection cooling method. It is an IP20 and IP40 rated product. Its dimensions are 72mm (Width) x 140mm (Depth) x 145mm (Height). It weighs 1.1kg. The Lexium SD3 with its excellent constant velocity characteristics is ideal for applications such as printing, paper, packaging, handling, labelling, textile industry, scanning, food and beverages. This product is certified by CUL, TUV, CE and UL. It meets EN/IEC 50178, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. The SD3 is an universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Connect the stepper motor to the drive, set the current and step resolution. Stepper drives and stepper motors for motion control.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SD328 |
| Bus type | fieldbus |
| Supply voltage limits | 100-120 V, 200-240 V |
| Range of product | Lexium SD3 |
| Product or component type | motion stepper drive |
| Complementary | |
| Input voltage | 24 V -15 %/+20 % for 24 V control voltage |
| Maximum output frequency | 200 kHz for pulse/direction interface pulse/direction, 400 kHz for pulse/direction interface A/B |
| Compatibility code | SD328 |
| Type of cooling | natural convection |
| Supply voltage description | single phase 115 V, single phase 230 V |
| Maximum input frequency | 400 kHz for signal input ENC_A, ENC_B, ENC_I - control type A/B, 200 kHz for signal input ENC_A, ENC_B, ENC_I - control type pulse/direction |
| Associated fuse rating | 6 A at 230 V, 6 A at 115 V |
| Communication interface | Profibus DP fieldbus, integrated |
| Voltage state 0 guaranteed | -3...5 V for 24 V input signals |
| Input current | 10 mA for 24 V input signals |
| Maximum voltage drop | <1 V 50 mA load for 24 V output signals |
| Output voltage | 4.75...5.25 V (ENC+5V_OUT signal output), <= 30 V (24 V output signals) |
| Maximum switching current | 50 mA (24 V output signals) |
| Height | 145 mm |
| Maximum mechanical speed | 3000 rpm |
| [Us] rated supply voltage | 200...230 V - 15...10 %, 100...120 V - 15...10 % |
| Network number of phases | 1, single phase |
| Power losses | <= 26 W |
| Depth | 140 mm |
| Nominal power | 270 W at 230 V, 180 W at 115 V |
| Overvoltage category | III |
| Width | 72 mm |
| Resistance | 5 kOhm (pulse/direction interface) |
| Safety function | safe torque off safety function for system process conforming to IEC/EN 61800-5-2, safe torque off safety function for system process conforming to EN/IEC 61508 level SIL2, safe torque off safety function for machine conforming to ISO 13849-1 level d, safe torque off safety function for machine conforming to IEC/EN 61800-5-2 |
| Network frequency limits | 50-60 Hz (- 15...10 %) |
| Short-circuit current | 0.5 kA |
| Voltage state 1 guaranteed | 15...30 V for 24 V input signals |
| Maximum leakage current | 30 mA <10 m IEC 60990-3 |
| Net weight | 1.1 kg |
| Residual ripple | < 5 % (24 V control voltage) |
| Current consumption | <= 0.2 mA 24 V control voltage, 4 A 115 V main supply, 3 A 230 V main supply |
| Supply voltage type | AC/DC |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Format of the drive | block |
| Maximum motor phase current | 2.5 A |
| Inrush current | 60 A |
| Physical interface | RS422 - signal input ENC_A, ENC_B, ENC_I, RS422 - pulse/direction interface |
| Environment | |
| IP degree of protection | on upper part: IP40 (without removal of protective film), IP20 |
| Relative humidity | 5-85 % without condensation |
| Ambient air temperature for storage | -25-70 °C |
| Ambient air temperature for operation | 0-50 °C |
| Marking | CE |
| Electromagnetic compatibility | voltage/current impulse level 3 conforming to IEC 61000-4-5, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, immunity to electrical transients level 4 conforming to IEC 61000-4-4, electrostatic discharge level 3 conforming to IEC 61000-4-2 |
| Pollution degree | level 2 |
| Operating altitude | > 1000...< 2000 m without derating (maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), <= 1000 m without derating |
| Vibration resistance | 1.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6 |
| Standards | IEC 61800-3 environment 1, IEC 50178, EN/IEC 61800-3 environment 2, IEC 61800-5-1, IEC 61800-3 |
| Product certifications | cUL, TÜV, UL |
