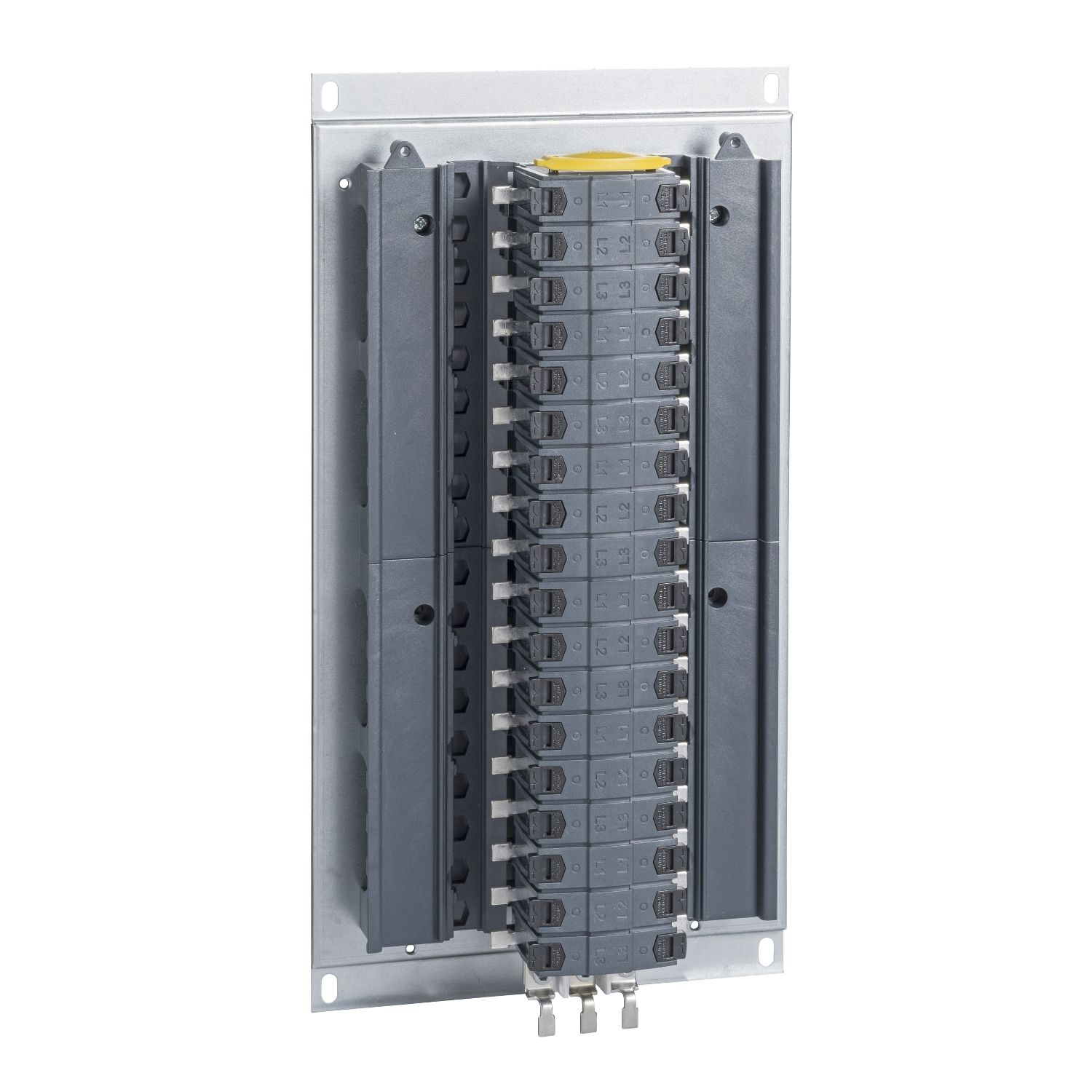

This Acti9 product is a pan assembly and can be installed in the Acti9 Isobar B distribution board. It provides 12 ways (outgoer) of 3P+N. The In rated current is up to 250A. It is dedicated to 3 phase for switchboard mounting without earth and neutral bars, up to 63A. This pan assembly does not have the option to convert phase to neutral for outgoing poles and incomer connection kits. It contains a switch disconnector (3P), molded case circuit breaker (3P), and a terminal block (3P). It can protect a residual current circuit breaker with overcurrent protection (up to 45A) and a miniature circuit breaker (up to 63A). This pan assembly is provided with a mounting plate. The Ui rated insulation voltage is 500VAC. It has a Uimp rated impulse withstand voltage of 6kV. The rated voltage is up to 415VAC with an operating frequency of 50Hz to 60Hz. The Icw rated short-time withstand current is 25kA at 0.1s. The dimensions are (W) 210mm x (L) 398mm x (D) 90mm. This product complies with IEC 61439 standard.
