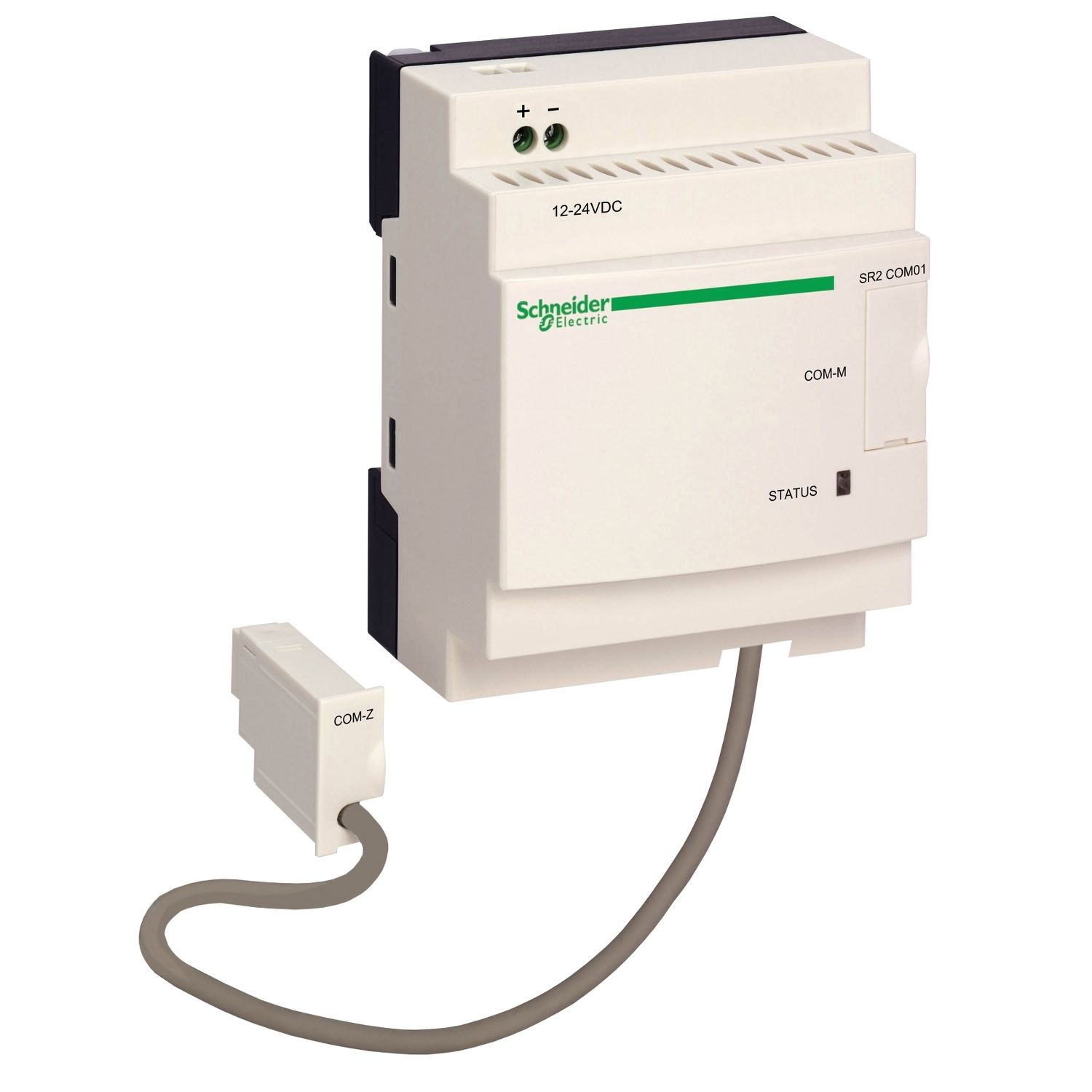

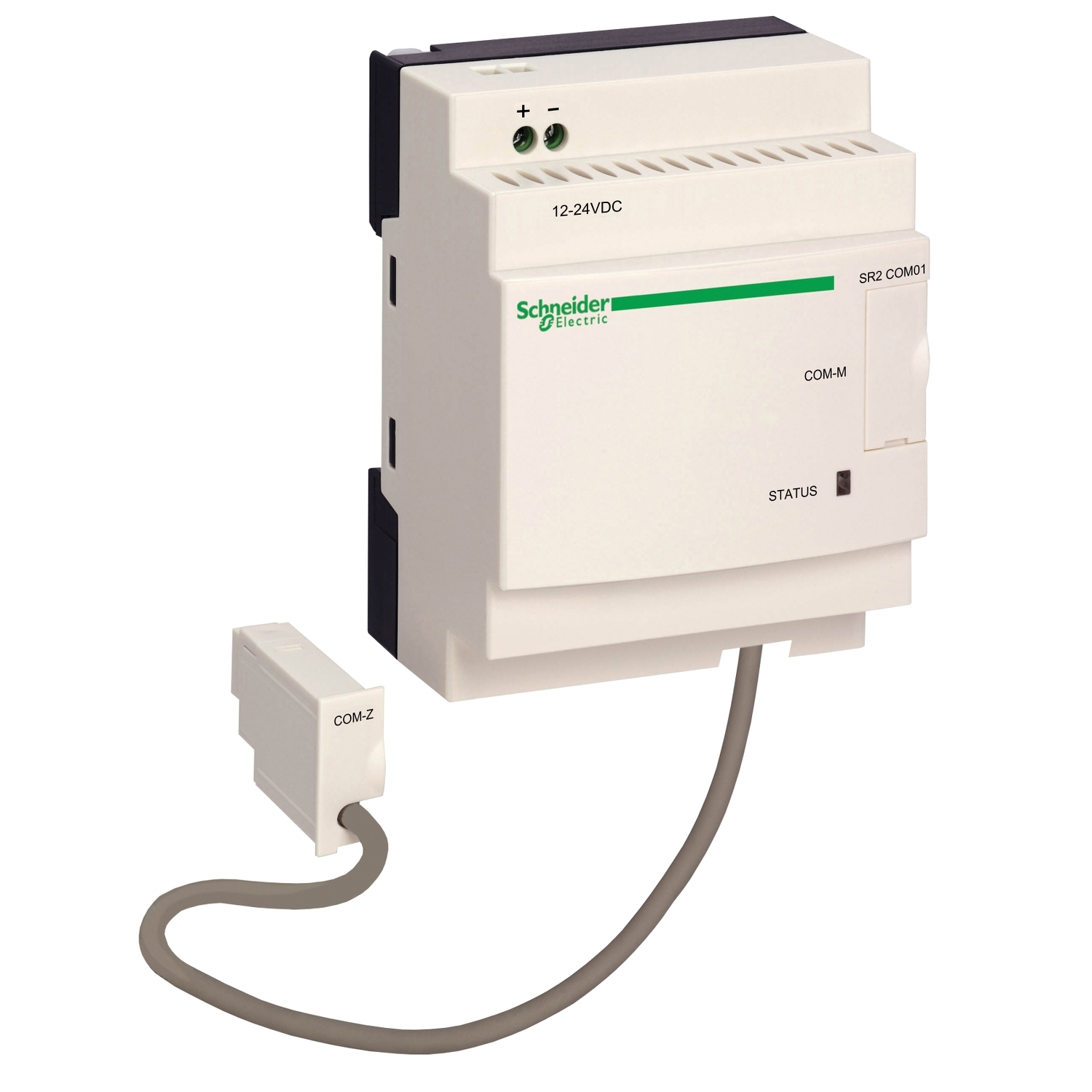

Modem communication interface, Zelio Logic, for smart relay

Manufacturer: Schneider Electric

SKU: SR2COM01

GTIN: 3389110550207

Catalog

User guide

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $504.35 inc GST

Price: $610.26 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This SR2 communication interface has a coil control voltage of 12V-24V DC. It can transfer program, send alarm to e-mail,and send alarm/receive instruction. It monitors or remotes control of machine or installation that operate without personnel. Communication interface allows messages, telephone numbers, and calling. It has flexibility design for space-saving with retractable mounting lug, spring for clip-on.

Products specifications

Attribute name	Attribute value
Main
Range of product	Zelio Logic
Data backed up	flash memory
Product or component type	modem communication interface
Complementary
Insulation	by the cable SR2 CBL07, connector type: Com-M specific to Zelio, 1780 V optocoupler, connector type: Com-Z specific to Zelio
Number of messages	28
Product compatibility	SR.B....., SR2E.....
Tightening torque	0.5 N.m
Power dissipation in W	1.1 W
Supply voltage limits	10-28.8 V
Function available	transfer program, send alarm/receive instruction, send alarm to e-mail address, update firmware monitoring
[Us] rated supply voltage	12...24 V DC
Associated fuse rating	1 A
Reverse polarity protection	with
Kit composition	modem communication interface, 1 x SR2CBL07
Maximum supply current	550 A, 30 mA 24 V, 30 mA 12 V
Connections - terminals	screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
Electrical data recording	date and time, telephone/e-mail, discrete and digital value
Net weight	0.2 kg
Electrical connection	1 cable Com-Z specific to Zelio, specific Zelio communication protocol for Zelio Logic smart relays SR.B..... and SR2 E..... Version (>= V3.1), 1 cable Com-M specific to Zelio, RS232 serial, specific Zelio communication protocol for link with the modem, AT commands
Environment
Relative humidity	95-95 % without condensation or dripping water
Ambient air temperature for storage	-40-70 °C
Pollution degree	2 conforming to IEC 61131-2
IP degree of protection	IP40 (front panel) conforming to IEC 60529, IP20 (terminal block) conforming to IEC 60529
Ambient air temperature for operation	-20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C conforming to IEC 60068-2-1 and IEC 60068-2-2
Disturbance radiated/conducted	class B conforming to IEC 55022-11 Group 1
Operating altitude	2000 m
Maximum altitude transport	3048 m
Environmental characteristic	low voltage directive conforming to IEC 61131-2, EMC directive conforming to IEC 61131-2 zone B, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-2
Standards	IEC 60068-2-6 Fc, IEC 61000-4-6 level 3, IEC 61000-4-2 level 3, IEC 61000-4-5, IEC 61000-4-12, IEC 61000-4-4 level 3, IEC 60068-2-27 Ea, IEC 61000-4-3, IEC 61000-4-11
Product certifications	UL, C-Tick, CSA, GOST
