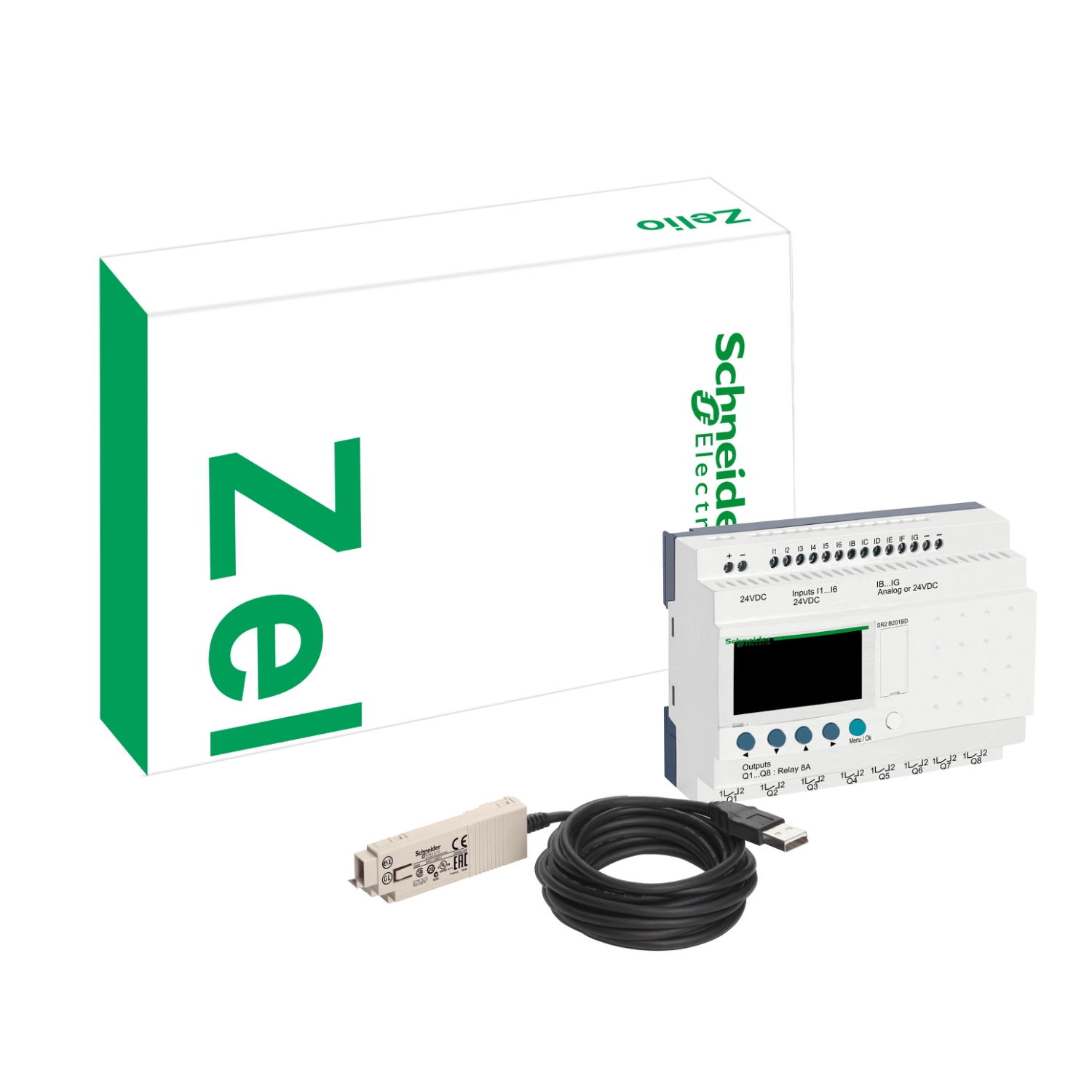

Smart relay discovery pack, Zelio Logic, 12 I/O, 100...240 V AC

Manufacturer: Schneider Electric

SKU: SR2PACKFU

GTIN: 3389110549393

Catalog

User guide

Environmental Disclosure

Circularity Profile

Declaration of conformity

Availability: Out of stock

Old price: $556.60 inc GST

Price: $673.49 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This product is part of Smart Relay - Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This Zelio Logic modular discovery pack features 12 I/Os, local display, 120 with ladder and 0 to 200 with FBD programming control scheme lines. It is a smart relay with rated supply voltage of 100 to 240V AC and cycle time of 6ms to 90ms. It offers 8 discrete inputs with voltage of 100 to 240V AC and 4 relay outputs from 24V to 250V AC and 5V to 30V DC. It is an IP20 and IP40 rated product. It weighs 0.7kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.

Products specifications

Attribute name	Attribute value
Main
Discrete input number	8
Range of product	Zelio Logic
Product or component type	compact discovery packs
Number of outputs	4 relay
Complementary
Supply frequency	50/60 Hz
Operating rate in Hz	10 Hz (no load) for relay output, 0.1 Hz (at Ie) for relay output
[Uimp] rated impulse withstand voltage	4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Protection type	against inversion of terminals (control instructions not executed)
Isolation voltage	1780 V
Tightening torque	0.5 N.m
Supply voltage limits	85-264 V
Current state 0 guaranteed	<= 0.5 mA (discrete input)
Electrical durability	DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1, DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1, AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1, AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1
Voltage state 0 guaranteed	<= 40 V for discrete input
Local display	with
Clock	with
Backup time	10 years at 25 °C
Discrete input voltage	100...240 V AC
Output thermal current	8 A for all 4 outputs for relay output
Discrete input frequency	57...63 Hz, 47...53 Hz
Contacts type and composition	NO for relay output
[Us] rated supply voltage	100...240 V
Checks	program memory on each power up
Kit composition	cable PC SR2USB01 for connection to PC, SR2B121FU
Cycle time	6-90 ms
Switching capacity in mA	>= 10 mA at 12 V (relay output)
Maximum supply current	80 mA at 100 V (without extension), 30 mA at 240 V (without extension)
Mechanical durability	10000000 cycles for relay output
Overvoltage category	III conforming to IEC 60664-1
Voltage state 1 guaranteed	>= 79 V for discrete input
Connections - terminals	screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
Output voltage limits	24...250 V AC, 5...30 V DC (relay output)
Input/output number	12
Net weight	0.7 kg
Response time	5 ms (from state 1 to state 0) for relay output, 10 ms (from state 0 to state 1) for relay output, 50...255 ms with FBD programming (from state 1 to state 0) for discrete input, 50...255 ms with FBD programming (from state 0 to state 1) for discrete input, 50 ms with ladder programming (from state 1 to state 0) for discrete input, 50 ms with ladder programming (from state 0 to state 1) for discrete input
Current state 1 guaranteed	>= 0.17 mA (discrete input)
Discrete input current	0.6 mA
Power consumption in VA	7 VA without extension
Clock drift	6 s/month at 25-25 °C, 12 min/year at 0-55 °C
Number or control scheme lines	0-200 with FBD programming, 120-120 with ladder programming
Input impedance	350 kOhm for discrete input
Environment
Relative humidity	95-95 % without condensation or dripping water
Ambient air temperature for storage	-40-70 °C
Pollution degree	2 conforming to IEC 61131-2
IP degree of protection	IP40 (front panel) conforming to IEC 60529, IP20 (terminal block) conforming to IEC 60529
Ambient air temperature for operation	-20-55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2
Disturbance radiated/conducted	class B conforming to EN 55022-11 group 1
Operating altitude	2000 m
Maximum altitude transport	3048 m
Environmental characteristic	low voltage directive conforming to IEC 61131-2, EMC directive conforming to IEC 61131-2 zone B, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-2
Immunity to microbreaks	10 ms
Standards	IEC 61000-4-4 level 3, IEC 61000-4-5, IEC 60068-2-27 Ea, IEC 61000-4-6 level 3, IEC 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-11, IEC 61000-4-12, IEC 61000-4-2 level 3
Product certifications	GL, C-Tick, UL, CSA, GOST
