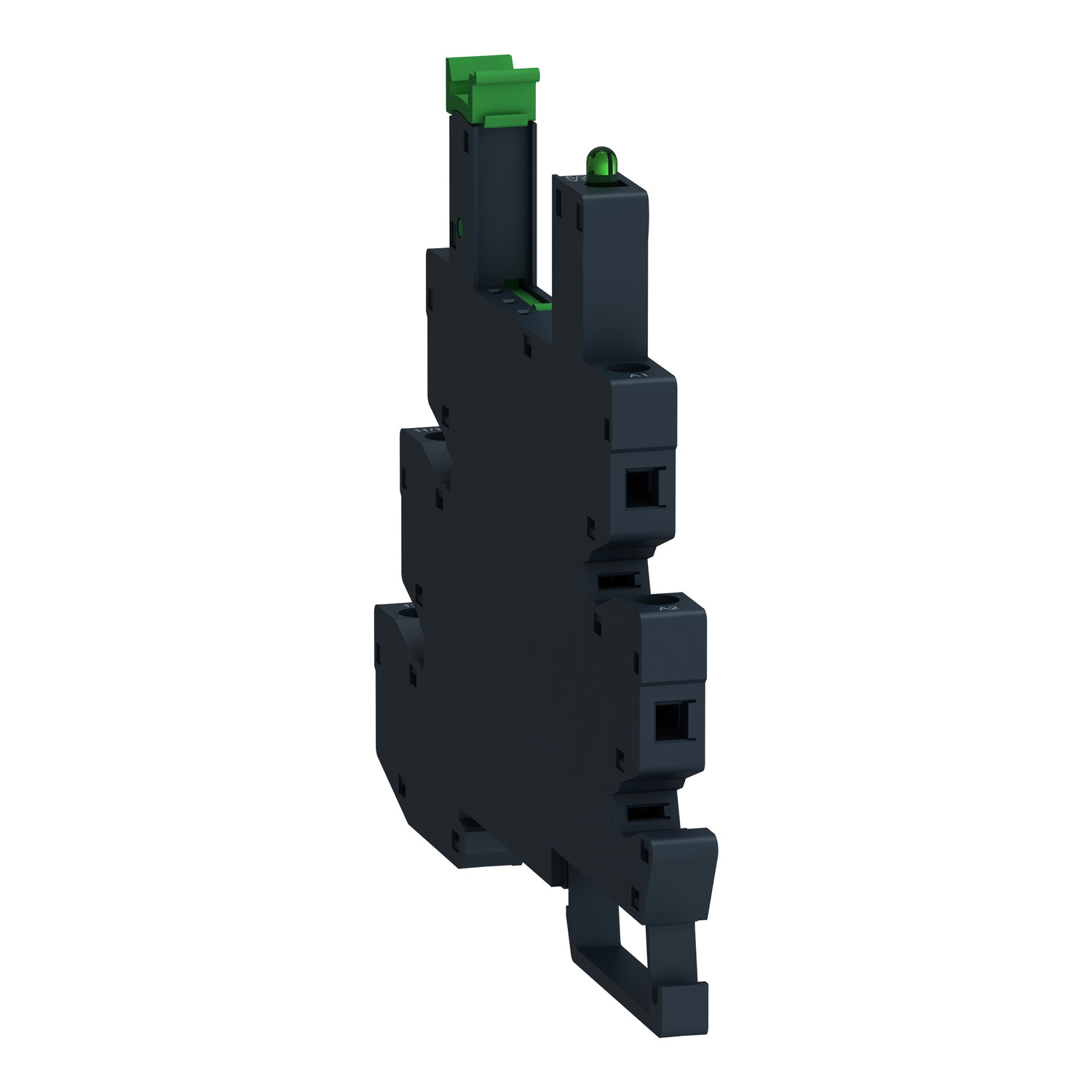

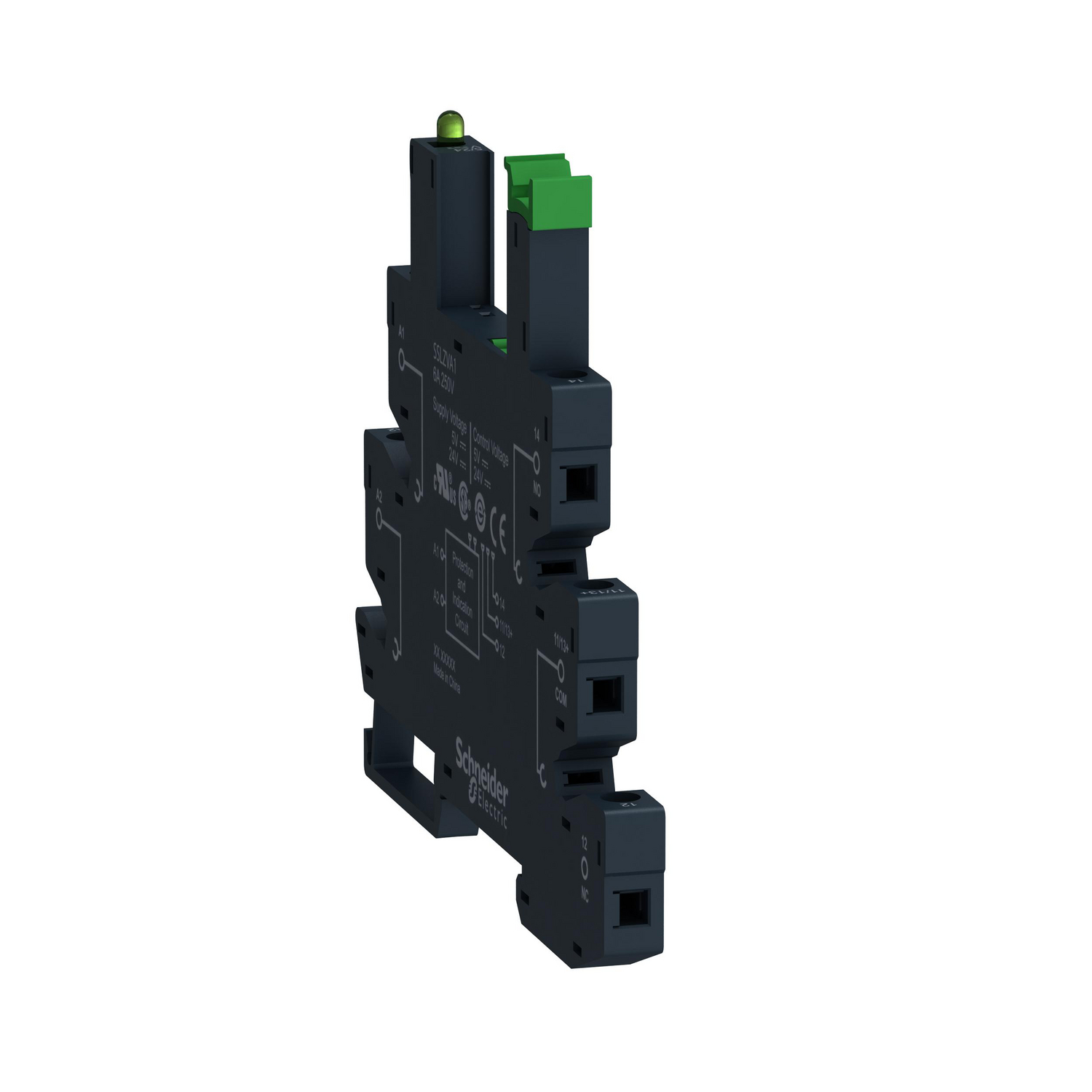

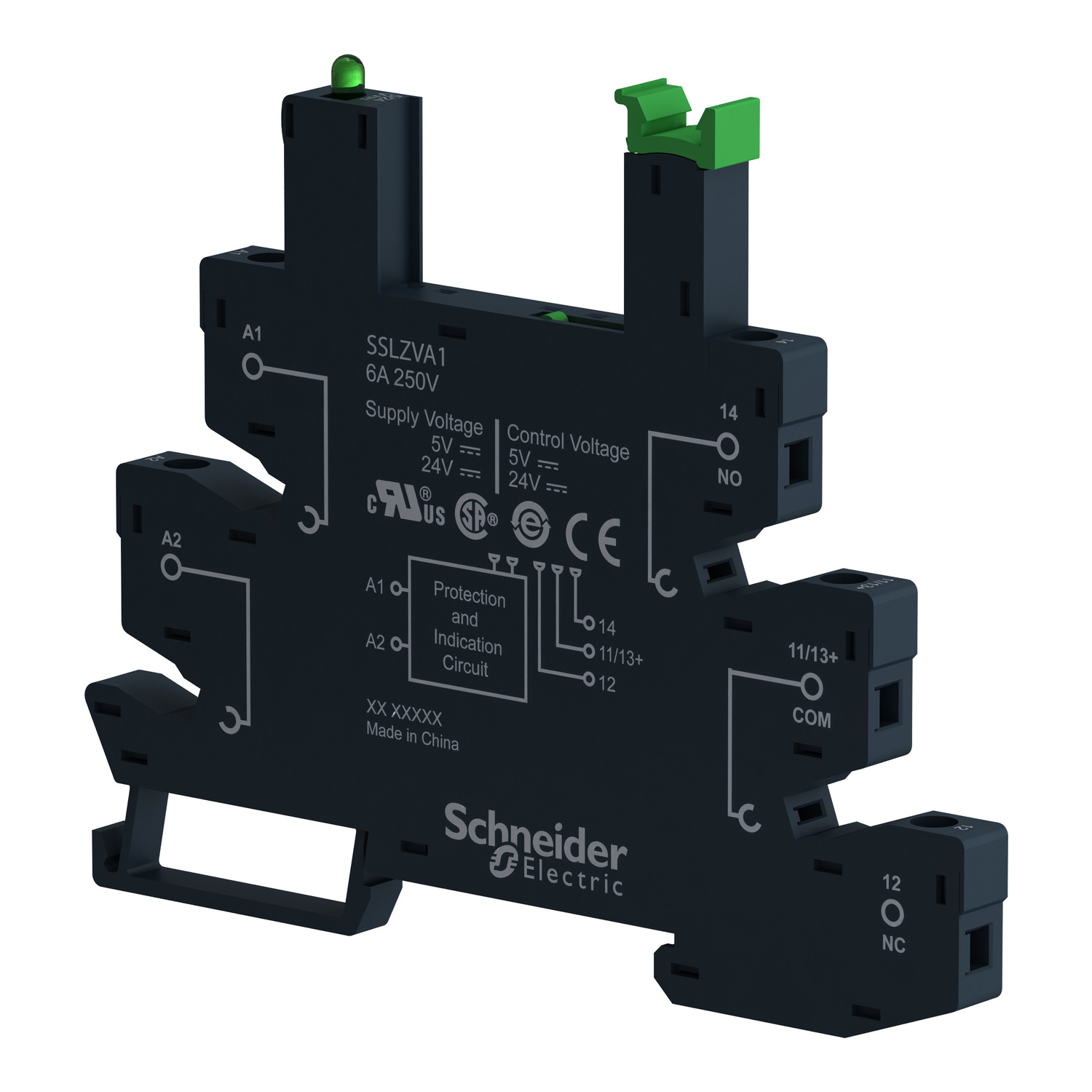

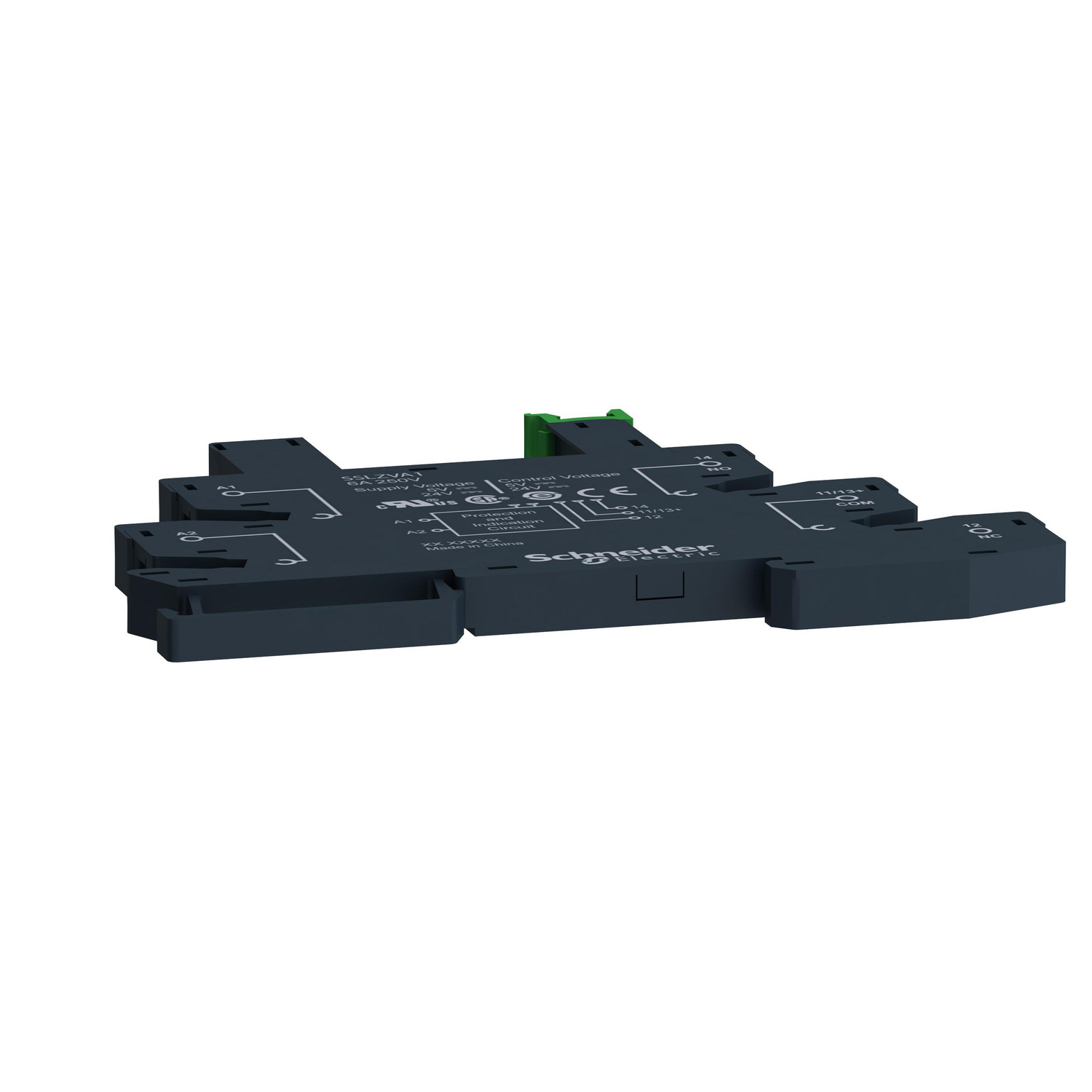

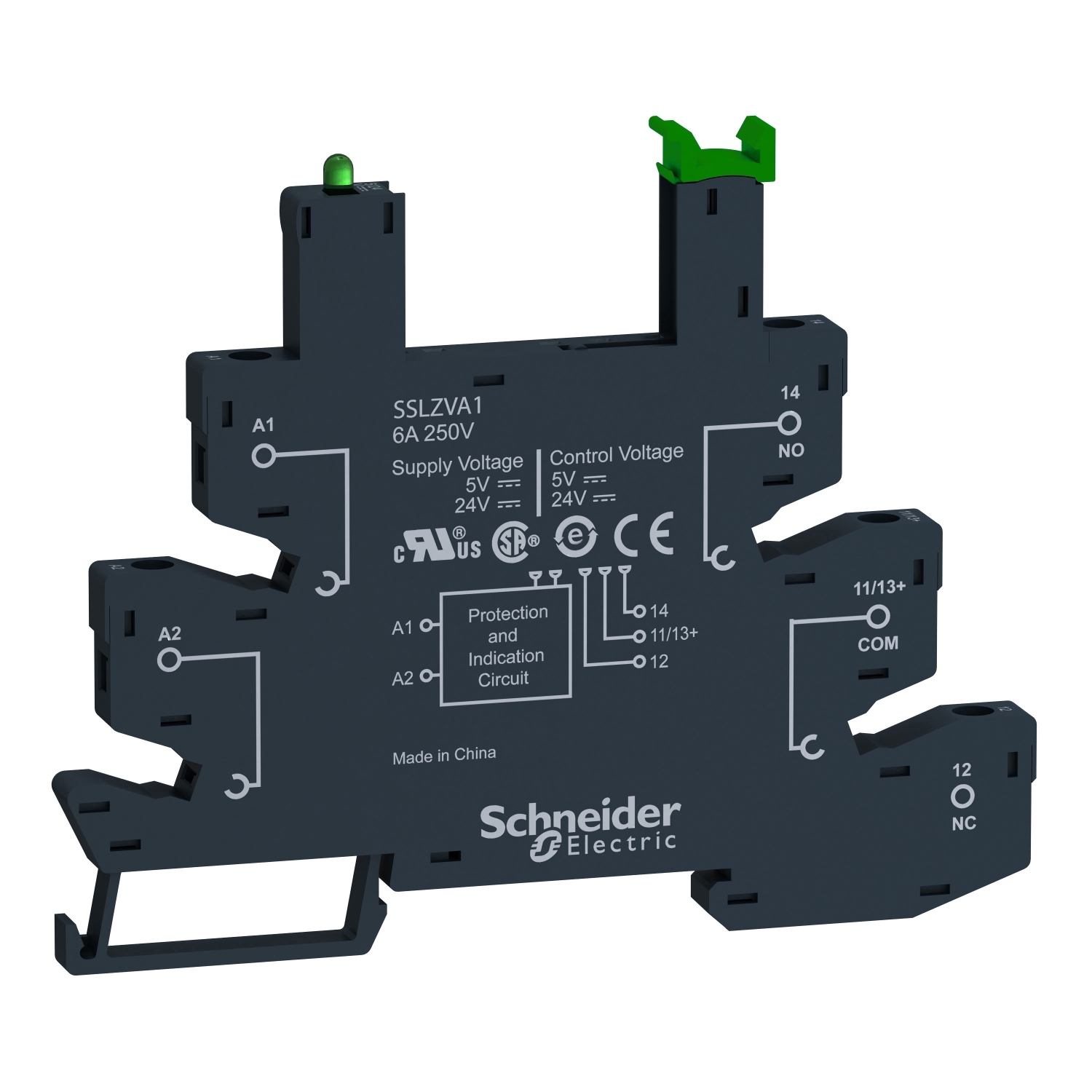

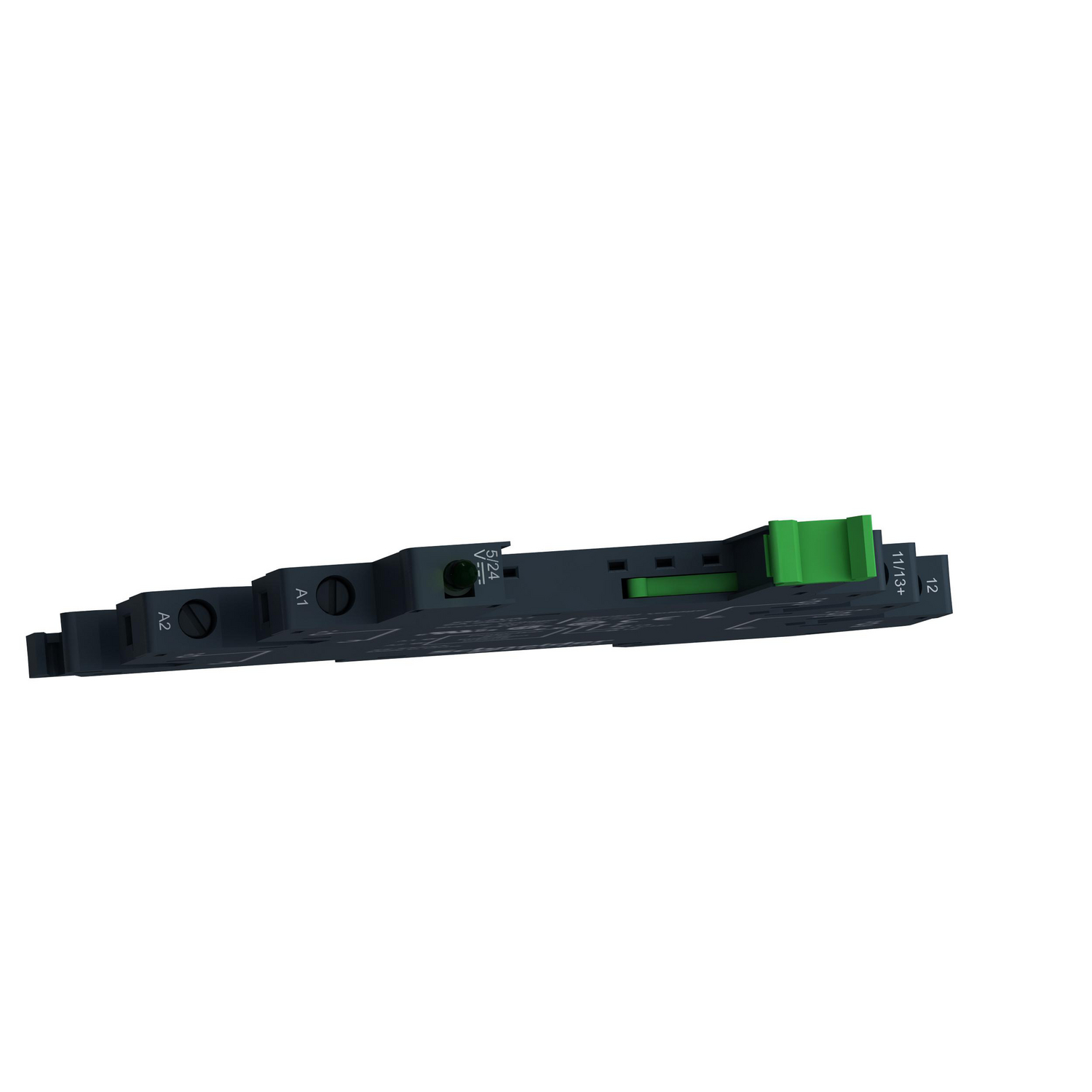

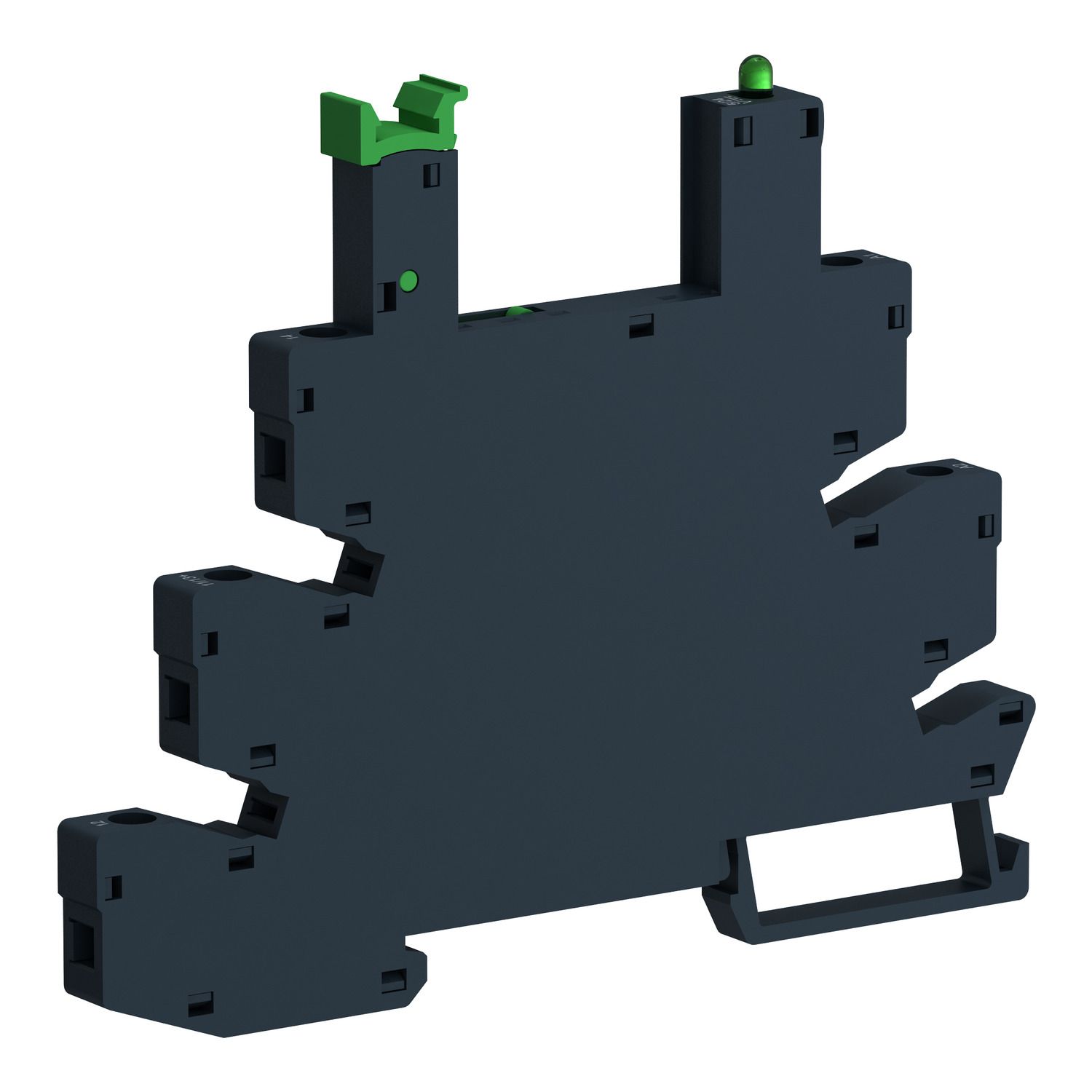

This Harmony SSL socket for solid state slim interfacing relay has screw clamp terminals and a rated voltage of 5V DC. It also offers clear circuit labelling on the sides to facilitate installation and maintenance. It features a visual indicator LED for a simpler troubleshooting and commissioning. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SSLZ |
| [Uc] control circuit voltage | 24 V, 5 V |
| Product compatibility | solid state relay SSL with NO contact at 5 V DC, solid state relay SSL with NO contact at 24 V DC |
| Range of product | Harmony Solid State Relays |
| [Ith] conventional free air thermal current | 6 A |
| [Ue] rated operational voltage | < 250 V DC |
| Switching voltage | 24 V DC, 5 V DC |
| [In] rated current | 6 A |
| Product or component type | socket for SSL1 |
| Complementary | |
| Group of product | SSL_NO_SEP_FLAT_SCREW_5-24 |
| Compatibility code | SSLZ |
| Sale per indivisible quantity | 10 |
| Fixing mode | clip-on (35 mm DIN rail) |
| Contact terminal arrangement | separate |
| Shape of pin | flat |
| Height | 101 mm |
| Depth | 78.6 mm |
| Width | 6.2 mm |
| Local signalling | LED (green) for input status |
| Connections - terminals | screw clamp terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw clamp terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end, screw connectors |
| Net weight | 0.0285 kg |
| Tightening torque | < 0.4 N.m for M2.5 screw(s) |
| Environment | |
| IP degree of protection | IP20 |
| Ambient air temperature for storage | -40-85 °C |
| Marking | CE |
| Ambient air temperature for operation | -40-70 °C |
| Flame retardance | V0 conforming to UL 94 |
| Standards | IEC 61984 |
| Product certifications | UL 508, CSA C22-2 No 14 |
